VRS: Rotary V Rings Manufacturers, Suppliers, Exporters

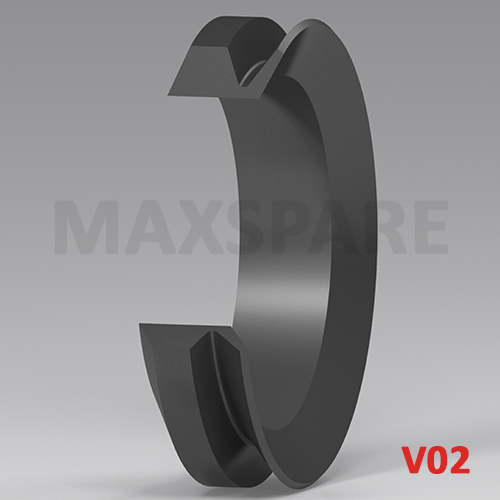

Max Spare : V02

Profile : V-Rings

MATERIALS
NBR
MAX OPERATING CONDITION
Pressure :
Temperature : -30° to +100°
Speed :10 m/s

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	VRing Type	ID	OD	THK	Material	Mould No.
V020046301		4.00	8.00	3.90/5.20	FKM	VR-891
V020050701		5.00	9.00	3.90/5.20	NBR	VR-880
V020073101		7.00	11.00	3.90/5.20	EPDM	VR-108
V02009S701		9.00	15.00	5.6/7.70	NBR	VR-497
V020100701		10.50	16.50	5.60/7.70	NBR	VR-881
V020120702		12.00	20.00	4.00/6.00	NBR	VR-913
V020126301		12.50	18.50	5.6/7.7	FKM	VR-431
V020120701 (Stock Item)	V-14 S	12.50	18.50	5.6/7.70	NBR	VR-498
V020140701		14.00	20.00	5.6/7.7	NBR	VR-500
V020143101		14.00	20.00	5.6/7.70	EPDM	VR-517
V020188901		18.00	24.00	4/6	PU	PPA-3456
V020180701 (Stock Item)	V-20 S	18.00	26.00	7.90/10.50	NBR	VR-381
V020200701		20.00	28.00	7.9/10.50	NBR	VR-193
V020220701 (Stock Item)	V-25 S	22.00	30.00	7.9/10.50	NBR	VR-163
V020224201		22.00	30.00	7.9/10.50	SILICON	VR-165
V020250601		25.00	33.00	7.9/10.50	NBR	VR-967
V020250701		25.00	33.00	7.90/10.50	NBR	VR-105
V020266301		26.00	34.00	4.60/7.10	FKM	VR-661
V020270801		27.00	35.00	6.50/9	NBR	VR-737
V020270701 (Stock Item)	V-30 S	27.00	35.00	7.9/10.50	NBR	VR-241
V020276301		27.00	35.00	7.9/10.50	FKM	VR-625
V020281901		28.00	38.00	8.5/13	NEOPRENE	VR-624
V020290701 (Stock Item)	V-32 S	29.00	37.00	7.9/10.5	NBR	VR-414
V020310701 (Stock Item)	V-35 S	31.00	39.00	7.9/10.50	NBR	VR-242
V020310701		31.00	39.00	7.9/10.50	NBR	VR-619
V020316301		31.00	39.00	7.9/10.50	FKM	VR-899
V020336401		33.00	40.60	6.00/8.50	FKM	VR-947
V02034T901		34.00	42.00	7.9/10.50	FKM	VR-251
V020340701		34.00	42.00	7.9/10.50	NBR	VR-389
V020341901		34.00	42.00	8/10.00	NEOPRENE	VR-792
V020366301		36.00	44.00	6.30/8.80	FKM	VR-660
V020366302 (Stock Item)		36.00	46.00	9.5/13.00	FKM	VR-172
V020360701 (Stock Item)	V-40 S	36.00	46.00	9.5/13.00	NBR	VR-966
V020360601		36.00	46.00	9.50/13.00	NBR	VR-971
V020400703		40.00	49.00	7/10.00	NBR	VR-834
V020400701 (Stock Item)	V-45 S	40.00	50.00	9.5/13	NBR	VR-965
V020401901		40.00	50.00	9.5/13.00	NEOPRENE	VR-1010
V020400702 (Stock Item)		40.00	50.00	9.5/13.00	NBR	VR-189
V020401801		40.00	56.80	9.50/16.00	NEOPRENE	VR-103
V020453201		45.00	55.00	10/13.00	EPDM	VR-147
V020456302		45.00	55.00	10/13.30	FKM	VR-658
V020450701 (Stock Item)	V-50 S	45.00	55.00	9.50/13	NBR	VR-964
V020456301		45.00	55.00	9.50/13.00	FKM	VR-858
V020451801		45.00	61.80	9.50/16.00	NEOPRENE	VR-106
V020461901		46.00	56.00	10/15	NEOPRENE	VR-623
V020490702		49.00	59.00	7.60/10.50	NBR	VR-684
V020490701 (Stock Item)	V-55 S	49.00	59.00	9.5/13	NBR	VR-152
V020496301		49.00	59.00	9.5/13.00	FKM	VR-1005
V020508701		50.50	63.10	23.50	PU	PPA-2776
V020536601		53.80	71.50	9.80	FKM	VR-365
V020542001		54.00	62.00	8.00/10.00	NEOPRENE	VR-841
V020540701 (Stock Item)	V-60 S	54.00	64.00	9.5/13	NBR	VR-218
V020546301		54.00	64.00	9.5/13	FKM	VR-630
V020546201		54.00	64.00	9.5/13.00	FKM	VR-302
V020541801		54.00	70.80	9.50/16.00	NEOPRENE	VR-101
V02058T801		58.00	68.00	9.5/13.00	FKM	VR-326
V020580701 (Stock Item)	V-65 S	58.00	68.00	9.50/13	NBR	VR-144
V020590701		59.00	69.00	9.50/13	NBR	VR-728
V020606401		60.00	76.00	16.00	FKM	VR-798
V020630701 (Stock Item)	V-70 S	63.00	75.00	11.3/15.5	NBR	VR-270
V020633101		63.00	75.00	11.3/15.50	EPDM	VR-173
V02063T801		63.00	75.00	11.30/15.50	FKM	VR-895
V020632001		63.00	75.00	9.00/12.00	NEOPRENE	VR-842
V020670701 (Stock Item)	V-75 S	67.00	79.00	11.3/15.5	NBR	VR-157
V020670602		67.00	79.00	11.3/15.50	NBR	VR-287
V020676201		67.00	79.00	11.3/15.50	FKM	VR-298
V020678901		67.00	79.00	11.30/15.50	PU	PPA-3204
V020706301		70.00	82.00	10/14	FKM	VR-659
V020722001		72.00	84.00	11.00/15.00	NEOPRENE	VR-840
V020726301		72.00	84.00	11.3/15.50	FKM	VR-907
V020720701 (Stock Item)	V-80 S	72.00	84.00	15.5	NBR	VR-143
V020766301		76.00	88.00	11.30/15.50	FKM	VR-879
V020760701 (Stock Item)	V-85 S	76.00	88.00	15.5/11.30	NBR	VR-166
V020761101		76.50	89.00	23.80	NBR	VR-210
V020768701		76.70	89.30	23.50	PU	PPA-2775
V020812001		81.00	93.00	11.00/15.00	NEOPRENE	VR-839
V020810701 (Stock Item)	V-90 S	81.00	93.00	11.3/15.5	NBR	VR-142
V020810601		81.00	93.00	11.3/15.50	NBR	VR-266
V020816301		81.00	93.00	11.3/15.50	FKM	VR-922
V020856301		85.00	97.00	11.30/15.50	FKM	VR-194
V020850701 (Stock Item)	V-95 S	85.00	97.00	11.30/15.50	NBR	VR-639
V020900701 (Stock Item)	V-100 S	90.00	102.00	11.3/15.50	NBR	VR-906
V020906301		90.00	102.00	11.30/15.50	FKM	VR-680
V020900601		90.00	102.00	15.5	NBR	VR-148
V020901802		90.00	120.00	12.00/20.00	NEOPRENE	VR-847
V020990701 (Stock Item)	V-110 S	99.00	113.00	13.1/18	NBR	VR-156
V020996301		99.00	113.00	13.1/18	FKM	VR-464
V021080701 (Stock Item)	V-120 S	108.00	122.00	13.1/18	NBR	VR-150
V021086301		108.00	122.00	13.1/18	FKM	VR-465
V021160701		116.00	131.00	12.50/18	NBR	VR-789
V021176301		117.00	131.00	13.1/18	FKM	VR-466
V021170701 (Stock Item)	V-130 S	117.00	131.00	13.1/18	NBR	VR-959
V021170901		117.00	131.00	13.1/18.00	NBR	VR-149
V021260701 (Stock Item)	V-140 S	126.00	140.00	13.10/18	NBR	VR-168
V021280701		128.00	142.00	13.10/18	NBR	VR-730
V021301001		130.20	146.00	10.70/16.50	NBR	VR-832
V021350701 (Stock Item)	V-150 S	135.00	149.00	13.1/18	NBR	VR-320
V021356302		135.00	149.00	13.10/18.00	FKM	VR-848
V021400701		140.00	150.00	8.50/12.00	NBR	VR-816
V021440702		144.00	157.00	6.0/10.50	NBR	VR-682
V021446201		144.00	160.00	15.00/20.50	FKM	VR-306
V021440701 (Stock Item)	V-160 S	144.00	160.00	15/20.5	NBR	VR-162
V021490701		149.00	164.00	7.00/16.00	NBR	VR-199
V021511001		151.30	170.30	13.50/19.00	NBR	VR-830
V021530701 (Stock Item)	V-170 S	153.00	169.00	15/20.5	NBR	VR-158
V021536401		153.00	169.00	15/20.50	FKM	VR-950
V021620701		162.00	178.00	15/20.5	NBR	VR-198
V021626302		162.00	179.00	10.50/20.00	FKM	VR-898
V021716301		171.00	187.00	15/20.50	FKM	VR-446
V021710701 (Stock Item)	V-190 S	171.00	187.00	15/20.50	NBR	VR-785
V021800701 (Stock Item)	V-199 S	180.00	196.00	15/20.5	NBR	VR-277
V021800702		180.00	200.00	14.00	NBR	VR-803
V021861001		186.00	197.00	15.00/20.00	NBR	VR-831
V021980701		198.00	228.00	19.5/25	NBR	VR-248
