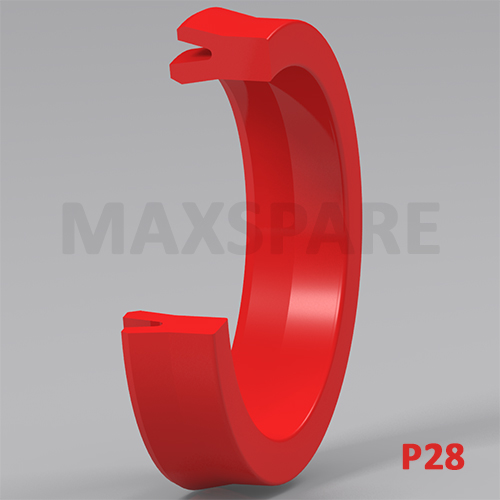

Max Spare : P28
Profile : Piston Seals
Details :
P28 is an asymmetrical piston seal for general purpose and has good overall performance. Due to typical piston sealing design having a shorter external lip, it allows pressure to act into the groove ensuring a maximum lip contact with the bore in pressurised conditions. It is a seal suited for split piston but can also be used with a single piston if made in NBR. P28 seal is available in polyurethane material also. Due to excellent wear resistance properties of polyurethane, the life expected is 3 times than that of NBR.
MATERIAL
Polyurethane 92 Shore A
Nitrile Rubber 85/90 Shore A
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
Pressure
:
400 Bar (PU)
:
150 Bar (NBR)
Speed
:
1.0 m/s (PU)
:
0.5 m/s (NBR)
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids.
APPLICATION
Light to medium duty hydraulic cylinders.
Also suitable for double acting cylinders.
Can also be used in an equivalent of SUA piston seal.
FEATURES
Good purpose seal.
Good overall performance.
Very good static and dynamic tightness.
Robust design.
Any size up to 3000 mm dia. available on request.
Manufactured by:
Max Spare Limited
Product ID:
4i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
d1
D1
L1
Material
Qty
Actions
Mould No.
P091338401
0.00
133.35
19.05/4.76
NBR/FABRIC
SUF-1147
P280036701
3.10
11.40
6.30
FKM
SUA-1661
P280046602
4.00
10.00
4.00
FKM
SUA-210
P28004S801
4.41
8.75
2.07
NBR
SUA-2433
P280046601
4.50
8.00
2.20
FKM
SUA-2434
P280040701
4.60
8.00
3.00
NBR
SUA-2424
P28004D501
4.70
8.20
5.00
HNBR
SUA-2488
P28005L503
5.00
12.00
5.30
PU
PUA-113
P28005L502
5.00
12.00
5.50
PU
PUA-449
P28005Y501
5.00
12.70
4.50
NYLON
PUA-253
P280060803
6.00
11.50
4.00
NBR
SUA-2665
P280061104
6.00
12.00
4.5
NBR
SUA-1382
P280061103
6.00
13.00
4.60
NBR
SUA-1220
P280063501
6.00
13.00
4.60
EPDM
SUA-2726
P28006T901
6.00
14.00
4
FKM
SUA-2280
P280061002
6.30
12.70
5.55
NBR
SUA-2500
P280061107
6.35
12.70
4.74
NBR
SUA-2158
P280071101
7.00
12.00
2.55
NBR
SUA-1830
P280071001
7.00
12.00
3.50
NBR
SUA-1641
P280071102
7.00
12.00
4
NBR
SUA-2081
P280071002
7.14
16.66
5.20
NBR
SUA-1944
P280083201
8.00
11.00
3
EPDM
SUA-1986
P280085902
8.00
16.00
5.8
PU
PUA-507
P280086601
8.00
16.00
7
FKM
SUA-2048
P28008L502
8.00
18.00
7.50
PU
PUA-759
P280081102
8.60
13.80
2.80
NBR
SUA-1829
P280098901
9.00
15.00
5.00
PU
PUA-283
P280095901
9.00
15.00
9
PU
PUA-668
P28009CF01
9.50
12.40
3
PU
PUA-808
P280096601
9.50
16.00
4.00
FKM
SUA-2580
P280091001
9.50
26.00
8
NBR
SUB-2702
P280090805
9.52
15.06
4.8
NBR
SUA-1399
P280091101
9.80
17.50
6
NBR
SUA-2186
P28010L504
10.00
13.00
1.90
PU
PUA-592
P280106602
10.00
16.00
2.5
FKM
SUA-1448
P280101002
10.00
16.00
2.50
NBR
SUA-1318
P280101102
10.00
16.00
2.55
NBR
SUA-1831
P28010L502
10.00
16.00
4.50
PU
PUA-422
P28010U201
10.00
16.00
5.00
FKM
SUA-2712
P28010R301
10.00
16.00
5.6
PU
PUA-483
P280106603
10.00
16.50
6.50
FKM
SUA-2226
P280111003
11.00
16.00
3
NBR
SUA-2062
P280110901
11.11
15.08
2.50
NBR
SUA-1389
P280128701
12.00
19.00
4.00
PU
PUA-179
P280126702
12.00
19.00
4.00
FKM
SUA-2705
P28012L506
12.00
20.00
4
PU
PUA-104
P280121002
12.00
20.00
5.00
NBR
SUA-1157
P280124601
12.00
20.00
6
SILICON
SUA-1813
P280126603
12.00
22.00
8.00
FKM
SUA-699
P28012L505
12.00
25.00
10
PU
PUA-904
P280126602
12.50
25.00
8
FKM
SUA-1634
P280126701
12.70
18.24
3.00
FKM
SUA-2565
P280121106
12.70
19.05
3.55
NBR
SUA-614
P280131101
13.00
19.00
4.4
NBR
SUA-1003
P280130801
13.00
19.00
4.40
NBR
SUA-1672
P280130601
13.00
19.00
4.50
NBR
SUA-725
P130134201
13.00
20.00
6.30
SILICON
SUA-2540
P280140801
14.00
20.00
2.4
NBR
SUA-1369
P28014L502
14.00
20.00
4
PU
PUA-732
P280146601
14.00
20.00
5
FKM
SUA-855
P280146602
14.00
20.00
7
FKM
SUA-2075
P28014L503
14.00
22.00
5
PU
PUA-908
P280146701
14.00
22.00
5.5
FKM
SUA-1155
P280141101
14.00
22.00
5.5
NBR
SUA-261
P28014L501
14.00
22.00
6
PU
PUA-578
P28014L504
14.00
22.00
6.00
PU
PUA-184
P28014U201
14.00
22.00
6.50
FKM
SUA-1773
P280140701
14.00
26.00
8.00
NBR
SUB-4333
P280140804
14.30
20.63
6.20
NBR
SUA-716
P280155903
15.00
20.00
4
PU
PUA-915
P280156602
15.00
20.00
7
FKM
SUA-2204
P280151002
15.00
25.00
7
NBR
SUA-1733
P280156601
15.00
25.00
7
FKM
SUA-2014
P280151102
15.87
22.22
3.55
NBR
SUA-612
P280161002
16.00
2.50
NBR
SUB-2597
P28016C601
16.00
24.00
5
FKM
SUA-2426
P280166602
16.00
25.00
7.30
FKM
SUA-2223
S28016L501
16.00
27.00
7.50
PU
PUB-2143
P280171004
17.00
24.00
5.50/6.50
NBR
SUA-697
P280171003
17.00
24.00
6.00
NBR
SUA-2422
P280171001
17.00
25.00
5
NBR
SUA-1963
P280178901
17.00
25.00
5.00
PU
PUA-282
P280171002
17.00
25.00
5.15
NBR
SUA-1970
P280170901
17.00
25.00
5.50
NBR
SUA-126
P280176501
17.75
33.00
4.50/5.00
FKM
SUB-4370
P28018L502
18.00
24.00
4
PU
PUA-106
P280186602
18.00
25.00
4.00
FKM
SUA-2512
P280186603
18.00
25.00
5.10
FKM
SUA-741
P280186601
18.20
25.00
2.88/3.30
FKM
SUA-1686
P280196701
19.00
25.00
3.25
FKM
SUA-2570
P28019L502
19.00
25.00
3.30
PU
PUA-584
P28019R701
19.00
28.00
4.50
PU
PUB-608
P28019L505
19.00
28.50
6.40
PU
PUB-234
P28019L503
19.05
25.40
3.30
PU
PUB-688
P280191103
19.05
25.40
3.55
NBR
SUB-1395
P28019L504
19.20
27.00
4.00
PU
PUB-2193
P280196601
19.50
31.00
7.30
FKM
SUB-3441
P28020L504
20.00
28.00
4.90
PU
PUB-246
P280200901
20.00
28.00
5.20
NBR
SUB-3639
P28020L502
20.00
28.00
5.70
PU
PUB-1888
P280201103
20.00
30.00
6.50
NBR
SUB-2142
P280206601
20.00
30.00
7
FKM
SUB-3638
P280206602
20.00
30.00
8
FKM
SUB-3648
P28020L501
20.00
35.00
10
PU
PUB-1270
P280201003
20.00
37.00
11.50
NBR
SUB-3615
P28020L503
20.00
45.00
10
PU
PUB-1969
P280201004
20.50
30.00
8.00
NBR
SUB-265
P28020U301
20.60
30.00
6.10
FKM
SUB-4760
P28021L401
21.24
30.50
6.48
PU
PUB-1792
P280226601
22.00
28.00
3.1
FKM
SUB-2099
P280226602
22.00
28.00
3.10
FKM
SUB-4068
P28022L509
22.00
28.00
5.80
PU
PUB-602
P28022L507
22.00
32.00
10
PU
PUB-1424
P28022L503
22.00
32.00
6
PU
PUB-950
P280221003
22.00
32.00
7
NBR
SUB-2944
P280221004
22.00
35.00
7.00
NBR
SUB-4447
P280226801
22.11
37.59
8.89
FKM
SUB-3910
P280221104
22.22
28.57
3.55
NBR
SUB-1394
P28022L505
22.40
30.00
3.70
PU
PUB-1268
P28022L506
22.40
30.00
5.70
PU
PUB-1265
P280220801
22.40
35.00
8.60
NBR
SUB-2338
P280221103
22.50
30.00
4.80
NBR
SUB-3475
P280231001
23.00
31.00
5.30
NBR
SUB-2849
P280231002
23.00
32.00
5.50
NBR
SUB-1190
P280235902
23.50
30.00
4.50
PU
PUB-1267
P28023L502
23.95
33.29
5.30
PU
PUB-2160
P28024V201
24.00
30.00
3.20
NBR
SUB-3909
P28024L502
24.00
30.00
4
PU
PUB-1266
P280244501
24.00
30.00
4.50
SILICON
SUB-3242
P280241104
24.00
30.00
6
NBR
SUB-3533
P28024L504
24.00
30.00
6.00
PU
PUB-744
P280241105
24.00
32.00
3.25
NBR
SUB-3616
P280246606
24.00
32.00
3.25
FKM
SUB-4408
P280246607
24.00
32.00
5.30
FKM
SUB-4766
P28024S401
24.00
32.00
5.5
HNBR
SUB-2087
P280241101
24.00
32.00
5.5
NBR
SUB-2475
P280240901
24.00
32.00
5.60
NBR
SUB-2615
P28024L503
24.00
32.00
6.00
PU
PUB-310
P280244502
24.00
32.00
6.00
SILICON
SUB-4075
P280246604
24.00
32.00
6.40
FKM
SUB-2897
P280240601
24.00
36.00
6.00
NBR
SUB-422
P280241103
24.00
36.00
9
NBR
SUB-2557
P280246603
24.40
32.00
5.50
FKM
SUB-2174
P280250902
25.00
32.00
6.50
NBR
SUB-2668
P28025Q201
25.00
33.00
4.50
PU
PUB-1328
P28025L507
25.00
33.00
5.70
PU
PUB-1889
P280251004
25.00
35.00
4.00
NBR
SUB-1387
P280250801
25.00
35.00
5.30
NBR
SUB-4584
P280255901
25.00
35.00
8
PU
PUB-1096
P28025U401
25.00
35.00
8
EPDM
SUB-3380
P280251110
25.00
35.00
8
NBR
SUB-3398
P28025L508
25.00
35.00
8.00
PU
PUB-412
P280251003
25.00
38.00
9
NYLON
PFB-1069
P280251003
25.00
38.00
9
NBR
SUB-3132
P280251109
25.00
40.00
10
NBR
SUB-3295
P280256701
25.00
42.00
10.00
FKM
SUB-4320
P280250701
25.40
5.50
NBR
SUB-3255
P280256702
25.40
30.94
3.00
FKM
SUB-4385
P280256601
25.40
33.33
5.30
FKM
SUB-4033
P280256703
25.40
38.10
10.49
FKM
SUB-4477
P280258401
25.40
38.10
8.50
NBR/FABRIC
SUB-4881
P28025L505
25.50
40.00
9.50
PU
PUB-1438
P28025L509
25.50
40.00
9.50
PU
PUB-543
P280251105
25.50
40.00
9.50
NBR
SUB-2726
P280251111
25.65
36.43
5.90
NBR
SUB-3713
P28026L501
26.00
32.00
5.5
PU
PUB-807
P280261106
26.00
36.00
7.00
NBR
SUB-4554
P280261104
26.00
41.00
8.40
NBR
SUB-4008
P280261001
26.00
42.00
9.5
NBR
SUB-2441
P280261103
26.00
45.00
9
NBR
SUB-2419
P280261105
26.30
40.00
9.00
NBR
SUB-4338
P280276602
27.00
35.00
3.20
FKM
SUB-2365
P28027L503
27.00
35.00
5
PU
PUB-1304
P28028L506
28.00
36.00
6.50
PU
PUB-1638
P280281105
28.00
38.00
5.00
NBR
SUB-4074
P280286601
28.00
38.50
7.30
FKM
SUB-3630
P280285904
28.00
40.00
10
PU
PUB-382
P280281106
28.00
40.00
10.00
NBR
SUB-4619
P28028L507
28.00
42.00
7.00
PU
PUB-1798
P28028L505
28.50
45.00
12
PU
PUB-1708
P28029L401
28.90
40.90
6.30
PU
PUB-1791
P280291103
29.00
37.00
5.50
NBR
SUB-3443
P280291001
29.50
38.00
6.00
NBR
SUB-1074
S080300811
30.00
38.00
3.35
NBR
SUB-4483
P28030L511
30.00
38.00
4.50
PU
PUB-1887
P28030Y501
30.00
38.00
5.50
PU
PUB-577
P28030L512
30.00
38.00
5.70
PU
PUB-1891
P280303401
30.00
38.00
5.70
EPDM
SUB-4885
P280301002
30.00
38.00
6
NBR
SUB-2465
P28030L503
30.00
40.00
10
PU
PUB-519
P280301104
30.00
40.00
10
NBR
SUB-2504
P280306703
30.00
40.00
10.00
FKM
SUB-4233
P28030L507
30.00
40.00
5
PU
PUB-1263
P280301105
30.00
40.00
5
NBR
SUB-2695
P28030L506
30.00
40.00
6
PU
PUB-837
P280306603
30.00
40.00
6
FKM
SUB-3403
P28030L502
30.00
40.00
6.5
PU
PUB-512
P280301005
30.00
40.00
6.50
NBR
SUB-1633
P280301103
30.00
40.00
6.6
NBR
SUB-2140
P280306602
30.00
40.00
6.8
FKM
SUB-2145
P28030L510
30.00
40.00
7
PU
PUB-1640
P280301003
30.00
40.00
7
NBR
SUB-2819
P280300501
30.00
40.00
7
NBR
SUB-3022
P28030S401
30.00
40.00
7
HNBR
SUB-3092
P280306706
30.00
40.00
7.00
FKM
SUB-4888
P28030L504
30.00
40.00
7.5
PU
PUB-527
P280306702
30.00
40.00
8
FKM
SUB-106
P280306604
30.00
43.00
7.00
FKM
SUB-3849
P28030L509
30.00
45.00
11
PU
PUB-1639
P280300701
30.00
45.00
11.00
NBR
SUB-4331
P28030L501
30.00
50.00
12
PU
PUB-352
P28030L514
30.12
42.90
6.20
PU
PUB-2161
P28030L515
30.16
42.86
7.94
PU
PUB-656
P280308902
30.20
38.40
6.00
PU
PUB-780
P280306704
30.40
38.10
5.50
FKM
SUB-4452
P280315902
31.00
38.00
4.70
PU
PUB-1795
P280310901
31.00
40.00
8.00
NBR
SUB-4216
P280313401
31.00
44.50
11.50
EPDM
SUB-3776
P28031L503
31.50
44.50
7
PU
PUB-1512
P280311001
31.50
47.50
9.00
NBR
SUB-1072
P280318701
31.75
41.27
7.80
PU
PUB-1536
P28032L506
32.00
38.00
6.50
PU
PUB-1181
P28032L508
32.00
40.00
10
PU
PUB-1609
P280321105
32.00
40.00
10.00
NBR
SUB-3986
P280321003
32.00
40.00
3.30
NBR
SUB-2451
P28032L502
32.00
40.00
5
PU
PUB-1027
P28032L507
32.00
40.00
5.60
PU
PUB-1583
P28032L505
32.00
40.00
5.80
PU
PUB-1173
P28032L510
32.00
40.00
6.00
PU
PUB-120
P280326701
32.00
40.00
6.00
FKM
SUB-4545
P280321002
32.00
40.00
7
NBR
SUB-2943
P280321103
32.00
42.00
10
NBR
SUB-2505
P280321104
32.00
42.00
7.00
NBR
SUB-3689
P28032S901
32.00
44.00
5.50
SILICON
SUB-3992
P280321106
32.80
48.80
12.0
NBR
SUB-3995
P28033L501
33.00
40.00
8
PU
PUB-796
P280331002
33.80
50.06
8.00
NBR
SUC-298
P280340901
34.00
42.00
6
NBR
SUB-1475
P280341103
34.00
50.00
12
NBR
SUB-3511
P280343301
34.29
45.05
8.38
EPDM
SUB-2967
P280343301
34.29
45.05
8.38
EPDM
SUB-3008
P28034L503
34.50
50.80
9.50
PU
PUC-588
P280341002
34.80
50.40
5.00
NBR
SUC-255
P28034L502
34.92
44.45
7.94
PU
PUB-2171
P28035L507
35.00
45.00
11
PU
PUB-1641
P280351002
35.00
45.00
6.00
NBR
SUB-3878
P280356701
35.00
45.00
6.00
FKM
SUB-4030
P280351104
35.00
45.00
7
NBR
SUB-1789
P280351002
35.00
45.00
7
NBR
SUB-3313
P28035L502
35.00
50.00
10.00
PU
PUB-641
P280351111
35.00
50.00
10.00
NBR
SUB-4242
P280351004
35.00
50.00
12.50
NBR
SUB-4662
P280351109
35.00
50.00
8
NBR
SUB-3293
P28035CG01
35.00
50.00
9.00
PU
PUB-417
P280351108
35.00
50.00
9.70
NBR
SUB-3296
P28035L506
35.00
53.00
9.80
PU
PUC-845
P280351003
35.56
47.56
6
NBR
SUB-3983
P280360901
36.00
43.00
5.60/6.20
NBR/BFT
SUB-472
P28036L501
36.00
49.00
8
PU+NY
PUB-1419
P280361002
36.00
52.00
9.30
NBR
SUC-1865
P280366602
36.11
46.43
6.80
FKM
SUB-4032
P28037L502
37.00
45.00
10.00
PU
PUB-659
P28037Y501
37.00
45.00
6.50
PU
PUB-575
P280381104
38.00
46.00
6
NBR
SUB-3619
P280381103
38.00
48.00
7
NBR
SUB-3486
P28038L501
38.00
48.00
9
PU
PUB-839
P280386602
38.00
51.00
9
FKM
SUC-2192
P28038CF01
38.10
50.80
7.93
PU
PUC-501
P28038L502
38.10
53.97
6.35
PU
PUC-968
P28039L501
39.00
50.00
6.30
PU
PUB-250
P28039L401
39.11
56.21
10
PU
PUC-1267
P28040L517
40.00
48.00
5.70
PU
PUB-1890
P28040L513
40.00
48.00
6
PU
PUB-1642
P280406610
40.00
48.00
9.70
FKM
SUB-3908
P28040L501
40.00
50.00
10
PU
PUB-544
P280406608
40.00
50.00
10.70
FKM
SUB-3190
P280406608
40.00
50.00
10.70
FKM
SUB-3333
P280401108
40.00
50.00
5
NBR
SUB-2671
P280406605
40.00
50.00
5.50
FKM
SUB-2630
P28040L510
40.00
50.00
6
PU
PUB-840
P280401112
40.00
50.00
6.00
NBR
SUB-4557
P28040S401
40.00
50.00
6.00
HNBR
SUB-4710
P28040L507
40.00
50.00
6.5
PU
PUB-941
P280400801
40.00
50.00
6.5
NBR
SUB-1634
P280401110
40.00
50.00
6.50
NBR
SUB-3423
P280406606
40.00
50.00
6.80
FKM
SUB-2658
P28040L503
40.00
50.00
7
PU
PUB-209
P280406602
40.00
50.00
7
FKM
SUB-2341
P280401101
40.00
50.00
7
NBR
SUB-3257
P280400901
40.00
50.00
7.00
NBR
SUB-4587
P280408702
40.00
50.00
7.20
PU
PUB-1564
P280403402
40.00
50.00
7.30
EPDM
SUB-2740
P280401111
40.00
50.00
7.40
NBR
SUB-4519
P28040L514
40.00
50.00
8
PU
PUB-1643
P280406607
40.00
50.00
8
FKM
SUB-2924
P28040L508
40.00
50.00
9.00
PU
PUB-1030
P280406702
40.00
52.00
7.00
FKM
SUC-1117
P28040L515
40.00
55.00
11
PU
PUC-1129
P280406609
40.00
55.00
7
FKM
SUC-2287
P28040L516
40.00
60.00
14
PU
PUC-1128
P28040U301
40.60
50.00
6.10
FKM
SUB-4759
P280413402
41.00
57.00
11.40
EPDM
SUC-2049
P28041L401
41.25
50.00
3.50
PU
PUB-1177
P280411003
41.27
50.80
4.92
NBR
SUC-3162
P280416701
41.27
50.80
5.00
FKM/PTFE
SUC-187
P280411103
41.27
50.80
6.60
NBR
SUC-2712
P28041L503
41.30
50.80
8.25
PU
PUC-150
P280411002
41.91
53.91
6
NBR
SUC-2671
P28042L503
42.00
50.00
11
PU
PUB-1203
P280426601
42.00
50.00
3.2
FKM
SUB-1836
P280426602
42.00
50.00
4.25
FKM
SUB-4851
P940426601
42.00
50.00
6.00
FKM
SUB-4533
P28042L502
42.00
50.00
8
PU
PUB-915
P280421105
42.00
50.00
9.00
NBR
SUB-4648
P28042L504
42.00
55.00
11
PU
PUC-114
P280421003
42.00
55.00
6.30
NBR
SUC-1552
P280421004
42.00
55.00
9
NYLON
PFB-1068
P280421004
42.00
55.00
9
NBR
SUC-2143
P280421006
42.80
50.80
6.00
NBR
SUC-280
P280431001
43.65
57.15
9.30
NBR
SUC-1968
P28044L502
44.45
57.15
10.60
PU
PUC-822
P280446701
44.45
57.15
6.35
FKM
SUC-2389
P28044CF01
44.45
57.15
9.52
PU
PUC-500
P28044A601
44.45
76.20
18.00
NBR/FABRIC
SUD-578
P280441002
44.50
57.50
8.00
NBR
SUC-677
P28045L504
45.00
55.00
10
PU
PUC-752
P28045L506
45.00
55.00
6.50
PU
PUC-804
P28045L509
45.00
55.00
7
PU
PUC-1034
P28045L511
45.00
55.00
7.30
PU
PUC-1335
P280455901
45.00
55.00
8.00
PU
PUC-651
P28045L510
45.00
60.00
10
PU
PUC-1124
P280456601
45.00
63.00
13
FKM
SUC-1858
P28045L507
45.00
65.00
10
PU
PUC-869
P280456602
45.24
54.76
7.00
FKM
SUC-2714
P280461101
46.00
54.00
6.5
NBR
SUC-1260
P280461102
46.00
54.00
8.00
NBR
SUC-2544
P28046S801
46.00
58.00
7.30
NBR
SUC-2654
P28046L501
46.00
60.00
8
PU
PUC-831
P280466601
46.00
64.00
8
FKM
SUC-2156
P28047L502
47.00
55.00
5.70
PU
PUC-1238
P28071102
47.00
57.00
7
NBR
SUC-2234
P280471101
47.00
60.00
6
NBR
SUC-2207
P280470801
47.00
60.00
8
NBR
SUC-2112
P28047L503
47.62
63.50
12.70
PU
PUC-331
P280476701
47.75
53.98
4.37
FKM
SUC-2987
P280480801
48.00
58.00
6
NBR
SUC-107
P280483501
48.00
58.00
6.00
EPDM
SUC-103
P280486604
48.00
60.00
14.00
FKM
SUC-2803
P280481002
48.00
60.00
7.5
NBR
SUC-1160
P28048L504
48.00
60.00
9
PU
PUC-1012
P280481103
48.00
60.00
9
NBR
SUC-2110
P28048L503
48.00
63.00
10
PU
PUC-1008
P28048L507
48.00
63.00
10.00
PU
PUC-495
P28048L502
48.00
63.00
12
PU
PUC-925
P280481102
48.00
63.00
12
NBR
SUC-2066
P280486602
48.00
63.00
12.50
FKM
SUC-2430
P280486603
48.00
63.00
8
FKM
SUC-2499
P28048L505
48.00
63.00
8.50
PU
PUC-1314
P280483401
48.00
63.00
8.60
EPDM
SUC-1881
P28048L506
48.00
68.00
10.00
PU
PUC-229
P280481005
48.26
60.26
6
NBR
SUC-2672
P28048V401
48.99
58.24
7.01
NBR
SUC-1901
P28050L513
50.00
58.00
6
PU
PUC-1130
P280506702
50.00
60.00
10.00
FKM
SUC-2658
P28050L511
50.00
60.00
11
PU
PUC-1123
P28050L502
50.00
60.00
6
PU
PUC-652
P280501106
50.00
60.00
6.3
NBR
SUC-1503
P28050L516
50.00
60.00
7.00
PU
PUC-1611
P280506401
50.00
60.00
7.50
FKM
SUC-1739
P280500901
50.00
60.00
7.50
NBR
SUC-3104
P28050L512
50.00
60.00
8
PU
PUC-1122
P280508901
50.00
62.00
11
PU
PUC-1098
P280508902
50.00
62.00
12
PU
PUC-1099
P28050L517
50.00
63.00
11.00
PU
PUC-210
P280506602
50.00
63.00
13
FKM
SUC-1860
P280501110
50.00
63.00
13.00
NBR
SUC-2472
P28050L508
50.00
63.00
14
PU
PUC-1009
P28050L503
50.00
63.00
8
PU
PUC-755
P280506603
50.00
63.00
8
FKM
SUC-2222
P280501010
50.00
65.00
10.00
NBR
SUC-2906
P280501009
50.00
68.00
9.60/11.60
NBR
SUC-2827
P28050L514
50.00
70.00
16
PU
PUC-1208
P280501007
50.60
56.60
5
NBR
SUC-1961
P280504101
50.80
60.00
5.00
SILICON
SUC-2740
E370508001
50.80
63.50
18.15
HNBR
SUC-3178
P28050L501
50.80
63.50
7.94
PU
PUC-505
P280501006
50.80
63.50
9.30
NBR
SUC-1967
P28050L515
50.80
63.50
9.52
PU
PUC-164
P28050A601
50.80
66.67
11.50
NBR/FABRIC
SUC-2918
P280501005
50.80
69.85
12.70
NBR
SUC-1811
P280501008
50.90
70.00
12.70
NBR
SUC-2213
P280511104
51.00
63.00
13.00
NBR
SUC-3141
P28051L501
51.00
63.00
14
PU
PUC-987
P280516602
51.00
63.00
14.00
FKM
SUC-2583
P280511103
51.00
63.50
9
NBR
SUC-2278
P280516701
51.00
66.00
11.30
FKM
SUC-2487
P280511002
51.00
67.00
7.80
NBR
SUC-1553
P28052L504
52.00
60.00
8
PU
PUC-1095
P280526601
52.00
62.00
7
FKM
SUC-1937
P28052L501
52.00
63.00
6.50
PU
PUC-876
P280525903
52.00
65.00
10
PU
PUC-884
P28052L503
52.38
65.08
8.73
PU
PUC-1019
P28052L502
52.40
66.30
10
PU
PUC-909
P280521001
52.61
66.61
7
NBR
SUC-2673
P280536702
53.00
63.00
11
FKM
SUC-1294
P28053L503
53.00
63.00
12
PU
PUC-772
P280531108
53.00
63.00
12.00
NBR
SUC-2790
P280536401
53.00
63.00
4.25
FKM
SUC-1037
P280536606
53.00
63.00
4.25
FKM
SUC-1704
P28053L508
53.00
63.00
5.80
PU
PUC-1438
P28053L501
53.00
63.00
6
PU
PUC-654
P280536605
53.00
63.00
6
FKM
SUC-1649
P28053L505
53.00
63.00
6.30
PU
PUC-878
P280531109
53.00
63.00
6.30
NBR
SUC-2044
P280531110
53.00
63.00
6.30
NBR
SUC-2618
P28053X401
53.00
63.00
6.40
PU
PUC-862
P28053L504
53.00
63.00
6.50
PU
PUC-805
P280531002
53.00
63.00
6.50
NBR
SUC-2127
P28053L509
53.00
63.00
6.80
PU
PUC-1588
P280531001
53.00
63.00
6.90
NBR
SUC-1408
P280536701
53.00
63.00
7
FKM
SUC-1246
P280536601
53.00
63.00
7
FKM
SUC-1499
P28053L502
53.00
63.00
7.20
PU
PUC-676
P280533401
53.00
63.00
7.30
EPDM
SUC-1679
P28053L507
53.00
63.00
8
PU
PUC-1271
P280536602
53.00
63.00
8
FKM
SUC-1792
P28053L506
53.00
63.00
9
PU
PUC-1077
P280536704
53.00
63.00
9.00
FKM
SUC-3173
P280536402
53.97
63.00
7
FKM
SUC-1378
P280531111
53.97
63.50
6.60
NBR
SUC-2713
P280531003
53.97
63.50
7.87
NBR
SUC-3225
P280541104
54.00
63.00
7.00
NBR
SUC-2875
P280546703
54.00
63.50
5.50
FKM
SUC-3189
P280546702
54.00
64.00
7.00
FKM
SUC-3095
P280541103
54.00
70.00
12.00
NBR
SUC-2543
P280541102
54.00
70.00
8
NBR
SUC-1180
P28054L502
54.00
77.00
11
PU
PUD-499
P280551105
55.00
63.00
10.00
NBR
SUC-2473
P28055L505
55.00
65.00
10.00
PU
PUC-1612
P28055L504
55.00
65.00
13.50
PU
PUC-1252
P28055L501
55.00
65.00
6
PU
PUC-653
P28055L507
55.00
65.00
7.00
PU
PUC-256
P28055L503
55.00
65.00
8
PU
PUC-1127
P28055L506
55.00
70.00
8.00
PU
PUC-255
P280556601
55.00
72.00
12.50
FKM
SUC-3035
P28055Y501 (Stock Item)
55.00
80.00
18.00
PU
PUD-396
P280565901
56.00
65.00
8.10
PU
PUC-1233
P280568701
56.00
66.00
10
PU
PUC-967
P280566701
56.00
74.00
12.60
FKM
SUC-3151
P28056L401
56.52
73.32
12.12
PU
PUC-1268
P280571101
57.00
67.00
7.00
NBR
SUC-2588
P280571001
57.13
69.85
9.30
NBR
SUC-1969
P28057CF01
57.15
82.55
15.87
PU
PUD-1089
P280578701
57.16
76.20
12.70
PU
PUD-1022
P280581003
58.00
64.00
4.50
NBR
SUC-3220
P280581002
58.00
75.00
9.00
NBR
SUC-2907
P280581101
58.00
76.00
12
NBR
SUD-1057
P280580801
58.00
79.00
11
NBR
SUD-1479
P280588401
58.20
78.60
11.50
NBR/FABRIC
SUD-2498
P28058Q201
58.70
70.00
4.00
PU
PUC-380
P28055A601
58.73
79.37
11.50
NBR/FABRIC
SUD-2221
P28058A601
58.73
79.37
12.70
NBR/FABRIC
SUD-2226
P280581001
58.96
72.96
7
NBR
SUC-2674
P280598301
59.00
80.00
11.30
NBR/FABRIC
SUD-1750
P28060L502
60.00
70.00
6
PU
PUC-655
P280601105
60.00
70.00
6.00
NBR
SUC-2832
P280601107
60.00
70.00
6.60
NBR
SUC-3126
P280600801
60.00
70.00
6.80
NBR
SUC-2082
P28060L513
60.00
70.00
7.30
PU
PUC-577
P280606603
60.00
70.00
7.5
FKM
SUC-1671
P28060L510
60.00
70.00
7.50
PU
PUC-1552
P28060L507
60.00
70.00
8.50
PU+NY
PUC-975
P280606604
60.00
70.00
9.50
FKM
SUC-2171
P28060L511
60.00
72.00
14
PU
PUC-1576
P28060L509
60.00
80.00
10
PU
PUD-1199
P280606601
60.00
80.00
10
FKM
SUD-917
P280605903
60.00
80.00
11
PU
PUD-705
P280606605
60.00
80.00
11.00
FKM
SUD-2104
P28060L506
60.00
80.00
12
PU
PUD-648
P28060L512
60.00
80.00
8.00
PU
PUD-342
P280601106
60.00
81.00
10.00
NBR
SUD-2287
P280606702
60.80
72.80
8.50
FKM
SUC-2619
P28061L501
61.00
70.00
10
PU
PUC-1010
P28061L502
61.00
70.00
12
PU
PUC-1011
P28062L502
62.00
70.00
6
PU
PUC-1295
P280626602
62.00
83.00
16
FKM
SUD-1741
P280626601
62.25
76.20
6.25
FKM
SUD-1486
P280636702
63.00
73.00
8.00
FKM
SUC-3175
P28063L501
63.00
74.00
7
PU
PUC-499
P28063L504
63.00
75.00
8.60
PU
PUC-578
P280636401
63.50
76.20
7
FKM/PTFE
SUD-1515
P280630901
63.50
76.20
8.55
NBR
SUD-1510
P280636701
63.50
76.20
9
FKM
SUD-1514
P28063CF01
63.50
76.20
9.52
PU
PUD-339
P28063L502
63.50
76.20
9.52
PU
PUD-938
P28063L503
63.50
82.55
9.52
PU
PUD-1012
P280641101
64.00
80.00
12.00
NBR
SUD-951
P280646701
64.00
80.00
8.00
FKM
SUD-2216
P28064L501
64.40
80.00
12.80
PU
PUD-703
P280644101
64.50
73.00
4.70
SILICON
SUC-2741
1
2
3
For customised items please
Click here
Login
