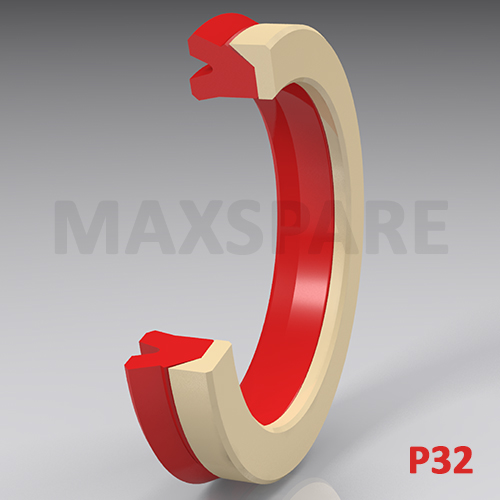

Max Spare : P32
Profile : Piston Seals
Details :
P32 is a robust heavy duty double acting piston seal commonly used for the most demanding high-pressure application. It comprises of a T-shaped elastomer (NBR) which provides the initial energizing for effective sealing at low and high pressures. The elastomer preloads a composite PTFE ring against the tube wall and the thermoplastic bearing provides resistance to extrusion to the NBR sealing element. The P60 seal integrates the benefits of compact design, low friction and high performance in a single piston seal. Its design offers overall stability, wear resistance, sealability, low friction compact grooves, easy installation and maintenance free long life.
MATERIAL
Sealing ring
:
Bronze filled PTFE
Energizer ring
:
NBR 80 Shore A
Bearing rings
:
POM / Nylon
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
Pressure
:
500 Bar
Speed
:
1.5 m/s
SURFACE ROUGHNESS
Static
:
0.8 mmRa
Dynamic
:
0.4 mmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids.
APPLICATION
Heavy duty cylinders.
Injection moulding machines.
Earthmoving equipment.
Excavators.
Presses.
FEATURES
High pressure capability.
Excellent pressure surge absorption capability.
Best combination for load holding and low friction sealing.
High resistance to abrasion.
Manufactured by:
Max Spare Limited
Product ID:
285i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
P32018L501
18.00
24.00
5
PU
PUA-549
P32020L501
20.00
30.00
13
PU
PUB-1128
P32024L501
24.00
37.00
10
PU
PUB-883
P32030L501
30.00
45.00
12
PU
PUB-884
P32032L501
32.00
50.00
12.10
PU
PUB-1809
P320361001
36.00
42.00
6
NBR
SUB-4060
P32045L501
45.00
60.00
12
PU
PUC-312
P32045Y501 (Stock Item)
45.00
60.00
12.20
PU+NY
PUC-160
P32047L501
47.00
65.00
12.10
PU
PUC-1291
P32055K101
55.00
70.00
12
PU
PUC-151
P32055Y502 (Stock Item)
55.00
70.00
12.00
NY+PU
PUC-481
P32060L501
60.00
75.00
12
PU
PUC-685
P32060Y501 (Stock Item)
60.00
75.00
12.00
PU+NY
PUC-544
P32070L501
70.00
85.00
12
PU
PUD-880
P32070Y501 (Stock Item)
70.00
85.00
12.00
PU+NY
PUD-379
P32088L501
88.00
110.00
14.50
PU
PUE-673
P32098L501
98.00
120.00
14.50
PU
PUE-672
P321201001
120.00
140.00
17
NBR
SUF-1003
