Max Spare : P37

Profile : Piston Seals

Details :

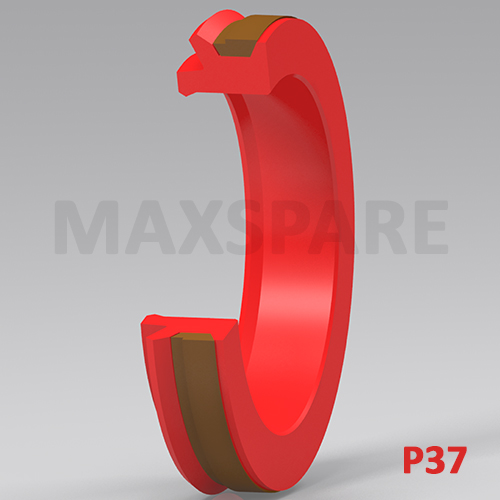

P37 seal consists of 2 parts, an internal U ring of PU material with a sealing lip and an external slide ring of abrasion resistant PTFE-Bronze compound with a sealing edge. The slide ring is surrounded by the U ring and seals axially in direct contact with the bore dia.

MATERIAL

U Ring	:	Polyurethane 92 shore A
Slide Ring	:	PTFE Bronze compound

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	450 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, water base fluids, fire resistant fluids and compressed air.

APPLICATION

Standard Industrial Cylinders.
Agricultural Machines.
Industrial Trucks. Medium-heavy construction equipment.

FEATURES

High static and dynamic sealing application.
Low friction.
Robust design.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
P37180L501	180.00	200.00	16	PU	PUH-313
P37230L501	230.00	250.00	16	PU	PUK-154
P37250L501	250.00	270.00	16.00	PU	PUM-125
P374256601	425.00	450.00	16.00	FKM	SUVG-313

For customised items please Click here
