Profile : Piston Seals


Spareage : P44

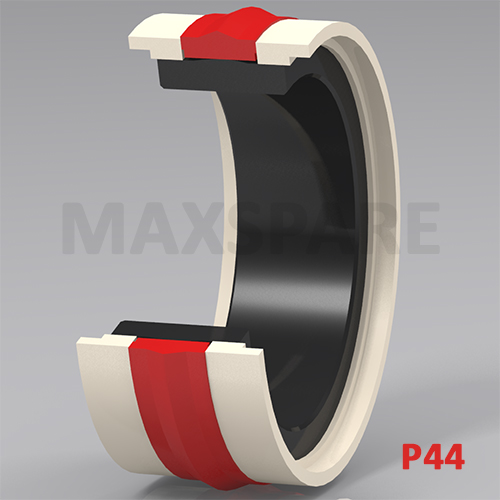

P44 Assembly

Details :
P44 is a compact seal designed for one piece pistons. This Seal comprises of a wear resistance polyurethane sealing ring energised by elastomeric ring. Two split "L" shape guide rings act as an anti-extrusion bearing rings on both sides.
MATERIAL
Sealing Ring : Polyurthane
Energizer ring : NBR Bearing Rings : POM / Nylon
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 400 Bar
Speed : 0.5 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Mineral oils, water soluble & water glycol fluids.
APPLICATION
  • Light to medium duty cylinders.
  • Static load holding.
  • Compact cylinders.
FEATURES
  • Extended working life due to wear resistance PU sealing ring.
  • Easy Installation

Manufactured by: Max Spare Limited
Product ID: 323i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
P44047090147.0063.0018.40/31.10NBR+ACT-1     CS-512
P44047L50147.0063.0020.50PU     CS-632
P44060080260.0080.0022.40/35.10NBR     CS-3301




For customised items please Click here
