PTA is a double acting piston seal suitable for light to medium duty hydraulic cylinders & suitable for cylinders with small groove dimensions thus enabling a compact piston.

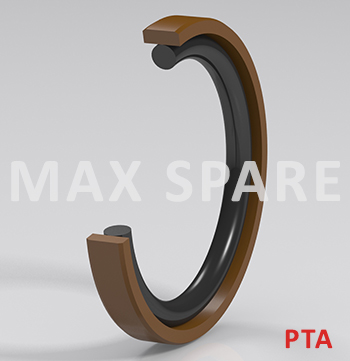

The PTA is a combination of NBR O’Ring energiser & outer seal ring made of PTFE added with a filler to increase the resistance of seal ring to high pressure. Generally, Bronze is the used filler. But, Glass/Graphite filled PTFE PTA compact seal can also be made. The PTA seal can be easily mounted on a single piece piston and is also suitable for two piece piston application.
The Bronze filled PTFE outer seal ring, when in contact the cylinder bore, the PTFE ensures a stick slip free movement & reduces friction to a minimum. The filler increases the strength in the seal ring to prevent it from extruding & to withstand pressures as high as 400 BAR.
FEATURES:
- Well proven design.
- Self lubricating seal ring.
- High surface speed.
- Friction at minimum.
- Compact piston.
- Any size upto 1200mm available on request.
APPLICATION:
- Medium to heavy duty cylinders.
- Stick slip free operation.
- Machine tools.
- Injection moulding machines.
- Earthmoving equipment.
COMPATIBILITY:
Mineral oils, water soluble & water glycol fluids.
