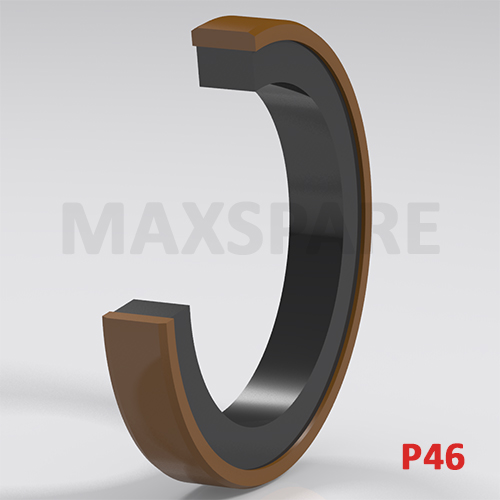

Max Spare : P46
Profile : Piston Seals
Details :
P46 is a double-acting piston seal designed for heavy duty large size hydraulic cylinders. It comprises of a Bronze filled PTFE seal ring and one elastomeric profile ring as a pre-load element.
MATERIAL
Sealing Ring: Bronze filled PTFE
Profile Ring: Nitrile Rubber 70/75 Shore A
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
: (up to + 220 C on request)
Pressure
:
400 Bar
Speed
:
5.0 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids
APPLICATION
Application Presses, agricultural machinery, injection
moulding machines, mills, marine hydraulics, industrial
vehicles, cranes, handling equipment, control and regulation
equipment.
FEATURES
Highly stable under high pressure.
High torsional safety.
High resistance to abrasion.
Good thermal conductivity.
Friction at minimum.
High contact pressure due to the elastomer profile ring.
Any size upto 1200mm available on request.
Manufactured by:
Max Spare Limited
Product ID:
291i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
P46006E302
6.00
12.00
2.50
NYLON
PTC-269
P46008K801
8.00
11.00
1.90
FKM
CS-1983
P460080901
8.00
12.00
2.20
NBR+PU
PTC-256
P46009E301
9.00
15.00
2.50
NYLON
PTC-268
P46012E301
12.00
22.00
6
BFT
PTC-213
P460166401
16.00
22.00
5
FKM/BFT
PTC-241
P460160801
16.20
22.00
1.60
NBR
CS-618
P460170801
17.53
25.40
3.27
NBR+PU
PTC-300
P46018E301
18.00
28.00
5
BFT
PTC-214
P46019T901
19.00
25.00
2.60
FKM/BFT
CS-3205
P460200801
20.00
30.00
2.30
NBR/BFT
CS-610
P460217002
21.50
28.50
1.85
BFT
PTC-231
P46022E301
22.00
32.00
4
BFT
PTC-166
P460230802
23.88
31.75
3.07
NBR
CS-200
P460230801
23.88
31.75
3.27
NBR+PU
PTC-299
P46025E302
25.00
32.00
3.20
BFT
PTC-235
P460306601
30.00
37.00
3.50
FKM
CS-621
P460306401
30.00
40.00
8
FKM/BFT
CS-1556
P460300801
30.23
38.10
3.07
NBR
CS-201
P46030E304
30.50
38.00
5
BFT
PTC-279
P46031E303
31.35
38.10
3.17
BFT
PTC-233
P460330801
33.50
38.00
3.60
NBR/BFT
PTC-291
P460346901
34.00
40.00
3
PTFE
PTC-314
P460346001
34.10
45.00
4.20
FKM
PTC-284
P460346401
34.50
50.00
6.30
FKM
CS-246
P46035E302
35.00
43.00
3.40
NYLON
PTC-267
P460356401
35.00
45.00
7
FKM/BFT
CS-1206
P460356401
35.00
45.00
7
FKM/BFT
PTC-114
P460357001
35.50
45.00
4.40
BFT
PTC-193
P460366001
36.00
45.00
4.60
BFT
PTC-118
P460368701
36.60
44.45
3.27
NBR+PU
CS-1798
P460377001
37.00
48.00
5.00
NBR/BFT
CS-647
P460376403
37.00
50.00
10
FKM/BFT
CS-1129
P460376403
37.00
50.00
10
FKM/BFT
PTC-112
P46037E303
37.00
50.00
6.50
BFT
PTC-246
P460387001
38.00
58.00
10
BFT
PTC-110
P460380801
38.10
47.62
4.40
NBR
CS-3528
P460386501
38.40
50.00
6.30
FKM
CS-3320
P46038E301
38.50
50.00
4.30
BFT
PTC-189
P46039E302
39.00
50.00
4.20
CNT+BFT
PTC-134
P460397002
39.00
50.00
6.30
NBR/BFT
PTB-134
P460397001
39.00
55.00
4.20
FKM/BFT
PTC-244
P460406901
40.00
47.50
3.50
SILICON
PTC-313
P460407001
40.00
50.00
4.30
BFT
PTC-139
P460400801
40.00
50.00
5
CAT
PTC-292
P460406401
40.00
50.00
6
FKM/BFT
FRA-3020
P46040E301
40.00
52.00
4.20
NYLON
PTC-270
P460418701
41.40
50.80
7.14
NBR
CS-1405
P460426401
42.20
63.00
6.80
FKM
CS-3152
P460426402
42.50
50.00
3.20
FKM
CS-3219
P460426403
42.80
50.80
3.00
FKM
CS-3472
P460437002
43.00
50.80
3.10
CNT+BFT
PTC-126
P460467001
46.00
56.00
4.60
BFT
PTC-192
P460467002
46.20
61.00
7.60
FKM
CS-3186
P46048E301
48.00
63.00
10.40
BFT
PTC-216
P460480801
48.00
63.00
7.30
NBR
CS-3660
P46048E302
48.00
63.00
7.30
BFT
PTC-257
P460480901
48.00
63.00
7.50
NBR/BFT
PTC-169
P460497001
49.00
63.00
6
FKM/BFT
PTC-261
P460498701
49.30
57.15
3.27
NBR+PU
CS-1797
P460507002
50.00
63.00
10
FKM
CS-3017
P46050E303
50.00
63.00
10.40
BFT
PTC-153
P460507001
50.00
63.00
6
FKM
CS-3029
P46050E302
50.00
63.00
6.30
PTFE
PTC-117
P46050E307
50.00
63.00
6.50
BFT
PTC-247
P460510901
51.00
63.00
4
NBR/BFT
PTC-149
P460526401
52.00
63.00
4.20
FKM
CS-3266
P46052E302
52.00
63.00
4.20
CNT+BFT
PTC-136
P460527003
52.00
63.00
6
FKM
CS-3027
P460527004
52.00
65.00
6.30
NBR
CS-3510
P460527002
52.10
60.00
4.20
BFT
PTC-200
P460536401
53.00
63.00
6.50
FKM
CS-3123
P460547101 (Stock Item)
54.00
63.00
7
NBR/BFT
CS-3597
P460548701
54.10
63.50
7.14
PU
CS-1739
P460541101
54.50
64.00
4.20
NBR
CS-782
P460605501
55.00
70.00
6.30
FKM
CS-3469
P460550901
55.00
70.00
6.30
NBR/BFT
PTC-105
P460550803
55.00
70.00
7.30
NBR
CS-400
P46055E301
55.00
70.00
7.50
BFT
PTC-209
P460550801
55.58
63.50
3.17
NBR/BFT
FRA-2922
P460550802
55.63
69.85
6.96
NBR
CS-205
P46055E303
55.80
63.50
3.20
BFT
PTC-178
P460587001
58.00
64.00
3.40
NBR/BFT
PTC-312
P460580801
58.00
70.00
6
NBR/BFT
PTC-273
P46058E301
58.00
75.00
7.30
BFT
PTC-188
P460590801
59.00
70.00
3.80
NBR/BFT
PTC-277
P46059E303
59.00
80.00
10.40
BFT
PTC-230
P460596401
59.00
80.00
14.40
FKM/BFT
PTC-229
P460597001
59.00
80.00
8.10
FKM/BFT
PTC-286
P460607004
60.00
75.00
7.30
BFT
PTC-140
P460600904
60.00
75.00
7.5
NBR/BFT
CS-1379
P460607005
60.32
76.20
6.35
BFT
PTC-161
P460607101 (Stock Item)
60.33
69.85
4.60
NBR
CS-310
P460617001
60.50
55.50
2.50
NBR/BFT
FRA-3778
P460607005
60.50
70.00
7
BFT
PTC-237
P460617001
61.00
64.50
3.10
BFT
PTC-152
P460610803
61.16
76.20
7.92
NBR+NY
CS-3599
P460610901
61.91
76.20
4.76
NBR
FRA-1220
P46061E301
61.92
76.20
7.93
BFT
PTC-146
P46061E302
61.97
76.20
7.21
BFT
PTC-184
P460610801
61.98
76.20
6.96
NBR/BFT
CS-138
P460620801
62.00
75.00
6.30
NBR
CS-721
P460627001
62.00
76.20
7.30
BFT
PTC-113
P460627002
62.53
76.20
7.18
NBR
PTC-318
P460630804
63.00
70.00
3.70
NBR
PTC-236
P460637001
63.00
71.00
7
FKM/BFT
PTC-262
P460631101
63.50
69.06
4.50
NBR
CS-227
P460637101 (Stock Item)
63.50
76.20
7.30
NBR
FRA-1766
P460646401
64.20
73.00
7
FKM/BFT
CS-2900
P46064E306
64.50
80.00
6.30
BFT
PTC-115
P46064E307
64.50
80.50
6.30
BFT
PTC-142
P460656401
65.00
79.00
5.30
FKM/BFT
SUD-530
P460657001
65.00
80.00
10.7
NBR/BFT
FRA-1439
P460657001
65.00
80.00
10.70
BFT
PTC-239
P460657002
65.00
80.00
12
FKM/BFT
CS-1639
P46065E305
65.00
80.00
6.30
BFT
PTC-141
P460650801
65.80
80.00
7.30
NBR
CS-403
P460668701
66.80
76.20
7.14
NBR
CS-1404
P460686401
68.30
82.50
7.00
FKM
CS-3471
P46068E303
68.32
82.55
7.21
BFT
PTC-185
P460680801
68.33
82.55
6.96
NBR/BFT
CS-128
P46068E304
68.70
82.40
7.10
NBR/BFT
PTC-201
P46068E305
68.70
82.55
7.10
BFT
PTC-227
P46069E304
69.00
90.00
8.10
BFT
PTC-252
P46069E303
69.50
85.00
8.10
BFT
PTC-107
P460697101 (Stock Item)
69.85
82.55
5
NBR/BFT
CS-3631
P46070E302
70.00
80.00
4.80
BFT
PTC-238
P460706401
70.00
80.00
6
FKM/BFT
FRA-3019
P460706402
70.00
90.00
10
FKM/BFT
CS-1958
P460706402
70.00
90.00
10
BFT
PTC-219
P460720901
72.00
80.00
4.2
NBR/BFT
FRA-1384
P460720901
72.00
80.00
4.20
NBR/BFT
PTC-130
P46073E302
73.00
82.00
3.70
BFT
PTC-174
P46073E303
73.30
83.00
7
BFT
PTC-220
P460746401
74.20
81.00
5.90
FKM/BFT
CS-2863
P460740810
74.62
88.90
7.14
NBR/BFT
PTC-198
P460740802
74.68
88.90
6.96
NBR/BFT
CS-140
P460751001
75.00
88.00
7
FKM/BFT
PTC-263
P460750901
75.00
90.00
6.30
NBR/BFT
CS-1643
P460750901
75.00
90.00
6.30
NBR/BFT
PTC-103
P460750801
75.00
90.00
7.30
NBR
CS-404
P460750802
75.80
90.00
7.30
NBR
CS-394
P460786401
78.00
86.00
3.20
FKM/BFT
CS-542
P460780802
78.00
89.00
6
NBR/BFT
PTC-271
P460790801
79.00
92.00
6.50
NBR/BFT
CS-1576
P460791101
79.00
92.00
6.50
NBR/BFT
PTC-156
P460797002
79.00
100.00
14
FKM
CS-3031
P46079E307
79.00
100.00
14.50
BFT
PTC-226
P460797004
79.00
100.00
16.40
FKM
CS-3001
P46079E304
79.00
100.00
16.40
BFT
PTC-288
P460790802
79.00
100.00
4.60
NBR/BFT
CS-611
P460796401
79.10
92.07
7.11
FKM/BFT
CS-1287
P460796401
79.10
92.07
7.11
FKM/BFT
PTC-109
P460798701
79.50
88.90
7.14
PU
CS-1740
P46079E306
79.50
95.00
6.30
CNT+BFT
PTC-133
P460800801
80.00
90.00
6
NBR/BFT
PTC-278
P460806403
80.00
100.00
12.00
FKM
CS-3500
P460800901
80.00
100.00
8.10
NBR/BFT
CS-1642
P460800901
80.00
100.00
8.10
NBR/BFT
PTC-101
P460806402
80.00
100.00
8.50
FKM/BFT
FRA-3012
P460810901
81.00
95.00
5.5
NBR
CS-857
P460821001
82.55
95.25
9.88
NBR+HYT
CS-441
P46084E305
84.50
100.00
6.30
BFT
PTC-280
P460850803
85.00
100.00
7.30
NBR
CS-389
P460850801
85.00
105.00
10
NBR
PTC-274
P460850802
85.72
95.25
4.40
NBR
CS-3526
P460877001
86.00
95.60
6
FKM/BFT
CS-1697
P460860801
86.00
101.60
7.13
NBR/BFT
CS-2803
P46086E302
86.20
102.00
6.30
BFT
PTC-255
P460860901
86.60
100.00
5.5
NBR
CS-858
P460877001
87.00
100.00
6.90
FKM/BFT
PTC-144
P46087L301
87.37
101.60
7.21
AFLAS
CS-1735
P46087L301
87.37
101.60
7.21
BFT
PTC-157
P460870803
87.38
101.60
6.96
NBR
CS-207
P460876401
87.40
101.60
7.00
FKM
CS-3470
P460880801
88.90
98.42
4.40
NBR
CS-3527
P460890901
89.00
110.00
8.10
NBR/BFT
CS-1644
P460890901
89.00
110.00
8.10
NBR/BFT
PTC-102
P46089K101
89.60
100.00
5.10
NBR+NY
PTC-245
P460900901
90.00
110.00
10
NBR/PU
CS-1627
P46090E301
90.00
110.87
10.40
PTFE
PTC-127
P460910901
91.60
105.00
5.5
NBR
CS-1057
P460928701
92.20
101.60
7.14
NBR+PU
CS-1403
.P460930901
93.00
105.00
6.30
NBR/BFT
FRB-512
P460930901
93.00
105.00
6.30
NBR/BFT
PTC-131
P46093E303
93.10
105.40
7.50
BFT
PTC-183
P460930801
93.73
107.95
6.96
NBR
CS-208
P460957002
95.25
107.95
6.98
NBR/BFT
FRB-414
P460951001
95.25
107.95
9.88
NBR+HYT
CS-442
P460960901
96.00
110.00
6.50
NBR/BFT
FRB-517
P460960902
96.60
110.00
5.50
NBR
CS-859
P460980801
98.00
119.00
8
NBR/BFT
PTC-272
P460990801
99.00
115.00
7.30
NBR
CS-347
P461007001
100.00
125.00
15.60
CNT+BFT
PTC-125
P461000802
100.08
114.30
6.96
NBR
CS-209
P461010801
101.25
120.65
9.65
NBR/GLT
CS-1518
P461010901
101.60
115.00
5.5
NBR
CS-860
P461047001
104.00
120.00
7.30
NBR/BFT
CS-2030
P461047001
104.00
120.00
7.30
BFT
PTC-234
P461047003
104.00
125.00
14
FKM
CS-3034
P46104E306
104.00
125.00
14.50
BFT
PTC-225
P461046501
104.00
125.00
16.40
FKM/BFT
CS-1845
P46104E303
104.00
125.00
16.40
BFT
PTC-154
P461040802
104.00
138.00
8.10
NBR
CS-3283
P461040801
104.78
114.30
3.2
NBR/BFT
CS-1286
P461040801
104.78
114.30
3.20
NBR/BFT
PTC-104
P46105E303
105.00
124.50
5
BFT
PTC-191
P461050901
105.00
125.00
10
NBR/PU
CS-1540
P461050901
105.00
125.00
10
NBR
PTC-132
P461056401
105.00
125.00
13
FKM/BFT
PTC-258
P461050801
105.56
114.30
3.17
NBR/BFT
CS-1597
P461050801
105.56
114.30
3.17
NBR/BFT
PTC-199
P461063208
106.00
130.00
7.50
EPDM
CS-3445
P461063205
106.00
130.00
8.10
EPDM
CS-489
P461063202
106.00
132.00
7.50
EPDM
CS-3311
P461067006
106.00
132.00
7.50
NBR/BFT
CS-391
P461063203
106.00
135.00
7.50
EPDM
CS-3312
P461067007
106.00
135.00
7.50
NBR/BFT
CS-390
P461063209
106.00
136.00
7.50
EPDM
CS-3446
P461063204
106.00
136.00
8.10
EPDM
CS-2719
P461063201
106.00
138.00
7.50
EPDM
CS-3310
P461067004
106.36
127.00
9.52
NBR
FRB-130(SCRAP)
P461067003
106.36
127.00
9.52
BFT
PTC-170
P461060801
106.43
120.65
6.96
NBR
CS-206
P46107E301
107.05
127.00
9.80
BFT
PTC-150
P461086401
108.00
125.00
4.70
FKM/BFT
PTC-249
P461086402
108.80
128.20
5.60
FKM/BFT
SUF-969
P461097001
109.00
125.00
7
BFT
PTC-168
P461097005
109.50
125.00
10.40
FKM
CS-3000
P461090903
109.50
125.00
6.30
NBR
CS-2936
P46109E301
109.50
125.00
6.30
CNT+BFT
PTC-135
P461097003
109.50
125.00
6.30
FKM/BFT
PTC-322
P461107001
110.00
130.00
9.5
FKM/BFT
CS-975
P461107001
110.40
125.00
8.10
FKM/BFT
CS-144
P461126402
111.00
120.60
11
FKM/BFT
FRB-946
P461110901
111.60
125.00
5.5
NBR
CS-861
P461126402
112.00
125.00
12
FKM/BFT
PTC-111
P461126401
112.00
125.00
9
FKM/BFT
FRB-935
P461127001
112.70
127.00
7.14
BFT
PTC-164
P461127002
112.71
127.00
7
FKM/BFT
PTC-264
P461120802
112.78
127.00
6.96
NBR/BFT
CS-220
P461120803
112.78
127.00
6.96
NBR
CS-221
P46113E305
113.00
127.00
7.10
BFT
PTC-251
P461137002
113.00
127.00
7.11
FKM/BFT - FKM+MBRT-60
PTC-315
P461130802
113.00
127.00
8.50
NBR
CS-3524
P461130901
113.00
130.00
9
NBR/BFT
CS-1737
P461137003
113.00
130.00
9
NBR
CS-2862
P461130801
113.00
130.00
9
NBR/BFT
FRB-479
P461133701
113.00
130.00
9
BFT
PTC-116
P461130901
113.00
130.00
9
NBR/BFT
PTC-158
P46114E302
114.00
127.00
8.70
BFT
PTC-223
P461140802
114.00
133.35
9.32
NBR
CS-219
P461147005
114.30
127.00
7
BFT
PTC-160
P461147004
114.30
127.00
7
FKM/BFT
PTC-266
P461177002
117.00
127.00
3
FKM/BFT
CS-1777
P461177002
117.00
127.00
3
FKM/BFT
PTC-163
P461177001
117.47
127.00
6.98
BFT
PTC-138
P461177001
117.47
127.00
7.54
FKM/BFT
FRB-453
P461177003
117.47
127.00
7.54
BFT
PTC-296
P461178701
117.60
127.00
7.14
NBR/PU
CS-1498
P461197003
119.00
140.00
8.10
NBR
CS-3269
P46119E302
119.83
139.77
10.84
BFT
PTC-248
P46119E302
119.83
139.77
10.84
BFT
PTC-254
P461200901
120.00
140.00
10
NBR
CS-2804
P461200802
120.35
139.70
9.32
NBR/BFT
CS-151
P461200801
120.35
139.70
9.62
NBR+PU
PTC-297
P461210901
121.60
135.00
5.5
NBR
CS-1058
P46125E302
125.00
139.00
8.10
BFT
PTC-240
P461290801
129.00
145.00
7.30
NBR
CS-352
P461310901
131.60
145.00
5.5
NBR
CS-863
P46132E302
132.00
152.40
9.60
BFT
PTC-186
P461330803
133.05
152.40
9.32
NBR
CS-218
P461337701
133.36
152.40
9.30
GLT
PTC-145
P461330801
133.36
152.40
9.52
NBR/BFT
FRB-921
P461330801
133.36
152.40
9.52
NBR/BFT
PTC-195
P461330810
133.36
152.40
9.52
NBR/BFT
PTC-317
P46133E302
133.40
153.00
9
BFT
PTC-221
P461340801
134.00
150.00
7.30
NBR
CS-354
P46134E301
134.80
156.60
7.20
NBR
PTC-181
P461357002
135.00
160.00
12
FKM/BFT
CS-976
P461357003
135.00
160.00
12
BFT
PTC-187
P461356401
135.00
160.00
12.50
FKM/BFT
PTC-316
P46137E301
137.50
152.55
3.95
BFT
PTC-162
P46139E303
139.00
152.40
4.20
BFT
PTC-290
P461390802
139.00
155.00
7.30
NBR
CS-357
P461397004
139.00
160.00
8.10
CNT+BFT
PTC-137
P46139E302
139.00
160.00
8.30
BFT
PTC-143
P461397002
139.70
152.40
6.30
CNT+BFT
PTC-119
P461390801
139.70
158.75
9.52
NBR
CS-2871
P461400901
140.00
160.00
10
NBR+CPU
FRB-1047
P461407701
140.00
160.00
10.40
NBR
FRB-928
P46140E301
140.00
160.00
8
CNT+BFT
PTC-124
P461410901
141.60
155.00
5.5
NBR
CS-864
P461440801
144.00
160.00
7.30
NBR
CS-361
P461460801
146.05
165.10
9.52
NBR/FABRIC
PTC-289
P461490801
149.00
170.00
7.30
NBR
CS-370
P461517001
151.20
180.00
9.80
BFT
PTC-155
P461510901
151.60
165.00
5.5
NBR
CS-865
P461517002
151.90
165.00
4.10
BFT
PTC-293
P461540801
154.00
180.00
7.30
NBR
CS-371
P461577001
157.00
180.00
11
BFT
PTC-260
P461587001
158.00
178.00
9.50
BFT
PTC-232
P46158E303
158.30
172.00
9.50
BFT
PTC-211
P461580803
158.45
177.80
9.32
NBR
CS-216
P461580801
158.45
177.80
9.62
NBR+PU
PTC-302
P461580802
158.75
177.80
9.52
NBR
CS-2870
P461597002
159.00
180.00
8.10
FKM/BFT
PTC-294
P461590801
159.00
190.00
7.30
NBR
CS-384
P461600901.
160.00
180.00
10
NBR/BFT
CS-1799
P461600901
160.00
180.00
10
NBR/BFT
PTC-176
P461610801
161.92
177.80
9.52
NBR
CS-3370
P461624301
162.28
177.80
8.67
SILICON
PTC-283
P461640801
164.00
200.00
7.30
NBR
CS-387
P461656601
165.00
180.00
10.00
FKM/BFT
CS-3553
P461656401
165.11
184.15
18.50
FKM
CS-689
P461687001
168.00
180.00
8.10
BFT
PTC-204
P461707001
170.00
180.00
8.10
BFT
PTC-215
P461707002
170.00
190.50
8
BFT
PTC-217
P461703201
170.00
192.50
8.10
EPDM
CS-437
P461703203
170.00
193.00
8.10
EPDM
CS-487
P461703212
170.00
194.00
8.10
EPDM
CS-3449
P461700801
170.00
195.00
8.10
NBR
CS-3280
P461703202
170.00
195.00
8.10
EPDM
CS-435
P461703204
170.00
196.00
8.10
EPDM
CS-113
P461700802
170.00
198.00
8.10
NBR
CS-3281
P461703210
170.00
198.00
8.10
EPDM
CS-3448
P461700803
170.00
200.00
8.10
NBR
CS-3282
P461703211
170.00
200.00
8.10
EPDM
CS-3450
R221718301
171.45
203.20
41.28
NBR/FABRIC
SRV-932
P461756401
175.00
200.00
12
FKM
CS-2985
P46177E302
177.00
204.00
8.10
BFT
PTC-222
P461780801
178.00
200.00
10.50
NBR/BFT
CS-696
P461791101
179.00
200.00
8.06
NBR/BFT
CS-2890
P461796701
179.00
200.00
8.06
FKM/BFT
PTC-285
P461806401
180.00
200.00
12
FKM/BFT
FRB-923
P461806402
180.00
202.00
15
FKM/BFT
FRC-278
P461810901
181.60
195.00
5.5
NBR
CS-869
P46183E302
183.50
203.50
9.50
BFT
PTC-196
P461830802
183.85
203.20
9.32
NBR
CS-210
P461830801
183.85
203.20
9.62
NBR+PU
PTC-305
P461846401
184.15
203.20
22.50
FKM
CS-3584
P461847002
184.15
203.20
9.60
BFT
PTC-159
P461850901
185.00
210.00
12.5
NBR
CS-1401
P46185E302
185.60
208.00
9.50
BFT
PTC-190
P461927001
192.00
202.00
8
BFT
PTC-287
P46193E301
193.00
210.00
7.70
BFT
PTC-212
P46195E302
195.00
220.00
12.40
BFT
PTC-182
P461957001.
195.00
220.00
12.50
FKM/BFT
CS-1705
P461957001
195.00
220.00
12.50
FKM/BFT
PTC-147
P461966501
196.00
224.50
15.3
FKM/BFT
FRC-147
P46203E301
203.00
225.00
10.80
BFT
PTC-206
P462060802
206.30
228.60
9.32
NBR
CS-211
P462060801
206.30
228.60
9.62
NBR+PU
PTC-303
P462150902
215.00
240.00
12.50
NBR/PU
CS-1435
P46220Z201
220.00
250.00
15.00
NBR
CS-716
P462257001
225.00
250.00
12
FKM
CS-3028
P46225E301
225.00
250.00
8.10
CNT+BFT
PTC-121
P462276401
227.90
247.80
9.60
FKM/BFT
CS-1545
P46229E306
229.00
245.00
8.10
BFT
PTC-205
P46229E305
229.00
250.00
8.10
BFT
PTC-165
P462290801
229.00
250.00
9.40
NBR/BFT
CS-1554
P46230E301
230.00
260.00
15.30
CAT
PTC-282
P462310802
231.70
254.00
9.32
NBR
CS-214
P462310803
231.70
254.00
9.52
NBR
CS-3371
P462310801
231.70
254.00
9.62
NBR+PU
PTC-304
P462330801
233.36
254.00
9.52
NBR/BFT
FRC-279
P462417001
241.00
251.00
7.80
NBR/BFT
PTC-208
P462440801
244.40
266.70
9.62
NBR+PU
PTC-301
P462456401
245.60
267.80
9.20
FKM/BFT
PTC-250
P462477001
247.90
256.20
8
BFT
PTC-207
P462636401
263.00
276.00
8
FKM/BFT
PTC-242
P462656401
265.90
285.80
9.60
FKM/BFT
CS-1544
P462670901
267.00
280.00
8
NBR/BFT
PTC-108
P462700903
270.00
300.00
15
NBR
CS-1402
P462701002
270.00
300.00
15
NBR/BFT
PTC-276
P462796401
279.40
304.80
11.20
FKM/BFT
PTC-295
P46280E301
280.00
310.00
15
BFT
PTC-173
P46282E301
282.40
304.80
9.50
BFT
PTC-180
P462820801
282.50
304.80
9.62
NBR+PU
PTC-306
P46283E301
283.40
304.80
9.50
BFT
PTC-311
P462840801
284.16
304.80
9.52
NBR/BFT
FRC-277
P46290E302
290.00
320.00
10.80
CNT+BFT
PTC-129
P46290E303
290.00
320.00
15
CNT+BFT
PTC-128
P46290E301
290.00
320.00
15
GLT
PTC-224
P462910801
291.00
310.00
7.30
NBR+PU
CS-3218
P46293E301
293.30
304.80
5.6/12.30
PTFE
PTC-259
P462956501
295.80
320.20
12
FKM/BFT
PTC-320
P462966401
296.00
320.00
12
FKM/BFT
CS-2931
P463000901
300.00
330.00
14.50
NBR/BFT
CS-821
P46300E301
300.00
330.00
14.50
BFT
PTC-203
P463070802
307.90
330.20
9.32
NBR
CS-213
P463070801
307.90
330.20
9.62
NBR+PU
PTC-308
P463256401
325.60
355.60
15
FKM
CS-3185
P463300901
330.00
360.00
15
NBR/PU
FRD-172
P463330801
333.30
355.60
9.62
NBR+PU
PTC-307
P46334E301
334.60
355.60
8.10
BFT
PTC-281
P46340E301
340.00
370.00
14
BFT
PTC-228
P463427001
342.00
368.00
8
BFT
PTC-275
P46342E301
342.91
371.47
11.11
BFT
PTC-171
P463706401
370.00
400.00
15
FKM/BFT
CS-1641
P463706501
370.00
400.00
15
FKM/BFT
PTC-148
P463700901
370.00
400.00
15
NBR
SUM-807
P463817001
381.12
406.40
9.52
FKM
CS-3379
P463826401
382.00
406.40
9.50
FKM/BFT
CS-2895
P463827101
382.00
406.40
9.50
NBR/BFT
CS-650
P46385E301
385.00
406.40
9.50
BFT
PTC-310
P46410E301
410.00
440.00
14.50
BFT
PTC-210
P464207101
420.50
450.00
8.10
BFT
PTC-243
P464227001
422.00
457.00
17.50
CNT+BFT
PTC-122
P464307002
430.00
450.00
9.30
BFT
PTC-167
P464300901
430.00
460.00
14.50
NBR/BFT
CS-818
P464310801
431.00
450.00
9.30
NBR/BFT
PTC-323
P464327001
432.00
450.00
10
NBR/BFT
CS-1473
P464327001
432.00
450.00
10
NBR/BFT
PTC-179
P464706401
470.00
500.00
14.40
FKM
CS-3294
P464700901
470.00
500.00
15
NBR
PTC-321
P46486E301
486.60
508.00
9.50
BFT
PTC-309
P464956401
495.00
520.00
7.00
FKM/BFT
CS-388
P46535E301
535.00
570.00
17
BFT
PTC-175
P46545E301
545.00
580.00
17
CNT+GLT
PTC-120
P465490801
549.20
571.50
10.05
NBR
CS-2735
P466057001
605.00
640.00
17.50
BFT
PTC-106
P466150801
615.60
655.32
19.50
NBR
CS-3161
P466530801
653.55
711.59
19
NBR/BFT
CS-2729
P466530801
653.55
711.59
19
NBR/BFT
PTC-319
P46668E301
668.00
708.00
20
CPU
PTC-253
P46695E301
695.00
720.00
11
CNT+BFT
PTC-123
P467267001
726.00
750.00
9.50
BFT
PTC-172
P46745E301
745.23
780.00
12.30
BFT
PTC-151
P46795E301
795.00
820.00
12
BFT
PTC-197
P46810E301
810.00
850.00
20
BFT
PTC-177
P46849E301
849.06
875.28
14.50
PTFE
PTC-202
P468707001
870.00
900.00
24.5
NBR/BFT
CS-838
P468707001
870.00
900.00
24.50
NBR/BFT
PTC-218
P468757001
875.00
900.00
12
BFT
PTC-265
P46920E301
920.00
940.00
32
BFT
PTC-194
P469527301
952.50
992.30
12.70
EPDM
CS-3601
P469991001
1010.00
1050.00
19
NBR/BFT
FRE-165
For customised items please
Click here
Login
