Max Spare : P50

Profile : Piston Seals

Details :

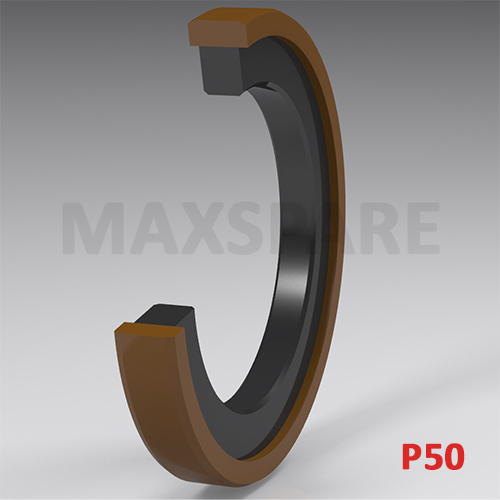

P50 is a double acting piston seal suitable for Heavy duty hydraulic cylinders & suitable for cylinders with small groove dimensions thus enabling a compact piston. The P50 is a combination of square energiser and outer seal ring made of PTFE added with a filler to increase the resistance of seal ring to high pressure. Generally, Bronze is the used as filler. But, Glass/Graphite filled PTFE seal can also be made. The P50 seal can be easily mounted on a single piece piston and is also suitable for two-piece piston application. The Bronze filled PTFE outer seal ring, when in contact the cylinder bore, the PTFE ensures a stick slip free movement and reduces friction to a minimum. The filler increases the strength in the seal ring to prevent it from extruding and to withstand pressures as high as 400 BAR.

MATERIAL

Sealing Ring	:	Bronze filled PTFE
Square energiser	:	Nitrile Rubber 70/75 Shore A
	:	FKM 70/75 Shore A

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C (NBR)
	:	-30° C to + 220° C (FKM)
Pressure	:	400 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 mmRa
Dynamic	:	0.4 mmRa

COMPATIBILITY

Mineral oils, bio oils, water soluble & water glycol fluids.

APPLICATION

Application Presses, agricultural machinery, injection
moulding machines, mills, marine hydraulics, industrial
vehicles, cranes, handling equipment, control and regulation
equipment.

FEATURES

High abrasion resistance.
Resistance against shock loads
High surface speed.
Friction at minimum.
Perfect static and dynamic sealing function.
Any size upto 1200mm available on request.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
P50358K201			9.40	NBR	CS-3348
P50422K201			9.40	NBR	CS-3350
P500210801	21.00	32.00	4.20	NBR	CS-3559
P500280901	28.57	38.10	5.25	NBR/PU	CS-3173
P500290801	29.00	40.00	4.20	NBR+NY	CS-2366
P500290803	29.00	40.00	4.20	NBR	CS-3560
P500296401	29.00	40.70	4.20	FKM/BFT	CS-745
P500290802	29.34	44.45	7.16	NBR+NY	CS-2359
P500300801	30.27	38.10	3.27	NBR/BFT	CS-1925
P500300801	30.27	38.10	3.27	NBR/BFT	PTG-111
P500300802	30.50	38.00	3.00	NBR+NY	CS-946
P500330801	33.95	47.62	7.13	NBR+NY	CS-1044
P50034J801	34.00	45.00	4.20	NBR+NY	CS-771
P50034E501	34.81	38.35	2.92	NYLON	PFB-720
P50035E301	35.00	50.00	6.30	NYLON	PTG-113
P500370802	37.13	50.80	7.16	NBR+NY	CS-2365
P500390801	39.00	50.00	4.20	NBR+NY	CS-2350
P50039K102	39.50	55.00	6.30	NBR+NY	CS-772
P50040K101	40.00	55.00	6.30	NBR+NY	CS-2440
P500400801	40.30	53.97	7.13	NBR+NY	CS-1045
P500410801	41.28	50.80	4.88	NBR	CS-3018
P500430802	43.48	57.15	7.16	NBR+NY	CS-2392
P500440801	44.00	55.00	4.20	NBR+NY	CS-2349
P50045E501	45.97	51.05	3.81	NYLON	PFB-721
P500476601	47.50	63.00	6.00	FKM	CS-3485
P500470801	47.50	63.00	6.30	NBR+NY	CS-2364
P500470802	47.63	57.15	4.88	NBR	CS-3048
P500480802	48.46	63.50	7.92	NBR+NY	CS-2367
P500490801	49.00	60.00	4.20	NBR+NY	CS-2354
P50049L501	49.00	60.00	4.20	PU+NY	CS-3568
P500490802	49.83	63.50	7.16	NBR+NY	CS-2393
P500520801	52.00	63.00	4.20	NBR+NY	CS-2355
P500520802	52.00	63.00	4.20	NBR+NY	CS-524
P50052E301	52.00	70.00	6	BFT	PTG-125
P500530801	53.98	63.50	4.88	NBR	CS-3019
P500541001	54.00	69.00	6.40	NBR	CS-3179
P500540802	54.00	75.00	8.10	NBR+NY	CS-2357
P500547301	54.50	63.30	5.90	CAT	PTG-119
P500540801	54.50	70.00	6.30	NBR+NY	CS-2389
P500560802	56.18	69.85	7.16	NBR+NY	CS-2394
P50058E501	58.80	63.88	3.81	NYLON	PFB-722
P50059K103	59.00	70.00	3.90	NBR+NY	CS-3163
P500590802	59.00	70.00	4.20	NBR+NY	CS-2346
P500590801	59.00	80.00	8	NBR/BFT	CS-924
P500590801	59.00	80.00	8	NBR/BFT	PTG-108
P50059E301	59.00	80.00	8	BFT	PTG-126
P500590804	59.00	80.00	8.10	NBR+NY	CS-2376
P500590803	59.50	75.00	6.30	NBR+NY	CS-2372
P500600801	60.33	69.85	4.88	NBR	CS-3020
P500610804	61.16	76.20	7.75	NBR+NY	CS-3407
P500610802	61.16	76.20	7.92	NBR+NY	CS-2353
P500610803	61.16	76.20	7.94	NBR	CS-2979
P500620802	62.03	76.20	7.16	NBR+NY	CS-2368
P500620801	62.48	76.20	4.88	NBR	CS-3021
P500640802	64.00	85.00	8.10	NBR+NY	CS-2379
P50064K102	64.00	85.00	8.10	NBR+NY	PTG-136
P500646402	64.50	80.00	6.30	FKM/BFT	CS-1747
P500640801	64.50	80.00	6.30	NBR+NY	CS-2386
P500646402	64.50	80.00	6.30	FKM/BFT	PTG-102
P50064E302	64.50	80.00	6.30	CAT	PTG-104
P50064K201	64.50	80.00	6.30	NYLON	PTG-115
P500680803	68.83	82.55	4.88	NBR	CS-3022
P500680802	68.88	82.55	7.16	NBR+NY	CS-2375
P500690801	69.00	90.00	8.10	NBR+NY	CS-2381
P500690802	69.60	88.90	9.53	NBR+NY	CS-2356
P50073E301	73.00	85.00	14.50	BFT	PTG-129
P500730802	73.86	88.90	7.92	NBR+NY	CS-2358
P500740802	74.00	95.00	8.10	NBR+NY	CS-2378
P500740902 (Stock Item)	74.00	95.00	8.10	NBR+NY	CS-322
P50074K101	74.00	95.00	8.10	NBR+NY	PTG-137
P500740801	74.50	90.00	6.30	NBR+NY	CS-2348
P500740903 (Stock Item)	74.50	90.00	6.30	NBR+NY	CS-705
P500740901	74.50	90.00	6.30	NBR	CS-766
P500740901	74.50	90.00	6.30	NBR	PTG-133
P500740803	74.73	88.90	7.16	NBR+NY	CS-2363
P500750801	75.18	88.90	4.88	NBR	CS-3023
P50075E501	75.83	82.93	5.71	NYLON	PFB-723
P500790801	79.00	100.00	8.10	NBR+NY	CS-2380
P50079K101	79.45	88.90	10.30	NBR+NY	CS-1825
P500810801	81.53	95.25	4.88	NBR	CS-3024
P500810802	81.53	101.60	4.88	NBR	CS-3025
P520823401	82.00	100.00	8.60/11	EPDM	CS-2992
P500840801	84.00	105.00	8.10	NBR+NY	CS-2374
P50084K101	84.00	105.00	8.10	NBR+NY	PTG-138
P500846601	84.50	100.00	6.00	FKM	CS-3486
P500840803	84.50	100.00	6.30	NBR+NY	CS-2347
P500840802 (Stock Item)	84.50	100.00	6.30	NBR+NY	CS-3595
P50	84.50	100.00	6.30	NBR	CS-376
P500840805	84.71	101.60	6.35	NBR	CS-3032
P500850801	85.75	100.00	7.24	NBR	CS-2993
P500860802	86.56	101.60	7.92	NBR+NY	CS-2352
P500870802	87.43	101.60	7.16	NBR+NY	CS-2371
P500890902	89.00	110.00	8.10	NBR+NY	CS-193
P500890801	89.00	110.00	8.10	NBR+NY	CS-2383
P500890803	89.00	110.00	8.10	NBR	PTG-147
P500900801	90.75	105.00	7.24	NBR	CS-2991
P500910801	91.06	107.95	6.35	NBR	CS-3046
P500920801	92.71	100.43	5.33	NBR	CS-3521
P500930803	93.57	107.95	9.30	NBR	CS-3188
P500930802	93.78	107.95	7.16	NBR+NY	CS-2362
P500940901	94.00	115.00	8	NBR	CS-781
P500940801	94.00	115.00	8.10	NBR+NY	CS-2360
P50094K101	94.00	115.00	8.10	NBR+NY	PTG-135
P500940802	94.50	110.00	6.30	NBR	CS-3033
P50095E501	95.00	102.10	5.71	NYLON	PFC-334
P500950801	95.75	110.00	7.24	NBR	CS-2990
P500970801	97.41	114.30	6.35	NBR	CS-3045
P500990804	99.00	120.00	8	NBR	CS-1503
P50099K103	99.00	120.00	8	NBR+NY	CS-3427
P50099E301	99.00	120.00	8	BFT	PTG-127
P500990802	99.00	120.00	8.10	NBR+NY	CS-2390
P50099E302	99.00	120.00	8.10	NYLON	PTG-130
P500991101	99.05	106.81	5.33	NBR	CS-3535
P500990803	99.26	114.30	7.92	NBR+NY	CS-2361
P50100E301	100.00	125.00	16.50	BFT	PTG-132
P501000802	100.13	114.30	7.16	NBR+NY	CS-2373
P501000803	100.76	115.00	7.24	NBR	CS-2988
P501030801	103.76	120.65	6.35	NBR	CS-3044
P50104K102	104.00	125.00	8	NBR+NY	CS-3426
P501040801	104.00	125.00	8	NBR	CS-688
P501046401	104.00	125.00	8.10	FKM/BFT	CS-1746
P501040802	104.00	125.00	8.10	NBR+NY	CS-2382
P501040803	104.00	125.00	8.10	NBR	CS-2732
P501040902 (Stock Item)	104.00	125.00	8.10	NBR+NY	CS-751
P501046401	104.00	125.00	8.10	FKM/BFT	PTG-103
P50104K101	104.85	114.30	10.30	NBR+NY	CS-1827
P50105E301	105.00	125.00	12.60	BFT	PTG-107
P501050801	105.74	120.00	7.24	NBR	CS-2987
P501060802	106.48	120.65	7.16	NBR+NY	CS-2369
P501070801	107.32	127.00	9.53	NBR	CS-3026
P50107K101	107.70	127.00	9.52	NBR	CS-2867
P501070802	107.70	127.00	9.53	NBR	CS-2973
P501090801	109.00	130.00	8.10	NBR+NY	CS-2395
P501090901	109.50	125.00	6.3	NBR	CS-778
P501100801	110.00	125.00	6.30	NBR	CS-2994
P501110802	111.96	127.00	7.92	NBR+NY	CS-2351
P501120802	112.83	127.00	7.16	NBR+NY	CS-2370
P501120801	112.87	127.00	4.87	NBR	CS-1162
P501147001	114.00	125.00	5	BFT	PTG-106
P50114E301	114.00	135.00	8	NYLON	PTG-131
P501140801	114.00	135.00	8.10	NBR	CS-3340
P501140902 (Stock Item)	114.00	135.00	8.10	NBR+NY	CS-763
P50114K101	114.00	135.00	8.10	NBR+NY	PTG-142
P501140802	114.05	133.35	9.53	NBR	CS-2972
P50114K201	114.50	127.00	6.30	NYLON	PTG-116
P501150801	115.74	130.00	7.24	NBR	CS-2986
P501191001	119.00	140.00	13.40	NBR	CS-3178
P501190902 (Stock Item)	119.00	140.00	8	NBR+NY	CS-3432
P501190802	119.00	140.00	8.10	NBR+NY	CS-2385
P501190901	119.00	140.00	8.10	NBR	CS-768
P501190803	119.18	133.35	7.24	NBR	CS-2976
P501200802	120.02	139.70	9.53	NBR	CS-3030
P50120E501	120.53	127.63	5.71	NYLON	PFC-335
P501200801	120.62	140.00	9.53	NBR	CS-3043
P501241101	124.45	131.81	5.33	NBR	CS-3534
P501250801	125.27	139.70	7.16	NBR	CS-3250
P50127K102	127.00	139.70	14.40	NBR	CS-3015
P50127K101	127.35	139.70	14.20	NBR+NY	CS-1826
P501290801	129.00	150.00	8.10	NBR+NY	CS-2384
P50130K101	130.00	150.00	9.39	NYLON	PTG-146
P501300801	130.63	150.00	9.53	NBR	CS-3041
P501330801	133.10	152.40	9.53	NBR	CS-2969
P50133E302	135.00	153.00	9.40	NYLON	PTG-117
P501351101	135.63	158.75	15.85	NBR	CS-365
P501387001	138.20	160.00	9.50	BFT	PTG-109
P50139E301	139.00	160.00	8	NYLON	PTG-114
P501390804	139.00	160.00	8.00	NBR	CS-1485
P501390802	139.00	160.00	8.10	NBR+NY	CS-2377
P501391001	139.00	160.00	8.10	NBR	CS-894
P501391001	139.00	160.00	8.10	NYLON	PTG-101
P50140E301	140.00	160.00	9.50	GLT	PTG-128
P501400801	140.61	160.00	9.53	NBR	CS-3042
P50143E501	143.13	153.03	7.36	NYLON	PFC-336
P50144K102	144.00	165.00	8.10	NBR+NY	PTG-143
P50144K101	144.57	158.75	6.70	NBR+NY	CS-1828
P501450801	145.80	165.10	9.53	NBR	CS-2970
P50149E301	149.00	160.00	6.30	NYLON	PTG-112
P501490802	149.00	170.00	8.10	NBR+NY	CS-2387
P50150K101	150.00	170.00	9.39	NYLON	PTG-145
P501500801	150.62	170.00	9.53	NBR	CS-3039
P501511001	151.00	172.00	13.40	NBR	CS-3180
P501580801	158.50	177.80	9.53	NBR	CS-2968
P501590902	159.00	180.00	8	NBR	CS-1484
P501590802	159.00	180.00	8.10	NBR+NY	CS-2388
P50160K101	160.00	180.00	9.20	NYLON	PTG-120
P501690901	169.00	190.00	8.10	NBR	CS-1124
P501696401	169.00	190.00	8.10	FKM/BFT	CS-708
P501766401	176.40	200.00	8.10	FKM	CS-3264
P501790801	179.00	200.00	8.1	NBR	CS-567
P501790802	179.00	200.00	8.10	NBR+NY	CS-2391
P501796401	179.00	200.00	8.10	NBR	CS-3567
P501790801	179.00	200.00	8.10	NYLON	PTG-121
P50184E301	184.00	200.00	5	NYLON	PTG-118
P501847001	184.15	203.20	7.62	BFT	PTG-134
P50189K101	189.00	210.00	8.10	NBR+NY	PTG-144
P50195K101	195.00	213.86	17	NYLON	PTG-122
P501960803	196.85	216.66	9.52	NYLON	PFD-239
P50199K101	199.00	220.00	8.10	NBR+NY	PTG-141
P502037001	203.50	220.00	7.90	BFT	PTG-105
P50209K101	209.00	230.00	8.10	NBR+NY	PTG-139
P502150801	215.90	234.95	9.52	NYLON	PFD-125
P502290801	229.00	250.00	8	NBR/BFT	PTG-110
P50229K101	229.00	250.00	8.10	NBR+NY	PTG-140
P50232K101	232.20	250.95	17	NYLON	PTG-123
P50234K101	234.09	242.41	9.32	NYLON	PPA-550
P50234K201	234.96	254.00	9.52	NBR	CS-3381
P502550801	255.50	280.00	7.80	NBR	CS-3496
P502720801	272.00	300.00	9.5	NBR	CS-901
P50273K101	273.05	292.10	17	NYLON	PTG-124
P50274K101	274.00	280.00	8.1	NYLON	PFD-143
P502790801	279.00	300.00	8.10	NBR+NY	CS-1023
P502810901	281.53	297.53	7.08	NBR	CS-949
P50292D501	292.10	304.80	9.77	HNBR	CS-702
P50292D502	292.10	304.80	9.77	HNBR	CS-799
P50297K101	297.45	305.71	9.31	NYLON	CS-950
P503220802	322.00	350.00	9.5	NBR	CS-900

For customised items please Click here
