Profile : Piston Seals


Spareage : P51

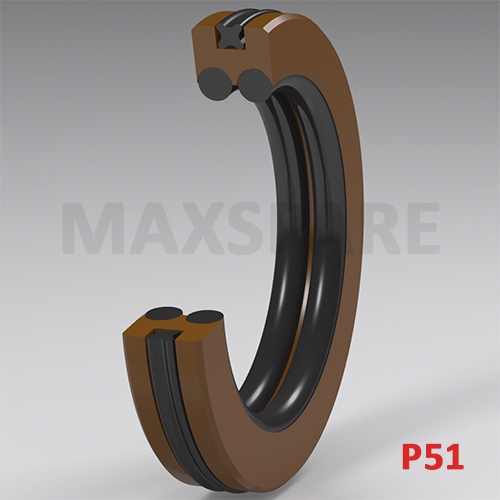

P51 Assembly

Details :
P51 is a double-acting seal comprises of a Bronze filled PTFE seal ring, a quad ring and 2 O-Ring as energizing element. The seal ring energized with quad ring perform the dynamic sealing function, while the O-Ring performs a static sealing function.
MATERIAL
Sealing Ring : Bronze filled PTFE
O Ring : Nitrile Rubber 70/75 Shore A
Quad Ring : Nitrile Rubber 70/75 Shore A
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 400 Bar
Speed : 2 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Mineral oils, water soluble & water glycol fluids.
APPLICATION
  • Application Presses, agricultural machinery, injection
  • Moulding machines, mills, marine hydraulics, industrial
  • platforms).
  • Vehicles, cranes, handling equipment, control and regulation equipment.
  • Agricultural equipments.
FEATURES
  • Excellent in seperation of two different fluids.
  • Well proven design.
  • Self-lubricating seal ring.
  • High surface speed.
  • Friction at minimum & no issue with stick-slip. Compact design. Any size upto 1200mm available on request.

Manufactured by: Max Spare Limited
Product ID: 503i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
P51011080111.2016.004NBR/BFT     PTI-114
P51039080139.0050.006NBR/BFT     PTI-125
P51040700140.0050.006.30NBR/BFT     PTI-115
P51042080142.0052.006.30NBR/BFT     PTI-105
P51050080150.0060.007NBR/BFT     PTI-124
P51052640152.0063.004.20FKM/BFT     PTI-119
P51053080153.0063.006.30NBR/BFT     PTI-117
P51060080160.0070.006.30NBR/BFT     PTI-120
P51067700167.0080.008.30NBR/BFT     PTI-110
P51073E30173.4289.297BFT     PTI-113
P51082700182.0095.008.10NBR/BFT     PTI-127
P51087080187.00100.008.30NBR/BFT     PTI-130
P51089080189.00110.008.10CAT     PTI-123
P51098080198.50115.006.90NBR/BFT     PTI-106
P511007001100.00112.008.30NBR/BFT     PTI-116
P511020801102.00115.008.30NBR/BFT     PTI-121
P511116401111.00120.5010.60FKM/BFT     PTI-131
P51111E301111.00127.007BFT     PTI-112
P511120801112.00125.008.30NBR/BFT     PTI-102
P51117E301117.00125.008.10BFT     PTI-132
P511197001119.00140.008.10NBR/BFT     PTJ-101
P511390801139.00160.1516NBR/BFT     PTI-128
P511446401144.00150.005.30FKM/PTFE     PTI-103
P51152E301152.00180.0010.60CNT+BFT     PTI-108
P511620802162.00180.0012.30NBR/BFT     PTI-101
P511790801179.00200.008.10NBR/BFT     PTI-104
P511800801180.97203.208.90NBR/BFT     PTI-107
P512197001219.00230.008.30NBR/BFT     PTI-109
P512297001229.00250.008.10NBR/BFT     PTI-118
P512327001232.00250.0012.30NBR/BFT     PTI-126
P512390801239.00260.008.10NBR/BFT     PTI-122
P513000801300.00320.0011.80NBR/BFT     PTI-111
P513227001322.00350.008.10BFT     PTJ-102
P513320801332.00350.0012.30NBR/BFT     PTI-129




For customised items please Click here
