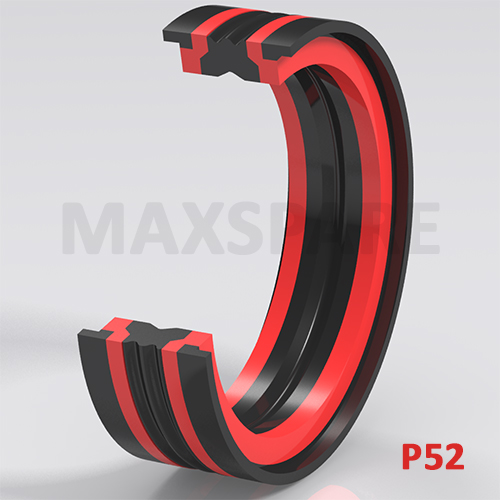

Max Spare : P52
Profile : Piston Seals
Details :
P52 is a robust compact double acting piston seal assembly designed specifically for one-piece pistons. It uses a nitrile sealing element which has proven itself in service to be extremely wear resistant and capable of working most effectively in a wide variety of medium duty applications. This seal is also suitable for split piston applications with endless ‘L’ shaped bearing rings.
MATERIAL
Sealing Ring
:
Nitrile Rubber 75/80 Shore A
Back-up rings
:
Polyurethane
Bearing rings
:
POM / Nylon
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
Pressure
:
400 Bar
Speed
:
0.5 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, water soluble & water glycol fluids.
APPLICATION
Light to medium duty cylinders.
Static load holding (boom lifting to hold hydraulic platforms).
Compact cylinders, Machine Tools.
Agricultural equipments.
FEATURES
Well proven design.
Long service life.
Short overall length of piston.
Excellent load holding capability.
Any size upto 500mm available on request.
Manufactured by:
Max Spare Limited
Product ID:
1i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only

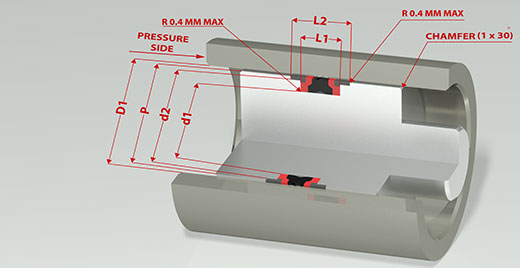

Part No.
d1
D1
L1/L2
Material
Qty
Actions
Mould No.
P520110901 (Stock Item)
11.00
20.00
13.5/17.70
NBR
CS-134
P520150904
15.00
25.00
12.5/20.50
NBR+ACT-1
CS-2792
P520150901 (Stock Item)
15.00
25.00
12/20
NBR
CS-135
P520150902 (Stock Item)
15.00
25.00
16.4/29.1
NBR
CS-341
P520166501
16.00
25.00
13.5/17.70
FKM
CS-1772
P520170904
17.00
25.00
10/18.00
NBR
CS-2209
P520170906
17.00
25.00
13.50/19.90
NBR+ACT-1
CS-2800
P520170905
17.00
30.00
15.4/28.10
NBR
CS-1999
P520170901
17.00
30.00
15.40/28.10
NBR
CS-572
P520190901
19.00
28.00
13.50/17.70
NBR+ACT-1
CS-2793
P520210901 (Stock Item)
21.00
30.00
13.5/17.7
NBR
CS-133
P520210901
21.00
30.00
13.5/17.70
NBR
CS-1717
P520210901
21.00
30.00
13.5/17.70
NBR
CS-1850
P520210902
21.00
30.00
13.50/17.70
NBR+ACT-1
CS-2794
P520220904
22.00
30.00
13.50/19.90
NBR+ACT-1
CS-2795
P520220903
22.00
32.00
12.5/20.50
NBR
CS-904
P520220902
22.00
32.00
15.50/20.70
NBR
CS-634
P520220901 (Stock Item)
22.00
32.00
16.4/29.10
NBR
CS-148
P520220901
22.00
32.00
16.4/29.10
NBR
CS-1965
P5202206501
22.00
32.00
16.4/29.10
FKM
CS-3257
P520223401
22.40
24.40
0.70/1.95
EPDM
CS-2149
P520246502
24.00
32.00
10.00/18.00
FKM
CS-255
P520240901 (Stock Item)
24.00
32.00
10/18
NBR
CS-174
P520240911
24.00
32.00
15.50/21.70
NBR+ACT-1
CS-2801
P520240907
24.00
32.00
15.50/21.90
NBR
CS-1995
P520240906
24.00
40.00
18.4/31.10
NBR
CS-1609
P520240902
24.00
40.00
18.4/31.10
NBR
CS-1982
P520240910
24.00
40.00
18.4/31.10
NBR
CS-2609
P520240902 (Stock Item)
24.00
40.00
18.4/31.10
NBR
CS-261
P520240906
24.00
40.00
18.40/31.10
NBR
CS-1596
P520246501
24.00
40.00
18.40/31.10
FKM
CS-1817
P520250901 (Stock Item)
25.00
35.00
16.4/29.1
NBR
CS-146
P520250901
25.00
35.00
16.40/29.10
NBR
CS-1976
P520250905
25.00
35.00
16.40/29.10
NBR+ACT-1
CS-2796
P520250903
25.40
38.10
15.87/28.57
NBR
CS-1879
P520250903
25.40
38.10
15.87/28.57
NBR
CS-590
P520260904
26.00
36.00
15.50/20.70
NBR
CS-3336
P520260901 (Stock Item)
26.00
40.00
15.5/20.70
NBR
CS-339
P520260901
26.00
40.00
15.50
NBR+PU
CS-1691
P520260901
26.00
40.00
15.50/20.70
NBR
CS-1852
P520260903
26.00
40.00
15.50/20.70
NBR+ACT-1
CS-2797
P520266501
26.00
40.00
15.50/20.70
FKM
CS-3049
P520270902
27.00
35.00
15.50/21.90
NBR
CS-407
P520280901 (Stock Item)
28.00
42.00
15.5/20.7
NBR
CS-295
P520280904
28.00
42.00
15.50/20.70
NBR+ACT-1
CS-2798
P520280903
28.57
38.10
11.25/18.87
NBR
CS-2745
P520280902
28.58
44.45
19.05/31.75
NBR
CS-1903
P520290901
29.00
45.00
18.4/31.10
NBR
CS-1872
P520290901 (Stock Item)
29.00
45.00
18.40/31.10
NBR
CS-132
P520290903
29.00
45.00
18.40/31.10
NBR+PU
CS-2784
P520306503
30.00
40.00
10.00/20.00
FKM
CS-3300
P520300902 (Stock Item)
30.00
40.00
12.5/20.50
NBR
CS-1864
P520300907
30.00
40.00
12.50/20.50
NBR+ACT-1
CS-2769
P520300903
30.00
40.00
15.50/29.10
NBR
CS-535
P520300901
30.00
40.00
16.4/29.10
NBR
CS-1874
P520300909
30.00
40.00
16.4/29.10
NBR+PU
CS-2446
P520300901 (Stock Item)
30.00
40.00
16.40/29.10
NBR
CS-129
P520307802
30.00
40.00
16.40/29.10
NBR
CS-159
P520307802
30.00
40.00
16.40/29.10
NBR+PU
CS-1831
P520300910
30.00
40.00
16.40/29.10
NBR
CS-2610
P520306502
30.00
40.00
16.40/29.10
FKM
CS-3069
P520309001
30.00
40.00
16.40/29.10
NBR
CS-3394
P520310903
31.00
45.00
15.50/20.70
NBR+PU
CS-2783
P520320902
32.00
40.00
10.00/18.00
NBR+ACT-1
CS-2791
P520320901 (Stock Item)
32.00
40.00
15.5/21.9
NBR
CS-296
P520326501
32.00
40.00
15.50/21.90
FKM
CS-2736
P520320903
32.00
40.00
15.50/21.90
NBR+PU
CS-2785
P520320904
32.00
40.00
15.50/21.90
NBR
CS-2834
P520340905
34.00
50.00
17.5/31.1
NBR
CS-1338
P520340906
34.00
50.00
18.4/31.10
NBR
CS-1549
P52034
34.00
50.00
18.4/31.10
NBR
CS-1607
P520340901
34.00
50.00
18.4/31.10
NBR
CS-1863
P520340901
34.00
50.00
18.4/31.10
NBR
CS-1977
P520340919
34.00
50.00
18.4/31.10
NBR
CS-3199
P520340901 (Stock Item)
34.00
50.00
18.40/31.10
NBR
CS-105
P520346503
34.00
50.00
18.40/31.10
FKM
CS-2109
P520340915
34.00
50.00
18.40/31.10
NBR
CS-2611
P520340917
34.00
50.00
20.30/26.60
NBR+ACT-1
CS-2916
P520340904
34.00
50.00
20.5/26.70
NBR
CS-1878
P520340904T
34.00
50.00
20.5/26.70
NBR
CS-477
P520346505
34.00
50.00
20/26.20
FKM
CS-2003
P520340902 (Stock Item)
34.00
50.00
20/26.20
NBR
CS-393
P520340913
34.79
50.80
19.05/31.75
NBR
CS-2565
P520340907
34.92
50.80
19.05/31.75
NBR
CS-1489
P520340916
34.93
50.80
19.05/31.75
NBR+PU
CS-2782
P520350901 (Stock Item)
35.00
45.00
16.4/29.1
NBR
CS-258
P520350905
35.00
50.00
20.00/30.00
NBR
CS-2612
P520356501
35.00
50.00
20.00/30.00
FKM
CS-3477
P520350902 (Stock Item)
35.00
50.00
20/30
NBR
CS-278
P520370902
37.00
45.00
15.50/21.90
NBR
CS-2079
P520370903
37.00
45.00
15.50/21.90
NBR+ACT-1
CS-2799
P520380902 (Stock Item)
38.00
50.00
20.5/28.9
NBR
CS-259
P520380902
38.00
50.00
20.5/28.90
NBR
CS-1343
P520386501
38.00
50.00
20.5/29
FKM
CS-2652
P520380910
38.00
50.00
20.50/28.90
NBR
CS-2613
P520390901 (Stock Item)
39.00
55.00
18.4/31.1
NBR
CS-131
P520390901
39.00
55.00
18.4/31.10
NBR
CS-1871
P520396501
39.00
55.00
18.4/31.10
FKM/BFT
CS-2159
P520390903
39.00
55.00
18.40/31.10
NBR
CS-1590
P520390905
39.00
55.00
18.40/31.10
NBR
CS-2032
P520390906
39.00
55.00
18.40/31.10
NBR
CS-2615
P520390902
39.00
55.00
20.5/26.70
NBR
CS-1877
P520390902
39.00
55.00
20.5/26.70
NBR
CS-812
P520390902
39.00
55.00
20.50/26.70
NBR+PU
CS-2786
P520400901
40.00
50.00
12.50/20.50
NBR
CS-1787
P520400903
40.00
50.00
12.50/20.50
NBR
CS-2614
P520400904
40.00
56.00
20.50/26.70
NBR+ACT-1
CS-2812
P520410902
41.28
50.80
11.11/18.73
NBR+PU
CS-2781
P520410901
41.28
57.15
19.05/31.75
NBR
CS-1893
P520440901 (Stock Item)
44.00
60.00
18.4/31.10
NBR
CS-264
P520446501
44.00
60.00
18.40/31.10
FKM
CS-1580
P520440903
44.00
60.00
18.40/31.10
NBR+PU
CS-2780
P520440904
44.00
60.00
20.50/26.70
NBR+PU
CS-2779
P520440902 (Stock Item)
44.00
60.00
20.50/26.70
NBR
CS-635
P520470901 (Stock Item)
47.00
63.00
18.4/31.10
NBR
CS-116
P520470911
47.00
63.00
18.4/31.10
NBR
CS-1548
P520470911
47.00
63.00
18.4/31.10
NBR
CS-1608
P520470901
47.00
63.00
18.4/31.10
NBR
CS-1860
P520476504
47.00
63.00
18.40/31.10
FKM
CS-1736
P520470919
47.00
63.00
18.40/31.10
NBR+PU
CS-2777
P520470915
47.00
63.00
19.40/32.10
NBR
CS-1892
P520476508
47.00
63.00
19.40/32.10
FKM
CS-2439
P520470923
47.00
63.00
19.40/32.10
NBR
CS-547
P520470902 (Stock Item)
47.00
63.00
20.5/28.9
NBR
CS-265
P520476701
47.00
63.00
20.5/28.90
FKM
CS-2142
P520470914
47.00
63.00
20.50/26.70
NBR
CS-1891
P520470914
47.00
63.00
20.50/26.70
NBR
CS-1969
P520470913
47.62
63.50
19.05/31.75
NBR
CS-1876
P520470917
47.62
63.50
19.05/31.75
NBR+PU
CS-2457
P520470918
47.63
63.50
19.05/31.75
NBR
CS-2616
P520480901
48.00
60.00
20.5/28.9
NBR
CS-1337
P520480901 (Stock Item)
48.00
60.00
20.5/28.90
NBR
CS-262
P520480903
48.00
60.00
20.50/28.90
NBR+PU
CS-2778
P520488501
48.00
63.00
20.00/30.00
FKM
CS-1585
P520480902
48.00
63.00
20/30
NBR
CS-1972
P520480902 (Stock Item)
48.00
63.00
20/30
NBR
CS-340
P520490902
49.00
65.00
20.50/26.70
NBR+PU
CS-2776
P520490901
49.00
65.00
26.7/20.50
NBR
CS-266
P520500901
50.00
65.00
18.4/31.10
NBR
CS-1858
P520500908
50.00
65.00
18.4/31.10
NBR
CS-2619
P520500901 (Stock Item)
50.00
65.00
18.40/31.10
NBR
CS-142
P520500901
50.00
65.00
18.40/31.10
NBR
CS-1854
P520500902
50.00
70.00
22.4/35.1
NBR
CS-773
P520500906
50.00
70.00
22.4/35.10
NBR
CS-1605
P520500902 (Stock Item)
50.00
70.00
22.40/35.10
NBR
CS-114
P520506502
50.00
70.00
22.40/35.10
FKM
CS-1579
P520500910
50.00
70.00
22.40/35.10
NBR+PU
CS-2790
P520500808
50.80
63.50
16.51/28.70
NBR+PU
CS-2445
P520500911
50.80
69.85
23.80/36.50
NBR+ACT-1
CS-2873
P520500904
50.80
69.85
30.15/42.85
NBR
CS-1056
P520510901 (Stock Item)
51.00
63.00
20.5/28.9
NBR
CS-204
P520516502
51.00
63.00
20.5/28.90
FKM
CS-1781
P520510901
51.00
63.00
20.5/28.90
NBR
CS-1961
P520510903
51.00
63.00
20.5/28.90
NBR
CS-2617
P520530901
53.00
63.00
12.50/20.50
NBR
CS-1894
P520530903
53.00
63.00
12.50/20.50
NBR
CS-2618
P520530904
53.00
63.00
12.50/20.50
NBR/FABRIC
CS-320
P520530906
53.97
63.50
11.09/22.67
NBR
CS-811
P520546501
54.00
70.00
20.5/26.7
FKM
CS-1494
P520540901
54.00
70.00
20.5/26.70
NBR
CS-1859
P520540901 (Stock Item)
54.00
70.00
20.5/26.70
NBR
CS-297
P520540902
54.00
70.00
20.50/26.70
NBR+PU
CS-2789
P520550905
55.00
70.00
20.00/30.00
NBR+PU
CS-2788
P520550901
55.00
75.00
22.4/35.10
NBR
CS-1873
P520550901 (Stock Item)
55.00
75.00
22.40/35.10
NBR
CS-117
P520550906
55.00
75.00
22.40/35.10
NBR+PU
CS-2787
P520570901
57.15
69.85
16.51/29.21
NBR
CS-1043
P520570906
57.15
76.20
23.62/36.32
NBR
CS-2561
P520570905
57.15
76.20
23.80/36.50
NBR+PU
CS-2450
P520570903
57.15
76.20
23.80/36.70
NBR
CS-1944
P520570907
57.15
76.20
23.81/36.51
NBR+PU
CS-2755
P520570902
57.15
76.20
23/36.70
NBR
CS-1782
P520580903
58.00
70.00
20.5/28.90
NBR
CS-1875
P520580905
58.00
70.00
20.50/28.90
NBR
CS-2631
P520580901 (Stock Item)
58.00
70.00
20.50/28.90
NBR
CS-298
P520580906
58.00
70.00
20.50/28.90
NBR+HYT
CS-3155
P520590901
59.00
75.00
20.5/26.70
NBR
CS-1861
P520590902
59.00
75.00
20.50/26.70
NBR+ACT-1
CS-2775
P520606508
60.00
80.00
12
FKM
CS-2115
P520600901-A (Stock Item)
60.00
80.00
22.4/35.1
NBR
CS-160
P520600901A
60.00
80.00
22.4/35.1
NBR
CS-775
P520606503
60.00
80.00
22.4/35.10
FKM
CS-1564
P520606502
60.00
80.00
22.4/35.10
FKM
CS-1567
P520600905
60.00
80.00
22.4/35.10
NBR
CS-1606
P520600901_A
60.00
80.00
22.4/35.10
NBR
CS-1862
P520600909
60.00
80.00
22.4/35.10
NBR+PU
CS-2447
P520600910
60.00
80.00
22.4/35.10
NBR+PU
CS-2453
P520600908
60.00
80.00
22.40/35.10
NBR+PU
CS-2756
P520606507
60.00
80.00
22.40/38.10
FKM
CS-1980
P520600913
60.00
80.00
25.00/37.70
NBR/FABRIC
CS-232
P520600902 (Stock Item)
60.00
80.00
25.4/38.1
NBR
CS-280
P520600906
60.33
76.20
19.05/31.75
NBR
CS-1895
P520600911
60.33
76.20
19.05/31.75
NBR
CS-2630
P520600916
60.33
76.20
19.05/31.75
NBR
CS-3672
P520626501
62.00
80.00
22.40/29.70
FKM/PTFE
CS-1711
P520620901
62.00
80.00
22.5/29.70
NBR
CS-1911
P520620904
62.00
80.00
22.50/29.70
NBR+ACT-1
CS-2827
P520620905
62.00
80.00
22.50/29.70
NBR+PU+NY
CS-693
P520620901 (Stock Item)
62.00
80.00
29.7/22.50
NBR
CS-173
P520630902
63.00
83.00
22.4/35.1
NBR
CS-1046
P520630905
63.50
82.55
24.20/36.90
NBR+PU
CS-2454
P520650904
65.00
80.00
20/30
NBR
CS-1908
P520656701
65.00
80.00
20/30
FKM
CS-2143
P520650901 (Stock Item)
65.00
80.00
20/30
NBR
CS-595
P520650908
65.00
85.00
21.40/34.10
NBR+ACT-1
CS-2815
P520650902
65.00
85.00
22.4/35.10
NBR
CS-1836
P520650902 (Stock Item)
65.00
85.00
22.40/35.10
NBR
CS-103
P520650907
65.00
85.00
22.40/35.10
NBR
CS-2629
P520660903
66.00
80.00
22.40/32.80
NBR
CS-1896
P520660904
66.00
80.00
22.40/32.80
NBR+ACT-1
CS-2830
P520666501
66.00
80.00
22.5/32.9
FKM
CS-937
P520660902
66.00
80.00
22.5/32.90
NBR
CS-996
P520660906
66.67
76.20
10.18/18.22
NBR+PU
CS-2646
P520660907
66.68
76.20
11.11/18.73
NBR+ACT-1
CS-2819
P520690901
69.85
88.90
23.62/36.32
NBR+HYT
CS-2563
P520706502
70.00
90.00
22.00/34.70
FKM
CS-449
P520706501
70.00
90.00
22.4/35.10
FKM
CS-1582
P520700902
70.00
90.00
22.4/35.10
NBR
CS-1600
P520700904
70.00
90.00
22.4/35.10
NBR
CS-837
P520700901 (Stock Item)
70.00
90.00
22.40/35.10
NBR
CS-118
P520700903
70.00
90.00
22.40/35.10
NBR+PU
CS-2757
P520704301
70.00
90.00
9/11
SILICON
CS-2603
P520706601
70.00
90.00
9/11
FKM
CS-2657
P520703401
70.00
90.00
9/11
EPDM
CS-2839
P520710901
71.00
85.00
22.50/32.90
NBR+ACT-1
CS-2924
P520720902
72.00
90.00
22.5/29.70
NBR
CS-1909
P520720903
72.00
90.00
22.50/28.90
NBR
CS-1897
P520720902
72.00
90.00
22.50/29.70
NBR
CS-316
P520750912
75.00
90.00
20.00/30.00
NBR+PU
CS-2758
P520750909
75.00
90.00
20/30
NBR
CS-1910
P520750916
75.00
90.00
20/30.00
NBR+PU+ACT
CS-1047
P520751101
75.00
90.00
22.50/33.00
NBR+PU
CS-1275
P520750913
75.00
95.00
22.4/35.10
NBR+PU
CS-2759
P520750901 (Stock Item)
75.00
95.00
22.40/35.10
NBR
CS-156
P520750902 (Stock Item)
75.00
100.00
22.4/35.1
NBR
CS-777
P520757803
75.00
100.00
22.4/35.1
ACT-1+PU-3+NT5/A
CS-855
P520750908
75.00
100.00
22.4/35.10
NBR
CS-1550
P520750910
75.00
100.00
22.4/35.10
NBR
CS-1906
P520756503
75.00
100.00
22.4/35.10
FKM
CS-1992
P520750914
75.00
100.00
22.4/35.10
NBR
CS-3200
P520750915
75.00
100.00
22.4/35.10
NBR+PU+NY
CS-691
P520757802
75.00
100.00
22.40/35.10
NBR
CS-124
P520750908
75.00
100.00
22.40/35.10
NBR
CS-1601
P520750911
75.00
100.00
22.40/35.10
NBR+PU
CS-2760
P520760902
76.00
90.00
22.40/32.80
NBR
CS-1898
P520760903
76.00
90.00
22.40/32.80
NBR+ACT-1
CS-2829
P520760901
76.00
90.00
22.50/32.90
NBR
CS-1437
P520806701
80.00
100.00
25.4/38.10
FKM
CS-2145
P520800901 (Stock Item)
80.00
100.00
25.40/38.10
NBR
CS-279
P520800906
80.00
105.00
22.4/35.10
NBR
CS-485
P520800902 (Stock Item)
80.00
105.00
22.40/35.10
NBR+NY
CS-149
P520810901
81.00
95.00
22.40/32.80
NBR/FABRIC
CS-231
P520820907
82.00
92.00
13/25.80
NBR
CS-2207
P520820901 (Stock Item)
82.00
100.00
22.5/29.70
NBR
CS-136
P520820904
82.00
100.00
22.5/29.70
NBR
CS-1907
P520826501
82.00
100.00
22.50/29.70
FKM
CS-2643
P520820906
82.00
100.00
22.50/29.70
NBR/FABRIC
CS-564
P520820910
82.55
101.60
23.80/36.50
NBR+PU
CS-2455
P520820905
82.55
101.60
23.81/36.51
NBR
CS-1902
P520820912
82.55
101.60
23.81/36.51
NBR/FABRIC
CS-318
P520850908
85.00
100.00
20.00/30.00
NBR+PU
CS-2761
P520850904
85.00
100.00
20/30
NBR
CS-1899
P520857802
85.00
100.00
20/30
NBR
CS-1953
P520856503
85.00
100.00
20/30
FKM
CS-2140
P520856504
85.00
110.00
13.50
FKM
CS-2737
P520850901 (Stock Item)
85.00
110.00
22.4/35.10
NBR
CS-110
P520850910
85.00
110.00
22.40/35.10
NBR
CS-2628
P520850903
85.00
110.00
22/34.7
NBR
CS-1393
P520850901
85.00
110.00
25.4/35.10
NBR
CS-1865
P520850906
85.00
110.00
25.4/38.10
NBR+ACT-1
CS-2816
P520860902
86.00
100.00
22.40/32.80
NBR
CS-1900
P520860901 (Stock Item)
86.00
100.00
22.50/32.90
NBR
CS-293
P520880901
88.90
101.60
13.97/24.43
NBR
CS-1048
P520880904
88.90
107.95
23.80/36.50
NBR+PU
CS-2456
P520880902
88.90
107.95
24.21/36.91
NBR
CS-1049
P520880905
88.90
114.30
31.75/44.45
NBR+PU
CS-2458
P520900903
90.00
110.00
25.30/38.00
NBR+PU
CS-2832
P520900901 (Stock Item)
90.00
115.00
22.40/35.10
NBR
CS-119
P520900902
90.00
115.00
22.40/35.10
NBR
CS-1593
P520900902
90.00
115.00
22.40/35.10
NBR
CS-1603
P520900901
90.00
115.00
25.4/35.10
NBR
CS-1914
P520920901 (Stock Item)
92.00
110.00
22.5/29.7
NBR
CS-1022
P520920903
92.00
110.00
22.5/35.10
NBR
CS-499
P520920902
92.00
110.00
22.50/29.70
NBR
CS-3071
P520950907
95.00
110.00
20.00/30.00
NBR
CS-2627
P520950906
95.00
110.00
22.50/32.90
NBR+PU
CS-2124
P520950905
95.00
115.00
22.40/35.10
NBR+PU
CS-2125
P520950901 (Stock Item)
95.00
120.00
22.40/35.10
NBR
CS-147
P520950904
95.00
120.00
22.40/35.10
NBR
CS-1592
P520950904
95.00
120.00
22.40/35.10
NBR
CS-1602
P520956501
95.00
120.00
22.40/35.10
FKM/FABRIC+PFT
CS-1701
P520950908
95.00
120.00
22.40/35.10
NBR+PU
CS-2765
P520960902
96.00
110.00
18.50/32.50
NBR
CS-1581
P520960901
96.00
110.00
22.40/32.80
NBR
CS-374
P520970902
97.00
115.00
22.40/29.60
NBR+ACT-1
CS-2813
P520970903
97.00
115.00
22.40/30.80
NBR
CS-2814
P520970901
97.00
115.00
22.5/29.7
NBR
CS-757
P521000905
100.00
120.00
25/37.60
NBR
CS-1050
P521007802
100.00
125.00
25.4/38.1
NBR/FABRIC
CS-767
P521000901.
100.00
125.00
25.4/38.10
NBR
CS-1915
P521000909
100.00
125.00
25.4/38.10
NBR+PU
CS-2448
P521000911
100.00
125.00
25.4/38.10
NBR+PU
CS-2649
P521000902
100.00
125.00
25.4/38.10
NBR
CS-281
P521000901 (Stock Item)
100.00
125.00
25.40/38.10
NBR
CS-112
P521006501
100.00
125.00
25.40/38.10
FKM
CS-1128
P521006503
100.00
125.00
25.40/38.10
FKM
CS-1570
P521000910
100.00
125.00
25.40/38.10
NBR
CS-2626
P521000914
100.00
126.20
32.00/52.00
NBR
CS-423
P521010901
101.00
115.00
22.40/32.80
NBR
CS-2208
P521010902
101.60
127.00
31.75/50.80
NBR+PU
CS-2449
P521010906
101.60
127.00
31.75/50.80
NBR+PU+NY
CS-3483
P521010904
101.60
127.00
32.15/51.20
NBR/FABRIC
CS-225
P521030901
103.00
125.00
26.5/36.70
NBR
CS-1963
P521030901 (Stock Item)
103.00
125.00
26.50/36.70
NBR
CS-125
P521030902
103.00
125.00
26.50/36.70
NBR+PU
CS-2763
P521036501
103.00
125.00
28.50/36.70
FKM
CS-1996
P521050910
105.00
125.00
25.00/37.70
NBR+ACT-1
CS-2820
P521050909
105.00
125.00
25.4/38.10
NBR+PU
CS-2451
P521050901 (Stock Item)
105.00
125.00
25.40/38.10
NBR
CS-292
P521050902
105.00
130.00
25.4/44.40
NBR
CS-1847
P521050902
105.00
130.00
25.4/44.40
NBR
CS-1853
P521056504
105.00
130.00
25.40/38.10
FKM
CS-3557
P521056501
105.00
130.00
25.40/44.40
FKM/PTFE
CS-1710
P521050902 (Stock Item)
105.00
130.00
25.40/44.40
NBR
CS-282
P521050911
105.00
130.00
25.40/44.45
NBR+ACT-1
CS-2811
P5210690902
106.00
120.00
22.40/32.80
NBR+PU
CS-2764
P521060901
106.00
120.00
22.50/32.90
NBR
CS-283
P521077801
107.96
126.74
9.45
ACETAL
CS-1809
P521080904
108.00
125.00
26.50/40.90
NBR+PU
CS-2762
P521080905
108.00
125.00
26.50/40.90
NBR+PU
CS-2831
P521080901 (Stock Item)
108.00
125.00
26.50/40.90
NBR
CS-338
P521086901
108.00
125.00
26.50/40.90
FKM
CS-957
P521083501
108.00
127.00
15.00
EPDM
CS-3458
P521100903
110.00
135.00
25.4/38.10
NBR+ACT-1
CS-2768
P521100904
110.00
135.00
25.4/44.45
NBR+ACT-1
CS-2767
P521100902 (Stock Item)
110.00
135.00
25.40/38.10
NBR
CS-263
P521100901 (Stock Item)
110.00
135.00
25.40/44.40
NBR
CS-186
P521150908
115.00
140.00
25.4/38.10
NBR
CS-1912
P521150907
115.00
140.00
25.4/38.10
NBR
CS-1919
P521150901
115.00
140.00
25.4/44.40
NBR
CS-1916
P521150901
115.00
140.00
25.4/44.40
NBR
CS-2072
P521150903.
115.00
140.00
25.40/38.10
NBR
CS-1558
P521150903
115.00
140.00
25.40/38.10
NBR+PU
CS-1692
P521150911
115.00
140.00
25.40/38.10
NBR
CS-2638
P521156501
115.00
140.00
25.40/38.10
FKM
CS-2653
P521150903 (Stock Item)
115.00
140.00
25.40/38.10
NBR
CS-270
P521150910
115.00
140.00
25.40/38.10
NBR+ACT-1
CS-2828
P521150915
115.00
140.00
25.40/38.10
NBR
CS-3718
P521150901 (Stock Item)
115.00
140.00
25.40/44.40
NBR
CS-139
P521150901
115.00
140.00
25.40/44.40
NBR
CS-1578
P521150912
115.00
140.00
25.40/44.40
NBR
CS-2637
P521156504
115.00
140.00
25.40/44.40
FKM
CS-3403
P521150909
115.00
140.00
25.40/44.44
NBR+ACT-1
CS-2818
P521150913
115.00
140.00
32.00/52.00
NBR+PU
CS-3007
P521180902
118.00
140.00
26.50/36.70
NBR+ACT-1
CS-2817
P521186501
118.00
140.00
26.50/36.70
FKM
CS-3319
P521180901 (Stock Item)
118.00
140.00
36.7/26.50
NBR
CS-459
P521200904
120.00
140.00
25/37.70
NBR+PU
CS-2452
P521200905
120.00
140.00
25/37.70
NBR+ACT-1
CS-2822
P521206501
120.00
145.00
20.00/30.00
FKM
CS-3583
P521200902 (Stock Item)
120.00
145.00
25.4/38.1
NBR
CS-126
P521200902
120.00
145.00
25.4/38.10
NBR
CS-1998
P521200906
120.00
145.00
25.40/44.44
NBR+ACT-1
CS-2823
P521230901
123.00
140.00
26.5/40.9
NBR
CS-997
P521256507
125.00
150.00
25.00/44.04
FKM
CS-3562
P521250902 (Stock Item)
125.00
150.00
25.4/38.10
NBR
CS-1565
P521250902
125.00
150.00
25.4/38.10
NBR
CS-1917
P521250901
125.00
150.00
25.4/44.4
NBR
CS-2080
P521250901 (Stock Item)
125.00
150.00
25.4/44.40
NBR
CS-1921
P521256503
125.00
150.00
25.40/38.10
FKM/PTFE
CS-1801
P521250903
125.00
150.00
25.40/38.10
NBR
CS-2636
P521256506
125.00
150.00
25.40/44.40
FKM/BFT
CS-1661
P521250901.
125.00
150.00
25.40/44.40
NBR
CS-202
P521250904
125.00
150.00
25.40/44.40
NBR
CS-2635
P521256504
125.00
150.00
27/47
FKM
CS-2842
P521270905
127.00
152.40
31.75/50.80
NBR+ACT-1
CS-741
P521270901
127.00
152.40
32.15/44.85
NBR
CS-1052
P521286701
128.00
150.00
26.5/36.70
FKM
CS-2144
P521280901 (Stock Item)
128.00
150.00
26.50/36.70
NBR
CS-1960
P521280901
128.00
150.00
36.7/26.50
NBR
CS-476
P521300906
130.00
155.00
25.40/38.10
NBR+PU
CS-2126
P521300901
130.00
155.00
25.40/44.40
NBR
CS-1577
P521300901 (Stock Item)
130.00
155.00
25.40/44.40
NBR
CS-169
P521300910
130.00
160.00
25.4/38.10
NBR+PU
CS-2648
P521300902 (Stock Item)
130.00
160.00
25.4/38.10
NBR
CS-284
P521300911
130.00
160.00
25.40/38.10
NBR/FABRIC
CS-228
P521306503
130.00
160.00
25.40/38.10
FKM
CS-3245
P521300909
130.00
160.00
25.40/44.40
NBR
CS-2633
P521300908
130.00
160.00
25.40/44.40
NBR
CS-2634
P521300903 (Stock Item)
130.00
160.00
25.40/44.40
NBR
CS-300
P521330901
133.00
150.00
26.50/40.90
NBR/FABRIC
CS-224
P521356502
135.00
160.00
25.4/44.4
FKM
CS-1170
P521350901
135.00
160.00
25.4/44.40
NBR+PU+ACT
CS-1932
P521356505
135.00
160.00
25.4/44.40
FKM
CS-2650
P521350901 (Stock Item)
135.00
160.00
25.40/44.40
NBR
CS-137
P521350906
135.00
160.00
25.40/44.45
NBR/FABRIC
CS-226
P521356506
135.00
160.00
32/52
FKM
CS-285
P521380901 (Stock Item)
138.00
160.00
26.50/36.70
NBR
CS-165
P521380903
138.00
160.00
26.50/36.70
NBR
CS-2632
P521400907
140.00
160.00
25.00/37.70
NBR
CS-2620
P521400906
140.00
160.00
25.40/37.6
NBR
CS-1053
P521400901 (Stock Item)
140.00
165.00
25.40/44.40
NBR
CS-167
P521400908
140.00
165.00
25.40/44.45
NBR+ACT-1
CS-2806
P521400905
140.00
170.00
25.4/38.10
NBR
CS-366
P521430902
143.00
160.00
26.50/40.90
NBR+ACT-1
CS-2821
P521430901
143.00
165.00
26.50/36.70
NBR+PU
CS-2647
P521450901
145.00
170.00
25.4/50.80
NBR
CS-1918
P521450901 (Stock Item)
145.00
170.00
25.40/50.80
NBR
CS-166
P521450903
145.00
170.00
25.40/50.80
NBR
CS-2621
P521480901
148.00
170.00
26.50/36.50
NBR+ACT-1
CS-2770
P521500901 (Stock Item)
150.00
175.00
25.4/50.8
NBR
CS-1020
P521500906
150.00
175.00
25.40/38.10
NBR
CS-2622
P521500905
150.00
175.00
25.40/50.80
NBR
CS-1913
P521500904
150.00
180.00
25.4/39.4
NBR
CS-934
P521500903
150.00
180.00
35.4/48.10
NBR
CS-1848
P521506501
150.00
180.00
35.40/48.10
FKM/PTFE
CS-1709
P521500903 (Stock Item)
150.00
180.00
35.40/48.10
NBR
CS-187
P521500908
150.00
180.00
35.40/48.10
NBR/FABRIC
CS-223
P521520903
152.40
177.80
31.75/44.65
NBR+ACT-1
CS-2771
P521520901
152.40
177.80
32.15/44.85
NBR
CS-1054
P521550903
155.00
180.00
25.4/50.8
NBR
CS-1468
P521550901
155.00
180.00
25.4/50.80
NBR
CS-1849
P521550901 (Stock Item)
155.00
180.00
25.40/50.80
NBR
CS-168
P521550906
155.00
180.00
25.40/50.80
NBR+ACT-1
CS-2805
P521556701
155.00
180.00
25.40/50.80
FKM
CS-3382
P521580901
158.00
180.00
26.50/36.70
NBR
CS-1994
P521580904
158.00
180.00
26.50/36.70
NBR
CS-2623
P521580901 (Stock Item)
158.00
180.00
36.7/26.50
NBR
CS-469
P521600901 (Stock Item)
160.00
185.00
25.40/50.80
NBR
CS-102
P521630901
163.00
180.00
26.50/40.90
NBR
CS-1901
P521630901
163.00
180.00
26.50/40.90
NBR
CS-1962
P521630903
163.00
180.00
26.50/40.90
NBR+ACT-1
CS-2772
P521650901
165.00
190.00
25.4/50.80
NBR
CS-1924
P521650901 (Stock Item)
165.00
190.00
25.40/50.80
NBR
CS-592
P521700901 (Stock Item)
170.00
195.00
25.40/50.80
NBR+PU
CS-170
P521706501
170.00
200.00
25.40/50.80
FKM
CS-2913
P521700902 (Stock Item)
170.00
200.00
35.40/48.10
NBR
CS-287
P521706503
170.00
200.00
35.40/48.10
FKM
CS-891
P521706502
170.00
202.00
36/61
FKM
CS-2980
P521756503
175.00
200.00
25.4/50.80
FKM
CS-1733
P521750901
175.00
200.00
25.4/50.80
NBR+PU
CS-1832
P521750901 (Stock Item)
175.00
200.00
25.40/50.80
NBR
CS-141
P521750904
175.00
200.00
25.40/50.80
NBR+ACT-1
CS-2773
P521750902.
175.00
200.00
31.5/44.70
NBR
CS-1922
P521750902 (Stock Item)
175.00
200.00
31.50/44.70
NBR
CS-1587
P521750903
175.00
200.00
31.50/44.70
NBR
CS-2625
P521750905
175.00
200.00
31.50/44.70
NBR
CS-3393
P521751001
175.00
200.00
45.00/70.40
NBR
CS-467
P521770902
177.80
203.20
31.75/44.45
NBR+ACT-1
CS-2774
P521800901
180.00
200.00
31.50/49.90
NBR
CS-1904
P521800903
180.00
210.00
32.40/45.10
NBR
CS-2624
P521850901
185.00
210.00
25.4/50.80
NBR
CS-1923
P521850901
185.00
210.00
25.4/50.80
NBR
CS-2088
P521850901 (Stock Item)
185.00
210.00
25.40/50.8
NBR
CS-154
P521900903
190.00
220.00
35.40/48.10
NBR+ACT-1
CS-2824
P521900902 (Stock Item)
190.00
220.00
35.40/48.10
NBR
CS-484
P521956502
195.00
220.00
25.4/50.8
FKM
CS-1365
P521950903
195.00
220.00
25.4/50.80
NBR/FABRIC
CS-482
P521950901 (Stock Item)
195.00
220.00
25.40/50.80
NBR
CS-203
P521956504
195.00
224.00
35.50/48.20
FKM/BFT
CS-127
P521950902
195.00
225.00
35.50/48.20
NBR+ACT-1
CS-2826
P522000903
200.00
220.00
31.50/49.90
NBR
CS-1920
P522050901 (Stock Item)
205.00
230.00
25.40/50.80
NBR
CS-172
P522056501
205.00
230.00
25.40/50.80
FKM
CS-2441
P522050903
205.00
230.00
25.40/50.80
NBR+ACT-1
CS-2825
P522150901 (Stock Item)
215.00
240.00
25.40/50.80
NBR
CS-153
P522150902
215.00
240.00
25.40/50.80
NBR+ACT-1
CS-2810
P522200902
220.00
250.00
35.40/48.10
NBR+ACT-1
CS-2809
P522200901 (Stock Item)
220.00
250.00
35.40/48.10
NBR
CS-593
P522206501
220.00
250.00
36.00/61.00
FKM/BFT
CS-3645
P522256501
225.00
250.00
25.4/50.80
FKM
CS-2639
P522250901 (Stock Item)
225.00
250.00
25.40/50.80
NBR
CS-164
P522250904
225.00
250.00
25.40/50.80
NBR+ACT-1
CS-2808
P522251001
225.00
250.00
31.50/44.70
NBR
CS-1631
P522266301
226.00
252.00
31.50/44.70
FKM
CS-2905
P522270901
227.00
252.00
31.50/44.70
NBR
CS-971
P522300901
230.00
250.00
31.50/49.90
NBR+ACT-1
CS-2807
P522350901
235.00
260.00
25/50.40
NBR
CS-3153
P522357801
235.00
260.00
25/50.40
NBR/PU
CS-886
P522500902
250.00
280.00
35.40/54.44
NBR+PU
CS-1703
P522750901 (Stock Item)
275.00
300.00
25.40/50.80
NBR
CS-155
P522750901
275.00
300.00
25.40/50.80
NBR+PU
CS-1830
For customised items please
Click here
Login
