Profile : Piston Seals


Spareage : P59

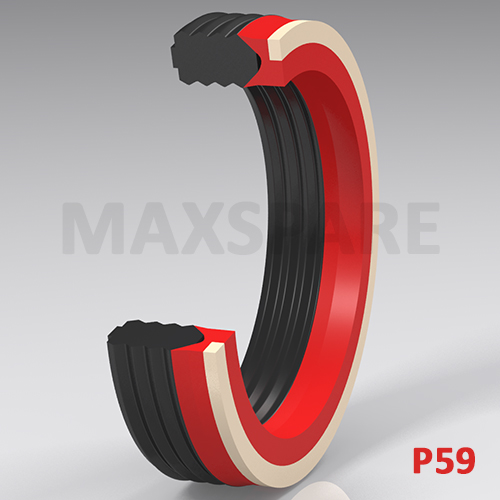

P59 Assembly

Details :
P59 is a robust seal designed to meet the needs of hydraulic equipement operating t high pressure, subject to severe vibration and shock loading. The shape of the sealing lips are designed to give maximum sealing efficiency with the least amountof friction. The support ring u-seal is manufacture either in fabric reinforced or polyurethane to energise the elastomer seal when pressure is applied. Anti-extusion ring is provided on the external heel of the u-seal.
MATERIAL
Sealing Ring : Nitrile Rubber 75/80 Shore A
Backup U-rings : Fabric / PU
Backup rings : POM / Nylon
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 700 Bar
Speed : 0.5 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Mineral oils, water base fluids, fire resistant fluids and compressed air.
APPLICATION
  • Earth moving equipment, agricultural machinery, cranes.
  • Heavy Duty industrial cylinders.
FEATURES
  • High static and dynamic sealing application.
  • Low friction.
  • Tolerant to contamination.

Manufactured by: Max Spare Limited
Product ID: 313i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
P59095880195.00110.0021.20NBR     CS-2206
P59095100295.00110.0021.20NBR/FABRIC     CS-639
P591151001115.00135.0017.50NBR+PU     CS-3566




For customised items please Click here
