Profile : Piston Seals


Spareage : P61

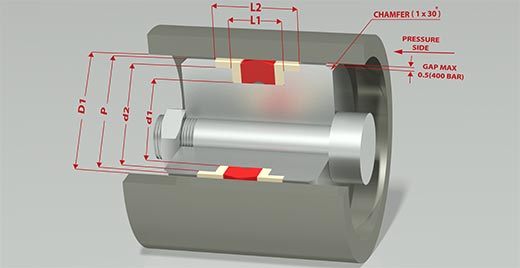

P61 Assembly

Details :

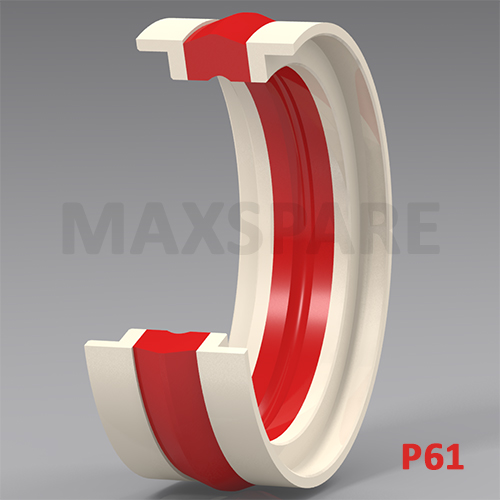

P61 is a robust compact double acting piston seal space saving, compact piston seal with intergrated guiding elements. Excellent static sealing capacity, suitable for small housings.P61 piston seal is three piece piston seal with two L-Ring guides (Nylon or POM) and Polyurethane sealing component
MATERIAL
Sealing Ring : Poluurethane 95 Shore A
Bearing rings : POM / Nylon
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 210 Bar
Speed : 0.5 m/s
SURFACE ROUGHNESS
Static : 1.6 mmRa
Dynamic : 0.4 mmRa
COMPATIBILITY
Mineral oils, water soluble & water glycol fluids.
APPLICATION
  • Standard cylinders
  • Static load holding (boom lifting to hold hydraulic
  • platforms).
  • Compact cylinders, Machine Tools.
  • Agricultural equipments.
FEATURES
  • Well proven design.
  • Long service life.
  • Short overall length of piston.
  • Excellent load holding capability.
  • Any size upto 500mm available on request.

Manufactured by: Max Spare Limited
Product ID: 325i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
P61032590132.0040.009.40/17.20PU+ACT-1     PUB-583
P61039670139.0055.0016/24.20FKM     CS-3683
P61040L50140.0050.0012.50/20.50PU     CS-2730
P61047670147.0063.0012/22.00FKM     CS-3684
P61050L50150.8069.8530.15/42.85PU     CS-2082
P61051670151.0063.0019.50/27.80FKM     CS-2751
P61060730160.0080.0020.80/30.60FKM     CS-1647
P61060660160.0080.0032/46FKM     CS-730
P61065090165.0080.009/15NBR     CS-3160
P61070L50170.0080.0012.50/20.50PU     CS-2731
P61075640175.00100.0022/35FKM     CS-1537
P61085650185.00110.0022.40/35.10FKM     CS-3657
P61085670385.7298.299.90FKM     CS-615
P611076701107.95123.748.50FKM     CS-614
P611336701133.35142.468.50FKM     CS-613
P611336002133.35152.408.9CPU     CPU-121
P611336702133.35152.408.90FKM     CS-617
P611566601156.00170.009.20/16.50FKM     CS-977
P611616001161.92180.979CPU     CPU-123
P611636001163.11175.818.5CPU     CPU-122
P611636701163.11175.818.50FKM     CS-616
P611946001194.86207.569CPU     CPU-124




For customised items please Click here
