Max Spare : P65

Profile : Piston Seals

Details :

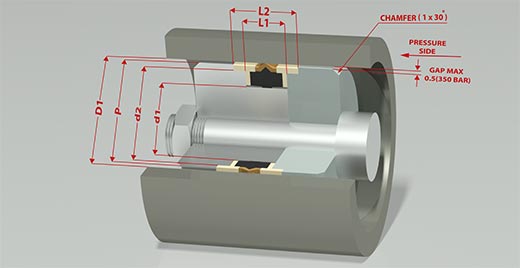

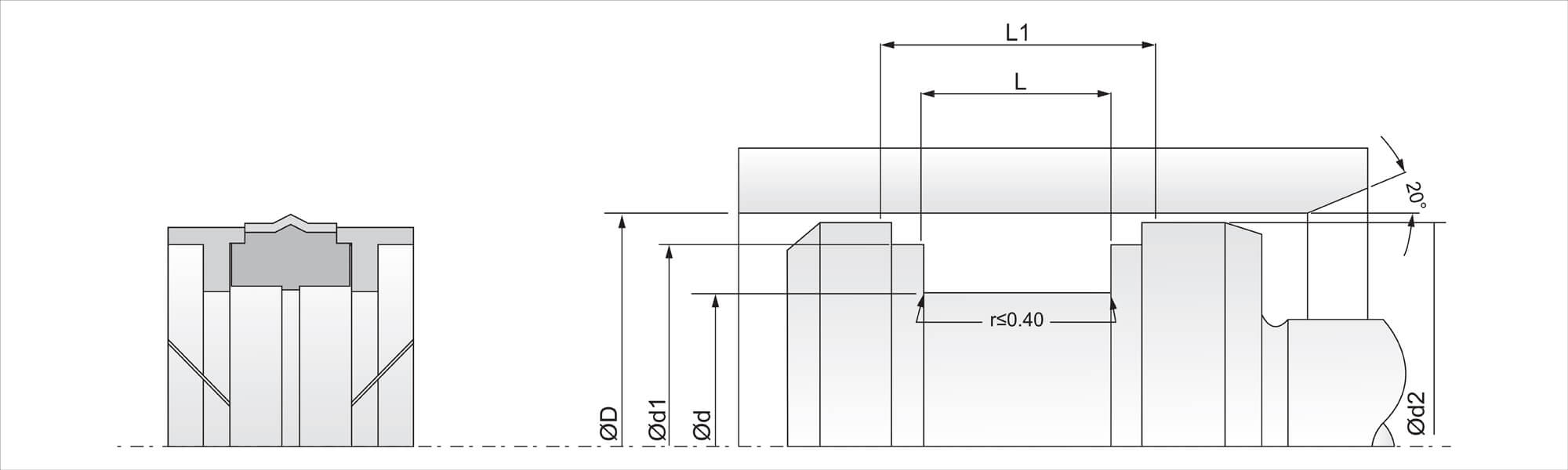

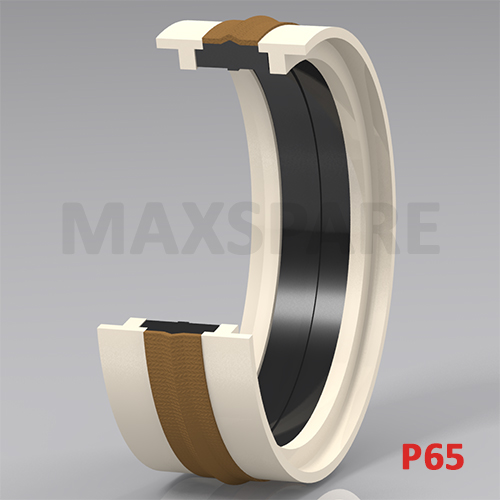

P65 double acting compact piston seal is designed for use with split pistons. It comprises of a precision moulded fabric reinforced nitrile sealing element and two thermoplastic bearing rings on the outside diameter. The fabric reinforces the nitrile element and absorbs hydraulic fluid to help reduce friction. The bearing rings help prevent extrusion, permit higher working pressures and allow larger clearances between the piston and cylinder.

MATERIAL

Sealing Ring	:	Nitrile Rubber / Fabric 75/80 Shore A
Bearing rings	:	POM / Nylon

OPERATING CONDITIONS

Temperature Range	:	-20° C to + 100° C
Pressure	:	350 Bar
Speed	:	0.5 m/s

SURFACE ROUGHNESS

Static	:	1.6 mm Ra
Dynamic	:	0.4 mm Ra

COMPATIBILITY

Mineral oils, hydraulic oils, water and air.

APPLICATION

Earth moving equipment, agricultural machinery, cranes,
standard cylinders.

FEATURES

High static and dynamic sealing application.
Low friction.
Well proven design.
Tolerant to contamination.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
P650178301	17.00	25.00	10/18	NBR+ACT-1	CS-1096
P650248302	24.00	32.00	10/18	NBR/FABRIC	CS-2688
P650248301	24.00	32.00	15.50/21.90	NBR/FABRIC	CS-2687
P650278301	27.00	35.00	15.5/21.9	NBR+ACT-1	CS-1095
P650328302	32.00	40.00	10/18	NBR+ACT-1	CS-575
P650328301	32.00	40.00	15.5/21.90	NBR/FABRIC	CS-578
P650378301	37.00	45.00	15.50/21.90	NBR/FABRIC	CS-2686
P650380901	38.00	50.00	20.5/28.90	NBR/FABRIC	CS-703
P650388301	38.00	50.00	20.5/28.90	NBR/FABRIC	CS-970
P650408301	40.00	50.00	12.50/20.50	NBR+ACT-1	CS-579
P650438302	43.00	55.00	20.50/28.90	NBR/FABRIC	CS-2685
P650468401	46.00	63.00	14.50/29	NBR/FABRIC	CS-2921
P650488305	48.00	60.00	20.5/28.9	NBR/FABRIC	CS-943
P650488305	48.00	60.00	20.5/28.90	NBR/FABRIC	CS-2697
P650501001	50.80	60.32	11.10/18.72	NBR+ACT-1	CS-2861
P650518302	51.00	63.00	20.50/28.90	NBR/FABRIC	CS-2684
P650538301	53.00	63.00	12.50/20.50	NBR/FABRIC	CS-581
P650530901	53.00	63.00	12.50/20.50	NBR/FABRIC	CS-677
P650530903	53.00	65.00	20.5/28.9	NBR+ACT-1	CS-1011
P650588302	58.00	70.00	20.5/28.90	NBR/FABRIC	CS-972
P650588303	58.00	70.00	20.50/28.90	NBR/FABRIC	CS-582
P650638301	63.00	75.00	20.50/28.90	NBR/FABRIC	CS-583
P650638401	63.00	80.00	14.50/29	NBR/FABRIC	CS-2922
P650658301	65.00	80.00	20/30	NBR+ACT-1	CS-584
P650668305	66.00	80.00	22.5/32.90	NBR/FABRIC	CS-664
P650668302	66.00	80.00	22.5/32.90	NBR/FABRIC	CS-973
P650718301	71.00	85.00	22.5/32.90	NBR/FABRIC	CS-2683
P65	71.00	85.00	22.50/32.90	NBR/FABRIC	CS-585
P650768302	76.00	90.00	22.5/32.9	NBR/FABRIC	CS-665
P650800901	80.00	100.00	31.75/44.87	NBR	CS-1945
P650858301	85.00	100.00	20/30	NBR+ACT-1	CS-1344
P650868302	86.00	100.00	22.5/32.9	NBR/FABRIC	CS-944
P650860901	86.00	100.00	22.50/32.90	NBR/FABRIC	CS-681
P650968302	96.00	110.00	22.5/33	NBR/FABRIC	CS-2076
P650960901	96.00	110.00	22.50/32.90	NBR+ACT-1	CS-682
P651050901	105.00	125.00	25/37.60	NBR+ACT-1	CS-667
P651068302	106.00	120.00	22.4/33	NBR/FABRIC	CS-588
P651068301	106.00	120.00	22.5/32.90	NBR/FABRIC	CS-2682
P651088301	108.00	125.00	26.5/40.9	NBR/FABRIC	CS-668
P651100901	110.00	130.00	25.00/36.00	NBR/FABRIC	CS-3581
P651200901	120.00	140.00	25/37.6	NBR/FABRIC	CS-669
P651238301	123.00	140.00	26.50/44	NBR/FABRIC	CS-835
P651330901	133.00	150.00	26.5/40.9	NBR+ACT-1	CS-670
P651400901	140.00	160.00	25/37.6	NBR/FABRIC	CS-671
P651430901	143.00	160.00	26.5/40.9	NBR+ACT-1	CS-672
P651638301	163.00	180.00	26.50/40.90	NBR/FABRIC	CS-673
P651700901	170.00	200.00	36/61	NBR+ACT-1	CS-674
P651800901	180.00	200.00	31.5/49.9	NBR+ACT-1	CS-675
P652000901	200.00	220.00	31.5/49.9	NBR/FABRIC	CS-676
P652300901	230.00	250.00	31.5/49.9	NBR/FABRIC	CS-657
