Max Spare : P66
Profile : Piston Seals
Details :

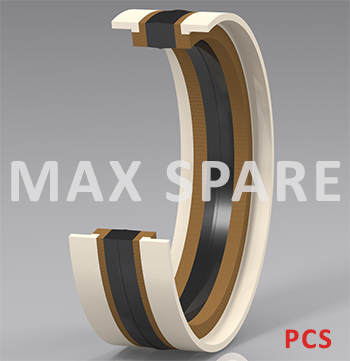

P66 double acting compact piston seal is designed for use with split pistons. It comprises of a precision moulded fabric reinforced nitrile sealing element and two thermoplastic bearing rings on the outside diameter. The fabric reinforces the nitrile element and absorbs hydraulic fluid to help reduce friction. The bearing rings help prevent extrusion, permit higher working pressures and allow larger clearances between the piston and cylinder.
MATERIAL
Sealing Ring
:
Nitrile Rubber / Fabric 75/80 Shore A
Bearing rings
:
POM / Nylon
OPERATING CONDITIONS
Temperature Range
:
-20° C to + 100° C
Pressure
:
500 Bar
Speed
:
0.5 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, hydraulic oils, water and air.
APPLICATION
Earth moving equipment, agricultural machinery, cranes,
standard cylinders.
FEATURES
High static and dynamic sealing application.
Low friction.
Well proven design.
Tolerant to contamination.
Manufactured by:
Max Spare Limited
Product ID:
5i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
d1
D1
L1/L2
Material
Qty
Actions
Mould No.
P660158302
15.87
25.40
11.88/24.58
NBR/FABRIC+ACT
CS-3613
P660248303
24.00
40.00
18/30.8
NBR/FABRIC
CS-1279
P660288302
28.57
44.45
19.05/31.75
NBR/FABRIC+ACT
CS-3408
P660298302
29.00
45.00
18/30.80
NBR+ACT-1
CS-2836
P660348308
34.00
50.00
18.40/31.10
NBR/FABRIC+ACT
CS-2679
P660348304
34.00
50.00
18.40/31.10
NBR/FABRIC
CS-313
P660348309
34.00
50.00
18.40/31.10
NBR/FABRIC
CS-3334
P660348306
34.00
50.00
18/30.80
NBR/FABRIC+NY
CS-1663
P660348310
34.92
50.80
19.05/31.75
NBR+ACT-1
CS-3461
P660398302
39.00
55.00
18.40/31.10
NBR/FABRIC+ACT
CS-2678
P660418302
41.27
57.15
19.05/31.75
NBR/FABRIC
CS-3598
P660448304
44.00
60.00
18.4/31.10
NBR/FABRIC
CS-2749
P660478306
47.00
63.00
19.40/32.10
NBR/FABRIC+ACT
CS-2677
P660478303
47.62
63.50
19.05/31.75
NBR/FABRIC
CS-3009
P660478307
47.62
63.50
19.05/31.75
NBR/FABRIC+ACT
CS-3473
P660477802
47.62
63.50
8.40
ACETAL
PFB-441
P660508311
50.00
70.00
22.00/34.70
NBR/FABRIC+ACT
CS-737
P660508306
50.00
70.00
22.40/35.10
NBR/FABRIC
CS-2670
P660508309
50.00
70.00
25/38.00
NBR/FABRIC
CS-450
P660508305
50.80
69.85
19.05/31.75
NBR/FABRIC
CS-2236
P660508310
50.80
69.85
22.80/35.00
NBR/FABRIC+ACT
CS-3569
P660508307
50.80
69.85
24.21/36.91
NBR/FABRIC
CS-2835
P660508304
50.80
69.85
30.5/43.2
NBR/FABRIC
CS-1426
P660507801
50.80
69.85
9.00
ACETAL
PFB-503
P660538302
53.00
63.00
12.50/20.50
NBR/FABRIC
CS-3577
P660558302
55.00
75.00
22.40/35.10
NBR+ACT-1
CS-2671
P660578305
57.15
76.20
23.79/36.49
NBR/FABRIC+ACT
CS-3571
P660578304
57.15
76.20
24.21/36.91
NBR/FABRIC
CS-342
P660608305
60.00
80.00
22.40/35.10
NBR+ACT-1
CS-2672
P660608306
60.00
80.00
25.10/37.00
NBR/FABRIC+ACT
CS-215
P660658302
65.00
85.00
22.40/35.10
NBR+ACT-1
CS-2673
P660698304
69.85
88.90
23.79/36.49
NBR/FABRIC+ACT
CS-3580
P660697802
69.85
88.90
9.00
ACETAL
PFB-419
P660728301
72.00
90.00
21.80/29.80
NBR/FABRIC
CS-3272
P660758304
75.00
95.00
22.4/35.10
NBR/FABRIC
CS-2738
P660758305
75.00
95.00
22.40/35.10
NBR/FABRIC
CS-2868
P660758303
75.00
100.00
22.40/35.10
NBR/FABRIC
CS-2566
P660808304
80.00
100.00
25.4/38.10
NBR/FABRIC
CS-2739
P660828305
82.55
101.60
23.79/36.49
NBR/FABRIC+ACT
CS-546
P660858305
85.00
110.00
22.40/35.10
NBR/FABRIC+ACT
CS-2674
P660888305
88.10
113.50
31.3/44
NBR/FABRIC
CS-1793
P660888302
88.90
107.95
24.21/36.91
NBR/FABRIC
CS-626
P660888306
88.90
114.30
31.75/44.45
NBR/FABRIC+ACT
CS-543
P660908304
90.00
110.00
22.4/38.10
NBR/FABRIC
CS-2740
P660908305
90.00
115.00
22.4/35.10
NBR/FABRIC
CS-2741
P660958303
95.00
120.00
22.4/35.10
NBR/FABRIC
CS-2742
P661008306
100.00
125.00
25.00/37.80
FKM/FABRIC+PFT
CS-870
P661008305
100.00
125.00
25.40/38.10
NBR/FABRIC+ACT
CS-2675
P661018302
101.60
127.00
31.75/44.45
NBR/FABRIC
CS-3341
P661058304
105.00
125.00
25.40/38.10
NBR/FABRIC+ACT
CS-2676
P661058305
105.00
130.00
25.00/37.80
NBR/FABRIC+ACT
CS-537
P661148302
114.30
139.70
31.75/44.45
NBR/FABRIC+ACT
CS-534
P661148301
114.30
139.70
32.15/44.85
NBR/FABRIC
CS-697
P661158302
115.00
140.00
25.40/38.10
NBR/FABRIC+ACT
CS-2680
P661258302
125.00
150.00
25.4/44.60
NBR/FABRIC
CS-1536
P661258303
125.00
150.00
25.40/38.10
NBR+ACT-1
CS-2669
P661278302
127.00
152.40
31.75/44.45
NBR/FABRIC+ACT
CS-526
P661278501
127.00
152.40
32.15
FKM/FABRIC
SUG-324
P661308302
130.00
155.00
25.4/38.10
NBR/FABRIC
CS-319
P661308301
130.00
160.00
25.4/38.10
NBR+PU
CS-481
P661508302
150.00
180.00
35.4/48.10
NBR/FABRIC
CS-2180
P661608305
160.00
180.00
31.4/44.10
NBR/FABRIC
CS-2743
P661608304
160.00
190.00
35.40/48.10
NBR/FABRIC
CS-2744
P661608303
160.00
190.00
35.40/48.10
NBR/FABRIC
CS-629
P661708302
170.00
200.00
35.4/48.10
NBR/FABRIC
CS-1856
