Max Spare : P67
Profile : Piston Seals
Details :

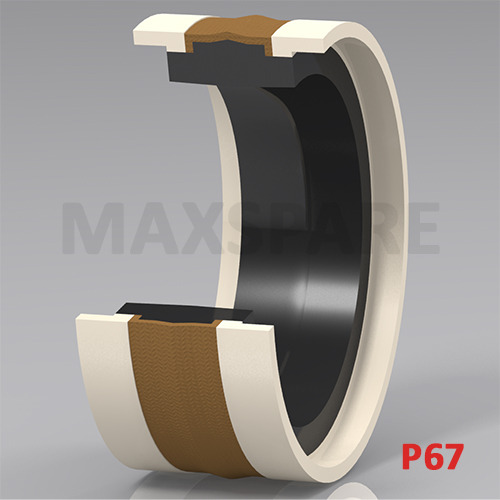

P67 is a double-acting three piece compact seal comprises of fabric reinforced elastomeric sealing ring and two split guide rings. Thus make suitable for one piece piston and for split piston. Fabric sealing surface energized by elastomer can work if any uneven surface rougness.
MATERIAL
Sealing Ring
:
NBR with fabric reinforced.
Bearing rings
:
POM / Nylon
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
Pressure
:
350 Bar
Speed
:
0.5 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, water soluble & water glycol fluids.
APPLICATION
Application Presses, agricultural machinery, injection
Moulding machines, mills, marine hydraulics, industrial
platforms).
Vehicles, cranes, handling equipment, control and regulation equipment.
Agricultural equipments.
FEATURES
High static and dynamic sealing application.
Low friction.
Robust design.
Manufactured by:
Max Spare Limited
Product ID:
321i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
P670228301
22.00
35.00
15.40/28.10
NBR/FABRIC
CS-2881
P670348301
34.00
50.00
20/32
NBR/FABRIC
CS-1595
P670478301
47.00
63.00
20/32
NBR/FABRIC
CS-1594
P670508303
50.00
65.00
18.40/31.10
NBR/FABRIC
CS-779
P670608301
60.00
80.00
22.40/35.10
NBR/FABRIC+ACT
CS-1667
P670651101
65.00
80.00
14.50
NBR/FABRIC
CS-1981
P670758301
75.00
95.00
22.4/35.10
NBR/FABRIC
CS-2227
P670808302
80.00
100.00
25.40/38.10
NBR/FABRIC
CS-1755
P671008302
100.00
120.00
25.40/38.10
NBR/FABRIC
CS-3052
P671008301
100.00
125.00
24.80/39.35
NBR/FABRIC
CS-2691
P671158301
115.00
140.00
25.40/38.10
NBR/FABRIC
CS-1754
