Max Spare : P68
Profile : Piston Seals
Details :

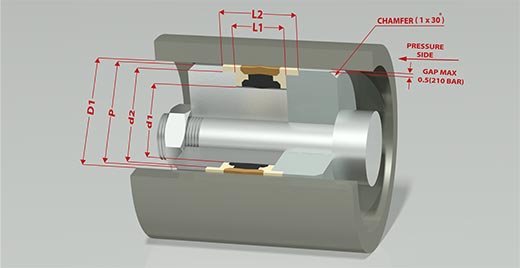

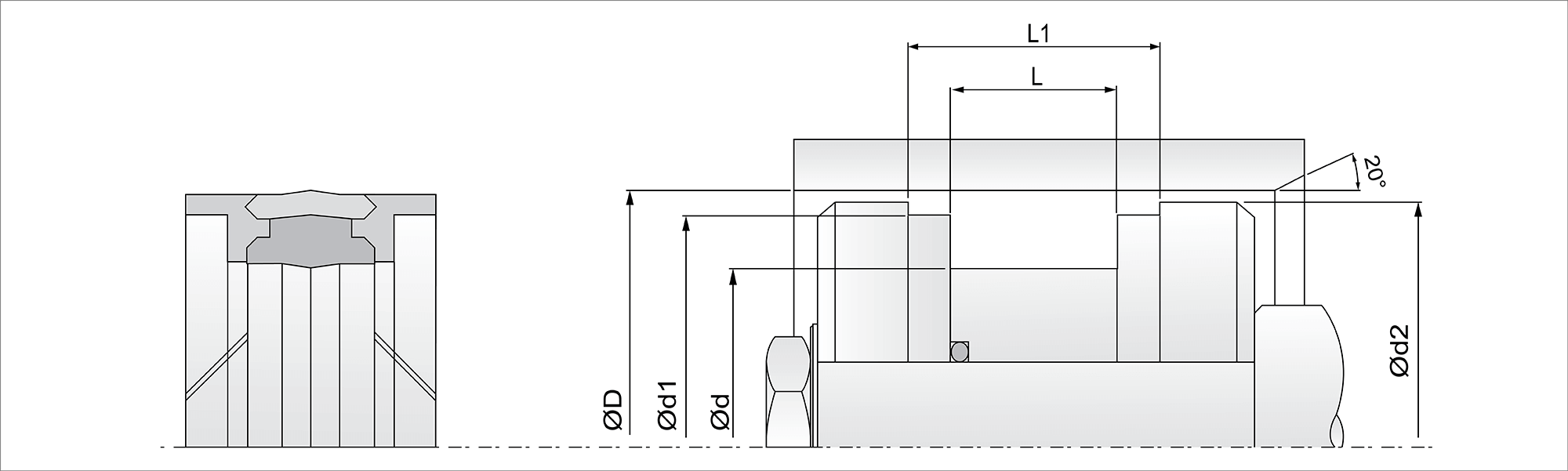

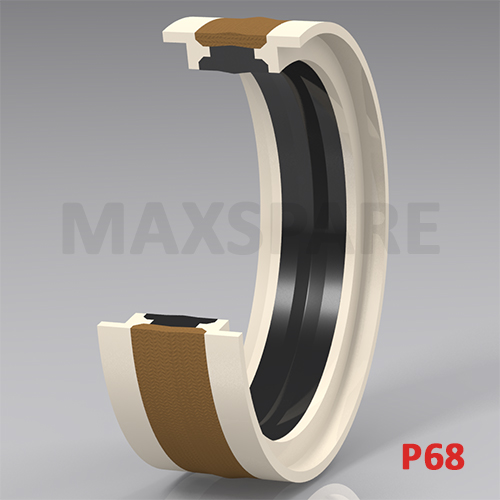

P68 double acting compact piston seal is designed for use with split pistons. It comprises of a precision moulded fabric reinforced nitrile sealing element and two thermoplastic bearing rings on the outside diameter. The fabric reinforces the nitrile element and absorbs hydraulic fluid to help reduce friction. The bearing rings help prevent extrusion, permit higher working pressures and allow larger clearances between the piston and cylinder.
MATERIAL
Sealing Ring
:
Nitrile Rubber / Fabric 75/80 Shore A
Bearing rings
:
POM / Nylon
OPERATING CONDITIONS
Temperature Range
:
-20° C to + 100° C
Pressure
:
350 Bar
Speed
:
0.5 m/s
SURFACE ROUGHNESS
Static
:
1.6 mm Ra
Dynamic
:
0.4 mm Ra
COMPATIBILITY
Mineral oils, hydraulic oils, water and air.
APPLICATION
Earth moving equipment, agricultural machinery, cranes,
standard cylinders.
FEATURES
High static and dynamic sealing application.
Low friction.
Well proven design.
Tolerant to contamination.
Manufactured by:
Max Spare Limited
Product ID:
307i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
P68060K201
60.00
80.00
24/36
CNY+NT5/B(R/C)
CS-1382
P68060K202
60.00
80.00
25/38
NBR/FABRIC
CS-964
P680808301
80.00
100.00
25/38
NBR/FABRIC
CS-928
P680808501
80.00
100.00
25/38.00
FKM/FABRIC+PFT
CS-948
P680901001
90.00
110.00
25/37.50
NBR
CS-1774
P680958501
95.00
120.00
30.00/42.00
FKM/FABRIC+PFT
CS-942
P68100K201
100.00
125.00
31/44
NBR/FABRIC
CS-930
P681251001
125.00
150.00
31/43
NBR
CS-1775
P681271001
127.40
152.40
31/43.50
NBR/FABRIC
CS-2154
P681356501
135.00
160.00
31/44.00
FKM/FABRIC
CS-951
P681598301
159.00
193.00
38.10/54.20
NBR/FABRIC
CS-2133
P681708301
170.00
200.00
38/54
NBR/FABRIC
CS-933
