Profile : Piston Seals


Spareage : P70

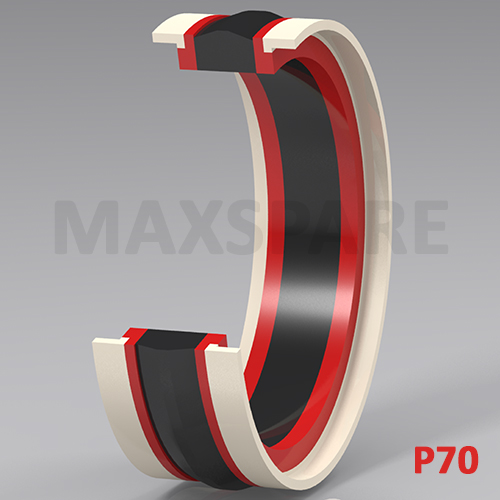

P70 Assembly

Details :
P70 is a robust compact double acting piston seal assembly designed specifically for one-piece pistons. It uses a nitrile sealing element which has proven itself in service to be extremely wear resistant and capable of working most effectively in a wide variety of medium duty applications. This seal is also suitable for split piston applications with endless ‘L’ shaped bearing rings.
MATERIAL
Sealing Ring : Nitrile Rubber 75/80 Shore A
Back-up rings : Polyurethane
Bearing rings : POM / Nylon
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 500 Bar
Speed : 0.5 m/s
SURFACE ROUGHNESS
Static : 1.6 mmRa
Dynamic : 0.4 mmRa
COMPATIBILITY
Mineral oils, water soluble & water glycol fluids.
APPLICATION
  • Light to medium duty cylinders.
  • Static load holding (boom lifting to hold hydraulic
  • platforms).
  • Compact cylinders, Machine Tools.
  • Agricultural equipments.
FEATURES
  • Well proven design.
  • Long service life.
  • Short overall length of piston.
  • Excellent load holding capability.
  • Any size upto 500mm available on request.

Manufactured by: Max Spare Limited
Product ID: 324i






For customised items please Click here
