Profile : Piston Seals


Spareage : P71

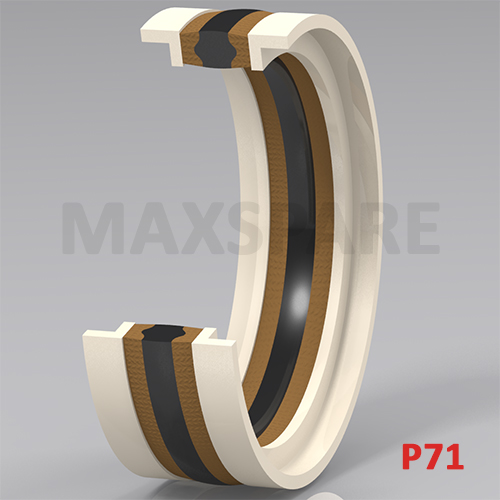

P71 Assembly

Details :
P71 double acting piston seal suitable for split piston assembly. This robust heavy duty seal is designed with center of the seal in rubber which bonded to "U" section fabric base, and is compressed by the housing to obtain an effectivelow pressure seal. When the pressure increase the rubber energises the fabric "U"section and deform it to the housing, increasing the sealing area and improving the sealing effeciency. It is supported by two bearing rings to guide the piston.
MATERIAL
Sealing Ring : Nitrile Rubber 75/80 Shore A
Bearing rings : POM / Nylon
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 400 Bar
Speed : 0.5 m/s
COMPATIBILITY
Mineral oils, water base fluids, fire resistant fluids and compressed air.
APPLICATION
  • Light to medium duty cylinders.
  • Static load holding (boom lifting to hold hydraulic platforms).
  • Compact cylinders, Machine Tools.
FEATURES
  • High static and dynamic sealing application.
  • Low friction.
  • Compact design.

Manufactured by: Max Spare Limited
Product ID: 315i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
P71034830134.9350.8023.81/36.51ACETAL     PRV-1196
P71034830134.9350.8023.81/36.51NBR/FABRIC     SRV-1921
P71035840135.0050.0024.00/36.00NBR/FABRIC+NY     PRV-132
P71041830141.2857.1523.81/36.51ACETAL     PRV-1202
P71041830141.2857.1523.81/36.51NBR/FABRIC     SRV-1927
P71043830143.0063.0031.00/45.00NBR/FABRIC     PRV-954
P71044830144.4560.3323.81/36.51ACETAL     PRV-1195
P71044830144.4560.3323.81/36.51NBR/FABRIC     SRV-1920
P71047830147.6363.5023.81/36.51ACETAL     PRV-1197
P71047830147.6363.5023.81/36.51NBR/FABRIC     SRV-1922
P71050840450.0070.0031/45NBR/FABRIC     PRV-1242
P71050830250.8069.8530.15/42.85NBR/FABRIC     PRV-1170
P71050830350.8069.8530.16/42.86ACETAL     PRV-1198
P71050830350.8069.8530.16/42.86NBR/FABRIC     SRV-1923
P71057830257.1576.2023.81/36.51ACETAL     PRV-1203
P71057830257.1576.2023.81/36.51NBR/FABRIC     SRV-1928
P71057830157.1576.2030.16/42.86ACETAL     PRV-1204
P71057830157.1576.2030.16/42.86NBR/FABRIC     SRV-1929
P71060850160.0080.0031/45FKM/FABRIC     SRV-1798
P71063830163.5082.5530.16/42.86ACETAL     PRV-1199
P71063830163.5082.5530.16/42.86NBR/FABRIC     SRV-1924
P71066830166.0080.0022.40/32.40NBR/FABRIC     PRV-187
P71069830269.3088.9025.4/39.3NBR/FABRIC     PRV-1047
P71069830169.8588.9021.9/41.50NBR/FABRIC     PRV-644
P71070830170.0090.0031/45NBR/FABRIC     PRV-955
P71076830176.2095.2530.16/42.86NBR/FABRIC     PRV-1200
P71076830176.2095.2530.16/42.86NBR/FABRIC     SRV-1925
P71080830180.00100.0031/45NBR/FABRIC     PRV-956
P71080830482.55101.6030.15/42.85NBR/FABRIC     CS-1363
P71085830185.00100.0022/32NBR/FABRIC     SRV-1624
P71088830188.90107.9530.16/42.86ACETAL     PRV-1201
P71088830188.90107.9530.16/42.86NBR/FABRIC     SRV-1926
P7108830288.90114.3038.10/57.16ACETAL     PRV-1194
P71088830288.90114.3038.10/57.16NBR/FABRIC     SRV-1919
P71090830290.00110.0031/45NBR/FABRIC     CS-1551
P71090830190.00110.0031/45NBR/FABRIC     PRV-957
P711008305100.00125.0038/57.00NBR/FABRIC     PRV-148
P711008304100.00125.0038/57.04NBR/FABRIC     PRV-1110
P711018301101.60127.0038.10/57.16ACETAL     PRV-1193
P711018301101.60127.0038.10/57.16NBR/FABRIC     SRV-1918
P711108301110.00135.0038.00/57.00NBR/FABRIC     SRV-2220
P711148301114.30139.7038.10/57.15NBR/FABRIC     PRV-212
P711208301120.00140.0031/45NBR/FABRIC     PRV-958
P711208302120.00150.0044/63.00NBR/FABRIC+ACT     SRV-362
P711248301124.80151.5025.2/44.60NBR/FABRIC     PRV-214
P711278301127.00152.4039.1/58.50NBR/FABRIC     SRV-1963
P711358301135.00160.0038/57NBR/FABRIC     PRV-824
P711398301139.70165.1038.10/57.15NBR/FABRIC     PRV-142
P711408301140.00160.0031/45NBR/FABRIC     CS-2007
P711758301175.00200.0038/57NBR/FABRIC     SRV-1604
P712208301220.00250.0038NBR/FABRIC     SRV-1380
P712308301230.00254.0048NBR/FABRIC     PRV-596
P712501001250.00280.0012/44.00NBR/FABRIC+ACT     SRV-2285




For customised items please Click here
