Max Spare : P72

Profile : Piston Seals

Details :

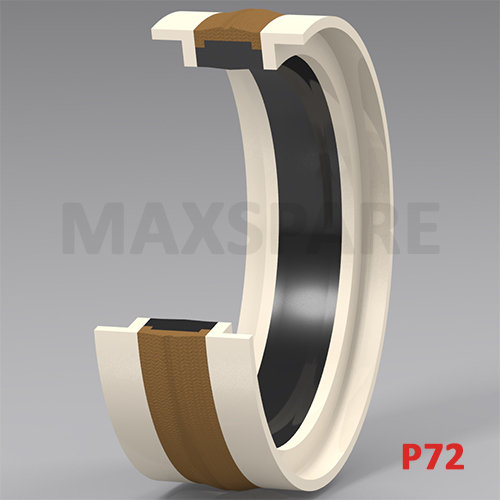

P72 double acting compact piston seal is designed for use with split pistons. It comprises of a precision moulded fabric reinforced nitrile sealing element and two thermoplastic bearing rings on the outside diameter. The fabric reinforces the nitrile element and absorbs hydraulic fluid to help reduce friction. The bearing rings help prevent extrusion, permit higher working pressures and allow larger clearances between the piston and cylinder.

MATERIAL

Sealing Ring	:	Nitrile Rubber / Fabric 75/80 Shore A
Bearing rings	:	POM / Nylon

OPERATING CONDITIONS

Temperature Range	:	-20° C to + 100° C
Pressure	:	400 Bar
Speed	:	0.5 m/s

SURFACE ROUGHNESS

Static	:	1.6 mm Ra
Dynamic	:	0.4 mm Ra

COMPATIBILITY

Mineral oils, hydraulic oils, water and air.

APPLICATION

Earth moving equipment, agricultural machinery, cranes,
standard cylinders.

FEATURES

High static and dynamic sealing application.
Low friction.
Well proven design.
Tolerant to contamination.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
P720218301	21.00	30.00	13.50/17.70	NBR+ACT-1	CS-2666
P720228301	22.00	30.00	13.50/19.90	NBR+ACT-1	CS-2665
P720248304	24.00	32.00	10/18	NBR/FABRIC	CS-1523
P720248305	24.00	32.00	15.50/21.90	NBR+ACT-1	CS-2664
P720258301	25.00	40.00	24.00/36.00	NBR/FABRIC+ACT	CS-645
P720257801	25.40	38.10	7.50	ACETAL	CS-653
P720278302	27.00	35.00	15.5/21.90	NBR/FABRIC	CS-2903
P721029301	29.00	40.00	15.50/22	NBR/FABRIC	CS-2857
P720328307	32.00	40.00	10/18	NBR/FABRIC	CS-1522
P720328309	32.00	40.00	15.50/21.90	NBR/FABRIC+ACT	CS-2663
P720328308	32.00	40.00	6.1/11	NBR/FABRIC	CS-2567
P720357801	35.00	50.00	8.75	ACETAL	CS-789
P720378303	37.00	45.00	15.50/21.90	NBR/FABRIC	CS-1640
P720378304	37.00	45.00	15.50/21.90	NBR+ACT-1	CS-2668
P720378305	37.00	45.00	16.00/22.50	NBR/FABRIC+ACT	CS-801
P720388306	38.00	50.00	20.50/28.50	NBR/FABRIC	CS-2608
P720388305	38.00	50.00	20.50/28.90	NBR/FABRIC	CS-945
P720408303	40.00	60.00	31.00/45.00	NBR/FABRIC+ACT	CS-646
P720417801	41.27	57.15	3.00/9.00	ACETAL	CS-271
P720448301	44.00	60.00	19.70/25.50	NBR/FABRIC+ACT	CS-836
P720488301	48.00	60.00	20.50	NBR/FABRIC	CS-351
P720488305	48.00	60.00	20.50/28.90	NBR/FABRIC	CS-2607
P720518305	51.00	63.00	20.50/28.90	NBR/FABRIC	CS-2015
P720538304	53.00	65.00	20.50/28.90	NBR/FABRIC	CS-2014
P720577801	57.15	76.20	3.15/9.30	ACETAL	PFB-358
P720588303	58.00	70.00	20.50/28.90	NBR/FABRIC	CS-2013
P720598301	59.00	75.00	19.70/25.50	NBR/FABRIC+ACT	CS-833
P720628301	62.00	80.00	21.60/28.50	NBR/FABRIC+ACT	CS-828
P720638305	63.00	75.00	20.50/28.90	NBR/FABRIC	CS-2016
P720658301	65.00	80.00	20/30	NBR/FABRIC	CS-2009
P720668311	66.00	80.00	21.60/31.20	NBR/FABRIC+ACT	CS-832
P720668303	66.00	80.00	22.5	NBR/FABRIC	CS-470
P720668309	66.00	80.00	22.5/32.2	NBR/FABRIC	CS-1163
P7200668308	66.00	80.00	22.50/32.90	NBR/FABRIC	CS-1868
P720668305	66.00	80.00	22.50/32.90	NBR/FABRIC+ACT	CS-947
P720718303	71.00	85.00	22.50/32.90	NBR/FABRIC	CS-2017
P720768305	76.00	90.00	22.5/32.90	NBR/FABRIC	CS-2606
P720868308	86.00	100.00	22.5/32.2	NBR/FABRIC	CS-1164
P720868304	86.00	100.00	22.5/32.90	NBR/FABRIC	CS-974
P720868309	86.00	100.00	22.50/32.90	NBR+ACT-1	CS-2667
P720900901	90.00	110.00	24/36.80	NBR	CS-2210
P720908301	90.00	110.00	31/45	NBR/FABRIC	CS-1224
P720968302	96.00	110.00	20.50/31	NBR/FABRIC	CS-1547
P720968303	96.00	110.00	22.50/32.90	NBR/FABRIC	CS-2081
P720968305	96.00	110.00	22.50/32.90	NBR/FABRIC	CS-2605
P721008302	100.00	125.00	38.00/57.04	NBR/FABRIC+ACT	CS-683
P721008301	100.00	125.00	38.80/57.50	NBR/FABRIC	CS-919
P721038301	103.00	125.00	26.50/38.90	NBR/FABRIC	CS-2010
P720106-SUE-496	106.00	120.00	15.6	NBR/FABRIC	SUE-496
P721068303	106.00	120.00	22.5/32.90	NBR/FABRIC	CS-2604
P721088303	108.00	125.00	26.50/40.90	NBR/FABRIC	CS-2011
P721138301	113.00	130.00	26.50/48.90	NBR/FABRIC	CS-1776
P721208301	120.00	140.00	25.40/41.00	NBR/FABRIC	CS-335
P721238301	123.00	140.00	19.60	NBR/FABRIC	SUF-369
P721238305	123.00	140.00	25/38.60	NBR/FABRIC	CS-1520
P721238307	123.00	140.00	26.50/40.90	NBR/FABRIC	CS-2012
P72125L501	125.00	150.00	30/42.60	NBR+PU	CS-2223
P721338304	133.00	150.00	26.50/40.90	NBR/FABRIC	CS-2008
P721358301	135.00	160.00	31/44	NBR/FABRIC	CS-915
P721408303	140.00	160.00	20.40/41.00	NBR/FABRIC	CS-334
P721408301	140.00	160.00	25/37.80	NBR/FABRIC	CS-2018
P721438306	143.00	160.00	19.6	NBR/FABRIC	SUG-318
P721438307	143.00	160.00	26.2/40.70	NBR/FABRIC	CS-2250
P721438304	143.00	160.00	26.50/40.90	NBR/FABRIC	CS-1867
P721528301	152.40	177.80	38.10/56.88	NBR+ACT-1	CS-3658
P72158S401	158.34	165.40	6.35	HNBR/FABRIC	CS-3322
P721638303	163.00	180.00	26.50/40.90	NBR/FABRIC	CS-1866
P721638301	163.00	180.00	27/41	NBR/FABRIC	CS-790
P721701001	170.00	200.00	44.5/68	NBR/FABRIC	CS-959
P72171S401	171.04	178.10	6.35	HNBR/FABRIC	CS-3323
P721808302	180.00	200.00	24.00	NBR/FABRIC	CS-3453
P721808301	180.00	200.00	31.50/49.90	NBR/FABRIC	CS-1869
P721848401	184.00	215.00	47/58	NBR/FABRIC	CS-109
P722008302	200.00	220.00	31.5/49	NBR/FABRIC	CS-440
P722008303	200.00	220.00	31.5/49.90	NBR/FABRIC	CS-2734
P722008402	200.00	225.00	31.40/44.90	NBR/FABRIC+NY	CS-1669
P722008401	200.00	226.00	31.40/44.90	NEOPRENE/FABRIC	CS-1651
P722258301	225.00	250.00	31.5/44.70	NBR/FABRIC	CS-2733
P722308303	230.00	250.00	25/49.90	NBR/FABRIC	CS-2219
P722308302	230.00	250.00	31.50/49	NBR/FABRIC	CS-591
P722508401	250.00	275.00	29.80/42.20	NBR/FABRIC	CS-1347
