Profile : Piston Seals


Spareage : P73

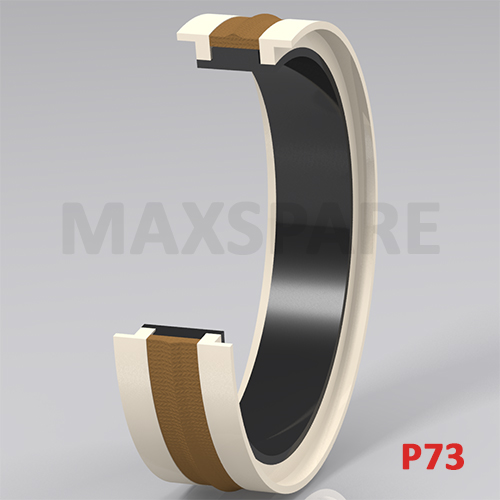

P73 Assembly

Details :
P73 is a double-acting four piece compact seal comprises of fabric reinforced sealing ring energised by elastomeric and two split guide rings. Thus make suitable for one piece piston and for split piston. Fabric sealing surface energized by elastomer can work if any uneven surface rougness.
MATERIAL
Sealing Ring : Fabric reinforced NBR.
Energiser Ring : Nitrile Rubber 75/80 Shore A
Bearing rings : POM / Nylon
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 350 Bar
Speed : 0.5 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Mineral oils, water soluble & water glycol fluids.
APPLICATION
  • Application Presses, agricultural machinery, injection
  • Moulding machines, mills, marine hydraulics, industrial
  • platforms).
  • Vehicles, cranes, handling equipment, control and regulation equipment.
  • Agricultural equipments.
FEATURES
  • High static and dynamic sealing application.
  • Low friction.
  • Robust design.

Manufactured by: Max Spare Limited
Product ID: 311i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
P73047100147.0063.0020.50/26.50NBR/FABRIC     CS-1610
P73048E30148.0060.0020.50/28.90NBR/FABRIC     CS-1557
P73049080149.0065.0020.5/26.7NBR/FABRIC     CS-1039
P73054080254.0070.0020.5/26.7NBR/FABRIC     CS-1040
P73059080159.0075.0020.5/26.7NBR/FABRIC     CS-1041
P73082100182.00100.0022.50/29.70NBR/FABRIC     CS-1003
P73097830197.00115.0022.50/29.70NBR     CS-2212
P731008301100.00125.0025.40/38.10NBR+PU     CS-2213
P731288301128.00150.0026.50/36.70NBR     CS-1968
P731380901138.00160.0026.50/36.70NBR/FABRIC     CS-1611
P731750901175.00200.0031.5/44.70NBR/FABRIC     CS-181
P732000803200.00225.0030.80/45.70NBR/FABRIC+NY     CS-1617
P732000804200.00226.0031.50/44.90NBR/FABRIC     CS-1715
P732251001225.00250.0030.50/43.50NBR/FABRIC     CS-596
P73225E302225.00250.0031.5/43.50NBR/FABRIC     CS-2559
P732250801225.00250.0031.50/44.70NBR+NY     CS-2711
P732500901250.00275.0031.5/44.70NBR     CS-115




For customised items please Click here
