P76: Hydraulic Piston Seals, Sealing Solutions Manufacturer, Supplier, Exporter

Max Spare : P76

Profile : Piston Seals

Details :

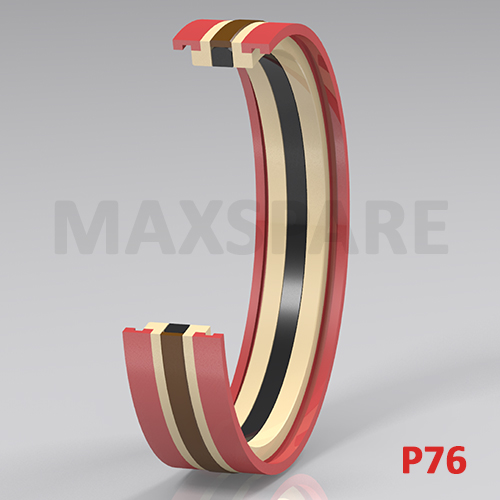

P76 is a robust heavy duty double acting piston seal. P76 seal consists of 6 parts, elastomeric energiser ring, Bronze Filled PTFE sealing ring, two backup rings made of Thermoplastic polymers and two bearing rings. The elastomeric ring energises the sealing ring to force it against cylinder bore, providing a sealing function at low pressure. The two backup rings prevent gap extrusion of the sealing ring at high pressures. Two bearing rings make contact with cylinder bore which guide the piston during heavy load condition.

MATERIAL

Sealing Ring	:	Bronze filled PTFE
Energizer ring	:	NBR
Back-up Rings	:	Thermoplastic polymer
Bearing Rings	:	Phenolic Resin Fabric / POM / Nylon

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	400 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	0.8 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, bio oils, water soluble & water glycol fluids.

APPLICATION

Construction machine cylinders.
Stick slip free operation.
Big diameters & long stroke cylinders.

FEATURES

High pressure capability.
Wide bearing ring, to take maximum load.
Easy to assemble.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	d1	D1	c/b	Material	Mould No.
P760346501	34.00	50.00	20.50/39	FKM	CS-2568
P760470902	47.00	63.00	20.5/39	NBR	CS-1106
P760476501	47.00	63.00	20.5/39	FKM	CS-2570
P760540903	54.00	70.00	20.50/32.00	NBR	CS-3356
P760620901	62.00	80.00	22.5/43	NBR	CS-1025
P760626503	62.00	80.00	22.5/43	FKM	CS-1142
P760670901	67.00	85.00	22.5/43	NBR	CS-1026
P760720801	72.00	90.00	22.5/43	NBR	CS-3194
P760820901	82.00	100.00	22.5/43.00	NBR	CS-1109
P760826501	82.00	100.00	22.50/43	FKM	CS-1569
P760921002	92.00	110.00	22.5/43.00	NBR+NY	CS-620
P760921001	92.00	110.00	22.50/43.00	NBR	CS-692
P760970901	97.00	115.00	22.5/43	NBR	CS-887
P761020901	102.00	120.00	22.5	NBR	CS-1027
P761030901	103.00	125.00	26.5/53.00	NBR	CS-909
P761036601	103.00	125.00	26.50/53	FKM	CS-363
P761080901	108.00	130.00	26.5/53	NBR	CS-1028
P761180902	118.00	140.00	26.5/53	NBR	CS-1108
P761186601	118.00	140.00	26.5/53	FKM	CS-819
P761280901	128.00	150.00	26.5/53	NBR	CS-1461
P761380901	138.00	160.00	26.5/53	NBR	CS-1103
P761580901	158.00	180.00	26.5/57	NBR	CS-827
P761586501	158.00	180.00	26.5/57.00	FKM	CS-834
P761750901	175.00	200.00	31.5/64	NBR	CS-1107
P761756501	175.00	200.00	31.5/64	FKM	CS-747
P761750903	175.00	200.00	31.50/48	NBR	CS-3133
P761756401	175.30	200.30	31.50/64.00	FKM	CS-985
P761950902	195.00	220.00	31.5/71	NBR	CS-1105
P761950802	195.00	220.00	31.50/58	NBR/FABRIC	CS-685
P762250901	225.00	250.00	31.5/85	NBR	CS-940
P762256401	225.00	250.00	85	FKM	CS-479
P762317001	231.00	256.00	31.50/85	BFT	CS-714
P762450902	245.00	270.00	31.5/85.00	NBR	CS-493
P762550902	255.00	280.00	31.5/85	NBR	CS-967
P762750901	275.00	300.00	31.5/85.00	NBR/FABRIC	CS-328
P763200901	320.00	350.00	36.5/80	NBR	CS-1985
P763306502	330.00	360.00	36.50/80	FKM	CS-2848
P763700901	370.00	400.00	36.50/80	NBR	CS-2877
P763900801	390.00	420.00	36.50/80	NBR/BFT	CS-1653
P764206501	420.00	450.00	36.50/80	FKM	CS-2930
P764200801	420.00	450.00	36.50/80	NBR	CS-536
P767701001	770.00	800.00	48.9/27	NBR	CS-383
P767830801	778.00	802.00	12	NBR	SUVG-284
