Max Spare : P79

Profile : Piston Seals

Details :

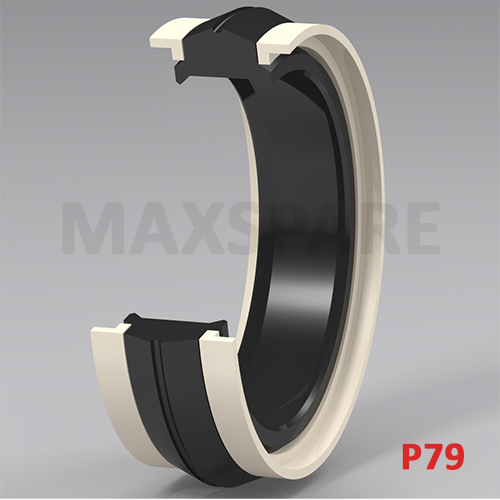

P79 design compact seal is an ideal for light to medium dutyone piece piston application, it is an simple, effective and economicaldesign. Its compact dimensions enable the designer to keep the length of the piston to a minimum. It is a elastomer sealing element with two anti-extrusion cum bearing rings.

MATERIAL

Sealing Ring	:	Nitrile Rubber 75/80 Shore A
Bearing rings	:	POM / Nylon

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	400 Bar
Speed	:	0.5 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, water base fluids, fire resistant fluids and compressed air.

APPLICATION

Light to medium duty cylinders.
Static load holding (boom lifting to hold hydraulic platforms).
Compact cylinders, Machine Tools.

FEATURES

High static and dynamic sealing application.
Low friction.
Compact design.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
P790301001	30.00	40.00	11.00/19.00	NBR	CS-494
P790400901	40.00	50.00	11/19	NBR	CS-979
P790638301	63.00	75.00	20.50/29.50	NBR/FABRIC	CS-2102
P790648301	64.00	80.00	22.80/32.40	NBR/FABRIC	CS-2103
P791276501	127.00	152.40	29.70/42.50	FKM	CS-2117
