Max Spare : P86

Profile : Piston Seals

Details :

P86 is a double-acting four piece compact seal comprises of polyurethane sealing ring energised by elastomeric ring and two split anti-extrusion backup rings. Thus make suitable for one piece piston. Pu sealing ring energise by elatomeric ring capable for high speed stokes. It makes the positive contact with cylinder bore thus ives extended working life.

MATERIAL

Sealing Ring	:	Polyurethane.
Energiser Ring	:	Nitrile Rubber 75/80 Shore A
Backup rings	:	POM / Nylon

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	400 Bar
Speed	:	0.5 m/s

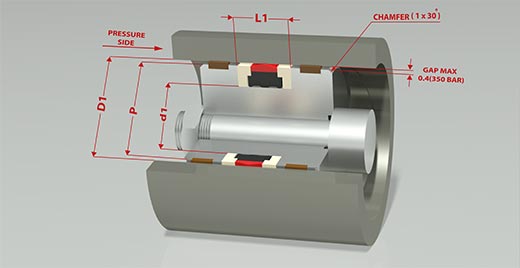

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, water soluble & water glycol fluids.

APPLICATION

Application Presses, agricultural machinery, injection
Moulding machines, mills, marine hydraulics, industrial
platforms).
Mining / Tunnelling industries.

FEATURES

High static and dynamic sealing application.
Low friction.
Compact design.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Qty	Actions	Mould No.
P862026601	202.00	225.00	15.50	FKM/PTFE			CS-953

For customised items please Click here
