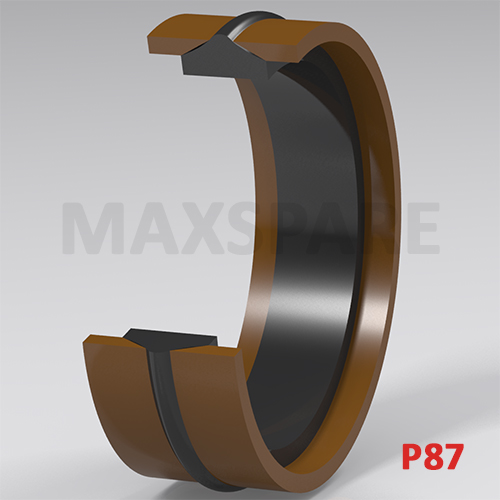

P87: Hydraulic Piston Sealing Solutions - Max Spare India (Spareage)

Max Spare : P87

Profile : Piston Seals

Details :

P87 design compact seal is an ideal for light to medium dutyone piece piston application, it is an simple, effective and economicaldesign. Its compact dimensions enable the designer to keep the length of the piston to a minimum. It is a elastomer sealing element with two anti-extrusion cum bearing rings.

MATERIAL

Sealing Ring	:	Nitrile Rubber / Fabric 75/80 Shore A
Bearing rings	:	POM / Nylon

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	700 Bar
Speed	:	0.5 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, water base fluids, fire resistant fluids and compressed air.

APPLICATION

Earth moving equipment, agricultural machinery, cranes,
standard industrial cylinders.

FEATURES

High static and dynamic sealing application.
Low friction.
Tolerant to contamination.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
P870221001	22.00	32.00	11.00/19.00	NBR+ACT-1	CS-2853
P870281001	28.57	38.10	11/19	ACT-1+NT70	CS-2468
P870300906	30.00	40.00	11/19.00	NBR+ACT-1	CS-2553
P870301002	30.00	40.00	11/19.00	NBR+ACT-1	CS-2850
P870350901	35.00	45.00	11/19	NBR	CS-2146
P870400901	40.00	50.00	11/18	NBR	CS-513
P870411001	41.27	50.80	10.60/18.30	NBR+HYT	CS-791
P870501002	50.80	63.50	15.87/28.57	NBR+ACT-1	CS-2996
P870531002	53.00	63.00	11/19.00	NBR+ACT-1	CS-2851
P871111001	111.00	127.00	17.65/34.92	ACT-1+NT70	CS-2469
P871331001	133.35	152.40	25.55/50.75	ACT-1+NT70	CS-2470
