Max Spare : P88

Profile : Piston Seals

Details :

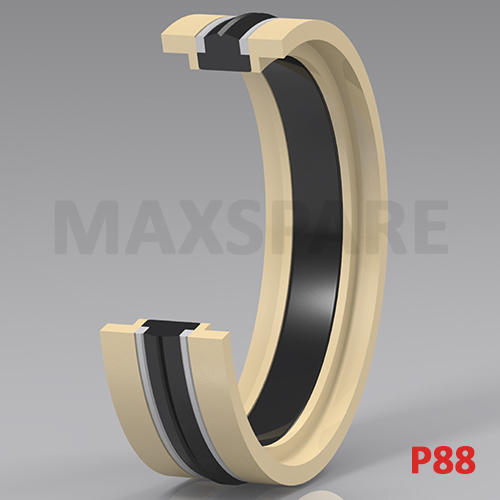

P88 is a robust compact double acting piston seal assembly designed specifically for one-piece pistons. It uses a nitrile sealing element which has proven itself in service to be extremely wear resistant and capable of working most effectively in a wide variety of medium duty applications. This seal is also suitable for split piston applications with endless ‘L’ shaped bearing rings.

MATERIAL

Sealing Ring	:	Nitrile Rubber 75/80 Shore A
Back-up rings	:	POM
Bearing rings	:	Nylon

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	200 Bar
Speed	:	0.5 m/s

SURFACE ROUGHNESS

Static	:	1.6 mm Ra
Dynamic	:	0.4 mm Ra

COMPATIBILITY

Mineral oils, water soluble & water glycol fluids.

APPLICATION

Light to medium duty cylinders.
Static load holding (boom lifting to hold hydraulic
platforms).
Compact cylinders, Machine Tools.
Agricultural equipments.

FEATURES

Well proven design.
Long service life.
Short overall length of piston.
Excellent load holding capability.
Any size upto 500mm available on request.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
P880230903	23.80	31.75	8.71/15.06	NBR+ACT-1	CS-3651
P880240901	24.00	32.00	14/21	NBR	CS-2724
P880300901	30.00	40.00	11/19.00	NBR	CS-753
P880340901	34.92	44.45	12.44/24.88	NBR+PU+NY	CS-831
P88038901	38.00	50.00	20.40/29.40	NBR	CS-2723
P880400901	40.00	50.00	11/19	ACT-1+NT70	CS-897
P880410901	41.27	50.80	11.09/18.71	NBR+ACT-1	CS-559
P880450901	45.00	55.00	11.00/19.00	NBR/FABRIC	CS-561
P880500902	50.80	60.32	11.09/18.71	NBR+ACT+NY	CS-961
P880500901	50.80	63.50	16.51/28.95	NBR+ACT+NY	CS-3570
P880530901	53.00	63.00	11.00/19.00	NBR+ACT+NY	CS-3488
P880600901	60.32	76.20	19.68/32.12	NBR	CS-3517
P880660901	66.67	76.20	11.09/18.71	NBR+ACT+NY	CS-740
P880760901	76.20	88.90	14.27/24.93	NBR+ACT+NY	CS-742
P881016501	101.60	127.00	31.75/44.45	FKM	CS-3267
