Max Spare : P93
Profile : Piston Seals
Details :

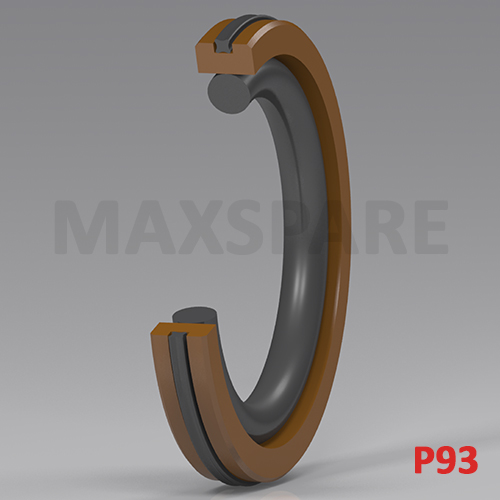

P93 is a double-acting seal comprises of a Bronze filled PTFE seal ring, a quad ring and an O-Ring as energizing element. The seal ring energized with quad ring perform the dynamic sealing function, while the O-Ring performs a static sealing function.
MATERIAL
Sealing Ring
:
Bronze filled PTFE
O Ring
:
Nitrile Rubber 70/75 Shore A
Quad Ring
:
Nitrile Rubber 70/75 Shore A
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
: (up to + 220 C on request)
Pressure
:
400 Bar
Speed
:
2.0 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids
APPLICATION
Application Presses, agricultural machinery, injection
moulding machines, mills, marine hydraulics, industrial
vehicles, cranes, handling equipment, control and regulation
equipment.
FEATURES
Excellent in seperation of two different fluids.
Well proven design.
Self-lubricating seal ring.
High surface speed.
Friction at minimum & no issue with stick-slip.
Compact design.
Any size upto 1200mm available on request.
Manufactured by:
Max Spare Limited
Product ID:
303i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
P930606402
60.00
70.00
6.80
PU
PUC-894
P930640801
64.50
80.00
6.30
NBR/BFT
PTB-110
P930650801
65.00
80.00
6.60
NBR/BFT
PTB-135
P930606403
66.60
71.00
9
PU
CS-1837
P930820801
82.00
100.00
6
CAT
PTB-132
P930840801
84.50
100.00
6.30
CAT
PTB-113
P930846401
84.50
100.00
6.30
FKM/BFT
PTB-123
P930850801
85.72
101.40
7.14
NBR/BFT
PTB-127
P930857002
85.95
101.60
7.30
NBR
CS-648
P931047001
104.50
120.00
6.30
FKM/BFT
PTB-122
P931097001
109.50
125.00
6.30
NBR/BFT
PTB-108
P931107301
110.00
125.00
6
CAT
PTB-126
P931290801
129.00
150.00
8.10
NBR/BFT
PTB-109
P931390802
139.00
160.00
8.10
NBR/BFT
PTB-116
P931516401
151.30
180.00
10.50
FKM/BFT
PTB-128
P931596901
159.00
180.00
8.10
PTFE
PTB-112
P931590803
159.00
180.00
8.10
NBR/BFT
PTB-115
P931797001
179.00
200.00
8.10
NBR
PTB-111
P93185E301
185.00
205.00
9.50
CNT+BFT
PTB-104
P932297001
229.00
250.00
8.10
NBR/BFT
PTB-107
P932297002
229.00
250.00
8.10
BFT
PTB-124
P932790801
279.00
300.00
8.10
NBR/BFT
PTB-105
P933220801
322.00
350.00
9.50
PU
PTB-133
P933250801
325.00
355.00
9
NBR/BFT
PTB-114
P933277001
327.60
355.60
9
BFT
PTB-129
P933290801
329.00
350.00
8.10
NBR/BFT
PTB-117
P933477001
347.00
360.00
13.20
FKM/BFT
CS-854
P933590801
359.00
380.00
8.10
NBR/BFT
PTB-101
P933720802
372.00
400.00
9.50
PU
CS-3084
P934020801
402.00
430.00
9.50
PU
PTB-121
P934220801
422.00
450.00
9.50
NBR/BFT
PTB-120
P934590801
459.00
480.00
8.10
NBR/BFT
PTB-103
P93460Z201
460.00
500.00
11.07
GLT
PTB-125
P934650801
465.00
500.00
11.50
NBR/BFT
PTB-130
P935020802
502.00
530.00
9.50
NBR/BFT
PTB-118
P935090801
509.00
530.00
8.10
NBR/BFT
PTB-102
P935520801
552.00
580.00
9.50
NBR/BFT
PTB-119
P935590801
559.00
580.00
8.10
NBR/BFT
PTB-106
