Max Spare : S16
Profile : Rod Seals
Details :

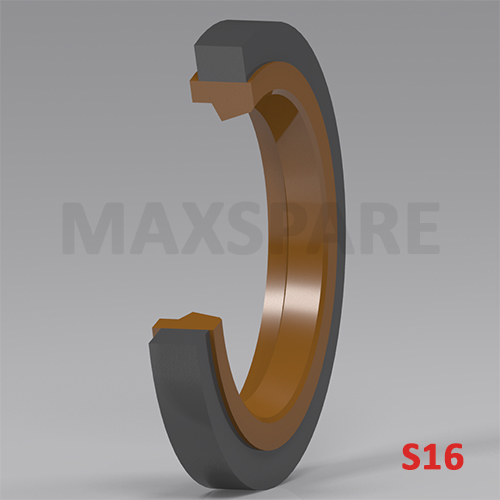

S16 is a single-acting rod seal, comprises of a Bronze filled PTFE sealing ring and one elastomeric flat energizer element. The asymmetrical cross-sectional design of the sealing ring is best to drag oil performance during stroke in both directions.
MATERIAL
Sealing Ring
:
Bronze PTFE (Glass / Graphite on request)
Energizer Ring
:
Nitrile Rubber 70/75 Shore A
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
Pressure
:
400 Bar
Speed
:
5.0 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids
APPLICATION
Presses, agricultural machinery, injection moulding
machines, mills, marine hydraulics, industrial vehicles,
cranes, handling equipment, control and regulation
equipment.
FEATURES
Well proven design.
Self-lubricating seal ring.
High surface speed.
Friction at minimum.
Compact gland.
Any size upto 1200 mm available on request.
Manufactured by:
Max Spare Limited
Product ID:
356i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
S160166401
16.00
23.30
3.00
FKM
CS-3430
S16018E301
18.00
26.00
6
BFT
RTC-131
S160187001
18.00
28.00
3.20
BFT
RTC-141
S160196401
19.00
25.00
3
FKM
CS-3036
S160206001
20.00
30.70
4.20
FKM
RTC-171
S16022E301
22.00
30.00
6.50
BFT
RTC-129
S160256001
25.00
35.70
4.20
FKM
RTC-170
S160286401
28.00
36.00
8
FKM/BFT
FRA-3018
S160280901
28.00
39.00
4.20
NBR/BFT
RTC-127
S16030E303
30.00
40.70
4.20
BFT
RTC-155
S160310801
31.75
45.29
3.18
NBR
CS-2950
S160320801
32.00
44.00
3
NBR
CS-3011
S160366401
36.00
44.50
7
FKM/BFT
FRA-3500
S160366401
36.00
44.50
7
FKM/BFT
RTC-106
S16036E304
36.00
46.00
8
BFT
RTC-130
S16036E302
36.00
46.70
4.20
CNT+BFT
RTC-112
S160366402
36.00
46.70
4.20
FKM/BFT
RTC-114
S160387001
38.10
50.80
6.35
NBR
CS-3309
S160380802
38.10
51.63
3.55
NBR
CS-3406
S160380801
38.10
51.64
3.18
NBR
CS-2951
S16038E301
38.10
51.99
3.40
BFT
RTC-156
S16040E301
40.00
50.00
6
BFT
RTC-161
S160366402
40.40
47.20
3.40
FKM/BFT
CS-1698
S160417001
41.27
54.81
3.55
NBR
CS-3278
S160410801
41.28
54.81
3.18
NBR
CS-2952
S160426401
42.54
55.88
5
FKM/BFT
FRA-2988
S160426401
42.54
55.88
5
FKM/BFT
RTC-157
S160440801
44.45
55.22
4
NBR
CS-2963
S160440802
44.45
57.99
3.18
NBR
CS-2960
S160456403
45.00
52.20
3.30
FKM/BFT
CS-2901
S160456402
45.00
55.00
9
FKM/BFT
FRA-3021
S160456404
45.00
56.00
8.00
FKM
CS-3418
S160457003
45.00
58.50
6.30
NBR
CS-3246
S160450801
45.00
60.00
7
NBR/BFT
RTC-159
S16045E303
45.00
60.10
8.60
BFT
RTC-119
S160457002
45.00
60.20
8
NBR/BFT
RTC-113
S160477001
47.40
54.90
3.16
NBR/BFT
CS-1905
S160477001
47.40
54.90
3.16
MBRT-40
RTC-133
S160477101 (Stock Item)
47.62
55.54
3.50
NBR/BFT
CS-3630
S160470801
47.63
57.15
3.18
NBR
CS-2962
S160456401
48.80
55.10
6.40
FKM/BFT
FRA-2982
S160506402
50.00
60.70
4.20
FKM
CS-3402
S160506401
50.00
65.00
7
FKM/BFT
CS-1959
S160506401
50.00
65.00
7
BFT
RTC-136
S160506403
50.00
65.10
6.30
FKM
CS-3429
S160500802
50.80
63.50
7.00
NBR
CS-528
S160500801
50.80
64.34
3.18
NBR
CS-2953
S160526401
52.70
66.04
6.30
FKM/BFT
FRA-2989
S160526401
52.70
66.04
6.30
FKM/BFT
RTC-158
S160530801
53.98
66.73
3.18
NBR
CS-2954
S16055E302
55.00
70.10
6.30
CNT+BFT
RTC-110
S160566401
56.00
64.30
5.50
FKM/BFT
CS-1967
S160566401
56.00
64.30
5.50
BFT
RTC-137
S160566402
56.00
71.00
12.00
FKM/BFT
CS-429
S16056E302
56.00
71.10
11.50
BFT
RTC-132
S160576401
57.00
72.10
6.30
FKM/BFT
RTC-122
S160570801
57.15
73.43
4.76
NBR
CS-2965
S160600801
60.33
76.61
4.76
NBR
CS-2966
S160576401
63.00
73.00
5.40
FKM/BFT
CS-1802
S16063E301
63.00
73.00
6.80
BFT
RTC-116
S160636401
63.00
73.00
8
FKM/BFT
FRA-2990
S160630801
63.50
74.27
4
NBR
CS-2964
S160630802
63.50
79.15
6
NBR
CS-2974
S160630803
63.50
79.78
4.76
NBR
CS-2967
S160690801
69.85
86.13
4.76
NBR
CS-2971
S160707001
70.00
81.30
7.50
BFT
RTC-123
S160707002
70.00
81.30
7.50
FKM/BFT
RTC-174
S160700901
70.00
82.00
6.30
NBR/BFT
FRA-1262
S160700901
70.00
82.00
6.30
NBR/BFT
RTC-107
S160700903
70.00
85.10
6.30
NBR
CS-2937
S160700902
70.00
90.00
10
NBR/PU
CS-1539
S160700902
70.00
90.00
10
NBR
RTC-109
S160760801
76.20
92.48
4.76
NBR
CS-2975
S16076L501
76.20
92.48
4.76
NBR
CS-3361
S160806401
80.00
95.10
6.30
FKM
CS-3431
S16080E301
80.00
98.00
6.30
BFT
RTC-146
S160800901
80.00
100.00
10
NBR
RTC-173
S160820801
82.55
98.83
4.76
NBR
CS-3076
S16085E301
85.00
95.00
7.90
BFT
RTC-160
S160880801
88.90
104.55
6
NBR
CS-3077
S160880802
88.90
105.18
4.76
NBR
CS-3078
S16090E303
90.00
102.70
8.40
BFT
RTC-152
S160906401
90.00
105.00
12
FKM/BFT
RTC-101
S160900901
90.00
110.00
10
NBR
FRB-1172
S160907001
90.00
110.00
10
BFT
RTC-139
S16090E304
90.00
110.00
10
CAT
RTC-168
S16095E301
95.00
108.20
8.40
BFT
RTC-151
S160950801
95.25
111.53
4.76
NBR
CS-3079
S160906401
96.00
106.00
10
FKM/BFT
FRB-977
S16098E301
98.40
110.10
6.30
BFT
RTC-120
S161000902
100.00
110.70
4.20
NBR+PU
CS-1789
S161007001
100.00
110.70
4.20
BFT
RTC-121
S161000901
100.00
120.00
10
NBR/PU
CS-1455
S161006401
100.00
120.00
10
FKM/BFT
CS-1704
S161006401
100.00
120.00
10
FKM/BFT
RTC-115
S161016401
101.60
114.30
12.00
FKM
CS-3585
S161010801
101.60
117.88
4.76
NBR
CS-3080
S161106401
110.00
130.00
12.50
FKM/BFT
RTC-175
S161107001
110.00
130.00
9.50
FKM/BFT
RTC-102
S161140801
114.30
129.95
6
NBR
CS-3081
S161140802
114.30
139.07
5.60
NBR
CS-3082
S161250901
125.00
145.00
10
NBR/PU
CS-1436
S161250902
125.00
145.00
10
NBR
RTC-108
S16127E302
127.00
145.00
10.40
BFT
RTC-154
S161286401
128.80
139.70
8.20
FKM/BFT
RTC-149
S161407002
140.00
160.00
10
FKM
CS-2989
S161407001
140.00
160.00
10
BFT
RTC-145
S16140E301
140.00
161.00
6.10
BFT
RTC-126
S161456401
145.85
156.70
8.35
FKM/BFT
RTC-150
S161506402
150.00
167.50
8.10
FKM/BFT
CS-3169
S161500901
150.00
170.00
10
NBR
CS-1400
S161506401
150.00
170.00
10
FKM/BFT
RTC-117
S161500902
150.00
170.00
10
NBR/BFT
RTC-163
S161507001
150.00
170.00
9.40
CNT+BFT
RTC-111
S16152E301
152.00
167.00
7.10
CNT+BFT
RTC-105
S161600901
160.00
180.00
10.00
NBR
CS-3384
S16165E301
165.00
175.40
6.30
BFT
RTC-165
S167887001
178.00
188.00
8
BFT
RTC-172
S161800901
180.00
200.00
10
NBR/PU
CS-1619
S161857701
185.00
206.50
5.84
GLT
RTC-125
S16190E301
190.50
208.50
10.40
BFT
RTC-153
S16210E301
210.00
236.00
12.50
CAT
RTC-169
S162200901
220.00
245.00
12.50
NBR
SUK-267
S16230E301
230.00
255.00
11.70
BFT
RTC-134
S162507101
250.00
270.50
8.10
NBR
CS-3012
SUM-113
250.00
272.30
8.10
NBR
SUM-113
S162500901
250.00
275.00
12.50
NBR
SUM-808
S16294E301
294.60
318.60
8.10
BFT
RTC-142
S16300E302
300.00
322.50
9.50
BFT
RTC-167
S163007001
300.00
330.00
15
BFT
RTC-166
S163000901
300.00
330.00
15.00
NBR/BFT
CS-822
S163407001
340.00
370.00
15
BFT
RTC-144
S163400901
340.00
370.00
15
NBR
RTC-176
S163607001
360.00
390.00
15
BFT
RTC-138
S16380E301
380.00
410.00
15
BFT
RTC-128
S164006401
400.00
424.00
8.00
FKM/BFT
CS-385
S16420E301
420.00
450.00
15
BFT
RTC-164
S164300901
430.00
460.00
15.00
NBR/BFT
CS-820
S16450E302
450.00
480.00
15
BFT
RTC-103
S16460E301
460.00
484.00
8.10
GLT
RTC-135
S16460E302
460.00
484.00
8.10
BFT
RTC-148
S16495E301
495.00
519.00
8.10
BFT
RTC-162
S165007001
500.00
524.00
8.10
NBR/BFT
CS-1488
S165007701
500.00
524.00
8.10
GLT
RTC-118
S16500E301
500.00
524.00
8.10
BFT
RTC-147
S165400901
540.00
575.00
17.5
NBR
FRE-158
S166001001
600.00
635.00
16.50
NBR
CS-3051
S166007001
600.00
635.00
17.50
CNT+BFT
RTC-104
S166350801
635.00
670.31
12.70
NBR/BFT
RTC-124
S16700E302
700.00
727.30
9.50
BFT
RTC-143
S167700901
770.00
810.00
20
NBR
CS-923
S169350901.
935.00
975.00
20
NBR/BFT
CS-1975
S169350901
935.00
975.00
20
NBR/BFT
RTC-140
For customised items please
Click here
