Profile : Rod Seals


Spareage : S21

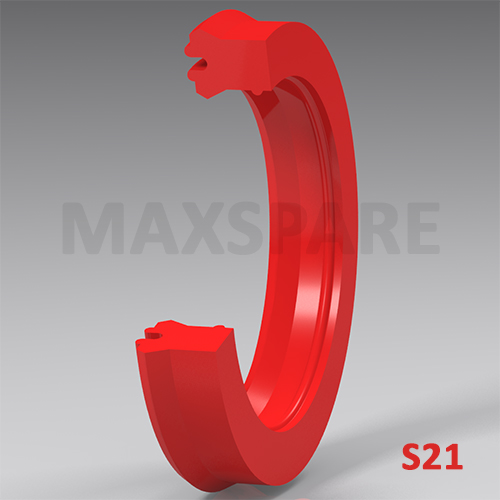

S21 Assembly

Details :
S21 is a symmetrical single acting seal offering excellent dry rod sealing for both light and medium duty applications. The additional O-ring profile at the bottom provides a back-up to the main sealing lip, providing lubrication, abrasion resistance & remaining unaffected with varying pressures. Standard material for S21 is Polyurethane but we can also supply in NBR material (on request). Due to excellent wear resistance properties of polyurethane, the life expected is 3 times that of NBR.
MATERIAL
Polyurethane 92 Shore A
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 400 Bar
Speed : 1.0 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids
APPLICATION
  • Light to medium duty hydraulic cylinders.
  • Mining equipment.
  • Hydraulic presses.
FEATURES
  • Suitable for power fluctuations.
  • Low friction.
  • Double lip design offers primary lip protection.
  • Increased seal stability.

Manufactured by: Max Spare Limited
Product ID: 331i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
S21028670128.0036.005.70FKM     SUB-3708
S21030670130.0038.005.70FKM     SUB-3709
S21040670140.0048.006.30FKM     SUB-4776
S21050L50250.0067.009.00PU     PUC-525
S21055L50155.0063.006.50PU     PUC-428
S21056L50156.0066.006.50PU     PUC-988
S21070660170.0080.0012FKM     SUD-1633
S21073L50173.0082.407PU     PUD-504
S21087L50187.0095.008PU     PUD-387
S21090L50190.0098.008PU     PUD-732
S21107L502107.00116.006PU     PUE-312
S21149L501149.50157.009PU     PUG-213
S215456701545.00575.0020.00FKM     SUVG-208




For customised items please Click here
