Max Spare : S28
Profile : Rod Seals
Details :

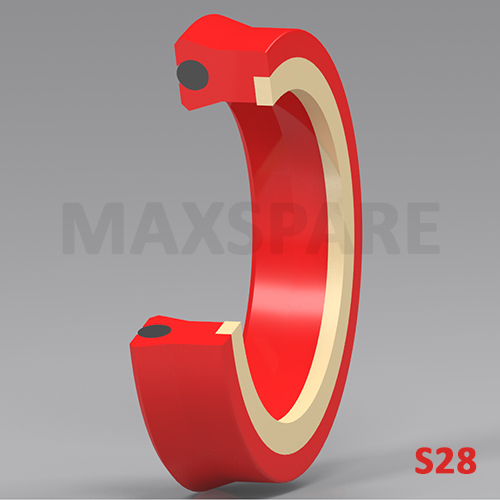

S28 is a high-pressure rod seal. It comprises of U seal energized with O Ring and Back up ring. The u seal with O ring energiser to ensure complete lip actuation under all pressure conditions. The S28 is also available without back up ring.
MATERIAL
U Seal
:
Polyurethane 92 shore A
O Ring
:
NBR 70/75 Shore A
Back Up Ring
:
POM / Nylon
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
Pressure
:
700 Bar
Speed
:
1.0 m/s

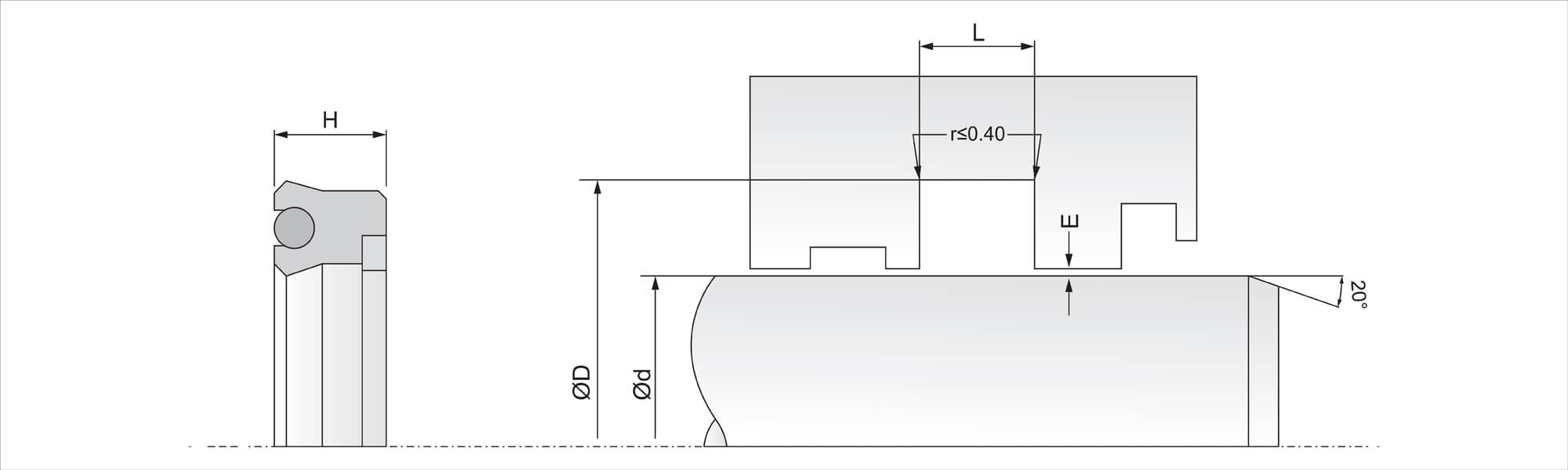

SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Hydraulic mineral oils, bio oils, water soluble and water glycol fluids.
APPLICATION
Standard Industrial Cylinders.
Agricultural Machines.
Industrial Trucks.
Medium-heavy duty cylinders.
FEATURES
Symmetrical design for optimal sealing performance.
High Pressure and shock loading capacity.
Highly extrusion resistant in large gap conditions.
Easy to install.
Manufactured by:
Max Spare Limited
Product ID:
347i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
S28022L501
22.40
30.40
5
PU
PUB-1433
S28025L501
25.00
37.00
7
PU
PUB-1509
S280406501
40.00
50.00
6
FKM
SUB-3329
S28040L504
40.00
50.00
7.30
PU
PUB-536
S280406702
40.00
50.00
8.00
FKM/PTFE
SUB-1493
S280543401
54.00
69.00
10.30
EPDM
SUC-2238
S280566701
56.00
70.00
12
FKM
SUC-1936
S280566701
56.00
71.00
12.50
NBR
SUC-2096
S280606701
60.00
70.00
5
FKM
SUC-2025
S28060R301
60.00
75.00
11.50
PU
PUC-857
S280706702
70.00
80.00
12.50
FKM/PTFE
SUD-882
S28073S401
73.02
82.55
9.52
PEEK
PUD-855
S28073S401
73.02
82.55
9.52
HNBR
SUD-1685
S280753401
75.00
90.00
10.30
EPDM
SUD-1724
S280806701
80.00
95.00
10.40
FKM
SUD-2330
S280806702
80.00
95.00
13.00
FKM/PTFE
SUD-800
S280906701
90.00
105.00
9
FKM
SUE-825
S28095L501
95.25
104.77
9.52
NBR
PUE-542
S280951101
95.25
104.77
9.52
NBR
SUE-1144
S280965901
96.00
104.00
11.10
PU
PUE-598
S28100L502
100.00
110.00
12
PU
PUE-700
S28100L501
100.00
115.00
16.50
PU
CS-1635
S28130L501
130.00
150.00
14.50
PU
PUF-448
S28160CG01
160.00
180.00
15.00
PU
PUH-349
S28200L502
200.00
225.00
16.00
NBR+PU
PUJ-146
S283006701
300.00
330.00
20
FKM
SUM-765
S284806001
480.00
500.00
15
CPU+NT4/B+CNY
CPU-141
S28512D601
512.74
525.44
9.65
HNBR
SUVG-790
