Max Spare : S33

Profile : Rod Seals

Details :

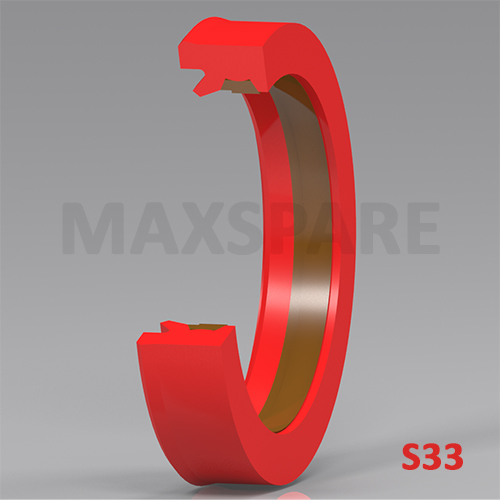

S33 seal consists of 2 parts, an external U ring of PU material with a sealing lip and an internal slide ring of abrasion resistant PTFE-Bronze compound with a sealing edge. The slide ring is surrounded by the U ring and seals axially in direct contact with the piston rod.

MATERIAL

U Ring	:	Polyurethane 92 shore A
Slide Ring	:	PTFE Bronze compound

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	450 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, water base fluids, fire resistant fluids and compressed air.

APPLICATION

Standard Industrial Cylinders.
Agricultural Machines.
Industrial Trucks.
Medium-heavy construction equipment.

FEATURES

High static and dynamic sealing application.
Low friction.
Well proven design.
Tolerant to contamination.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
S33028L501	28.00	36.00	7	PU	PUB-1906
S330286601	28.00	36.00	7	FKM	SUB-3715
S330281001	28.00	36.00	7.00	NBR	SUB-4741
S33030L502	30.00	40.00	10	PU	PUB-1420
S330326601	32.00	40.00	7.00	FKM	SUB-1592
S330356601	35.00	43.00	7	FKM	SUB-671
S330356602	35.00	43.00	8.00	FKM/BFT	SUB-4437
S330366603	35.00	45.00	10	FKM	SUB-2747
S330356603	35.00	45.00	8.00	FKM	SUB-4531
S33036L502	36.00	44.00	7	PU	PUB-1905
S330366604	36.00	44.00	8	FKM	SUB-3714
S330366602	36.00	45.00	6.70	FKM	SUB-2660
S330366704	36.00	46.00	7.30	FKM	SUB-4059
S330366703	36.00	46.00	8	FKM	SUB-4058
S330386701	38.10	47.80	10	FKM/BFT	SUB-3259
S330401001	40.00	56.00	14.10	NBR	SUC-1879
S330426601	42.00	50.00	8.00	FKM	SUB-4745
S330455901	45.00	55.00	10	PU	PUC-144
S330456601	45.00	55.00	10	FKM	SUC-1651
S330456702	45.00	56.00	7	FKM/BFT	SUC-858
S330501101	50.00	60.00	10.00	NBR	SUC-3262
S330506602	50.00	60.00	11.00	FKM/BFT	SUC-3051
S330506601	50.00	60.00	6.00	FKM/BFT	SUC-2972
S330556701	55.00	77.00	10	FKM	SUD-2144
S330566703	56.00	66.00	11.00	FKM/BFT	SUC-3203
S33056L501	56.00	71.00	12	PU	PUC-182
S330567001	56.00	71.00	12	FKM	SUC-951
S33056Y501	56.00	71.00	12.50	PU	PUC-675
S330606701	60.00	75.00	12.00	FKM	SUC-3219
S330606702	60.00	75.00	13.00	FKM	SUC-1232
S330636601	63.00	78.00	12	FKM	SUD-1280
S33065L502	65.00	85.00	12	PU	PUD-869
S33068L501	68.00	80.00	5	PU	PUD-968
S33070L503	70.00	80.00	12.00	PU	PUD-576
S330706603	70.00	81.00	12.00	FKM/BFT	SUD-2323
S330706702	70.00	85.00	11.40	FKM	SUD-2072
S33070L501	70.00	85.00	12	PU	PUD-164
S330706601	70.00	85.00	12	FKM	SUD-750
S33070L504	70.00	85.00	12.00	PU	PUD-222
S330706703	70.00	85.00	12.50	FKM	SUD-2073
S330706704	70.00	85.00	15.00	FKM/BFT	SUD-2512
S330756601	75.00	90.00	12	FKM/BFT	SUD-1795
S330756602	75.00	90.00	12	FKM	SUD-2166
S330786604	78.00	85.00	13.00	FKM	SUD-2422
S33080L501	80.00	95.00	12	PU	PUD-134
S330806602	80.00	95.00	12	FKM/BFT	SUD-904
S330801101	80.00	100.00	13.00	NBR	SUD-2444
S330806703	80.00	100.00	13.00	FKM	SUD-290
S330906603	90.00	105.00	11.40	FKM	SUE-1423
S33090L502	90.00	105.00	12	PU	PUE-228
S330906601	90.00	105.00	12	FKM	SUE-304
S330901101	90.00	105.00	12.50	NBR	SUE-1630
S330906602	90.00	105.00	13	FKM	SUE-939
S33100L501	100.00	115.00	12	PU	PUE-259
S331006603	100.00	115.00	12	FKM	SUE-164
S331006605	100.00	120.00	12.50	FKM/BFT	SUE-1272
S331006604	100.00	120.00	14	FKM/BFT	SUE-1262
S331006606	100.00	120.00	14.50	FKM/BFT	SUE-1543
S33101L501	101.60	114.30	9.52	PU	PUE-803
S33110L501	110.00	125.00	12	PU	PUE-253
S331106601	110.00	125.00	12	FKM	SUE-644
S33110L502	110.00	130.00	15	PU	PUF-363
S331156701	115.00	130.00	12.00	FKM/BFT	SUF-294
S331156601	115.00	135.00	12.00	FKM	SUF-1154
S331206602	120.00	140.00	13.00	FKM	SUF-117
S331206702	120.00	140.00	15.50	FKM/BFT	SUF-975
S331207001	120.00	140.00	16.00	FKM/BFT	SUF-1075
S33125L502	125.00	145.00	16	PU	PUF-236
S331256601	125.00	145.00	16	FKM	SUF-374
S33140L502	140.00	160.00	15	PU	PUG-283
S331401102	140.00	160.00	15.70	NBR	SUG-843
S331406601	140.00	160.00	16	FKM	SUG-413
S33140L503	140.00	160.00	16.00	PU	PUG-265
S33150L501	150.00	170.00	16	PU	PUG-463
S331606701	160.00	180.00	16	FKM	SUH-225
S331706602	170.00	200.00	16	FKM	SUH-327
S331806601	180.00	200.00	16	FKM	SUH-265
S33210L501	210.00	230.00	16	PU	PUK-177
S33220L501	220.00	240.00	16	PU	PUK-163
S332206601	220.00	240.00	16.00	FKM/BFT	SUK-343
S33240L501	240.00	260.00	16.00	PU	PUM-126
S332606601	260.00	280.00	15.50	FKM/BFT	SUM-750
S332806701	280.00	300.00	16	FKM	SUM-841
S333006601	300.00	332.00	24.00	FKM/BFT	SUM-893
S333206601	320.00	350.00	21	FKM	SUM-538
S333606601	360.00	390.00	22.00	FKM/BFT	SUM-431
S335301001	530.00	547.00	13	NBR	SUVG-536
S336475601	647.00	687.00	25.5	NBR	SUVG-285
