Profile : Rod Seals

Spareage : S47

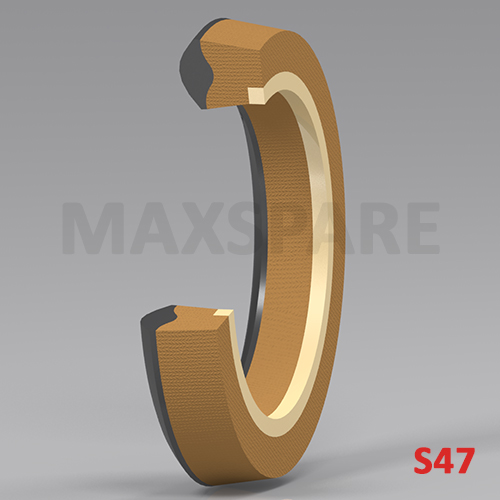

S47 Assembly
MATERIALS
SEAL RING - Fabric NBR.
BACKUP RING - PTFE / POM / PA
MAX OPERATING CONDITION
Temp. range: -30°C to +100° C
(upto +200° C on request).
Pressure: 400 BAR.
Speed: 0.5 m/s.

The type RFA is a heavy duty single acting rod seal with the advantage of an anti-extrusion ring. The seal comprises of a rubberized fabric which gives strength and durability to a nitrile energizer which is moulded. It needs a split housing.
The seal section is pre-loaded by the housing when installed to ensure effective sealing at low pressure. When the pressure increases, the nitrile energizes the fabric to increase the sealing area and hence the efficiency of the seal. The strength and durability of the rubberized fabric combines with its ability to retain lubricant keeping friction and wear to a minimum.
A re-inforced plastic anti-extrusion ring at the internal heel of the seal, to protect it against damage by extrusion, which enables the designer to use a large clearance between the rod and housing.
FEATURES:
  • High pressure capability.
  • Contamination resistant.
  • General purpose seal.
  • Long life.
APPLICATION:
  • Medium to heavy duty hydraulic presses.
  • Steel mills. Earth moving equipments.
  • Requires split gland.
COMPATIBILITY:
Mineral oils, water soluble & water glycol fluids.
Manufactured by: Spareage Seals Limited
Product ID: 13i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
S47025830425.0050.0011NBR/FABRIC PRV-1144
S47025830225.4050.0011NBR/FABRIC PRV-1116
S47025830325.4050.8011NBR/FABRIC SRV-338
S47030830530.0042.008.50NBR/FABRIC PRV-1191
S47030830230.0042.009.5NBR/FABRIC PRV-1044
S47030830330.0050.0011NBR/FABRIC SRV-1576
S47030830130.1050.0011NBR/FABRIC SRV-324
S47036830136.0050.008NBR/FABRIC SRV-1344
S47041830141.2553.978.7NBR/FABRIC SRV-352
S47044830344.0060.0012NBR/FABRIC PRV-975
S47044830144.4563.009.5NBR/FABRIC PRV-968
S47044830244.5060.0011.5NBR/FABRIC PRV-969
S47045830145.0060.008NBR/FABRIC SRV-1345
S47054830154.006.009NBR/FABRIC PRV-1120
S47055830155.0075.0013NBR/FABRIC PRV-1043
S47060830160.0080.0015NBR/FABRIC SRV-1346
S47063830163.3082.5014NBR/FABRIC PRV-974
S47064830164.0080.0011NBR/FABRIC PRV-1175
S47065830165.0080.0011NBR/FABRIC SRV-1404
S47080830180.00100.0013NBR/FABRIC PRV-719
S471008302100.00120.0014.80NBR/FABRIC SRV-1650
S471008301100.00125.0019NBR/FABRIC PRV-1045
S471508301150.00170.0012.50NBR/FABRIC PRV-1216
S472608301260.35292.1025.40NBR/FABRIC PRV-554




For customised items please Click here
