RVF: Hydraulic VEE Packs Manufacturers, Suppliers, Exporters

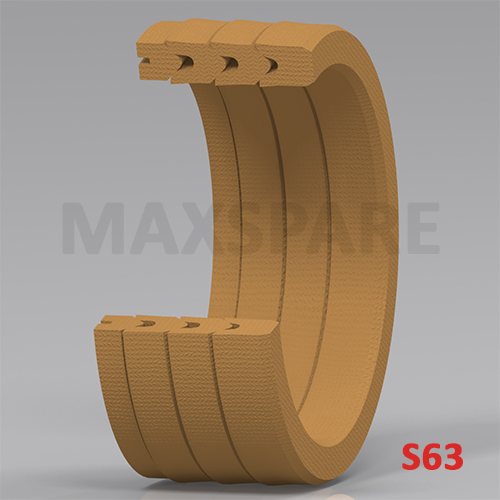

Max Spare : S63

Profile : Rod Seals

MATERIALS
NBR / Fabric
FPM / Fabric (upto 200°C)
MAX OPERATING CONDITION
TEMPERATURE: -30°C to + 100°C
PRESSURE: 600 BAR
SPEED: 0.5 m/s.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
S630108301	10.00	22.00	30	NBR/FABRIC	SAT-2623
S630100702	10.00	22.00	40	NBR/FABRIC	SAT-3180
S630128301	12.00	24.00	40	NBR/FABRIC	SAT-2362
S630120702	12.00	28.00	40.00	NBR/FABRIC	SAT-3466
S630130702	13.00	29.00	40	NBR/FABRIC	SAT-3336
S630148302	14.00	26.00	40	NBR/FABRIC	SAT-2780
S630148301	14.00	26.00	60	NBR/FABRIC	SAT-1565
S630158301	15.00	27.00	30	NBR/FABRIC	SAT-2463
S630150702	15.00	31.00	48	NBR/FABRIC	SAT-3338
S630168302	16.00	28.00	18	NBR/FABRIC	SAT-2624
S630168301	16.00	28.00	40	NBR/FABRIC	SAT-2356
S630160704	16.00	32.00	40	NBR/FABRIC	SAT-3265
S630170701	17.00	33.00	48.00	NBR/FABRIC	SAT-3399
S630182301	18.00	26.00	5	NEOPRENE	SAT-2610
S630188301	18.00	28.00	50	NBR/FABRIC	SAT-1566
S630188302	18.00	30.00	40	NBR/FABRIC	SAT-2348
S630180702	18.00	34.00	40	NBR/FABRIC	SAT-3056
S630180703	18.00	34.00	48.00	NBR/FABRIC	SAT-3531
S630198301	19.00	32.00	30	NBR/FABRIC	SAT-2401
S630190701	19.00	35.00	48	NBR/FABRIC	SAT-3114
S630208301	20.00	32.00	40	NBR/FABRIC	SAT-2349
S630200703	20.00	36.00	40	NBR/FABRIC	SAT-3207
S630200702	20.00	36.00	48	NBR/FABRIC	SAT-3188
S630218301	21.00	37.00	48	NBR/FABRIC	SAT-2781
S630228301	22.00	34.00	40	NBR/FABRIC	SAT-2376
S630228302	22.00	38.00	48	NBR/FABRIC	SAT-2795
S630248301	24.00	36.00	40	NBR/FABRIC	SAT-2342
S630240702	24.00	40.00	40	NBR/FABRIC	SAT-2972
S630240703	24.00	40.00	48	NBR/FABRIC	SAT-3203
S630250701	25.00	41.00	48.00	NBR/FABRIC	SAT-3932
S630258301	25.50	35.00	35	NBR/FABRIC	SAT-2225
S630266501	26.00	34.00	4.6	FKM/FABRIC	SAT-2260
S630266502	26.00	35.00	4.5	FKM/FABRIC	SAT-2309
S630260703	26.00	38.00	24	NBR/FABRIC	SAT-3219
S630268301	26.00	38.00	40	NBR/FABRIC	SAT-2411
S630268401	26.00	42.00	48	NBR/FABRIC	SAT-2810
S630270701	27.00	43.00	48	NBR/FABRIC	SAT-3245
S630288301	28.00	40.00	28	NBR/FABRIC	SAT-2377
S630280702	28.00	40.00	36	NBR/FABRIC	SAT-2944
S630288303	28.00	40.00	40	NBR/FABRIC	SAT-2422
S630288304	28.00	40.00	40	NBR/FABRIC	SAT-2681
S630280704	28.00	44.00	48	NBR/FABRIC	SAT-3208
S630280705	28.00	48.00	60	NBR/FABRIC	SAT-3242
S630298301	29.00	41.00	38	NBR/FABRIC	SAT-2140
S630298302	29.00	45.00	40	NBR/FABRIC	SAT-2400
S63030L501	30.00	40.00	32.00	PU	PPA-122
S630308302	30.00	42.00	35	NBR/FABRIC	SAT-2247
S630308303	30.00	46.00	48	NBR/FABRIC	SAT-2516
S630318301	31.00	47.00	48	NBR/FABRIC	SAT-2388
S630328303	32.00	41.00	60.00	NBR/FABRIC	SAT-4169
S630328301	32.00	44.00	40	NBR/FABRIC	SAT-2328
S630320703	32.00	45.00	30	NBR/FABRIC	SAT-3339
S630320702	32.00	48.00	48	NBR/FABRIC	SAT-3195
S630320704	32.00	52.00	60.00	NBR/FABRIC	SAT-3763
S630340701	34.00	50.00	48.00	NBR/FABRIC	SAT-3727
S630350701	35.00	47.00	40.00	NBR/FABRIC	SAT-2246
S630358304	35.00	48.00	100	NBR/FABRIC	SAT-2798
S630358301	35.00	52.00	80	NBR/FABRIC	SAT-989
S630358306	35.00	55.00	55	NBR/FABRIC	SAT-2809
S63035A601	35.00	60.00	62.50	NBR/FABRIC	SAT-4139
S630361001	36.00	52.00	48	NBR	PPA-1539
S630368301	36.00	52.00	48	NBR/FABRIC	SAT-2394
S630361001	36.00	52.00	48	NBR	SAT-2585
S630368304	36.00	52.00	50	NBR/FABRIC	SAT-2936
S630360702	36.00	56.00	60.00	NBR/FABRIC	SAT-3890
S630370701	37.00	49.00	38.00	NBR/FABRIC	SAT-3413
S630378301	37.00	53.00	48	NBR/FABRIC	SAT-2640
S630380701	38.00	58.00	40.00	NBR/FABRIC	SAT-3943
S630400702	40.00	52.00	36	NBR/FABRIC	SAT-2945
S630400703	40.00	52.00	40	NBR/FABRIC	SAT-2994
S630408302	40.00	55.00	40	NBR/FABRIC	SAT-2536
S630408301	40.00	56.00	48	NBR/FABRIC	SAT-2389
S630408303	40.00	60.00	55	NBR/FABRIC	SAT-2791
S630400705	40.00	60.00	60	NBR/FABRIC	SAT-3185
S630400706	40.00	65.00	62.50	NBR/FABRIC	SAT-3486
S630416501	41.27	57.15	101.60	FKM/FABRIC	SAT-823
S630440701	44.00	64.00	48	NBR/FABRIC	SAT-2924
S630450701	45.00	57.00	36.00	NBR/FABRIC	SAT-3049
S630458301	45.00	61.00	48	NBR/FABRIC	SAT-2703
S63050A601	50.00	66.00	48.00	NBR/FABRIC	SAT-4053
S630508302	50.80	69.85	101.60	NBR/FABRIC	SAT-1048
S630558301	55.00	75.00	120	NBR/FABRIC	SAT-1159
S630550701	55.00	80.00	62.50	NBR/FABRIC	SAT-3182
S630568301	56.00	72.00	50	NBR/FABRIC	SAT-2361
S630586501	58.73	85.72	101.60	FKM/FABRIC	SAT-822
S630598301	59.00	81.00	23	NBR/FABRIC	SAT-1190
S630608301	60.00	71.60	4.3/6.30	NBR/FABRIC	SAT-1011
S630608302	60.00	80.00	86	NBR/FABRIC	SAT-1038
S630658501	65.00	90.00	50	FKM/FABRIC	SAT-2731
S63066L301	66.80	76.90	2.36/6.73	AFLAS	SAT-2748
S630708301	70.00	90.00	68	NBR/FABRIC	SAT-2775
S630708302	70.00	90.00	86	NBR/FABRIC	SAT-2776
S63076C201	76.20	101.60	17.52	XNBR	SBT-2317
S630801101	80.00	92.00	51.45	NBR	SAT-3698
S630808301	80.00	102.00	80	NBR/FABRIC	SBT-2151
S630828601	82.55	107.95	66.67	FKM/FABRIC	SBT-2962
S630858301	85.00	110.00	100	NBR/FABRIC	SBT-1212
S630881101	88.90	101.60	6.04/8.83	NBR	SBT-828
S630908301	90.00	102.00	40.00	NBR/FABRIC	SBT-2519
S63090L501	90.00	120.00	100	PU	PPA-685
S630916701	91.44	102.10	6.60	FKM	SBT-893
S631008304	100.00	110.00	35.00	NBR/FABRIC	SBT-3364
S631008302	100.00	125.00	100	NBR/FABRIC	SBT-851
S631008303	100.00	125.00	110	NBR/FABRIC	SBT-945
S631008301	100.00	125.00	24	NBR/FABRIC	SBT-847
S6310111101	101.60	127.00	17.47	NBR/FABRIC	SBT-1906
S63101S401	101.60	127.00	17.47	HNBR/FABRIC	SBT-1907
S63101S402	101.60	127.00	17.47	HNBR/FABRIC	SBT-1908
S63102L501	102.00	140.00	120	PU	PPA-686
S631108301	110.00	140.00	140	NBR/FABRIC	SBT-913
S632158401	125.00	150.00	100	NBR/FABRIC	SBT-3244
S631258302	125.00	155.00	100	NBR/FABRIC	SBT-852
S631258301	125.00	155.00	95	NBR/FABRIC	SBT-1554
S631308301	130.00	155.00	100	NBR/FABRIC	SBT-2141
S631398301	139.70	171.45	63.50	NBR/FABRIC	SBT-279
S631408301	140.00	170.00	95	NBR/FABRIC	SBT-1555
S631508301	150.00	180.00	100	NBR/FABRIC	SBT-443
S631508303	150.00	180.00	120	NBR/FABRIC	SBT-1043
S631508401	150.00	182.00	87	NBR/FABRIC	SBT-2739
S631528301	152.40	177.80	127.00	NBR/FABRIC	SBT-2428
S631521101	152.40	177.80	15	NBR/FABRIC	SBT-1345
S631598301	159.50	200.40	122.50	NBR/FABRIC	SBT-2438
S631608304	160.00	190.00	160	NBR/FABRIC	SBT-912
S631600801	160.00	190.00	52.40	NBR/FABRIC	SBT-2953
S631608305	160.00	190.00	70.00	NBR/FABRIC	SBT-210
S631608302	160.00	190.00	95	NBR/FABRIC	SBT-1556
S631778302	177.00	214.00	94	NBR/FABRIC	SBT-2437
S631778301	177.41	210.21	152.4	NBR/FABRIC	SBT-1721
S631788301	178.00	191.50	36	NBR/FABRIC	SBT-2064
S631808301	180.00	210.00	120	NBR/FABRIC	SBT-846
S631808403	180.00	210.00	95.00	NBR/FABRIC	SBT-2779
S631848301	184.85	215.10	118.70	NBR/FABRIC	SBT-1492
S631908301	190.00	215.00	95	NBR/FABRIC	SBT-875
S632008303	200.00	230.00	120	NBR/FABRIC	SBT-1044
S632008306	200.00	230.00	95.00	NBR/FABRIC	SBT-1557
S632008305	200.00	230.00	95.00	NBR/FABRIC	SBT-3254
S632038301	203.20	241.30	139.70	NBR/FABRIC	SBT-2529
S632068301	206.37	220.00	36	NBR/FABRIC	SBT-2066
S632008304	207.00	240.00	128	NBR/FABRIC	SBT-2390
S632208301	220.00	250.00	120	NBR/FABRIC	SBT-845
S632208304	220.00	250.00	95.00	NBR/FABRIC	SBT-348
S633238301	232.50	265.00	128	NBR/FABRIC	SBT-2369
S632388301	238.12	250.82	36	NBR/FABRIC	SBT-2065
S632388302	238.12	252.10	36	NBR/FABRIC	SBT-2122
S632408302	240.00	270.00	95.00	NBR/FABRIC	SBT-208
S632408301	240.00	280.00	128	NBR/FABRIC	SBT-2002
S632508302	250.00	280.00	120	NBR/FABRIC	SBT-1045
S63250M101	250.00	280.00	125	HNBR/FABRIC	SBT-869
S632501101	250.00	290.00	35	NBR/FABRIC	SBT-1434
S632568301	256.70	297.00	122.50	NBR/FABRIC	SBT-2439
S632578301	257.00	290.00	128	NBR/FABRIC	SBT-2368
S632608302	260.00	290.00	120	NBR/FABRIC	SBT-2526
S632608301	260.35	298.45	139.70	NBR/FABRIC	SBT-2148
S632658301	265.00	310.00	177.00	NBR/FABRIC	SCT-126
S632668302	266.70	298.45	127.00	NBR/FABRIC	SBT-357
S632668301	266.70	304.80	184.41	NBR/FABRIC	SCT-517
S632698301	269.87	307.97	127	NBR/FABRIC	SCT-817
S632758401	275.00	305.00	123.50	NBR/FABRIC	SCT-1154
S632808301	280.00	320.00	144	NBR/FABRIC	SCT-437
S632808302	280.00	320.00	70.00	NBR/FABRIC	SCT-145
S632808401	280.00	328.00	140.00	NBR/FABRIC	SCT-1206
S633008403	300.00	330.00	100.00	NBR/FABRIC	SCT-201
S633008301	300.00	330.00	120	NBR/FABRIC	SCT-997
S633008303	300.00	340.00	112	NBR/FABRIC	SCT-548
S633008401	300.00	340.00	145	NBR/FABRIC	SCT-1214
S633008304	300.00	340.00	145	NBR/FABRIC	SCT-642
S633158301	315.00	350.00	118	NBR/FABRIC	SCT-427
S633168401	316.50	365.00	210.00	NBR	SCT-1138
S633158304	316.90	360.00	140	NBR/FABRIC	SCT-958
S633188301	318.40	360.00	140.00	NBR/FABRIC	SCT-1252
S633208302	320.00	360.00	140	NBR/FABRIC	SCT-758
S633208304	320.00	360.00	145.00	NBR/FABRIC	SCT-244
S633308301	330.20	368.30	152.40	NBR/FABRIC	SCT-188
S63340D601	340.00	380.00	127	HNBR/FABRIC	SCT-465
S633408301	340.00	380.00	136	NBR/FABRIC	SCT-480
S633508301	350.00	380.00	115	NBR/FABRIC	SCT-409
S633508302	350.00	380.00	73.75	NBR/FABRIC	SCT-634
S633508304	350.00	390.00	177.00	NBR/FABRIC	SCT-1056
S633558301	355.00	385.00	120	NBR/FABRIC	SCT-403
S633558302	355.60	393.70	148.59	NBR/FABRIC	SCT-466
S633608302	360.00	400.00	38	NBR/FABRIC	SCT-421
S633818301	381.00	431.80	101.6	NBR/FABRIC	SCT-653
S633988301	398.00	440.00	145	NBR/FABRIC	SCT-542
S634008301	400.00	440.00	158	NBR/FABRIC	SCT-531
S6340068301	406.40	431.80	111.12	NYLON	PPA-2827
S634068301	406.40	431.80	111.12	NBR/FABRIC	SCT-1045
S634108302	410.00	450.00	158	NBR/FABRIC	SCT-590
S63420D601	420.00	460.00	95	HNBR/FABRIC	SCT-463
S6342583002	425.00	465.00	140	NBR/FABRIC	SCT-639
S634348301	434.70	480.00	140	NBR/FABRIC	SCT-265
S634408301	440.00	480.00	140.00	NBR/FABRIC	SCT-1272
S634508303	450.00	490.00	95	NBR/FABRIC	SCT-921
S634508401	450.00	510.00	120.00	NBR/FABRIC	SCT-1207
S634698301	469.90	508.00	101.60	NBR/FABRIC	SCT-276
S635128301	512.00	570.00	120	NBR/FABRIC	SCT-413
S635208301	520.00	570.00	46	NBR/FABRIC	SCT-479
S635308301	530.00	580.00	145.00	NBR/FABRIC	SCT-1229
S635608302	560.00	600.00	185	NBR/FABRIC	SCT-311
S635808302	580.00	630.00	107.50	NBR/FABRIC	SCT-144
S636008302	600.00	650.00	165	NBR/FABRIC	SCT-308
S636018301	601.92	647.70	212.72	NBR	SCT-948
S636098302	609.60	647.70	136.50	NBR/FABRIC	SCT-1152
S63610-SUVG-266	610.00	650.00	28	NBR	SUVG-266
S63620D601	620.00	660.00	95	HNBR/FABRIC	SCT-464
S634648301	646.29	692.00	102	NBR/FABRIC	SCT-1081
S636708301	670.00	710.00	94	NBR/FABRIC	SCT-920
S636808301	680.00	730.00	125.00	NBR/FABRIC	SCT-1276
S636978301	697.80	750.00	230	NBR	SCT-932
S63	700.00	750.00	230	NBR/FABRIC	SCT-174
S637100801	710.00	758.00	177	NBR/FABRIC	SCT-749
S637308301	730.00	780.00	160	NBR/FABRIC	SCT-872
S637408301	740.00	790.00	160	NBR/FABRIC	SCT-945
S637458301	745.00	785.00	100	NBR/FABRIC	SCT-307
S63760-SUVG-265	760.00	800.00	28	NBR	SUVG-265
S638128401	812.00	862.00	175	NBR/FABRIC	SCT-1248
S638128301	812.80	857.25	141.80	NBR/FABRIC	SCT-205
S638958301	895.00	940.00	20/29.45	NBR/FABRIC	SCT-615
S638958303	895.00	947.50	160	NBR/FABRIC	SCT-743
S639408301	940.00	990.00	40.13	NBR/FABRIC	SCT-756
S639508303	950.00	1000.00	165	NBR/FABRIC	SCT-312
S639998305	1000.00	1050.00	190	NBR/FABRIC	SCT-300
S639998310	1000.00	1050.00	46	NBR/FABRIC	SCT-478
S63	1004.60	1065.00	160	NBR/FABRIC	SCT-266
S639998331	1010.00	1065.00	160	NBR/FABRIC	SCT-938
S639998318	1013.71	1070.86	234.95	NBR/FABRIC	SCT-629
S639998335	1015.00	1065.00	160.00	NBR/FABRIC	SCT-1271
S639998315	1030.00	1080.00	225	NBR/FABRIC	SCT-597
S639998313	1054.10	1092.10	127	NBR/FABRIC	SCT-567
S639998321	1070.00	1120.00	120	NBR/FABRIC	SCT-737
S639998323	1073.00	1111.00	230	NBR/FABRIC	SCT-754
S639998301	1105.00	1155.00	235	NBR/FABRIC	SCT-402
S639998309	1130.00	1180.00	200	NBR/FABRIC	SCT-471
S639998403	1136.65	1206.65	298.45	NBR/FABRIC	SCT-628
S639998404	1136.65	1206.65	52.07	NBR/FABRIC	SCT-724
S639998402	1225.55	1276.35	143.99	NBR/FABRIC	SCT-606
S639998326	1228.72	1279.52	222.25	NBR/FABRIC	SCT-881
S639998306	1267.71	1333.50	254	NBR/FABRIC	SCT-400
S639998302	1303.60	1370.60	50.60	NBR/FABRIC	SCT-405
S639998333	1329.20	1380.00	145	NBR/FABRIC	SCT-1035
S639992101	1346.20	1403.35	254	NBR/FABRIC	SCT-673
S639998307	1357.00	1406.00	254	NBR/FABRIC	SCT-399
S639998320	1370.00	1420.00	165	NBR/FABRIC	SCT-715
S639998334	1370.00	1430.00	195	NBR/FABRIC	SCT-1036
S639998311	1524.00	1576.38	169.86	NBR/FABRIC	SCT-516

For customised items please Click here
