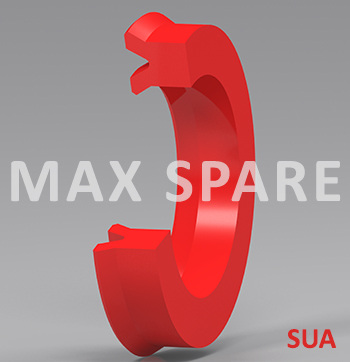

The Max Spare style SUA seal is a general purpose seal & has good overall performance. It is a seal suited for split piston but can also be used with a single piston.
The SUA seal is available in 2 varieties of materials: i.e. NBR and polyurethane. Considering the economic factor with our seal performance, the SUA seals made out of NBR are most suitable upto a pressure of 160 BAR and extremely economical. Also another good factor is the preload pressure applied by the seal ensures good sealing at low pressures & also misalignment in the movement of the Piston Rod. Due to excellent wear resistance properties of polyurethane the life expected is 3 times that of NBR.
FEATURES:
- Good overall performance.
- Preload squeeze ensures good sealing.
- Good temperature resistance.
- Any size upto 1500 mm dia. available on request.
- Can also be use as a Rod Seal.
APPLICATION:
- Light to medium duty hydraulic cylinders.
- Also suitable for double acting cylinders.
- Can also be used as a rod seal in conjunction with RTA style rod seal for heavy duty application.
COMPATIBILITY:
Mineral oils, water soluble & water glycol fluids.
