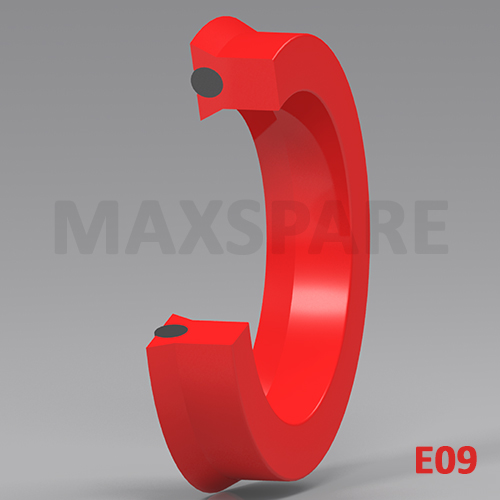

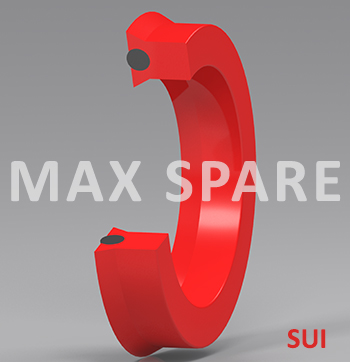

E09: Hydraulic Symmetrical Sealing Solutions

Max Spare : E09

Profile : Symmetrical Seals

Details :

E09 seals are rectangular cross-sectional loaded U cups for use in either rod or piston applications. The added length improves the stability in high stroke, high-pressure applications. It is a conventional lip seal to produce a unique sealing in a vacuum, low and high-pressure applications. At zero or low pressure, the O-ring helps to increase the sealing force preventing any bypass. Under most conditions as the pressure rises, the sealing force increases and the O-ring ensures complete lip actuation. The symmetry of this seal is suited for single-acting rod and piston applications. E09 should not be installed back to back in bi-directional piston applications, as a pressure trap between the seals may occur.

MATERIAL

U seal	:	Polyurethane 92 Shore A
O Ring	:	Nitrile Rubber 70/75 Shore A

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Pressure	:	350 Bar
Speed	:	0.5 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, bio oils, water soluble & water glycol fluids

APPLICATION

Medium duty hydraulic cylinders, holding platforms.
Suitable for double acting cylinders.
Can also be used as a Rod Seal in conjunction with S15 style Rod Seal for heavy applications.
Can also be used in equivalent to S19 Rod Seal.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
E09				FKM	SUB-4434
E090066601	6.35	12.70	3.17	FKM	SUA-1097
E090063501	6.35	12.70	6.35	EPDM	SUA-2554
E09006C401	6.35	15.87	4.76	XNBR	SUA-2530
E090066602	6.50	13.50	3.60	FKM	SUA-2732
E09007K301	7.92	20.62	9.52	HYT-HYTREL	PUA-986
E090091101	9.52	15.87	3.17	NBR	SUA-2092
E090093401	9.52	15.87	3.17	EPDM	SUA-2721
E09009U301	9.52	15.87	6.35	FKM	SUA-2550
E09009K301	9.52	22.22	9.52	HYT	PUA-981
E090111102	11.00	17.50	3.50	NBR	SUA-2097
E090116701	11.10	17.45	3.17	FKM	SUA-2094
E09011L501	11.10	20.62	4.75	PU	PUA-846
E09011K301	11.10	23.80	9.52	HYT-HYTREL	PUA-987
E090116702	11.11	17.45	3.17	FKM	SUA-2654
E09011L501	11.11	17.46	6.35	PU	PUA-706
E090126602	12.00	18.00	3.60	FKM	SUA-2620
E09012L501	12.50	18.00	3.65	PU	PUA-931
E09012L502	12.70	19.05	3.17	PU	PUA-942
E09012L503	12.70	19.05	6.35	PU	PUA-249
E090120901	12.70	19.05	6.35	NBR	SUA-2742
E09012O501	12.70	19.05	6.38	HYT-HYTREL	PUA-291
E090126601	12.70	22.22	5.23	FKM	SUA-2281
E09012K301	12.70	25.40	9.52	HYT-HYTREL	PUB-2155
E09014K301	14.27	26.97	9.52	HYT-HYTREL	PUB-2157
E090146701	14.28	20.63	3.17	FKM	SUA-2575
E09015L501	15.87	22.22	3.17	NBR+PU	PUA-180
E09015O501	15.87	25.40	5.23	HYT-HYTREL	PUB-1773
E09015K301	15.87	28.57	9.52	HYT-HYTREL	PUB-2156
E09017D701	17.47	36.57	17.60	HNBR	SUB-3461
E090196701	19.05	25.40	3.17	FKM	SUB-3514
E09019L501	19.05	25.40	6.35	PU	PUB-681
E090196801	19.05	25.40	6.35	FKM	SUB-3728
E090190901	19.05	25.40	6.35	NBR	SUB-4737
E09019O501	19.05	28.57	5.23	HYT-HYTREL	PUB-1774
E090196702	19.05	28.57	6.35	FKM	SUB-4591
E09019K301	19.05	31.75	9.52	HYT-HYTREL	PUB-2158
E090226701	22.22	28.57	3.17	FKM	SUB-1452
E09022L501	22.22	31.75	5.23	FKM+PU	PUB-1718
E09022O501	22.22	31.75	5.23	HYT-HYTREL	PUB-1760
E090226801	22.22	31.75	7.93	FKM	SUB-4833
E09023L501	23.00	29.00	5.00	PU	PUB-321
E090230901	23.80	30.16	6.35	NBR	SUB-4736
E090256702	25.00	35.00	7.00	FKM	SUB-5029
E09025L501	25.40	31.75	6.35	PU	PUB-651
E09025O501	25.40	34.92	5.23	HYT-HYTREL	PUB-1775
E090256701	25.40	34.92	7.92	FKM	SUB-3955
E09025L502	25.40	34.92	7.93	PU	PUB-803
E09025K301	25.40	38.10	9.52	HYT-HYTREL	PUB-2154
E090286501	28.57	34.92	6.35	FKM	SUB-4659
E09028O501	28.57	38.10	5.23	HYT-HYTREL	PUB-1779
E09028K301	28.57	41.27	9.52	HYT-HYTREL	PUB-2122
E09028K302	28.57	44.45	7.93	HYT-HYTREL	PUB-2141
E090301001	30.00	43.00	8.00	NBR	SUB-1422
E090300901	30.16	36.48	6.35	NBR	SUB-4738
E090306801	30.16	36.50	3.30	FKM	SUB-3906
E09030K301	30.48	48.26	7.87	HYT-HYTREL	PUB-191
E090310901	31.75	38.10	6.35	NBR	SUB-4735
E09031L502	31.75	41.27	19.05	PU	PUB-186
E09041C402	31.75	41.27	4.76	XNBR	SUB-4278
E09031O501	31.75	41.27	5.23	HYT-HYTREL	PUB-1776
E090316701	31.75	41.27	7.92	FKM	SUB-4150
E09031L504	31.75	41.27	7.93	PU	PUB-594
E09031L501	31.75	41.27	7.94	PU	PUB-1946
E09031L503	31.75	47.62	8.10	FKM+PU	PUB-343
E09031O502	31.75	47.62	8.10	HYT	PUB-349
E09031K301	31.75	50.80	9.52	HYT-HYTREL	PUC-154
E090321101	32.00	42.00	8	NBR	SUB-3793
E090346701	34.92	41.27	6.35	FKM	SUB-4211
E09034O501	34.92	44.45	5.23	HYT-HYTREL	PUB-1778
E09034L501	34.92	44.45	7.93	PU	PUB-710
E09034K301	34.92	47.62	9.52	HYT-HYTREL	PUB-335
E09034S401	34.92	49.91	7.01	HNBR	SUB-4549
E090346702	34.92	50.80	12.70	FKM	SUC-3338
E090351101	35.00	55.00	8.00	NBR	SUC-3347
E09038K301	38.10	44.45	6.35	HYT	PUB-311
E09038O501	38.10	47.62	5.23	HYT-HYTREL	PUB-1777
E09038L501	38.10	47.62	6.35	PU	PUB-665
E09038C401	38.10	50.80	6.35	XNBR	SUC-2818
E090386701	38.10	50.80	9.52	FKM	SUC-3025
E09039K301	39.87	57.53	7.87	HYT-HYTREL	PUC-187
E090401102	40.00	50.00	10.00	NBR	SUB-3738
E09040L501	40.48	57.15	8.10	NBR+PU	PUC-284
E09040O501	40.48	57.15	8.10	HYT-HYTREL	PUC-289
E090416701	41.27	50.80	4.76	FKM	SUC-1140
E09041C401	41.27	50.80	4.76	XNBR	SUC-2817
E090416601	41.27	50.80	5.23	FKM	SUC-2531
E09041L501	41.27	60.32	9.52	PU	PUC-1618
E090411001	41.28	50.80	9.52	NBR	SUC-2591
E09042L501	42.84	52.34	4.74	PU	PUC-1584
E09042K301	42.84	52.34	4.74	HYT-HYTREL	PUC-1585
E090446701	44.45	50.80	3.00	FKM	SUC-892
E09044L501	44.45	50.80	6.35	NBR+PU	PUC-510
E09044O501	44.45	53.97	5.23	HYT-HYTREL	PUC-1249
E090447601	44.45	53.97	9.52	AFLAS	SUC-2649
E09044S401	44.45	59.43	7.01	HNBR	SUC-3044
E09047S402	47.62	53.97	6.35	FKM	SUC-3112
E09047S401	47.62	57.15	4.74	HNBR	SUC-2854
E090486601	48.00	57.00	9.50	FKM	SUC-3321
E090501102	50.00	64.00	9.50	NBR	SUC-2621
E090505902	50.00	70.00	10.00	PU	PUC-1285
E09050L503	50.80	57.15	6.35	PU	PUC-635
E090501101	50.80	60.30	4.75	NBR	SUC-2465
E09050O501	50.80	60.32	5.23	HYT-HYTREL	PUC-1330
E009050K301	50.80	63.50	6.35	HYT-HYTREL	PUC-1594
E09050K302	50.80	63.50	9.52	HYT-HYTREL	PUC-304
E090506701	50.80	66.67	7.92	FKM	SUC-2445
E090505901	50.80	69.85	15.87	PU	PUC-1047
E090507901	50.80	69.85	15.87	HYT	PUC-1048
E090511101	51.00	64.00	6.30	NBR	SUC-2620
E090531102	53.97	60.32	3.17	NBR	SUC-2909
E09053K301	53.97	60.32	6.35	HYT	PUC-1315
E090536401	53.97	60.32	6.35	FKM	SUC-3111
E090536701	53.97	63.50	9.52	FKM	SUC-3028
E09053C401	53.97	63.50	9.52	XNBR	SUC-3311
E09053K302	53.97	66.67	9.52	HYT	PUC-1596
E09054L501	54.00	64.00	5	NBR+PU	PUC-927
E09057O501	57.15	66.67	5.23	HYT-HYTREL	PUC-1333
E09057L502	57.15	69.85	9.52	PU	PUC-547
E09057L501	57.15	76.20	15.87	PU	PUD-318
E090573501	57.15	76.20	15.87	EPDM	SUD-1327
E090606703	60.00	80.00	14.00	FKM	SUD-2307
E009060L501	60.32	73.02	6.35	PU	PUC-1592
E009060K301	60.32	73.02	6.35	HYT-HYTREL	PUC-1593
E090636401	63.50	69.85	6.35	FKM	SUC-3110
E09063L503	63.50	73.02	9.52	PU	PUC-739
E09063C401	63.50	76.20	10.30	XNBR	SUD-2541
E09063L502	63.50	76.20	9.52	PU	PUD-391
E090633501	63.50	76.20	9.52	EPDM	SUD-2238
E090636701	63.50	76.20	9.52	FKM	SUD-863
E09063L501	63.50	82.55	15.87	PU	PUD-320
E09066L502	66.67	76.20	9.52	PU	PUD-409
E09066L503	66.67	76.20	9.52	NBR+PU	PUD-556
E09066S401	66.67	76.20	9.52	HNBR	SUD-2531
E09066L501	66.67	79.37	9.52	PU	PUD-132
E09066C401	66.67	79.37	9.52	XNBR	SUD-2012
E090666701	66.67	82.55	7.93	FKM	SUD-2464
E090663501	66.67	85.72	15.87	EPDM	SUD-1328
E09069L501	69.85	82.55	9.52	PU	PUD-468
E090697601	69.85	82.55	9.52	AFLAS	SUD-2038
E09073CF01	73.02	79.37	6.35	PU	PUD-333
E090736401	73.02	79.37	6.35	FKM	SUD-2365
E090736801	73.02	82.55	6.35	FKM	SUD-2483
E090736701	73.02	85.72	9.80	FKM	SUD-2247
E090768701	76.20	85.72	6.50	PU	PUD-1155
E09076S401	76.20	85.72	9.52	HNBR	SUD-2530
E090766702	76.20	88.90	6.35	FKM	SUD-2337
E090766701	76.20	88.90	9.52	FKM	SUD-2288
E09082C401	82.55	95.25	9.52	XNBR	SUD-1961
E090826801	82.55	95.25	9.52	FKM	SUD-835
E09082K301	82.55	98.39	7.92	HYT-HYTREL	PUD-1091
E09082L501	82.55	101.60	12.70	PU	PUE-101
E09085C402	85.72	98.42	9.52	XNBR	SUD-2412
E09085L501	85.72	101.60	12.70	PU	PUE-298
E09085C401	85.72	111.12	19.05	XNBR	SUE-1555
E09088L501	88.90	98.40	9.52	PU	PUD-156
E09088L502	88.90	98.42	9.52	PU	PUD-417
E090881001	88.90	101.60	10	NBR	SUE-1332
E09088O501	88.90	101.60	9.52	HNBR	PUE-393
E09088D701	88.90	101.60	9.52	HNBR	SUE-1323
E090886703	88.90	101.60	9.52	FKM	SUE-1433
E090886704	88.90	104.77	13.97	FKM	SUE-1492
E090921101	92.00	102.00	5.50	NBR	SUE-555
E09092L501	92.07	101.60	9.52	PU	PUE-684
E09092C401	92.07	104.77	9.52	XNBR	SUE-1349
E09095L503	95.25	107.95	9.52	NBR+PU	PUE-267
E090956702	95.25	107.95	9.52	FKM	SUE-1429
E09095D701	95.25	108.35	48.00	HNBR	SUE-614
E09095C501	95.25	111.12	13.97	XNBR	SUE-1633
E09095L501	95.25	111.12	7.92	PU	PUE-808
E090956701	95.25	111.12	9.52	FKM	SUE-1365
E09098S402	98.42	111.12	6.35	HNBR	SUE-1549
E09098S401	98.42	114.30	7.69	HNBR	SUE-1417
E09098S403	98.42	117.47	9.52	HNBR	SUE-1637
E09100L501	100.00	108.00	6.50	PU	PUE-150
E091001101	100.00	110.00	5.50	NBR	SUE-556
E09101L501	101.60	114.30	14.28	PU	PUE-329
E09101S402	101.60	114.30	14.70	HNBR/FABRIC	SUE-586
E09101L502	101.60	114.30	9.52	PU	PUE-361
E09101S401	101.60	117.44	14.27	NBR/FABRIC	SUE-1531
E09101L503	101.60	117.46	7.92	PU	PUE-416
E09101AG01	101.60	120.65	14.27	FKM	SUE-1056
E09104O501	104.77	117.47	6.35	HYT-HYTREL	PUE-794
E09104L501	104.77	117.47	6.35	PU	PUE-795
E09104C401	104.77	130.17	19.05	XNBR	SUF-1100
E091060901	106.00	120.00	8.50	NBR	SUE-1379
E091076701	107.95	117.44	4.74	FKM	SUE-1587
E09107L501	107.95	120.65	14.28	PU	PUE-287
E09107S401	107.95	127.00	9.52	HNBR	SUF-1109
E09111L501	111.12	120.65	9.52	PU	PUE-357
E09111L502	111.12	127.00	7.92	PU	PUF-289
E09111S401	111.12	127.00	7.92	HNBR	SUF-1108
E091118401	111.13	142.87	21.59	NBR/FABRIC	SUF-295
E09114L501	114.30	127.00	14.28	PU	PUF-214
E09114L502	114.30	127.00	9.52	PU	PUF-304
E09114L503	114.30	127.00	9.52	PU	PUF-311
E09114C402	114.30	127.00	9.52	XNBR	SUF-553
E09114D701	114.30	133.35	15.87	HNBR	SUF-1163
E091151101	115.00	127.00	7.00	NBR	SUF-198
E091206704	120.65	133.35	14.27	FKM	SUF-1051
E091206703	120.65	133.35	6.35	FKM	SUF-1050
E09123S401	123.82	142.87	9.52	HNBR	SUF-998
E09127K301	127.00	139.70	14.27	HYT-HYTREL	PUF-561
E09127L501	127.00	139.70	14.28	PU	PUF-244
E09127O501	127.00	152.40	19.05	NBR+HYT	PUG-168
E09130S401	130.17	149.22	9.52	HNBR	SUF-1093
E091336702	133.35	146.05	14.27	FKM	SUF-1052
E091336705	133.35	146.05	6.35	FKM	SUF-1134
E091336704	133.35	146.05	7.92	FKM	SUF-1086
E09133D701	133.35	149.22	15.87	HNBR	SUF-225
E09133L502	133.35	152.40	12.70	PU	PUG-171
E09133L503	133.35	152.40	15.87	PU	PUG-259
E09139CG01	139.70	152.40	12.70	PU	PUG-153
E09139L504	139.70	152.40	14.28	PU	PUG-243
E09139L501	139.70	152.40	9.52	PU	PUG-169
E09139L502	139.70	152.40	9.52	NBR+PU	PUG-190
E09139L503	139.70	152.40	9.52	NBR+PU	PUG-201
E09139S401	139.70	155.54	15.87	HNBR	SUG-947
E09146L502	146.05	158.75	6.35	PU	PUG-244
E09146L501	146.05	158.75	9.52	PU	PUG-459
E09146L503	146.05	165.10	15.87	PU	PUG-261
E091496701	149.22	161.92	14.28	FKM	SUG-868
E09152C401	152.40	165.10	9.52	XNBR	SUG-895
E09152D701	152.40	171.45	15.87	HNBR	SUG-164
E09152C301	152.40	177.80	19.05	XNBR	SUH-533
E09158L501	158.75	165.10	3.17	PU	PUG-222
E091583501	158.75	177.80	12.7	EPDM	SUH-381
E091583502	158.75	184.15	12.70	EPDM	SUH-397
E09165D601	165.10	177.80	12.70	HNBR	SUH-482
E091651001	165.10	177.80	14	NBR	SUH-504
E09165L501	165.10	177.80	14.28	PU	PUH-194
E09165CG01	165.10	184.15	16.50	NBR+PU	PUH-375
E09165K301	165.10	184.15	9.52	HYT-HYTREL	PUH-346
E09171L502	171.45	184.15	9.52	PU	PUH-259
E09177L501	177.80	196.85	12.70	PU	PUH-121
E091776701	177.80	203.20	12.70	FKM	SUJ-442
E091776702	177.80	203.20	19.05	FKM	SUJ-468
E09184L501	184.15	196.85	6.35	NBR+PU	PUH-201
E09184L502	184.15	203.20	15.87	PU	PUJ-159
E09184S401	184.15	203.20	15.87	NBR	SUJ-466
E09184CF01	184.15	203.20	9.53	PU	PUJ-142
E09190L501	190.50	203.20	14.28	PU	PUJ-138
E09196CF01	196.85	215.90	15.87	PU	PUJ-116
E092226801	222.25	234.95	6.35	FKM	SUK-117
E092286701	228.60	254.00	12.70	FKM	SUM-669
E09228L501	228.60	254.00	19.05	PU	PUM-317
E092346702	234.95	247.65	6.35	FKM	SUK-348
E092361101	236.53	254.00	9.52	NBR	SUM-353
E092381102	238.12	253.97	7.92	NBR	SUM-177
E09238L501	238.12	254.00	7.92	PU	PUM-346
E092386701	238.12	254.00	7.92	FKM	SUM-778
E092416701	241.30	254.00	6.35	FKM	SUM-926
E092411001	241.30	254.00	9	NBR	SUM-812
E09244L501	244.47	263.52	15.87	PU	PUM-109
E09260L502	260.35	273.05	6.35	PU	PUM-272
E09260L501	260.35	279.40	15.87	PU	PUM-374
E092796701	279.40	304.80	19.05	FKM	SUM-198
E09279C401	279.40	304.80	19.05	XNBR	SUM-842
E092801101	280.00	305.00	19.80	NBR	SUM-174
E092856701	285.75	304.80	15.87	FKM	SUM-799
E092858701	285.75	304.80	9.52	PU	PUM-444
E092851001	285.76	304.80	14	NBR	SUM-811
E09387K301	387.35	406.40	15.87	NBR	PUM-443
E094316701	431.80	457.20	19.05	FKM	SUVG-225
E094826801	482.60	508.76	19.05	FKM	SUVG-192
E09520L501	520.70	561.97	19.05	PU	PUM-262
E09590R301	590.55	609.60	15.87	PU	PUM-255
E09685EG01	685.80	711.20	19.05	PU	PUM-158
E09999CG01	1397.00	1435.10	31.75	PU	PUM-171

For customised items please Click here
