Profile : Symmetrical Seals


Spareage : E15
E15 Assembly

Details :

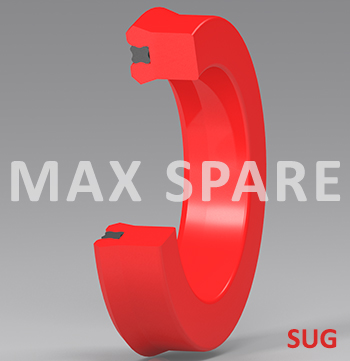

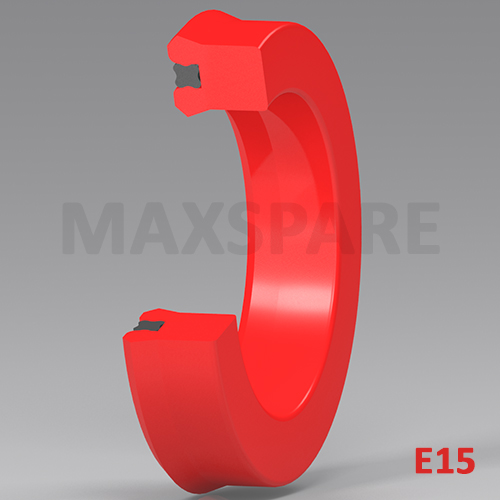

E15 seal is a combination of U-cup loaded with quad ring in between precision trimmed sealing lips. It is a conventional lip type seal to produce a unique sealing capable of sealing in vacuum & high and low-pressure application. The standard polyurethane material provides high wear resistance and quad ring energizer functions as a spring to maintain sealing contact under low pressure or vacuum applications.
MATERIAL
U seal : Polyurethane 92 Shore A
Quad-Ring : Nitrile Rubber 70/75 Shore A
OPERATING CONDITIONS
Temperature Range : -30° C to + 100° C
Pressure : 350 Bar
Speed : 1.0 m/s
SURFACE ROUGHNESS
Static : 1.6 µmRa
Dynamic : 0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids.
APPLICATION
  • Medium duty hydraulic cylinders, holding platforms.
  • Suitable for double acting cylinders.
  • Can also be used as a Rod Seal in conjunction with S15 style rod seal for heavy applications.
  • Can also be used in equivalent to S19 rod seal.

Manufactured by: Max Spare Limited
Product ID: 373i


Part No. :
ID : -
OD : -
Thk :
Mould No. :

Part No.IDODTHKMaterialQtyActionsMould No.
E15005L5015.0012.005PU     PUA-143
E15006L5016.3515.874.75PU     PUA-408
E15010870110.0018.005.80PU     PUA-676
E15010L50210.0018.006PU     PUA-657
E15012L50212.0019.004.50PU     PUA-190
E15012L50112.0022.008PU     PUA-140
E15014080114.0021.004.50PU     PUA-280
E15015L50315.8722.223.17PU     PUA-682
E15015L50215.8722.226.40PU     PUA-398
E15016L50116.0022.006.2PU     PUA-491
E15016L50216.0024.005PU     PUA-910
E15016L50316.0024.005.00PU     PUA-176
E15016L50216.0026.007PU     PUB-1434
E150716L50316.0026.007PU     PUB-1471
E15017080117.4623.816.40PU     PUA-399
E15017L50317.4727.004.77PU     PUB-371
E15018L50318.0025.005PU     PUA-683
E15018L50218.0026.005PU     PUB-1404
E15019L50119.0525.393.30PU     PUB-1233
E15019P20119.0525.403.17PU     PUB-2146
E15019O50119.0528.574.77NBR+HYT     PUB-581
E15019L50219.0531.759.52PU     PUB-2167
E15020L50320.0028.005PU     PUB-1252
E15020L50420.0030.006.70PU     PUB-1469
E15022L50122.0030.005PU     PUB-1472
E15022670122.2228.573.17FKM     SUB-4532
E15022C40122.2231.754.76XNBR     SUB-1171
E15025L50325.0035.007PU-X-NT4/B     PUB-1356
E15025L50225.0038.0010PU     PUB-1254
E15025L50425.0038.0010PU     PUB-1403
E15025670325.4031.753.17FKM     SUB-4672
E15025870125.4031.756.35PU     PUB-2126
E15025CF0125.4031.756.35PU     PUB-637
E15025670125.4038.109FKM     SUB-3593
E15025670225.4038.109.30FKM     SUB-4291
E15028R30128.0036.005.30NBR+PU     PUB-1290
E15028L50128.5035.003.25PU     PUB-1332
E15028K30128.5844.457.93HYT-HYTREL     PUB-1613
E15028K30228.5844.459.52HYT-HYTREL     PUB-1614
E15030L50230.0040.007PU     PUB-1463
E15030Y502 (Stock Item) 30.0040.007.30NBR+PU     CS-710
E15031870131.7541.277.93PU     PUB-2125
E15031CF0131.7541.277.93PU     PUB-642
E15031L50131.7541.278PU     PUB-418
E15031L50331.7542.867.93NBR+PU     PUB-676
E15031870231.7550.809.52PU     PUC-194
E15031L50231.7550.809.65PU     PUC-1568
E15032L50132.0042.006PU     PUB-1470
E15034L50134.9241.273.17PU     PUB-2138
E15034670134.9241.276.35FKM     SUB-1466
E15034640134.9243.656FKM     SUB-3358
E15034O50134.9244.454.77NBR+HYT     PUB-582
E15034CF0134.9244.457.93PU     PUB-643
E15034L50234.9245.977.92PU     PUB-660
E15035L50135.0043.008NBR+PU     PUB-1289
E15035L50235.0044.008PU     PUB-1464
E15035L50335.0045.006.00PU     PUB-167
E15035670135.0045.008.00FKM     SUB-4485
E15038680138.1044.453.17FKM     SUB-4806
E15038L50438.1045.977.97PU     PUB-751
E15038110138.1047.624.74NBR     SUB-1409
E15038670138.1047.624.76FKM     SUB-4363
E15038870138.1047.629.52NBR     PUB-2124
E15038870238.1047.629.52PU     PUB-653
E15038L50338.1049.229.52NBR+PU     PUB-672
E15038CF0138.1050.809.52PU     PUC-515
E15038L50238.1053.977.93PU     PUC-1450
E15040L50240.0050.006PU     PUB-1917
E15040L50140.0050.007.30PU     PUB-1402
E15040L50340.0055.009.00NBR+PU     PUC-600
E15041680141.2747.623.17FKM     SUB-4805
E15042870142.8452.344.77PU     PUC-107
E15042O50142.8452.344.77HYT-HYTREL     PUC-109
E15044110144.4550.803.17NBR     SUC-2425
E15044L50144.4553.976.35PU     PUC-765
E15044CF0144.4557.159.52PU     PUC-516
E15044L50244.4557.159.70PU     PUC-1602
E15045L50145.0055.008.00PU     PUC-221
E15047L50147.6263.4712.70PU     PUC-1451
E15047L50247.6263.509.52PU     PUC-438
E15049O50149.2765.026.35HYT     PUC-1615
E15050L50950.0060.007.00PU     PUC-155
E15050L51050.0060.008.00PU     PUC-218
E15050L50850.0063.009.00PU     PUC-163
E15050L50550.0065.0012PU     PUC-1007
E15050L50650.0072.007PTFE     PUC-1378
E15050L50750.0072.009PU     PUC-1525
E15050O50150.8060.324.77NBR+HYT     PUC-455
E15050L51250.8060.337.93PU     PUC-540
E15050670150.8063.506.35FKM     SUC-1829
E15050L51150.8063.509.52NBR+PU     PUC-520
E15050L50250.8063.509.52PU     PUC-532
E15050670250.8063.509.52FKM     SUC-1885
E15050L51350.8066.679.52PU     PUC-604
E15053L50153.0063.006.00PU     PUC-162
E15053110153.9760.323.17NBR     SUC-2426
E15055L50255.0065.006.00PU     PUC-158
E15055L50155.0070.0010.50PU     PUC-938
E15056L50256.0064.009PU     PUC-853
E15056L50156.0066.006PU     PUC-316
E15057P20157.1466.669.52PU     PUC-1597
E15057L50157.1569.859.52PU     PUC-533
E15060100160.0072.0010NBR     SUC-2135
E15060L50160.0075.009.00PU     PUC-310
E15060870160.3269.8519.05PU     PUC-1447
E15060L40160.3269.854.76PU     PUC-974
E15060110160.3270.645NBR     SUC-1892
E15060O50160.3273.026.35HYT     PUC-538
E15063640163.0073.006.50FKM     SUC-2821
E15063L50163.0078.0011.40PU     PUD-1041
E15063P20163.5073.007.92PU     PUC-193
E15063L50263.5073.029.52PU     PUC-1003
E15063110163.5073.815NBR     SUC-1891
E15063670163.5076.209.50FKM     SUD-1440
E15063CF0163.5076.209.52PU     PUD-350
E15063C40163.5076.209.52XNBR     SUD-865
E15065L50165.0075.0012.00PU     PUC-208
E15066P20166.6676.189.52PU     PUD-1233
E15069660369.8579.3711.00FKM     SUD-855
E15070L50270.0080.0010PU     PUD-743
E15070L50170.0090.0012PU     PUD-515
E15072L50172.0082.008.00NBR+PU     PUD-269
E15075080175.0090.009.00NBR     SUD-2503
E15076660276.0087.209.50FKM     SUD-1856
E15076P20176.1885.709.52PU     PUD-1234
E15076590176.2085.729.52PU     PUD-1203
E15076L50176.2085.734.76PU     PUD-226
E15076R30176.2088.909.52PU     PUD-731
E15076L50276.2092.0712.70NBR+PU     PUD-420
PUD-59476.2092.077.93PU     PUD-594
E15079P20179.3688.889.52PU     PUD-1235
E15079110179.3788.904.74NBR     SUD-815
E15079870179.3788.904.80PU     PUD-867
E15079P20279.3792.079.53PU     PUD-148
E15080L50180.0095.0011.40NBR+PU     PUD-422
E15085L50385.0097.009.60PU     PUD-1225
E15085L50285.00100.0010PU     PUD-751
E15085L50485.00105.0012.00PU     PUE-172
E15085L50585.7295.244.76NBR+PU     PUD-287
E15088P20188.8898.419.52PU     PUD-1236
E15088660188.90101.407.25FKM     SUE-919
E15088670188.90101.6010FKM     SUE-997
E15088L50188.90108.5012.50PU     PUE-699
E15092P20192.06101.589.52PU     PUE-800
E15095O50195.25104.774.77HYT-HYTREL     PUE-227
E15095670395.25104.779.52FKM     SUE-1182
E15095L50195.25107.959.52PU     PUE-596
E15095660195.35108.007.25FKM     SUE-920
E15098P20198.41107.939.52PU     PUE-799
E15100L501100.00115.0012PU     PUE-353
E15100L502100.00120.0012.00PU     PUE-344
E15104L501104.77117.3414.22PU     PUE-810
E15104O501104.77117.476.35HYT-HYTREL     PUE-102
E151078701107.95120.656.35PU     PUE-687
E151076701107.95127.0010FKM     SUF-694
E15110L501110.00130.0014.50PU     PUF-192
E15112L501112.00125.009PU     PUE-490
E15114C401114.30127.006.35XNBR     SUF-992
E15120L501120.65142.8720.95PU     PUF-473
E15133L502133.35146.0514.28PU     PUF-246
E15133L501133.35146.059.52PU     PUF-122
E151336702133.35152.4016FKM     SUG-789
E151406601140.00160.0012FKM     SUG-702
E15140L501140.00160.0015PU     PUG-326
E15150L501150.00170.0015PU     PUG-393
E151528701152.40165.106.35PU     PUG-330
E151528702152.40165.109.52PU     PUG-329
E15152C401152.40165.109.52XNBR     SUG-102
QR35316154-C1158.75171.456.35XNBR     QR-142
E151651101165.10177.806.35NBR     SUH-275
E15177L501177.80196.8512.70PU     PUH-183
E15177L502177.80196.8515.87NBR+PU     PUH-191
E15180L501180.00200.0015PU     PUH-304
E15190C401190.30203.206.35XNBR     SUJ-435
E151908701190.50203.506.35PU     PUJ-229
E15200L501200.00225.0015PU     PUJ-252
E15230L501230.00260.0018PU     PUM-338
E15260L501260.00290.0018PU     PUM-347
E15320L501320.00350.0018PU     PUM-337
E15350L502350.00380.0018PU     PUM-348
E154561101456.90482.7015.25NBR     SUVG-168
E15558L501558.80584.2012.70PU     PUM-420
E15609L501609.60641.3515.87PU     PUM-407




For customised items please Click here
