E19 : Hydraulic Symetrical Seals Manufacturers, Suppliers, Exporters

Max Spare : E19

Profile : Symmetrical Seals

Details :

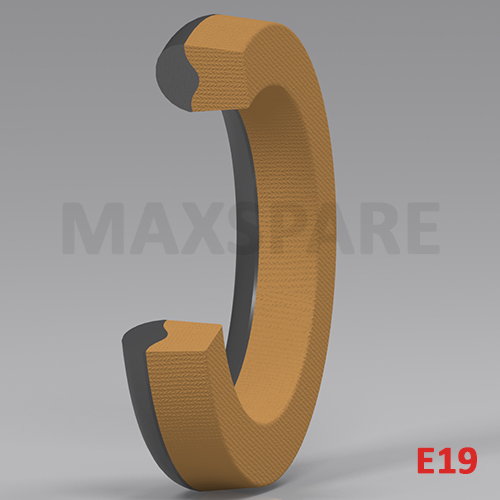

E19 seal is a single acting robust design seal used for medium to heavy duty applications. This seal comprises of a rubberised fabric U seal base bonded to a rubber energiser and needs split piston. The seal comprises a rubberized fabric which is bonded to a nitrile energizer and needs a split housing. The seal section is pre-loaded by the housing when installed to ensure effective sealing at low pressure. When the pressure increases, the nitrile energizes the fabric to increase the sealing area and hence improving the efficiency of the seal. The strength and durability of the rubberized fabric combines with its ability to retain lubricant keeping friction and wear to a minimum.

MATERIAL

Nitrile Rubber with fabric reinforcement 80/85 Shore A

FKM with fabric reinforcement 80/85 Shore A

OPERATING CONDITIONS

Temperature Range	:	-20° C to + 100° C (NBR)
: -20° C to + 220° C (FKM)
Pressure	:	400 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, bio oils, water soluble & water glycol fluids

APPLICATION

Medium to heavy duty hydraulic presses.
Steel mills, earthmoving equipments.
Requires split gland.
Can also be used as a piston seal.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
E190068304	6.00	12.00	6.00	NBR/FABRIC	SRV-2302
E19006L501	6.00	12.00	7.50	PU+NY	PUA-386
E190068301	6.00	12.00	7.50	NBR/FABRIC	SRV-1447
E190068302	6.50	14.50	12.00	NBR/FABRIC	SRV-2271
E190088302	8.00	14.50	6	NBR/FABRIC	SRV-1888
E190088303	8.00	16.00	7.00	NBR/FABRIC	SRV-2170
E190088301	8.00	16.00	8.00	NBR/FABRIC	SRV-1317
E190098301	9.00	15.00	4.60	NBR/FABRIC	SRV-1816
E190108501	10.00	18.00	6.00	FKM/FABRIC	SRV-2218
E190108301	10.00	19.00	6	NBR/FABRIC	SRV-1985
E190101001	10.00	19.00	6.2	NBR	SRV-1002
E190101002	10.00	20.50	6	NBR/FABRIC	SRV-1859
E190121001	12.00	25.00	9.50	NBR/FABRIC	SRV-1695
E190158301	15.00	25.00	8	NBR/FABRIC	SRV-1663
E190158302	15.87	22.22	4.76	NBR/FABRIC	SRV-238
E190168302	16.00	24.00	6.00	NBR/FABRIC	SRV-2253
E190168301	16.00	30.00	10.70	NBR/FABRIC	SRV-1730
E190208501	20.00	26.00	3.50	FKM/FABRIC	SRV-1691
E190208303	20.00	27.00	6	NBR/FABRIC	SRV-1773
E190201001	20.00	27.00	6.00	NBR	SRV-2186
E190208302	20.00	28.00	5.50	NBR/FABRIC	SRV-1638
E190208304	20.00	28.00	6.50	NBR/FABRIC	SRV-1916
E190208305	20.00	32.00	8.00	NBR/FABRIC	SRV-322
E190218301	21.00	34.00	9	NBR/FABRIC	SRV-1681
E190228304	22.00	30.00	5.60	NBR/FABRIC	SRV-1188
E190221101	22.40	28.50	4.50	NBR	SRV-1645
E190248301	24.00	32.00	7	NBR/FABRIC	SRV-1655
E190258307	25.00	32.00	6.00	NBR/FABRIC	SRV-144
E190250801	25.00	33.00	6.00	NBR	SRV-2289
E190258308	25.00	34.00	6.00	NBR/FABRIC	SRV-158
E190258306	25.00	35.00	6.5	NBR/FABRIC	SRV-345
E190253401	25.00	35.00	8.50	EPDM/FABRIC	SRV-1625
E190258311	25.00	40.00	11.00	NBR/FABRIC	SRV-879
E190258316	25.00	40.00	11.70	NBR/FABRIC	SRV-175
E190258315	25.00	40.00	8.5	NBR/FABRIC	SRV-180
E190258301	25.40	31.75	6	NBR/FABRIC	SRV-1753
E190258317	25.40	38.10	9.00	NBR/FABRIC	SRV-457
E190258318	25.40	38.10	9.50	NBR/FABRIC	SRV-462
E190261101	26.00	38.00	6.30	NBR	SRV-1620
E190268301	26.00	40.00	9	NBR/FABRIC	SRV-1682
E190288303	28.00	36.00	6	NBR/FABRIC	SRV-448
E190280601	28.00	36.30	4.50	NBR	SRV-228
E190288302	28.00	38.00	8.50	NBR/FABRIC	SRV-831
E190288305	28.00	40.00	10.00	NBR/FABRIC	SRV-2282
E190288304	28.00	40.00	8	NBR/FABRIC	SRV-1171
E190308305	30.00	40.00	4.70	NBR	SRV-376
E190303401	30.00	40.00	7.5	EPDM/FABRIC	SRV-1289
E190318303	31.00	40.00	9	NBR/FABRIC	SRV-1680
E190318308	31.00	43.00	9	NBR/FABRIC	SRV-1684
E190328307	32.00	40.00	7.20	NBR/FABRIC	SRV-1653
E190328303	32.00	42.00	6.5	NBR/FABRIC	SRV-344
E190328308	32.00	45.00	10.00	NBR/FABRIC	SRV-323
E190342201	34.93	50.80	11.12	NEOPRENE/FABRIC	SRV-1722
E190358307	35.00	43.00	6	NBR/FABRIC	SRV-1892
E190353402	35.00	45.00	10	EPDM/FABRIC	SRV-1212
E190358301	35.00	48.00	8	NBR/FABRIC	SRV-1172
E190358304	35.00	50.00	10	NBR/FABRIC	SRV-389
E190358306	35.00	50.00	8	NBR/FABRIC	SRV-1723
E190358305	35.00	51.00	11	NBR/FABRIC	SRV-1679
E190368307	36.00	44.00	6.00	NBR/FABRIC	SRV-2209
E190368306	36.00	45.00	5.50	NBR/FABRIC	SRV-2185
E190308306	36.00	46.00	5.00	NBR	SRV-375
E190368304	36.00	51.00	11	NBR/FABRIC	SRV-1255
E190388303	38.10	46.22	4.06	NBR/FABRIC	SRV-236
E190388302	38.10	53.97	11	NBR/FABRIC	SRV-1108
E190408601	40.00	48.00	5.50	FKM/FABRIC	SRV-138
E190408317	40.00	49.00	8.60	NBR/FABRIC	SRV-394
E190408308	40.00	50.00	10.00	NBR/FABRIC	SRV-167
E190408315	40.00	50.00	10.50	NBR/FABRIC	SRV-2171
E190408314	40.00	50.00	5.00	NBR/FABRIC	SRV-2165
E190408311	40.00	50.00	8.50	NBR/FABRIC	SRV-1256
E190408312	40.00	50.00	9	NBR/FABRIC	SRV-1318
E190403401	40.00	55.00	10	EPDM/FABRIC	SRV-348
E190408313	40.00	56.00	8	NBR/FABRIC	SRV-1724
E190428301	42.00	54.00	7.50	NBR	SRV-1702
E190448302	44.45	53.97	8.52	NBR/FABRIC	SRV-1458
E190448305	44.45	57.15	11.00	NBR/FABRIC	SRV-458
E190448304	44.50	63.50	12.50	NBR/FABRIC	SRV-1612
E190458306	45.00	55.00	7.30	NBR/FABRIC	SRV-1703
E190453401	45.00	60.00	11.00	EPDM/FABRIC	SRV-350
E190458307	45.00	60.00	9.00	NBR/FABRIC	SRV-148
E190458301	45.00	62.00	8.60	NBR/FABRIC	SRV-778
E190478301	47.62	63.50	10.30	NBR/FABRIC	SRV-1615
E190508315	50.00	60.00	8.00	NBR/FABRIC	SRV-1335
E190508319	50.00	62.00	7.00	NBR/FABRIC	SRV-268
E190508506	50.00	62.50	7.00	FKM/FABRIC	SRV-388
E190508311	50.00	65.00	12	NBR/FABRIC	SRV-1050
E190508316	50.00	65.00	15	NBR/FABRIC	SRV-1932
E190508504	50.00	65.00	5.80	FKM/FABRIC	SRV-255
E190503401	50.00	70.00	13	EPDM/FABRIC	SRV-882
E190508317	50.00	80.00	24.00	NBR/FABRIC	SRV-2148
E190508318	50.80	63.50	9.52	NBR/FABRIC	SRV-229
E190521101	52.00	65.00	4.00	NBR	SRV-2329
E190538301	53.00	63.00	8	NBR/FABRIC	SRV-1605
E190558307	55.00	65.00	8.00	NBR/FABRIC	SRV-862
E190558306	55.00	66.00	10.00	NBR/FABRIC	SRV-2281
E190558306	55.00	70.00	10	NBR/FABRIC	SRV-1384
E190558301	55.00	75.00	14	NBR/FABRIC	SRV-859
E190568303	56.00	70.50	13	NBR/FABRIC	SRV-1626
E190568304	56.00	71.00	12.50	NBR/FABRIC	SRV-1676
E190568301	56.00	75.00	12	NBR/FABRIC	SRV-1179
E190698301	56.00	76.00	14.3	NBR/FABRIC	SRV-1001
E190568305	56.00	80.00	16.00	NBR/FABRIC	SRV-318
E190578301	57.00	67.60	6.35	NBR/FABRIC	SRV-570
E190608312	60.00	70.00	7.50	NBR/FABRIC	SRV-308
E190608307	60.00	71.00	9	NBR/FABRIC	SRV-283
E190608303	60.00	72.00	9	NBR/FABRIC	SRV-643
E190608308	60.00	80.00	14	NBR/FABRIC	SRV-916
E190628301	62.00	78.00	11.50	NBR/FABRIC	SRV-2121
E190638304	63.00	70.00	12	NBR/FABRIC	SRV-1608
E190638302	63.00	75.00	9	NBR/FABRIC	SRV-1242
E190638303	63.00	80.00	11	NBR/FABRIC	SRV-1585
E190638305	63.00	80.00	12	NBR/FABRIC	SRV-1611
E190638301	63.50	81.91	13.30	NBR/FABRIC	SRV-1145
E190638308	63.50	85.72	15.08	NBR/FABRIC	SRV-2288
E190638307	63.50	88.90	14.70	NBR/FABRIC	SRV-1979
E190648301	64.00	85.00	16	NBR/FABRIC	SRV-1708
E190658310	65.00	80.00	10	NBR/FABRIC	SRV-1390
E190658312	65.00	80.00	11	NBR/FABRIC	SRV-1504
E190658313	65.00	80.00	12.20	NBR/FABRIC	SRV-1659
E190658314	65.00	95.00	16.70	NBR/FABRIC	SRV-2107
E190698302	69.85	88.90	11.90	NBR/FABRIC	SRV-2295
E190708307	70.00	81.00	9.2	NBR/FABRIC	SRV-1325
E190701001	70.00	82.00	9	NBR	SRV-1758
E190708311	70.00	82.00	9.00	NBR/FABRIC	SRV-2246
E190708305	70.00	84.00	11	NBR/FABRIC	SRV-1058
E190708310	70.00	85.00	10.00	NBR/FABRIC	SRV-2162
E190708501	70.00	90.00	12	FKM/FABRIC	SRV-475
E190708306	70.00	90.00	14	NBR/FABRIC	SRV-294
E190708309	70.00	90.00	16	NBR/FABRIC	SRV-1876
E190708302	70.00	100.00	10	NBR/FABRIC	SRV-1273
E190751101	75.00	95.00	11	NBR	SRV-1614
E190768303	76.20	88.90	9.00	NBR/FABRIC	SRV-465
E190768302	76.20	95.25	14.27	NBR/FABRIC	SRV-1475
E190356501	77.78	90.48	9.52	FKM/FABRIC	SRV-319
E190808306	80.00	92.00	10.00	NBR/FABRIC	SRV-2182
E190803401	80.00	100.00	12	EPDM/FABRIC	SRV-311
E190808305	80.00	100.00	12.50	NBR/FABRIC	SRV-1803
E190808308	80.00	100.00	14.00	NBR/FABRIC	SRV-147
E190808307	80.00	105.00	12.00	NBR/FABRIC	SRV-140
E190828303	82.55	95.25	8.70	NBR/FABRIC	SRV-2296
E190828302	82.70	100.00	12.20	NBR/FABRIC	SRV-1668
E190829001	82.94	101.60	11.90	NBR/FABRIC	SRV-2294
E190858304	85.00	95.00	7.50	NBR/FABRIC	SRV-1637
E190859001	85.00	100.00	11.50	NBR/FABRIC	SRV-124
E190858305	85.00	100.00	12.50	NBR/FABRIC	SRV-1675
E190888501	88.90	101.99	8.70	FKM/FABRIC	SRV-1857
E190888301	88.90	107.95	16.00	NBR/FABRIC	SRV-119
E190908305	90.00	102.00	8.50	NBR/FABRIC	SRV-2161
E190908306	90.00	102.00	9.50	NBR/FABRIC	SRV-2257
E190908303	90.00	105.00	12	NBR/FABRIC	SRV-1432
E190908304	90.00	110.00	14	NBR/FABRIC	SRV-1713
E190903401	90.00	110.00	14	EPDM/FABRIC	SRV-899
E190908302	90.00	110.00	15.00	NBR/FABRIC	SRV-860
E190958303	95.25	104.77	6.5	NBR/FABRIC	SRV-579
E190998301	99.00	125.00	17	NBR/FABRIC	SRV-1707
E191008309	100.00	115.00	11.00	NBR/FABRIC	SRV-2194
E191008307	100.00	125.00	12	NBR/FABRIC	SRV-551
E191008310	100.00	125.00	18.00	NBR/FABRIC	SRV-110
E191008305	100.00	125.00	19	NBR/FABRIC	SRV-872
E191003403	100.00	130.00	13	EPDM/FABRIC	SRV-1677
E191003401	100.00	130.00	16	EPDM/FABRIC	SRV-1113
E191018304	101.60	127.00	19.05	NBR/FABRIC	SRV-1644
E191058306	105.00	125.00	18	NBR/FABRIC	SRV-1642
E191058302	105.00	130.00	12	NBR/FABRIC	SRV-1433
E191106701	110.00	125.00	11	FKM	SRV-1685
E191108306	110.00	125.00	11.00	NBR/FABRIC	SRV-2254
E191108304	110.00	125.00	11.30	NBR/FABRIC	SRV-1661
E191108308	110.00	125.00	7.50	NBR/FABRIC	SRV-2297
E191108305	110.00	130.00	14	NBR/FABRIC	SRV-1728
E191108303	110.00	135.00	19	NBR/FABRIC	SRV-871
E191148303	114.30	133.35	17.46	NBR/FABRIC	SRV-142
E191148301	114.30	139.70	19.05	NBR/FABRIC	SRV-920
E191158304	115.00	130.00	11.30	NBR/FABRIC	SRV-189
E191158302	115.00	140.00	14.5	NBR/FABRIC	SRV-386
E191158401	115.00	145.00	17.50	NBR/FABRIC	SRV-210
E191158305	115.00	145.00	18.00	NBR/FABRIC	SRV-2343
E191208303	120.00	140.00	11	NBR/FABRIC	SRV-1603
E191203401	120.00	150.00	16	EPDM/FABRIC	SRV-1370
E191208304	120.00	150.00	17.00	NBR/FABRIC	SRV-116
E191258306	125.00	140.00	11.00	NBR/FABRIC	SRV-2195
E191258305	125.00	150.00	13.50	NBR/FABRIC	SRV-1873
E191258307	125.00	150.00	18.00	NBR/FABRIC	SRV-105
E191258501	125.00	150.00	20.00	FKM/FABRIC	SRV-2104
E191308302	130.00	150.00	12	NBR/FABRIC	SRV-1588
E191308501	130.00	150.00	16.00	FKM/FABRIC	SRV-1388
E191378301	137.00	162.00	18.50	NBR/FABRIC	SRV-130
E191398301	139.00	165.00	18	NBR/FABRIC	SRV-1709
E191398501	139.70	156.76	10	FKM/FABRIC	SRV-1856
E191408502	140.00	160.00	11.80	FKM/FABRIC	SRV-1805
E191408305	140.00	160.00	20	NBR/FABRIC	SRV-1646
E191408309	140.00	160.00	22.50	NBR/FABRIC	SRV-2301
E191408308	140.00	165.00	18.50	NBR/FABRIC	SRV-131
E191408307	140.00	165.00	20.30	NBR/FABRIC	SRV-2269
E191408306	140.00	170.00	19.00	NBR/FABRIC	SRV-1998
E191508304	150.00	170.00	14	NBR/FABRIC	SRV-863
E191508306	150.00	170.00	9.60	NBR/FABRIC	SRV-1771
E191558301	155.00	180.00	15	NBR/FABRIC	SRV-1635
E191608501	160.00	180.00	12	FKM/FABRIC	SRV-1425
E191608301	160.00	180.00	15	NBR/FABRIC	SRV-898
E191608306	160.00	185.00	15.00	NBR/FABRIC	SRV-122
E191608304	160.00	190.00	18	NBR/FABRIC	SRV-1799
E191651002	165.00	210.00	22.50	NBR/FABRIC	SRV-1769
E191708303	170.00	190.00	15.00	NBR/FABRIC	SRV-2275
E191808304	180.00	200.00	11.00	NBR/FABRIC	SRV-153
E191808501	180.00	200.00	14	FKM/FABRIC	SRV-1727
E191808303	180.00	208.00	16.00	NBR/FABRIC	SRV-2208
E191808305	180.00	210.00	24.00	NBR/FABRIC	SRV-460
E192008304	200.00	225.00	17.00	NBR/FABRIC	SRV-1999
E192008303	200.00	230.00	23	NBR/FABRIC	SRV-1565
E192158301	215.90	247.65	24.70	NBR/FABRIC	SRV-1950
E192258303	225.00	250.00	18	NBR/FABRIC	SRV-907
E192258305	225.00	251.00	18.00	NBR/FABRIC	SRV-150
E192348401	234.95	266.70	26.50	NBR/FABRIC	SRV-2176
E192408302	240.00	260.00	16	NBR/FABRIC	SRV-1641
E192418301	241.30	273.05	24.38	NBR/FABRIC	SRV-1772
E192482101	248.00	280.00	25	NEOPRENE/FABRIC	SRV-1657
E192508302	250.00	280.00	15.00	NBR/FABRIC	SRV-2193
E192548301	254.00	285.75	24.40	NBR/FABRIC	SRV-1754
E192608301	260.35	292.10	23.30	NBR/FABRIC	SRV-1744
E192758301	275.00	300.00	15.00	NBR/FABRIC	SRV-2192
E192808301	280.00	310.00	22.50	NBR/FABRIC	SRV-1839
E192928302	292.00	322.00	23.00	NBR/FABRIC	SRV-278
E19298301	292.10	323.85	24.70	NBR/FABRIC	SRV-1951
E193008301	300.00	330.00	21.50	NBR/FABRIC	SRV-276
E193208401	320.00	360.00	31.00	NBR/FABRIC	SRV-2177
E193548301	354.00	381.00	20.60	NBR/FABRIC	SRV-1765
E193682101	368.00	400.00	25	NEOPRENE/FABRIC	SRV-1658
E194008302	400.00	426.00	24.00	NBR/FABRIC	SRV-2298
E194008301	400.00	440.00	30	NBR/FABRIC	SRV-1824
E194406401	440.00	480.00	31.00	FKM	SRV-377
E194508301	450.00	490.00	33.00	NBR/FABRIC	SRV-2320
E194606501	460.00	500.00	28.50	FKM/FABRIC	SRV-411
E195008301	500.00	530.00	20	NBR/FABRIC	SRV-1779
E1905508301	550.00	604.00	25.00	NBR/FABRIC	SRV-2276

For customised items please Click here
