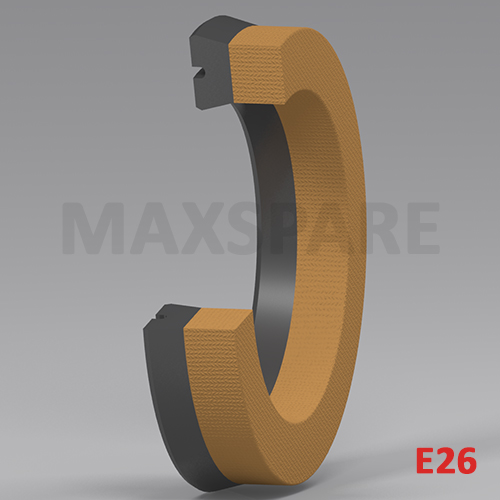

Max Spare : E26
Profile : Symmetrical Seals
Details :
E26 seal is a single acting robust design seal used for medium to heavy duty applications. This seal comprises of a rubberised fabric U seal base bonded to a rubber energiser and it needs split housing. The seal section is pre-loaded by the housing when installed to ensure effective sealing at low pressure. When the pressure increases, the nitrile energizes the fabric to increase the sealing area and hence improving the efficiency of the seal. The strength and durability of the rubberized fabric combines with its ability to retain lubricant keeping friction and wear to a minimum.
MATERIAL
Nitrile Rubber with fabric reinforcement 80/85 Shore A
FKM with fabric reinforcement 80/85 Shore A
OPERATING CONDITIONS
Temperature Range
:
-20° C to + 100° C (NBR)
: -20° C to + 220° C (FKM)
Pressure
:
250 Bar
Speed
:
0.5 m/s
SURFACE ROUGHNESS
Static
:
0.8 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids.
APPLICATION
Low to heavy duty hydraulic presses.
Valves spindles.
Mobile hydraulic presses.
Manufactured by:
Max Spare Limited
Product ID:
383i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
E260108302
10.00
18.00
4.5
NBR/FABRIC
SRV-989
E260151101
15.87
20.62
3.17
NBR
SRV-2127
E260188501
18.27
28.57
6.50
FKM/FABRIC
SRV-2203
E260208302
20.00
30.00
8.10
NBR/FABRIC
SRV-1849
E260248302
24.00
32.00
4.3
NBR/FABRIC
SRV-1534
E260248303
24.00
32.00
5
NBR/FABRIC
SRV-1885
E260248304
24.00
40.00
8
NBR/FABRIC
SRV-1902
E260258302
25.00
33.00
4.50
NBR/FABRIC
SRV-984
E260258501
25.00
34.00
6.00
FKM/FABRIC
SRV-321
E260257501
25.00
35.00
5.80
AFLAS FABRIC - AFC
SRV-300
E260288501
28.00
38.00
6.00
FKM/FABRIC
SRV-442
E260288303
28.00
40.00
13.00
NBR/FABRIC
SRV-272
E260307501
30.00
38.00
5.40
AFLAS FABRIC - AFC
SRV-293
E260308502
30.00
40.00
7.50
FKM/FABRIC
SRV-2247
E260308302
30.00
45.00
9.50
NBR/FABRIC
SRV-1745
E260308503
30.15
42.85
7.94
FKM/FABRIC
SRV-139
E260328301
32.00
40.00
4.5
NBR/FABRIC
SRV-976
E260328302
32.00
42.00
5.7
NBR/FABRIC
SRV-987
E260328501
32.00
42.00
6.00
FKM/FABRIC
SRV-986
E260348301
34.00
44.00
5.75
NBR/FABRIC
SRV-2188
E260357501
35.00
43.00
5.40
AFLAS FABRIC - AFC
SRV-299
E260408301
40.00
50.00
5.70
NBR/FABRIC
SRV-974
E260408302
40.00
50.00
7.30
NBR/FABRIC
SRV-1154
E260448502
44.45
50.80
6.35
FKM/FABRIC
SRV-2229
E260448501
44.45
57.50
11.50
FKM/FABRIC
SRV-1886
E260457501
45.00
55.00
5.80
AFLAS FABRIC - AFC
SRV-297
E260488401
48.00
68.00
10
NBR/FABRIC
SRV-1987
E260508303
50.00
60.00
5.7
NBR/FABRIC
SRV-963
E260507501
50.00
60.00
5.80
AFLAS FABRIC - AFC
SRV-295
E260508304
50.00
60.00
9
NBR/FABRIC
SRV-1848
E260538301
53.00
63.00
5.70
NBR/FABRIC
SRV-1009
E260558306
55.00
70.00
9
NBR/FABRIC
SRV-1121
E260568501
56.00
70.00
9.00
FKM/FABRIC
SRV-441
E260568301
56.00
71.00
8.55
NBR/FABRIC
SRV-1010
E260578501
57.20
69.75
8.20
FKM/FABRIC
SRV-1751
E260607501
60.00
70.00
7.20
AFLAS FABRIC - AFC
SRV-296
E260608501
60.00
70.00
7.50
FKM/FABRIC
SRV-1595
E260608304
60.00
80.00
14.40
NBR/FABRIC
SRV-1752
E260637501
63.50
76.20
7.20
AFLAS FABRIC - AFC
SRV-292
E260657501
65.00
80.00
8.70
AFLAS FABRIC - AFC
SRV-301
E260708503
70.00
84.00
11.00
FKM/FABRIC
SRV-320
E260708504
70.00
85.00
8.00
FKM/FABRIC
SRV-443
E260708501
70.00
85.00
8.55
FKM/FABRIC
SRV-1818
E260708302
70.00
85.00
9.5
NBR/FABRIC
SRV-965
E260708303
70.00
90.00
10
NBR/FABRIC
SRV-996
E260758501
75.00
90.00
8.55
FKM/FABRIC
SRV-1191
E260778301
77.00
97.00
14.70
NBR/FABRIC
SRV-1903
E260807501
80.00
95.00
6.80
AFLAS FABRIC - AFC
SRV-291
E260808306
80.00
95.00
9.50
NBR/FABRIC
SRV-1598
E260848301
84.45
106.04
10.79
NBR/FABRIC
SRV-1672
E260848301
84.45
106.04
10.79
NBR/FABRIC
SRV-1673
E260858301
85.00
105.00
18
NBR/FABRIC
PRV-655
E260858303
85.00
110.00
18
NBR/FABRIC
SRV-1714
E260878301
87.00
110.00
15
NBR/FABRIC
SRV-728
E260908308
90.00
105.00
11.25
NBR/FABRIC
SRV-1544
E260908309
90.00
105.00
9
NBR/FABRIC
SRV-1741
E260908310
90.00
110.00
11.70
NBR/FABRIC
SRV-1847
E26090E701
90.00
110.00
9.40
FKM/FABRIC
SRV-2206
E261007501
100.00
115.00
8.70
AFLAS FABRIC - AFC
SRV-298
E261001001
100.00
120.00
12
NBR/FABRIC
SRV-1907
E261108306
110.00
125.00
10.80
NBR/FABRIC
SRV-1823
E261108307
110.00
125.00
10.80
NBR/FABRIC
SRV-410
E261187501
118.00
133.00
8.70
AFLAS FABRIC - AFC
SRV-289
E261208303
120.00
150.00
11.25
NBR/FABRIC
SRV-1749
E261287501
128.00
148.00
11.50
AFLAS FABRIC - AFC
SRV-290
E261308302
130.00
150.00
11.25
NBR/FABRIC
SRV-1825
E261308301
130.00
150.00
11.50
NBR/FABRIC
SRV-1618
E261301102
130.00
150.00
11.50
NBR/FABRIC
SRV-1721
E261300901
130.00
155.00
19.00
NBR
SRV-2205
E26131B301
131.95
171.50
15.87
NBR/FABRIC
SRV-2270
E261358302
135.00
155.00
11.25
NBR/FABRIC
SRV-2259
E261408304
140.00
160.00
15
NBR/FABRIC
SRV-1362
E261408303
140.00
170.00
18
NBR/FABRIC
SRV-1478
E261478501
147.00
160.00
8.50
FKM/FABRIC
SRV-1905
E261608303
160.00
180.00
15
NBR/FABRIC
SRV-1664
E261601001
160.00
185.00
15
NBR/FABRIC
SRV-1906
E261698301
169.00
200.00
22
NBR/FABRIC
SRV-2224
E261701001
170.00
200.00
16.50
NBR/FABRIC
SRV-1736
E261708302
170.00
210.00
28.80
NBR/FABRIC
SRV-2189
E261808301
180.00
205.00
14.4
NBR/FABRIC
SRV-1033
E261808303
180.00
205.00
16
NBR/FABRIC
SRV-1610
E261808305
180.00
210.00
13.00
NBR/FABRIC
SRV-2211
E261808302
180.00
210.00
21.50
NBR/FABRIC
SRV-1574
E261808304
180.00
210.00
26.50
NBR/FABRIC
SRV-2169
E261858303
185.00
215.00
18.4
NBR/FABRIC
SRV-1167
E261888301
188.00
225.00
26
NBR
SRV-1671
E261908302
190.00
210.00
11.25
NBR/FABRIC
SRV-1742
E261908303
190.00
220.00
21.80
NBR/FABRIC
SRV-1746
E261958301
195.00
215.00
13.50
NBR/FABRIC
SRV-1846
E262008304
200.00
225.00
15
NBR/FABRIC
SRV-2004
E262028301
202.00
220.00
9
NBR/FABRIC
SRV-1693
E26209E701
209.50
228.50
7.90
FKM/FABRIC
SRV-2207
E26212D601
212.00
225.00
8.50
HNBR/FABRIC
SRV-2228
E262121101
212.72
250.82
25.40
NBR/FABRIC
SRV-1687
E262208305
220.00
240.00
20.00
NBR/FABRIC
SRV-353
E262208303
220.00
250.00
18.00
NBR/FABRIC
SRV-1538
E262258302
225.00
240.00
8.55
NBR/FABRIC
SRV-192
E262258301
225.00
255.00
17
NBR/FABRIC
SRV-1688
E262258301
225.00
255.00
18
NBR/FABRIC
SRV-1802
E262358302
235.00
265.00
18.50
NBR/FABRIC
SRV-1904
E262408301
240.00
270.00
18
NBR/FABRIC
SRV-1750
E262488601
248.00
277.00
17
FKM/FABRIC
SRV-1831
E262480601
248.00
280.00
22
NBR/FABRIC
SRV-1582
E262480601
248.00
280.00
22
NBR/FABRIC
SUM-585
E262508301
250.00
280.00
18
NBR/FABRIC
SRV-1570
E262601001
260.00
290.00
19.00
NBR/FABRIC
SRV-317
E262608301
260.00
300.00
23.50
NBR/FABRIC
SRV-198
E262738401
273.82
287.78
15.90
NBR/FABRIC
SRV-135
E262798301
279.40
292.10
14.28
NBR/FABRIC
SRV-1580
E262808302
280.00
306.00
15.00
NBR/FABRIC
SRV-2172
E262808303
280.00
310.00
17.40
NBR/FABRIC
SRV-165
E262808304
280.00
310.00
19.00
NBR/FABRIC
SRV-225
E262901001
290.00
320.00
17.00
NBR/FABRIC
SRV-2000
E262908303
290.00
330.00
16
NBR/FABRIC
SRV-1566
E263048301
304.80
342.90
22.86
NBR/FABRIC
SRV-137
E263158301
315.00
330.00
20.00
NBR/FABRIC
SRV-136
E263208301
320.00
360.00
23.50
NBR/FABRIC
SRV-199
E263231101
323.85
361.95
25.40
NBR/FABRIC
SRV-1686
E263451001
345.00
385.00
22.50
NBR/FABRIC
SRV-1832
E263508401
350.00
380.00
25.00
NBR/FABRIC
SRV-2226
E263508301
350.00
390.00
19.00
NBR/FABRIC
SRV-1995
E26355R301
355.60
387.35
11.09
PU
STB-148
E263558301
355.60
387.35
19.81
NBR/FABRIC
SRV-200
E263608301
360.00
385.00
20.50
NBR/FABRIC
SRV-1958
E263681101
368.30
400.05
17.52
NBR
SRV-1715
E263988301
398.00
418.00
21.60
NBR/FABRIC
SRV-128
E264318301
431.80
469.90
27.00
NBR/FABRIC
SRV-2173
E264321101
432.18
470.78
35.30
NBR/FABRIC
SRV-1651
E264408302
440.00
460.00
15.00
NBR/FABRIC
SRV-178
E264408301
440.00
480.00
28.80
NBR/FABRIC
SRV-1740
E264508401
450.00
480.00
25.00
NBR/FABRIC
SRV-431
E265108302
510.00
530.00
13
NBR/FABRIC
SRV-1882
E265108301
510.00
550.00
25
NBR/FABRIC
SUVG-361
E265308401
530.00
560.00
25
NBR/FABRIC
SRV-2216
E265608401
560.00
600.00
25.00
NBR/FABRIC
SRV-2227
E265758301
575.00
595.00
21.60
NBR/FABRIC
SRV-447
E26580S401
580.00
605.00
16.20
HNBR
SRV-1834
E265848301
584.20
612.80
34.90
NBR/FABRIC
SRV-427
E266158301
615.00
640.00
14.00
NBR/FABRIC
SRV-312
E266151101
615.95
654.05
25.40
NBR
SRV-1716
E266658301
665.00
717.00
28.80
NBR/FABRIC
SRV-1739
E267808301
780.00
836.00
76.00
NBR/FABRIC
SRV-129
E267908301
790.00
810.00
13
NBR/FABRIC
SRV-1881
E269008301
900.00
950.00
32.50
NBR/FABRIC
SRV-2223
E269008302
900.00
953.50
32.50
NBR/FABRIC
SRV-2222
E269508301
950.00
1000.00
32
NBR/FABRIC
SUVG-516
For customised items please
Click here
Login
