WRB : Hydraulic Wiper Seals Manufacturers, Suppliers, Exporters

Max Spare : W11

Profile : Wiper Seals

MATERIALS
NBR of Hardness Shore ‘A’ 88°.
Polyurethane of 92° shore ‘A’ hardness.
MAX OPERATING CONDITION
Temp. range: -30°C to +100°C
(upto +200°C on request).
Speed: 2 m/s.

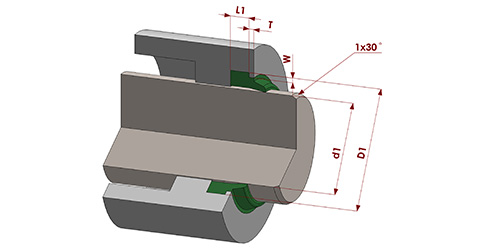

The Max Spare type WRB wiper has a lip designed to remove dirt, mud, dust, moisture, etc. Accumulating on the rod. The wiper is manufactured from a high hardness NBR compound suitable for installing in a grooved housing.
To prevent dirt passing the outside of wiper and to reduce the pumping action, the outside diameter has an interference fit with the housing. Due to excellent wear resistance of polyurethane the life expected is 3 times that of NBR. WRB wiper is also available in FKM (viton).

FEATURES:

General purpose seal.
Precision trimmed sealing lip.
Wide size ranges.

APPLICATION:

Medium duty. For heavy duty application, select polyurethane as the material.
Hydraulic and Pneumatic cylinders.

COMPATIBILITY:

Mineral oils, bio oils, water soluble & water glycol fluids.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
W110041101	4.00	8.00	2/3/4	NBR	WPS-2910
W110061102	6.00	10.00	2.2/4	NBR	WPS-3112
W110061101	6.00	12.00	2/3/4	NBR	WPS-2911
W110081102	8.00	14.00	2.60/4/5	NBR	WPS-4618
W110081103	8.00	16.00	4/5/6	NBR	WPS-4630
W110081101	8.00	16.00	4/5/7	NBR	WPS-2912
W11008L501	8.00	16.00	4/7	PU	WPH-949
W110101101	10.00	16.00	2.5/5	NBR	WPS-3583
W110101105	10.00	17.00	3.80/4.90/7	NBR	WPS-5804
W110101103	10.00	18.00	4/5/7.30	NBR	WPS-5396
W110106701	10.00	18.00	4/7	FKM	WPS-802
W11012L504	12.00	18.00	2.5/3.5/5	PU	WPH-1747
W110121104	12.00	18.00	2.6/3.6/5	NBR	WPS-6486
W11012L503	12.00	18.00	2.6/5	PU	WPH-1040
W110126702	12.00	18.00	2.6/5	FKM	WPS-2766
W110121101	12.00	18.00	2.6/5	NBR	WPS-2895
W110121101	12.00	18.00	2.6/5	NBR	WPS-742
W110126701	12.00	18.00	4/5/7	FKM	WPS-6405
W11012L502	12.00	20.00	3.82/7.40	PU	WPH-884
W11012V301	12.00	20.00	4/6/8	NBR	WPS-4253
W11012L501	12.00	20.00	4/7	PU	WPH-879
W110121103	12.00	20.00	4/7	NBR	WPS-4001
W110121102	12.00	20.00	4/8	FKM	WPS-287
W110121001	12.70	21.43	4/6/8	NBR	WPS-5349
W110131101	13.00	20.00	4/7	NBR	WPS-3502
W11014L502	14.00	20.00	2.6/3.6/5	PU	WPH-896
W11014L501	14.00	20.00	3.1/5	PU	WPH-694
W110141101	14.00	20.00	3.1/5	NBR	WPS-5731
W110141103	14.00	20.00	3.5/5	NBR	WPS-2882
W110141102	14.00	22.00	4/5/7.30	NBR	WPS-5397
W11014L503	14.00	22.00	4/7	PU	WPH-1590
W110146702	14.00	22.00	4/7	FKM	WPS-3582
W11015L501	15.00	23.00	4/7	PU	WPH-1238
W110156701	15.00	23.00	4/7	FKM	WPS-3443
W110161103	16.00	22.00	3.1/5	NBR	WPS-2894
W11016L501	16.00	24.00	4/7	PU	WPH-253
W11016T201	16.00	24.00	4/7	SILICON	WPS-4298
W110161101 (Stock Item)	16.00	24.00	4/7	NBR	WPS-800
W110176601	17.00	25.00	4/7	FKM	WPS-2840
W110181105	18.00	24.00	2.5/5	NBR	WPS-2662
W110181106	18.00	24.00	5/7	NBR	WPS-2862
W11018L501	18.00	26.00	4/7	PU	WPH-476
W110186701	18.00	26.00	4/7	FKM	WPS-2475
W110186702	18.00	26.00	4/7	FKM	WPS-3250
W110181102 (Stock Item)	18.00	26.00	4/7	NBR	WPS-880
W110181107	18.00	28.00	5/7	NBR	WPS-3085
W11020L502	20.00	26.00	2.6/5	PU	WPH-908
W110206703	20.00	26.00	3.1/5	FKM	WPS-2892
W110201104	20.00	28.00	4/5/7	NBR	WPS-5608
W110205901	20.00	28.00	4/7	PU	WPH-258
W110206701	20.00	28.00	4/7	FKM	WPS-1250
W110206701	20.00	28.00	4/7	FKM	WPS-4119
W11020T201	20.00	28.00	4/7	SILICON	WPS-4256
W110201101 (Stock Item)	20.00	28.00	4/7	NBR	WPS-744
W110201103	20.00	30.00	7/10	NBR	WPS-3637
W110226801	22.00	30.00	3.63/7	FKM	WPS-2588
W11022L501	22.00	30.00	4/7	PU	WPH-1026
W110226602	22.00	30.00	4/7	FKM	WPS-2820
W110221101 (Stock Item)	22.00	30.00	4/7	NBR	WPS-763
W110246702	24.00	31.00	4/5/7	FKM	WPS-6495
W110251106	25.00	31.20	5.00/6.00	NBR	WPS-3203
W110256703	25.00	32.00	4/5/6	FKM	WPS-6496
W110255903	25.00	33.00	3.75/5/7	PU	WPH-1408
W110255903	25.00	33.00	3.75/5/7	PU	WPH-1499
W110251108	25.00	33.00	4/5/7	NBR	WPS-6339
W110255902	25.00	33.00	4/7	PU	WPH-1396
W11025L501	25.00	33.00	4/7	PU	WPH-259
W110251001	25.00	33.00	4/7	NBR	WPS-2837
W110251101 (Stock Item)	25.00	33.00	4/7	NBR	WPS-685
W11025L503	25.00	33.60	5/8	PU	WPH-2237
W110255904	25.00	34.00	5.20/6.70/11.34	PU	WPH-1860
W110256702	25.00	34.50	3.50/5.50/8	FKM	WPS-6237
W110256602	25.00	38.00	3/8.50	FKM	WPS-3847
W110251107	25.00	38.00	4/5/7	NBR	WPS-3336
W11026L501	26.00	34.00	4/5/7	PU	WPH-1528
W110281106	28.00	35.50	3.70/6.80	NBR	WPS-4802
W110281103	28.00	36.00	3.5/4.5/6.5	NBR	WPS-2204
W11028L502	28.00	36.00	4/7	PU	WPH-260
W110286701	28.00	36.00	4/7	FKM	WPS-1966
W110280801	28.00	36.00	4/7	NBR	WPS-2807
W110281101 (Stock Item)	28.00	36.00	4/7	NBR	WPS-671
W110281105	28.50	45.00	10/12	NBR	WPS-3245
W11030L503	30.00	36.00	2.30/3.50/5	PU	WPH-2196
W110306701	30.00	37.30	4/7	FKM	WPS-2179
W110306704	30.00	38.00	3/4/7.00	FKM	WPS-4913
W110305901	30.00	38.00	4/5/7	PU	WPH-1032
W11030L502	30.00	38.00	4/5/7	PU	WPH-1832
W11030L501	30.00	38.00	4/7	PU	WPH-261
W110306702	30.00	38.00	4/7	FKM	WPS-1637
W11030T201	30.00	38.00	4/7	SILICON	WPS-422
W110301101 (Stock Item)	30.00	38.00	4/7	NBR	WPS-762
W11030L401	30.00	38.30	4/7	PU	WPH-1446
W110325901	32.00	40.00	4/5/7	PU	WPH-1405
W110326702	32.00	40.00	4/5/7	FKM	WPS-4471
W11032L501	32.00	40.00	4/6/8	PU	WPH-1415
W110321101 (Stock Item)	32.00	40.00	4/7	NBR	WPS-2155
W110326701	32.00	40.00	4/7	FKM	WPS-2765
W110321001	32.00	40.00	4/7	NBR	WPS-2838
W110321101	32.00	40.00	4/7	NBR	WPS-5634
W110321104	32.00	43.00	5/7.5	NBR	WPS-3256
W110341101	34.00	42.00	3.8/4.8/7	NBR	WPS-6398
W11035L501	35.00	43.00	4/6/7	PU	WPH-262
W110351101 (Stock Item)	35.00	43.00	4/7	NBR	WPS-831
W11036L505	36.00	44.00	3.70/4.70/7	PU	WPH-2188
W110366702	36.00	44.00	4/5	FKM	WPS-3543
W110365901	36.00	44.00	4/5/7	PU	WPH-1418
W11036L503	36.00	44.00	4/5/7	PU	WPH-1530
W11036L502	36.00	44.00	4/5/7	PU	WPH-1592
W110361101 (Stock Item)	36.00	44.00	4/5/7	NBR	WPS-670
W11036L504	36.00	44.00	4/7	PU	WPH-1288
W110366701	36.00	44.00	4/7	FKM	WPS-1578
W110366602	36.00	45.00	3.70/4.90/7	FKM	WPS-6182
W110385902	38.00	46.00	4/5/7	PU	WPH-1406
W11038L501	38.00	46.00	4/5/7	PU	WPH-573
W110381101 (Stock Item)	38.00	46.00	4/7	NBR	WPS-1976
W110405902	40.00	48.00	4/5/7	PU	WPH-1179
W11040L501	40.00	48.00	4/7	PU	WPH-120
W110403201 (Stock Item)	40.00	48.00	4/7.00	EPDM	WPS-172
W110425901	42.00	50.00	4/5/7	PU	WPH-229
W110425902	42.00	50.00	4/7	PU	WPH-723
W110421101 (Stock Item)	42.00	50.00	4/7	NBR	WPS-1653
W11045L401	45.00	53.00	3.5/7	PU	WPH-1625
W110456701	45.00	53.00	4/5/7	FKM	WPS-4906
W11045L501	45.00	53.00	4/7	PU	WPH-264
W110456701	45.00	53.00	4/7	FKM	WPS-2891
W110456706	45.00	53.00	4/7	FKM	WPS-5165
W110451102	45.00	53.00	4/7	NBR	WPS-5632
W110451102 (Stock Item)	45.00	53.00	4/7	NBR	WPS-832
W110456703	45.00	54.00	3.75/5/7	FKM	WPS-3738
W110456702	45.00	54.00	4/5.2/7.20	FKM	WPS-5597
W110456705	45.00	55.00	4/7	FKM	WPS-4904
W110451103	45.00	55.00	5/7	NBR	WPS-229
W110451101 (Stock Item)	45.00	57.00	5.5/10	NBR	WPS-1442
W110456704	45.00	57.00	5.50/10	FKM	WPS-4568
W110481104	48.00	56.00	3.8/4.8/7	NBR	WPS-3251
W110481101	48.00	56.00	4/7	NBR	WPS-1217
W110481102	48.00	56.00	4/7	NBR	WPS-2928
W110481103	48.00	58.00	4/7	NBR	WPS-2966
W110486701	48.00	58.60	4.3/5.3/7.5	FKM	WPS-6214
W11050L502	50.00	58.00	3.80/4.80/7.00	PU	WPH-1684
W11050L501	50.00	58.00	4/7	PU	WPH-266
W110506701	50.00	58.00	4/7	NBR	WPS-1317
W110501101 (Stock Item)	50.00	58.00	4/7	NBR	WPS-494
W110501106	50.00	60.00	5/7.50/8	NBR	WPS-4786
W110501104	50.00	60.00	7/10	NBR	WPS-2272
W110501105	50.00	62.00	5/8	NBR	WPS-4056
W110506702	50.80	59.00	3.9/4.9/7.10	FKM	WPS-4956
W110511001	51.00	59.00	4/7	NBR	WPS-2112
W110541101	54.00	62.00	4/7	NBR	WPS-2133
W110541101	54.00	62.00	4/7	NBR	WPS-4538
W11055L501	55.00	63.00	4/7	PU	WPH-268
W110551101 (Stock Item)	55.00	63.00	4/7	NBR	WPS-1011
W110556701	55.00	63.00	4/7	FKM	WPS-3529
W110556702	55.00	64.00	4/7	FKM	WPS-5338
W11056L501	56.00	64.00	4/5/7.00	PU	WPH-1614
W110561101 (Stock Item)	56.00	64.00	4/7	NBR	WPS-1077
W110566702	56.00	64.00	4/7	FKM	WPS-1553
W110561101	56.00	64.00	6/7	NBR	WPS-5616
W110566705	56.00	66.00	4/5/7.50	FKM	WPS-6476
W110566704	56.00	66.60	5.3/7	FKM	WPS-3497
W11058L401	58.00	66.00	4/5/7	PU	WPH-1104
W110606702	60.00	68.00	4/5/7.25	FKM	WPS-5201
W110601101 (Stock Item)	60.00	68.00	4/7	NBR	WPS-1965
W110601101	60.00	68.00	4/7	NBR	WPS-5839
W11060L501	60.00	68.00	4/7/8	PU	WPH-208
W11060L502	60.00	68.00	5/8	PU	WPH-1640
W110635901	63.00	71.00	4/5/7.40	PU	WPH-1031
W11063L501	63.00	71.00	4/7	PU	WPH-966
W110636701	63.00	71.00	4/7	FKM	WPS-2551
W110631101 (Stock Item)	63.00	71.00	4/7	NBR	WPS-808
W110636702	63.00	73.00	4/7	FKM	WPS-3591
W110631105	63.50	70.00	2.5/3/4	NBR	WPS-2387
W110651104	65.00	73.00	4/5/7	NBR	WPS-5817
W110651103	65.00	73.00	4/7	NBR	WPS-3789
W110656701	65.00	73.00	4/7	FKM	WPS-5732
W110651101 (Stock Item)	65.00	73.00	4/7	NBR	WPS-924
W11070D601	70.00	78.00	4/5/7	HNBR	WPS-5114
W11070L502	70.00	78.00	4/6	PU	WPH-955
W11070L501	70.00	78.00	4/7	PU	WPH-271
W110706601	70.00	78.00	4/7	FKM	WPS-3082
W110701102 (Stock Item)	70.00	78.00	4/7	NBR	WPS-751
W110706602	70.00	80.00	4/5/7	FKM	WPS-4998
W110701103	70.00	80.00	5/7	NBR	WPS-5635
W110756702	75.00	83.00	3.7/5.85/6.80	FKM	WPS-4423
W110751101 (Stock Item)	75.00	83.00	4/7	NBR	WPS-1076
W110781101	78.00	86.00	4/5/7	NBR	WPS-4828
W11080L401	80.00	88.00	4/5/7	PU	WPH-725
W110801103	80.00	88.00	4/5/7	NBR	WPS-5984
W110806701	80.00	88.00	4/7	FKM	WPS-3604
W110801102 (Stock Item)	80.00	88.00	4/7	NBR	WPS-777
W110801101	80.00	92.00	5.50/10	NBR	WPS-5312
W110831101	83.00	91.00	4/7	NBR	WPS-2193
W110851101 (Stock Item)	85.00	93.00	4/7	NBR	WPS-326
W11086L501	86.00	94.00	4/5/7	PU	WPH-2228
W110888701	88.90	107.95	8.50/11.50/16	PU	WPH-1589
W110906706	90.00	96.00	4.5/8	FKM	WPS-4602
W110906703	90.00	98.00	3.75/5/6.80	FKM	WPS-3535
W110901102	90.00	98.00	4/5/7	NBR	WPS-5976
W11090L502	90.00	98.00	4/7	PU	WPH-278
W110906701	90.00	98.00	4/7	FKM	WPS-2476
W110901101	90.00	98.00	4/7	NBR	WPS-5627
W110901101 (Stock Item)	90.00	98.00	4/7	NBR	WPS-737
W110906702	90.00	98.00	5/6/8	FKM	WPS-3521
W110906708	90.00	99.00	4/4.80/7	FKM	WPS-6478
W110906705	90.00	102.20	90	FKM	WPS-4003
W110906707	90.00	103.50	7/11/13	FKM	WPS-5329
W110921101	92.00	100.00	4/7	NBR	WPS-3312
W110921103	92.00	102.00	5/7	NBR	WPS-3288
W110935901	93.00	101.00	4/7	PU	WPH-1689
W110951101 (Stock Item)	95.00	103.00	4/7	NBR	WPS-932
W11100D601	100.00	108.00	4/5/7	HNBR	WPS-5038
W11100L501	100.00	108.00	4/7	PU	WPH-207
W111001101	100.00	108.00	4/7	NBR	WPS-1013
W111001101 (Stock Item)	100.00	108.00	4/7	NBR	WPS-3016
W111005902	100.00	112.00	7.5/13	PU	WPH-1501
W111051101 (Stock Item)	105.00	117.00	5.5/10	NBR	WPS-1977
W111056701	105.00	117.00	5.50/10	FKM	WPS-4671
W111055901	105.00	117.00	5.50/7/10	PU	WPH-1779
W111101103 (Stock Item)	110.00	117.00	8.2/11	NBR	WPS-1979
W111106703	110.00	118.00	4/5/7	FKM	WPS-4363
W111101101 (Stock Item)	110.00	118.00	4/7	NBR	WPS-1075
W111106702	110.00	120.00	5/7/10	FKM	WPS-3695
W111101102 (Stock Item)	110.00	122.00	5.5/10	NBR	WPS-1142
W111106701	110.00	122.00	5.5/10	FKM	WPS-3517
W111141101	114.00	122.00	4/7	NBR	WPS-2169
W111141101	114.00	122.00	4/7	NBR	WPS-4467
W111151101 (Stock Item)	115.00	127.00	5.5/10	NBR	WPS-1004
W111206701	120.00	130.60	5.3/7	FKM	WPS-3644
W111201101 (Stock Item)	120.00	132.00	5.5/10	NBR	WPS-904
W111206702	120.00	132.00	5.50/6.20/11.20	FKM	WPS-5095
W11120L501	120.00	132.00	6/7.7/11	PU	WPH-2099
W111256702	125.00	137.00	5.3/7.2/10.2	FKM	WPS-3319
W111251101 (Stock Item)	125.00	137.00	5.5/10	NBR	WPS-940
W111256703	125.00	137.00	5.50/10	FKM	WPS-4024
W111256701	125.00	137.00	5/7	FKM	WPS-3243
W111251103	125.00	137.00	7.5/8.5/12	NBR	WPS-3678
W111251102	125.00	140.00	9.5/12	NBR	WPS-2751
W111275901	127.70	140.00	5.5/10	PU	WPH-726
W111285901	128.00	140.00	5.5/10	PU	WPH-1068
W11128L501	128.00	140.00	5.5/7/10	PU	WPH-2229
W111301101 (Stock Item)	130.00	142.00	5.5/10	NBR	WPS-1069
W111306701	130.00	142.00	5.5/10	FKM	WPS-3452
W111351101 (Stock Item)	135.00	147.00	5.5/10	NBR	WPS-1975
W111355901	135.00	148.00	7/9.5	PU	WPH-811
W111401101 (Stock Item)	140.00	152.00	5.5/10	NBR	WPS-1071
W111406702	140.00	152.00	5.5/10	FKM	WPS-3681
W11140L503	140.00	152.00	5/6/10	PU	WPH-1554
W111406703	140.00	153.00	5/6.50/9.30	FKM	WPS-5436
W111405901	140.00	153.00	7/9.5	PU	WPH-812
W111405902	140.00	155.00	7/9.5	PU	WPH-813
W11140L502	140.00	155.00	9.5/10.5/13	PU	WPH-891
W111501101 (Stock Item)	150.00	162.00	5.5/10	NBR	WPS-1070
W11150L501	150.00	165.00	10.2/16	PU	WPH-1407
W111605901	160.00	172.00	5.5/10	PU	WPH-1069
W111601101 (Stock Item)	160.00	172.00	5.5/10	NBR	WPS-1072
W111601102	160.00	174.00	7/13.5	NBR	WPS-2730
W111651101	165.00	177.00	5.3/7/10	NBR	WPS-4848
W111656701	165.00	177.00	5.5/10	FKM	WPS-4042
W111701101 (Stock Item)	170.00	182.00	5.5/10	NBR	WPS-1073
W111806701	180.00	190.00	7/10	FKM	WPS-3522
W111801101 (Stock Item)	180.00	192.00	5.5/10	NBR	WPS-1074
W111901101 (Stock Item)	190.00	202.00	5.5/10	NBR	WPS-1974
W112001101 (Stock Item)	200.00	212.00	5.5/10	NBR	WPS-1235
W112005901	200.00	212.00	5.50/10	PU	WPH-1949
W112006701	200.00	212.00	5.50/7/10	FKM	WPS-6377
W112101102 (Stock Item)	210.00	225.00	6.5/13	NBR	WPS-1973
W112156701	215.00	230.00	6.8/8/13.00	FKM	WPS-3507
W112201101 (Stock Item)	220.00	235.00	6.5/8.5/13	NBR	WPS-825
W112205901	220.00	235.00	6.50/13.00	PU	WPH-1650
W112255901	225.00	240.00	6.5/8/13	PU	WPH-1453
W112301101 (Stock Item)	230.00	245.00	6.5/13	NBR	WPS-1972
W112306701	230.00	245.00	6.5/13	FKM	WPS-3181
W112401101 (Stock Item)	240.00	255.00	6.5/13	NBR	WPS-1971
W112461101	246.00	261.00	6.5/13	NBR	WPS-2335
W112506702	250.00	265.00	6.2/8.8/12	FKM	WPS-2257
W112501101 (Stock Item)	250.00	265.00	6.5/13	NBR	WPS-1231
W112506701	250.00	265.00	6.5/13	FKM	WPS-3182
W112601101 (Stock Item)	260.00	275.00	6.5/13	NBR	WPS-1978
W112701103	270.00	290.00	10/18	NBR	WPS-2859
W112806601	280.00	294.00	6/8/14	FKM	WPS-3276
W113001101 (Stock Item)	300.00	315.00	6.5/13	NBR	WPS-1232
W113041101	304.80	323.80	6.50/9.50/13	NBR	WPS-5778
W113101101	310.00	325.00	6.5/13	NBR	WPS-2163
W113461101	346.00	361.00	6.5/7.5/13	NBR	WPS-4150
W113501101	350.00	375.00	12.7/20	NBR	WPS-2693
W113651101	365.00	380.00	6.5/13	NBR	WPS-2152
W114001101 (Stock Item)	400.00	415.00	6.5/13	NBR	WPS-1233
W114201101	420.00	435.00	6.50/8.50/13	NBR	WPS-5588
W114481101	448.00	464.00	6.7/9.1/12.50	NBR	WPS-2291
W114601101	460.00	476.00	6/8/11	NBR	WPS-6001
W115501101	550.00	565.00	6.5/9/13	NBR	WPS-4636

For customised items please Click here
