Max Spare : W15

Profile : Wiper Seals

Details :

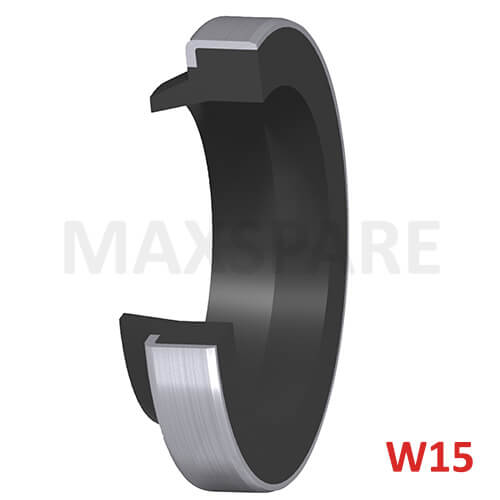

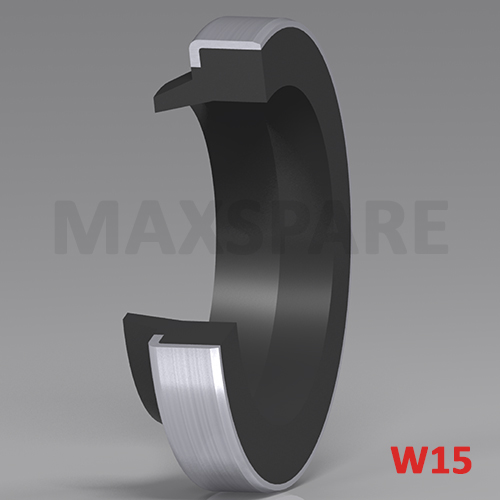

W15 is a single acting metal-cased wiper seal, designed to press fit into open groove housings for light and medium duty applications. The precision moulded Nitrile rubber (NBR) wiping element is bonded to a metal case treated to prevent rust. The proportions of the NBR wiping lip follow the side movement of the rod to clear away the deposited dirt. W15 also available in Polyurethane material. Due to excellent wear resistance of polyurethane the life expected is 3 times than that of NBR.

MATERIAL

Nitrile Rubber 85/90 Shore A

Mild Steel (SS-304/316 on request)

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C
Speed	:	0.5 m/s

SURFACE ROUGHNESS

Static	:	0.8 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Mineral oils, bio oils, water soluble & water glycol fluids.

APPLICATION

Light to Medium duty cylinders.
Hydraulic and Pneumatic cylinders.

FEATURES

General purpose seal.
Good wiping performance.
Heavy duty application.
Long service life.
Seal retainer not required.
Press fitting into the groove.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
W150086702	8.00	14.00	3.50/5.00	FKM	WPS-2070
W150086701	8.00	14.00	3/4.50	FKM	WPS-6773
W150081101	8.00	18.00	5.00/8.00	NBR	WPS-7047
W150081102	8.00	18.00	5.00/8.00	NBR	WPS-715
W150106702	10.00	19.00	3.00/5.50	FKM	WPS-7608
W15010L502	10.00	20.00	5/7.00	PU	WPH-1478
W150101101	10.00	20.00	5/7.00	NBR	WPS-6236
W15010L501	10.00	20.00	5/8	PU	WPH-1266
W150111101	11.11	15.87	3.17/4.76	NBR	WPS-5968
W150121102	12.00	18.00	3.00/4.70	NBR	WPS-7028
W150121103	12.00	18.00	3.50/5.00	NBR	WPS-465
W150120901	12.00	18.00	3.50/5.00	NBR	WPS-7692
W150121104	12.00	20.00	4.00/6.00	NBR	WPS-1116
W15012L502	12.00	20.00	4/6.00	PU	WPH-619
W150121105	12.00	22.00	5.00/8.00	NBR	WPS-712
W150121101	12.70	19.05	2.38/3.17	NBR	WPS-6914
W15014L503	14.00	20.00	3.50/5.00	PU	WPH-254
W150145901	14.00	24.00	5/7.00	PU	WPH-2537
W150141101	14.00	25.00	5.00/7.00	NBR	WPS-2086
W15014L501	14.00	25.00	5/8	PU	WPH-1686
W150150901	15.00	25.00	5.00/8.00	NBR	WPS-7691
W150158701	15.10	26.00	5.00/8.00	PU	WPH-490
W150161102	16.00	20.35	3.00/4.00	NBR	WPS-6506
W150161104	16.00	22.00	3.00/4.00	NBR	WPS-1115
W15016L502	16.00	22.00	3/4.00	PU	WPH-2987
W15016L503	16.00	22.00	4/6.00	PU	WPH-800
W15016U301	16.00	25.00	5/7	FKM	WPS-5753
W150161101	16.00	26.00	4.50/7	NBR	WPS-6118
W150161105	16.00	26.00	5.00/8.00	NBR	WPS-711
W1501L401	16.00	26.00	5/8	PU	WPH-724
W150161103	16.00	26.10	5/7.50	NBR	WPS-6899
W150171101	17.00	22.00	3/4.20	NBR	WPS-5590
W150181102	18.00	24.00	2.80/3.20	NBR	WPS-7601
W150185902	18.00	25.00	5/8.00	PU	WPH-2230
W15018L501	18.00	28.00	5.00/7.00	PU	WPH-996
W150181103	18.00	28.00	5.00/7.00	NBR	WPS-1117
W150180901	18.00	28.00	5.00/8.00	NBR	WPS-7690
W150196701	19.00	26.00	5/7	FKM	WPS-6032
W15019V304	19.05	24.00	3.70/6.00	NBR	WPS-676
W15019L501	19.05	26.00	5.00/7.00	PU	WPH-201
W15019V303	19.05	26.00	5.00/7.00	NBR	WPS-650
W15019V301	19.05	26.98	4.00/6.00	NBR/FABRIC	WPS-165
W15019V302	19.05	27.00	4.00/6.00	NBR	WPS-462
W15020L501	20.00	26.00	4/7	PU	WPH-2209
W150201102	20.00	28.00	3.50/5.00	NBR	WPS-1118
W150206702	20.00	28.00	3.50/5.00	FKM	WPS-2112
W150201103	20.00	30.00	5.00/7.00	NBR	WPS-1122
W15020L401	20.00	30.00	6/8.00	PU	WPH-2608
W150201104	20.00	30.00	7.00/10.00	NBR	WPS-1126
W150205903	20.00	30.00	7/10	PU	WPH-2978
W150206701	20.00	32.00	7.00/10.00	FKM	WPS-7394
W15022L501	22.00	32.00	5/8.00	PU	WPH-2986
W150231001	23.00	32.00	7.00/10.00	NBR	WPS-7958
W150241001	24.00	32.00	5.00/7.00	NBR	WPS-7976
W15024V301	24.50	33.50	4.00/5.00	NBR	WPS-1701
W150251103	25.00	33.00	3/5	NBR	WPS-4644
W150251104	25.00	35.00	5.00/7.00	NBR	WPS-1127
W150250901	25.00	35.00	5.00/8.00	NBR	WPS-7689
W150256702	25.00	35.00	5/7.00	FKM	WPS-367
W150255905	25.00	35.00	5/8.00	PU	WPH-2475
W150258701	25.00	35.00	7.00/10.00	PU	WPH-689
W150251105	25.00	35.00	7.00/10.00	NBR	WPS-639
W15025L501	25.00	37.00	6/9.00	PU	WPH-2985
W150256701	25.00	38.00	5/7	FKM	WPS-2276
W150254301	25.25	33.34	4/6	SILICON	WPS-3379
W15025V201	25.40	32.00	4.00/6.00	NBR	WPS-540
W15025L502	25.40	35.00	4.00/6.00	PU	WPH-242
W15025V301	25.40	35.00	4.00/6.00	NBR	WPS-258
W15025V202	25.40	38.10	4.00/6.00	NBR	WPS-582
W150271101	27.00	35.00	7/10.00	NBR	WPS-6600
W150105901	27.00	39.00	6/9.00	PU	WPH-2472
W150281102	28.00	38.00	5.00/8.00	NBR	WPS-1089
W15028L501	28.00	38.00	5/8	PU	WPH-1388
W150281103	28.00	38.00	7.00/10.00	NBR	WPS-1090
W150281101	28.50	35.00	2.50/3.50	NBR	WPS-208
W150301105	30.00	40.00	5.00/8.00	NBR	WPS-1088
W15030L401	30.00	40.00	5/7.50	PU	WPH-2607
W150301101	30.00	40.00	5/8	NBR	WPS-4156
W15030L501	30.00	40.00	5/8.00	PU	WPH-2948
W150301104	30.00	40.00	7.00/10.00	NBR	WPS-434
W150308701	30.00	40.00	7/10.00	PU	WPH-2393
W150301102	30.00	42.00	6/9	NBR	WPS-4912
W15030L502	30.00	42.00	6/9.00	PU	WPH-2947
W150306704	30.00	43.00	10.00/14.00	FKM	WPS-7876
W150306703	30.00	45.00	5.00/8.00	FKM	WPS-7836
W150301106	30.00	45.00	5/8.00	NBR	WPS-1872
W150326703	32.00	40.00	4/7.00	FKM	WPS-6793
W150326702	32.00	40.00	5.00/8.00	FKM	WPS-6444
W150321101	32.00	42.00	5.00/7.00	NBR	WPS-1058
W15032L502	32.00	42.00	5/8.00	PU	WPH-2984
W15032L501	32.00	42.00	7/10	PU	WPH-1901
W150328703	32.00	42.00	7/10.00	PU	WPH-686
W150321103	32.00	45.00	4.00/8.00	NBR	WPS-1768
W15032L503	32.00	45.00	7.00/10.00	PU	WPH-3084
W150328702	32.00	45.00	7.00/10.00	PU	WPH-685
W150321102	32.00	45.00	7.00/10.00	NBR	WPS-1059
W150351106	35.00	45.00	7.00/10.00	NBR	WPS-640
W15035L501	35.00	45.00	7/10.00	PU	WPH-2949
W150351104	35.00	47.00	7.00/10.00	NBR	WPS-7600
W150351102	35.00	47.00	7/10	NBR	WPS-4853
W15035L502	35.00	47.00	7/10.00	PU	WPH-2950
W150351105	35.00	48.00	6/8	NBR	WPS-7654
W150361102	36.00	45.00	7/10.00	NBR	WPS-1873
W15036L501	36.00	46.00	5/7	PU	WPH-634
W150361103	36.00	46.00	5/7.00	NBR	WPS-1874
W15036Y501 (Stock Item)	36.00	48.00	5.50/8.00	PU	WPH-757
W15036L502	36.00	48.00	6.00/8.00	PU	WPH-784
W150361005	36.00	48.00	6/8	NBR	WPS-4706
W15038L501	38.00	48.00	7/10.00	PU	WPH-2983
W150381102	38.00	50.00	7/10.00	NBR	WPS-1877
W150381103	38.10	47.63	4.76/7.14	NBR	WPS-1878
W150401106	40.00	46.00	5.00/8.00	NBR	WPS-6960
W150401107	40.00	47.50	5.00/7.00	NBR	WPS-7349
W150406702	40.00	48.00	5.00/6.50	FKM	WPS-6498
W150401111	40.00	48.00	5.00/8.00	NBR	WPS-655
W150405904	40.00	48.00	5/7	PU	WPH-2902
W150401104	40.00	48.00	5/7	NBR	WPS-5403
W15040L504	40.00	48.00	6/9	PU	WPH-2086
W150401108	40.00	50.00	5.00/8.00	NBR	WPS-1060
W150405905	40.00	50.00	5/8.00	PU	WPH-1740
W150406703	40.00	50.00	6.00/10.00	FKM	WPS-1859
W15040L506	40.00	50.00	7.00/10.00	PU	WPH-1167
W150401109	40.00	50.00	7.00/10.00	NBR	WPS-1061
W15040Y501	40.00	50.00	7.10	PU	WPH-3105
W150401103	40.00	50.00	7/10	NBR	WPS-4288
W150405901	40.00	50.00	7/10.00	PU	WPH-2476
W150401102	40.00	52.00	5/8	NBR	WPS-4055
W150401110	40.00	52.00	7.00/10.00	NBR	WPS-1062
W15040L502	40.00	52.00	7/10	PU	WPH-1738
W150401105	40.00	53.00	7/10	NBR	WPS-6024
W150421102	42.00	52.00	5.00/7.00	NBR	WPS-1063
W150421103	42.00	52.00	7.00/10.00	NBR	WPS-1064
W15042L501	42.00	52.00	7/10	PU	WPH-2743
W15044L501	44.45	53.84	4.57/7.11	PU	WPH-3176
W150451101	45.00	53.00	5/7	NBR	WPS-5876
W150451105	45.00	55.00	5/7.00	NBR	WPS-1879
W150451104	45.00	55.00	7.00/10.00	NBR	WPS-1065
W150456702	45.00	55.00	7.10/10	FKM	WPS-5992
W15045L501	45.00	55.00	7/10	PU	WPH-148
W15045Y501 (Stock Item)	45.00	55.00	7/10.00	PU	WPH-296
W150451103	45.00	57.00	5.00/8.00	NBR	WPS-6714
W150458701	45.00	60.00	7/10	PU	WPH-539
W15050L504	50.00	56.00	4.00/7.00	PU	WPH-982
W150501104	50.00	56.00	5.00/7.00	NBR	WPS-1066
W150506701	50.00	58.00	5.00/7.00	FKM	WPS-7955
W150501103	50.00	59.00	3.00/6.00	NBR	WPS-6702
W150501105	50.00	60.00	5.00/7.00	NBR	WPS-1067
W15050L501	50.00	60.00	5/7	PU	WPH-1385
W150501102	50.00	60.00	5/8	NBR	WPS-3991
W150505906	50.00	60.00	7.00/10.00	PU	WPH-1067
W150501106	50.00	60.00	7.00/10.00	NBR	WPS-1085
W15050Y501	50.00	60.00	7/10	PU	WPH-627
W15050L502	50.00	60.00	7/10.00	PU	WPH-157
W15050L503	50.00	60.00	7/11	PU	WPH-1092
W15050CF01	50.00	62.00	16/20	PU	WPH-2942
W150500802	50.00	62.00	5/8	NBR	WPS-3557
W150501109	50.00	64.00	8.00/11.00	NBR	WPS-2493
W150501107	50.00	65.00	5/8.00	NBR	WPS-1880
W150505904	50.80	63.50	7.00/10.00	PU	WPH-2742
W150546701	54.00	66.00	5.00/7.50	FKM	WPS-6497
W150551102	55.00	63.00	7.00/10.00	NBR	WPS-1087
W150551103	55.00	65.00	5.00/7.00	NBR	WPS-1033
W15055Y501 (Stock Item)	55.00	65.00	7/10	PU	WPH-190
W150558701	55.00	65.00	7/10.00	PU	WPH-2394
W150556701	55.00	66.00	5.00/7.50	FKM/FABRIC	WPS-942
W150551101	55.00	68.00	7.80/10.00	NBR	WPS-6538
W150551104	55.00	70.00	7/10.00	NBR	WPS-1884
W150561104	56.00	65.00	7/10.00	NBR	WPS-1891
W150561105	56.00	66.00	5/7.00	NBR	WPS-1890
W15056L502	56.00	66.00	7.00/10.00	PU	WPH-1247
W150561102	56.00	66.00	7.00/10.00	NBR	WPS-1034
W150561103	56.00	70.00	8.00/11.00	NBR	WPS-1037
W150566701	56.00	70.00	8.00/11.00	FKM	WPS-952
W15056L501	56.00	70.00	8/11	PU	WPH-1649
W15056L503	56.00	71.00	7.00/10.00	PU	WPH-837
W150576701	57.15	76.20	9.00/12.00	FKM	WPS-7227
W150601101	60.00	68.00	5/7	NBR	WPS-5574
W150606703	60.00	70.00	5.00/7.00	FKM	WPS-7779
W15060Y501 (Stock Item)	60.00	70.00	7.00/10.00	PU	WPH-759
W150601104	60.00	70.00	7.00/10.00	NBR	WPS-1038
W150601107	60.00	70.00	7.00/10.00	NBR	WPS-2233
W15060L504	60.00	74.00	8.00/11.00	PU	WPH-1218
W15060L503	60.00	74.00	8/11	PU	WPH-1909
W150606701	60.00	74.50	8.5/11	FKM	WPS-4227
W150601106	60.00	75.00	7/10.00	NBR	WPS-1892
W150606702	60.00	80.00	7/10.00	FKM	WPS-6930
W150636704	63.00	73.00	9/12	FKM	WPS-6120
W150636703	63.00	73.50	5/8	FKM	WPS-5614
W150636705	63.00	74.00	6.50/10.00	FKM	WPS-7371
W15063Y501 (Stock Item)	63.00	75.00	5.50/8	PU	WPH-360
W15063L501	63.00	75.00	7.00/10.00	PU	WPH-3085
W150631102	63.00	75.00	7.00/10.00	NBR	WPS-1042
W150631101	63.00	75.00	7/10	NBR	WPS-3388
W150635901	63.00	78.00	7/10.00	PU	WPH-2316
W150635902	63.50	76.20	7.00/10.00	PU	WPH-2741
W15065L503	65.00	75.00	5.00/7.00	PU	WPH-300
W150651102	65.00	75.00	7/10	NBR	WPS-4262
W15065L502	65.00	79.00	8/11	PU	WPH-2347
W150651103	65.00	80.00	7/9.50	NBR	WPS-6573
W150691101	69.85	79.25	4.57/7.11	NBR	WPS-523
W150701103	70.00	80.00	5/7.00	NBR	WPS-1893
W15070L502	70.00	80.00	7.00/10.00	PU	WPH-663
W150701104	70.00	80.00	7.00/10.00	NBR	WPS-8052
W150706601	70.00	80.00	7/10.00	FKM	WPS-2008
W150706702	70.00	80.00	8/10.50	FKM	WPS-6473
W150701001	70.00	82.00	8/10	NBR	WPS-4707
W15070L501	70.00	84.00	8/11	PU	WPH-2278
W150706703	70.00	90.00	7.00/10.00	FKM	WPS-2486
W150751001	75.00	85.00	7/10	NBR	WPS-5595
W150751101	75.00	85.00	9/12	NBR	WPS-5721
W15075L501	75.00	89.00	8/11	PU	WPH-2586
W150801104	80.00	90.00	6/9.00	NBR	WPS-6611
W150801107	80.00	90.00	7.00/10.00	NBR	WPS-1043(SCRAP)
W150806701	80.00	90.00	7/10	FKM	WPS-3739
W150801002	80.00	90.00	7/10.00	NBR	WPS-486
W150801101	80.00	92.00	5.20/8	NBR	WPS-4761
W150801102	80.00	92.00	6.30	NBR	WPS-5878
W150801101	80.00	92.00	7.00/10.50	NBR	WPS-7084
W150801103	80.00	92.00	7/9	NBR	WPS-5877
W150821101	82.00	110.00	7/10.00	NBR	WPS-6603
W150841101	84.00	94.00	5.00/7.00	NBR	WPS-2469
W15085L501	85.00	95.00	7/10.00	PU	WPH-2982
W15085L502	85.00	99.00	8.00/11.00	PU	WPH-3099
W150851101	85.00	110.00	12.00/16.00	NBR	WPS-662
W150901103	90.00	100.00	7.00/10.00	NBR	WPS-1046
W150901101	90.00	100.00	7/10	NBR	WPS-5289
W150908701	90.00	100.00	7/10.00	PU	WPH-2392
W150901102	90.00	102.00	5.00/8.00	NBR	WPS-7068
W150901104	90.00	102.20	7.00/10.00	NBR	WPS-7968
W150931101	93.00	101.00	5.00/7.00	NBR	WPS-8002
W150955903	95.00	105.00	7.00/10.00	PU	WPH-1105
W150951102	95.00	105.00	7.00/10.00	NBR	WPS-1051
W150986701	98.00	110.00	7/10.00	FKM	WPS-6372
W15100L501	100.00	110.00	10	PU	WPH-159
W151001001	100.00	110.00	5.50/8.00	NBR	WPS-8034
W151001102	100.00	110.00	7.00/10.00	NBR	WPS-1052
W15100L501.	100.00	110.00	7/10	PU	WPH-1513
W151006701	100.00	114.00	8.00/11.00	FKM	WPS-6451
W15100L503	100.00	114.00	8/11	PU	WPH-2279
W15100L502	100.00	115.00	8/11	PU	WPH-2168
W151001101	100.00	115.00	9.00/11.00	NBR	WPS-6427
W151051104	105.00	115.00	7/10.00	NBR	WPS-1895
W151051103	105.00	115.00	7/10.00	NBR	WPS-213
W15105L501	105.00	121.00	9/12	PU	WPH-1910
W15105L502	105.00	121.00	9/12.00	PU	WPH-3173
W151101103	110.00	120.00	7.00/10.00	NBR	WPS-1053
W15110L501	110.00	120.00	7/10.00	PU	WPH-2981
W151106701	110.00	124.00	8.00/11.00	FKM	WPS-6265
W15110L502	110.00	130.00	11.50/16.50	PU	WPH-1101
W151146701	114.30	130.17	8.00/11.00	FKM	WPS-7217
W151158701	115.00	125.00	7.00/10.00	PU	WPH-683
W151151102	115.00	125.00	7/11	NBR	WPS-5606
W151181101	118.00	134.00	9/12.00	NBR	WPS-7196
W151206701	120.00	130.00	7.00/10.00	FKM	WPS-6768
W151205903	120.00	130.00	7/10	PU	WPH-2031
W151201104	120.00	130.00	7/10.00	NBR	WPS-1897
W151205904	120.00	132.00	7/10.30	PU	WPH-1615
W151201102	120.00	136.00	9/12	NBR	WPS-5344
W151271101	127.00	158.75	6.35/14.22	NBR	WPS-6445
W151301103	130.00	140.00	7/10.00	NBR	WPS-1898
W151301102	130.00	145.00	9.00/12.00	NBR	WPS-1055
W15130L501	130.00	145.00	9/12	PU	WPH-165
W151301101	130.00	145.00	9/12.00	NBR	WPS-6612
W15016U401	133.00	151.00	9.50/15.00	EPDM	WPS-7681
W151351101	135.00	150.00	9/12.00	NBR	WPS-210
W15135L501	135.00	155.00	10.00/14.00	PU	WPH-408
W151368701	136.52	161.92	12.70/20.32	PU	WPH-1084
W15140L501	140.00	155.00	9/12	PU	WPH-2341
W151408701	140.00	160.00	10/14	PU	WPH-2304
W151501001	150.00	165.00	9.00/12.00	NBR	WPS-500
W15160L501	160.00	175.00	9/12.00	PU	WPH-2628
W15160L502	160.00	180.00	10.00/14.00	PU	WPH-1098
W151601102	160.00	180.00	9/13	NBR	WPS-6244
W15170L501	170.00	195.00	14.00/20.00	PU	WPH-1099
W151801102	180.00	195.00	10.00/14.00	NBR	WPS-1056
W15180L501	180.00	195.00	10/14	PU	WPH-2075
W151801101	180.00	195.00	10/14	NBR	WPS-2286
W151806702	180.00	205.00	12.00/17.00	FKM	WPS-396
W15180L502	180.00	205.00	12/18	PU	WPH-2163
W15180L503	180.00	205.00	14/20	PU	WPH-2162
W151901101	190.00	215.00	12/14.00	NBR	WPS-1901
W152001101	200.00	220.00	12/16.00	NBR	WPS-1902
W152051102	205.00	220.00	9.50/16.50	NBR	WPS-7142
W152101103	210.00	235.00	12/17.00	NBR	WPS-1907
W15220L501	220.00	245.00	12.00/17.00	PU	WPH-882
W15230L501	230.00	250.00	10/14	PU	WPH-2074
W152301101	230.00	250.00	10/16.00	NBR	WPS-6540
W152801101	280.00	300.00	12.00/16.00	NBR	WPS-7796
W152805901	280.00	300.00	16	PU	WPH-287
W153101101	310.00	340.00	16.00/22.00	NBR	WPS-6509
W153205901	320.00	350.00	16.00/22.00	PU	WPH-2580
W153236701	323.00	355.00	15.00/21.00	NBR	WPS-141
W153301101	330.00	360.00	16.00/22.00	NBR	WPS-823
W153501101	350.00	380.00	16/24.00	NBR	WPS-6812
W157301001	730.00	790.00	25/31	NBR	WPS-3247

For customised items please Click here
