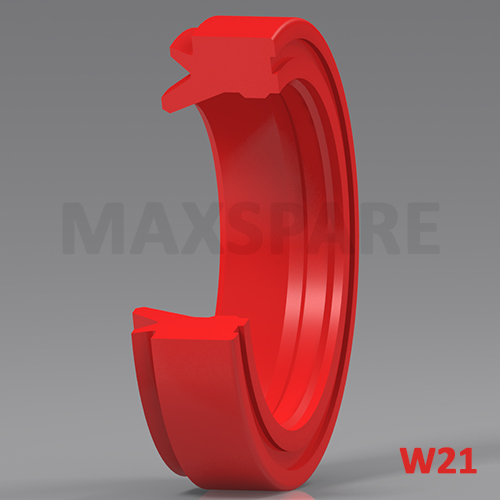

Max Spare : W21
Profile : Wiper Seals
Details :
W21 is single acting rod is dirt wiper with additional sealing lip and bearing segment. The additional sealing lip to prevent the ingress of contaminants to enter in to the system. The wiper lip wipes dirt away and leaves a residual oil film on the retracting rod. The support on the bottom heel prevents twisting in the groove and pressure built up between wiper and seal.
MATERIAL
Polyurethane 92 Shore A
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
Speed
:
1.0 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids.
APPLICATION
Earth moving equipment, Industrial valves, Presses,
Industrial Vehicles, Injection moulding machines, agricultural
machinery.
FEATURES
Good wiping performance.
General purpose seal.
Single acting seal.
Used as heavy duty seal.
Long service life.
Simple, easy grooves.
No twisting in the grooves.
Manufactured by:
Max Spare Limited
Product ID:
406i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
W21010L501
10.00
16.00
3.50/5
PU
WPH-1808
W210181101
18.00
30.00
5.80/7.70
NBR
WPS-6530
W21020L502
20.00
28.00
4/7
PU
WPH-2281
W21020L503
20.00
28.00
5.00/7.00
PU
WPH-671
W210206701
20.00
28.00
5/7
FKM
WPS-7153
W210201101
20.00
32.00
5.80/7.70
NBR
WPS-6529
W210225901
22.00
30.00
4/7
PU
WPH-1803
W210255901
25.00
33.00
4/7
PU
WPH-256
W21025L504
25.00
33.00
5.00/7.00
PU
WPH-874
W21025L501
25.00
33.00
5/7
PU
WPH-1359
W210251101
25.00
37.00
5.80/7.70
NBR
WPS-6528
W210256701
25.40
34.92
4.77/7.75
FKM
WPS-4221
W210268701
26.00
32.00
4.3
PU
WPH-237
W210285901
28.00
36.00
4/7
PU
WPH-1804
W210281101
28.00
40.00
5.80/7.70
NBR
WPS-6527
W210285902
28.57
38.10
4.20/7.93
PU
WPH-578
W210306701
30.00
38.00
4/7
FKM
WPS-5536
W210301001
30.00
42.00
5.80/7.70
NBR
WPS-2343
W210301101
30.00
42.00
5.80/7.70
NBR
WPS-6526
W21031S401
31.75
41.27
4.59/7.92
HNBR
WPS-380
W210325902
32.00
40.00
4.6/7.8
PU
WPH-980
W21032Y501 (Stock Item)
32.00
42.00
4.50/6/7.50
PU
WPH-611
W210336701
33.60
43.05
4.75/8.90
FKM
WPS-3481
W21035L502
35.00
40.20
3.80/5
PU
WPH-2143
W210351002
35.00
47.00
6.80/8.70
NBR
WPS-2346
W210351101
35.00
47.00
6.80/8.70
NBR
WPS-6525
W210365901
36.00
44.00
4/7
PU
WPH-524
W21036L503
36.00
44.00
5/6/8
PU
WPH-2783
W210368701
36.00
44.60
6.50
PU
WPH-1010
W210388701
38.00
46.00
4.70/6.50/8
PU
WPH-1782
W21038Y501 (Stock Item)
38.00
48.00
7.50
PU
WPH-612
W21040L502
40.00
48.00
4.00/7.00
PU
WPH-869
W210405904
40.00
48.00
4.6/7.8
PU
WPH-981
W210408701
40.00
48.00
4/7
PU
WPH-989
W210406701
40.00
48.00
5/7
FKM
WPS-5339
W210406702
40.00
48.60
5.30/7
FKM
WPS-6228
W210401102
40.00
52.00
5/8.00
NBR
WPS-227
W21040L501
40.00
52.00
6.80/8.70
PU
WPH-2290
W210401001
40.00
52.00
6.80/8.70
NBR
WPS-2348
W210401101
40.00
52.00
6.80/8.70
NBR
WPS-6524
W21045L501
45.00
53.00
4/7
PU
WPH-635
W21045L507
45.00
53.00
5/7.80
PU
WPH-2346
W21045L504
45.00
55.60
5.3/6.5
PU
WPH-910
W210456701
45.00
55.60
5.3/7
FKM
WPS-4337
W21045L506
45.00
57.00
6.80/8.70
PU
WPH-2291
W210451001
45.00
57.00
6.80/8.70
NBR
WPS-2347
W210451102
45.00
57.00
6.80/8.70
NBR
WPS-6523
W21048L501
48.00
58.00
6/9
PU
WPH-2776
W210481101
48.00
60.00
6.50/8
NBR
WPS-5891
W21050L506
50.00
58.00
4.00/7.00
PU
WPH-868
W210506704
50.00
58.00
4.70/7.80
FKM
WPS-8009
W21050L505
50.00
58.00
4.70/8
PU
WPH-2822
W210508701
50.00
58.00
4/7
PU
WPH-990
W21050L507
50.00
58.00
5.00/7.00
PU
WPH-876
W210505903
50.00
58.00
5/7
PU
WPH-1599
W210506701
50.00
58.60
5.3/7
FKM
WPS-3745
W210506702
50.00
60.00
5.30/7
FKM
WPS-5887
W210501104
50.00
60.00
7/10.0
NBR
WPS-7091
W21050L501
50.00
60.60
5.30/6.50
PU
WPH-771
W210506703
50.00
60.60
5.30/7
FKM
WPS-5915
W210501105
50.00
62.00
5/8.00
NBR
WPS-230
W21050L504
50.00
62.00
6.80/8.70
PU
WPH-2292
W210501002
50.00
62.00
6.80/8.70
NBR
WPS-2349
W210501103
50.00
62.00
6.80/8.70
NBR
WPS-6522
W210505904
50.80
63.50
6.8/10
PU
WPH-2721
W210556701
55.00
65.60
5.30/7
FKM
WPS-5175
W21055L502
55.00
69.00
7.70/10
PU
WPH-2289
W210551101
55.00
69.00
7.70/10
NBR
WPS-6521
W210551001
55.00
69.00
7.70/10.00
NBR
WPS-2350
W210566703
56.00
64.00
4/7.00
FKM
WPS-6828
W210566704
56.00
66.00
3.70/6.50
FKM
WPS-502
W210566702
56.00
66.00
5/7.00
FKM
WPS-4537
W210568701
56.00
66.60
5.30/7
PU
WPH-1006
W21060L503
60.00
68.00
4/7
PU
WPH-2236
W210606702
60.00
68.00
4/7
FKM
WPS-5578
W21060L505
60.00
70.00
5.00/7.00
PU
WPH-680
W21060L504
60.00
74.00
7.70/10
PU
WPH-2288
W210601101
60.00
74.00
7.70/10
NBR
WPS-6520
W210638702
63.00
71.00
3.70/7.00
PU
WPH-687
W21063L503
63.00
71.00
5/7
PU
WPH-2453
W210638701
63.00
73.60
5.30/7
PU
WPH-1007
W21065L503
65.00
73.00
4/7
PU
WPH-2595
W21065L501
65.00
75.60
5/7
PU
WPH-742
W21065L502
65.00
79.00
7.70/10
PU
WPH-2287
W210651101
65.00
79.00
7.70/10
NBR
WPS-6519
W210705902
70.00
78.00
5/7.20
PU
WPH-1184
W210706702
70.00
80.60
5.3/7
FKM
WPS-4339
W21070L506
70.00
80.60
5.3/7.00
PU
WPH-816
W21070L505
70.00
84.00
7.70/10
PU
WPH-2286
W210701101
70.00
84.00
7.70/10
NBR
WPS-6518
W210756702
75.00
83.50
5.00/7.00
FKM
WPS-7067
W210751101
75.00
83.60
5/7
NBR
WPS-5193
W21075L501
75.00
87.20
7/12
PU
WPH-769
W210756701
75.00
87.20
7/12
FKM
WPS-5279
W21075L503
75.00
89.00
7.70/10
PU
WPH-2285
W210751102
75.00
89.00
7.70/10
NBR
WPS-225
W210808701
80.00
90.00
6.30/9
PU
WPH-1187
W21080L503
80.00
94.00
7.70/10
PU
WPH-2284
W210801102
80.00
94.00
7.70/10
NBR
WPS-6517
W210801001
80.00
94.00
7.70/10.00
NBR
WPS-2353
W210851101
85.00
93.60
5/7
NBR
WPS-5194
W21085L503
85.00
99.00
7.70/10
PU
WPH-2283
W210851102
85.00
99.00
7.70/10
NBR
WPS-226
W210851001
85.00
99.00
7.70/10.00
NBR
WPS-2364
W210906703
90.00
98.00
3.50/6.00
FKM
WPS-2019
W210908703
90.00
98.00
3.70/7.00
PU
WPH-134
W210901101
90.00
98.60
5/7
NBR
WPS-5192
W210908701
90.00
102.20
7.20/12
PU
WPH-1009
W210906702
90.00
102.20
7.20/12
FKM
WPS-5122
W21090P201
90.00
102.20
7/12.00
PU
WPH-377
W21090L504
90.00
104.00
7.70/10
PU
WPH-2293
W210901102
90.00
104.00
7.70/10
NBR
WPS-6516
W210901001
90.00
104.00
7.70/10.00
NBR
WPS-2365
W21095L501
95.00
109.00
7.70/10
PU
WPH-2294
W210951101
95.00
109.00
7.70/10
NBR
WPS-228
W21100L501
100.00
108.00
5/7
PU
WPH-913
W211006701
100.00
108.60
5.30/7
FKM
WPS-5520
W211008701
100.00
112.20
7.2/12
PU
WPH-1252
W211006702
100.00
112.20
7.20/12
FKM
WPS-6226
W21100L504
100.00
114.00
7.70/10
PU
WPH-2295
W211001101
100.00
114.00
7.70/10
NBR
WPS-6515
W211001001
100.00
114.00
7.70/10.00
NBR
WPS-2366
W21100L503
100.00
114.00
8/11
PU
WPH-1736
W21100L505
100.00
115.00
9.50/13.00
PU
WPH-527
W211051001
105.00
121.00
8.70/12.00
NBR
WPS-2368
W21110L401
110.00
122.00
5.30/6.80/10.00
PU
WPH-1655
W211108701
110.00
122.20
7.20/12
PU
WPH-1008
W211105902
110.00
125.00
13
PU
WPH-245
W211101001
110.00
126.00
8.70/12.00
NBR
WPS-2370
W21120L504
120.00
132.00
5.30/10.00
PU
WPH-144
W21120L501
120.00
132.20
7/12
PU
WPH-1470
W211201101
120.00
132.20
7/12
NBR
WPS-5863
W211206701
120.00
132.20
7/12
FKM
WPS-6229
W21120L503
120.00
135.00
9/13
PU
WPH-2494
W211256701
125.00
140.00
10.20/16
FKM
WPS-4697
W211286701
128.00
146.00
9.50/14.20
FKM
WPS-5189
W21130L502
130.00
142.20
7/12
PU
WPH-2137
W21135Y501 (Stock Item)
135.00
150.00
9.20/13.00
PU
WPH-793
W211355901
135.00
150.00
9/13
PU
WPH-1831
W211406702
140.00
152.00
5.30/6.80/10
FKM
WPS-5944
W211408701
140.00
155.00
10.20/16
PU
WPH-1011
W211406701
140.00
155.00
10.20/16
FKM
WPS-4341
W21140Y501 (Stock Item)
140.00
155.00
9.50/13.00
PU
WPH-806
W211508701
150.00
165.00
10.2/16
PU
WPH-1253
W211505902
150.00
165.00
10/13
PU
WPH-1883
W211606701
160.00
172.00
5.5/10
FKM
WPS-3357
W211606702
160.00
175.00
10/16
FKM
WPS-6227
W211605901
160.00
175.00
13
PU
WPH-348
W211701101
170.00
190.00
9.70/14
NBR
WPS-6775
W211805901
180.00
192.00
10
PU
WPH-1331
W21180L501
180.00
195.00
9/13
PU
WPH-1344
W211801101
180.00
200.00
9.80/18.00
NBR
WPS-6913
W21200L501
200.00
215.00
9/13
PU
WPH-1382
W212206701
220.00
235.00
10.20/16
FKM
WPS-7098
W212251101
225.00
245.00
10/18
NBR
WPS-6568
W212506701
250.00
270.00
10.20/18.00
FKM
WPS-6672
W213401101
340.00
365.00
12.7/20
NBR
WPS-7298
For customised items please
Click here
Login
