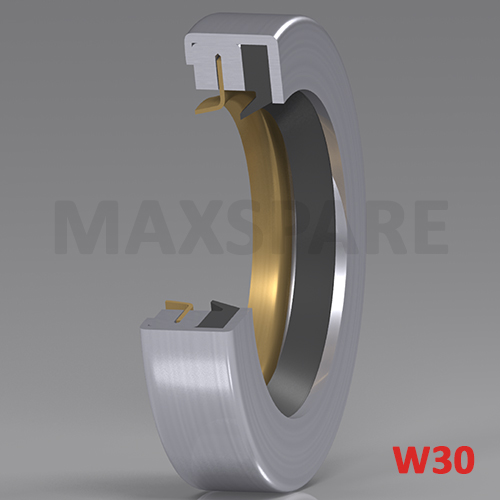

Max Spare : W30
Profile : Wiper Seals
Details :
W30 wipers are used in applications where standard elastomer wipers fails quickly as a result of contaminants adhering to the piston rod. The wiper comprises a metal housing with an integral brass scraper and elastomeric wiper ring. The brass scraper has radial clearance in the housing. The brass scraper removes any stubborn dirt from the rod, leaving the secondary elastomer wiper to remove smaller loose particles of dust, water etc. These wipers are mainly used in dusty environment like mining & steel works.
MATERIAL
Primary Lip
:
Brass
Secondary Lip
:
Nitrile Rubber / FKM
Metal Cup
:
MS/SS-304/CRCA
(Choose material as per your application).
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
Speed
:
1.0 m/s
SURFACE ROUGHNESS
Static
:
0.8 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids.
APPLICATION
Heavy duty applications.
Wiper for hydraulic cylinders.
FEATURES
Very good wiping performance.
Subjected to heavy & dusty areas.
Seal retainer not required.
Easy installation in open grooves.
Maximum advantages compared to elastomeric wipers.
Long service life.
Manufactured by:
Max Spare Limited
Product ID:
30i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
W30012L501
12.00
22.00
6.30
PU
WPH-356
W300121101
12.00
25.00
6.5
NBR
WPS-2390
W300126602
12.70
25.40
6.35
FKM
WPS-314
W300121103
12.70
25.40
7.13
NBR
WPS-1714
W300141105
14.00
27.00
6.50
NBR
WPS-6253
W300151005
15.80
28.65
7.14
NBR
WPS-7200
W300161101
16.00
29.00
6.5
NBR
WPS-1139
W300181104
18.00
31.00
6.5/7
NBR
WPS-6272
W300181103
18.00
31.00
6.50/7.80
NBR
WPS-2996
W30018E302
18.00
32.00
6.50
NBR
WPS-7563
W300206703
20.00
32.00
7.00
FKM
WPS-7467
W300201101
20.00
33.00
6.5
NBR
WPS-1875
W300206704
20.00
33.00
6.5
FKM
WPS-3635
W300201103
20.00
33.00
7
NBR
WPS-4023
W300226401
22.00
35.00
6.5
FKM
WPS-3697
W300221105
22.00
35.00
6.5
NBR
WPS-6028
W300221102
22.00
35.00
6.50
NBR
WPS-3880
W300226601
22.00
35.00
7.00
FKM
WPS-1888
W300221106
22.22
34.93
7.14
NBR
WPS-7129
W300226702
22.22
40.82
10.00
FKM
WPS-593
W300251104
25.00
38.00
6.5
NBR
WPS-1668
W300256710
25.00
38.00
6.50
FKM
WPS-2318
W300256703
25.00
38.00
6.50
FKM
WPS-3465
W300256706
25.00
38.00
6.50
FKM
WPS-7310
W300251109
25.00
38.00
7.00
NBR
WPS-2118
W300256708
25.40
34.92
4.76
FKM
WPS-163
W300251107
25.40
38.10
7.14
NBR
WPS-152
W300250801
25.40
38.10
7.14
NBR
WPS-4484
W300251105
25.40
38.10
7.94
NBR
WPS-7128
W300286601
28.00
41.00
6.5
FKM
WPS-1734
W300286702
28.00
41.00
6.50
FKM
WPS-7309
W300281103
28.00
41.00
7.00
NBR
WPS-2202
W300286602
28.00
41.00
7.00
FKM
WPS-7205
W300281102
28.57
41.27
7.23
NBR
WPS-5725
W300301009
30.00
38.00
5.00
NBR
WPS-2256
W300306602
30.00
42.00
7.14
FKM
WPS-1729
W300301102
30.00
43.00
7
NBR
WPS-1057
W300306701
30.00
43.00
7
FKM
WPS-3926
W300316702
31.75
44.45
11.70/13.00
FKM
WPS-7187
W300311105
31.75
44.50
7.14
NBR
WPS-382
W300316701
31.75
50.85
7.20
FKM
WPS-4562
W300326703
32.00
45.00
7.00
FKM
WPS-7516
W300321104
32.00
45.00
7.50
NBR
WPS-7057
W300351105
35.00
47.63
7.14
NBR
WPS-6410
W300351103
35.00
48.00
7.00
NBR
WPS-4161
W300351106
35.00
48.00
7.50
NBR
WPS-7030
W300366602
36.00
45.00
5
FKM
WPS-4083
W300361102
36.00
49.00
7.00
NBR
WPS-2655
W300366705
36.00
49.00
7.00
FKM
WPS-7308
W300361103
36.00
49.00
7.00
NBR
WPS-7972
W300366704
36.00
49.00
7.50
FKM
WPS-4750
W300381102
38.10
50.80
7.14
NBR
WPS-1224
W300406709
40.00
52.00
7.14
FKM
WPS-1412
W300406401
40.00
53.00
7
FKM
WPS-3450
W300401103
40.00
53.00
7/7.5
NBR
WPS-2582
W300441004
44.45
57.15
7.14
NBR
WPS-3114
W300451104
45.00
55.00
7.00
NBR
WPS-2045
W300456605
45.00
57.00
7.00
FKM
WPS-6420
W300451103
45.00
58.00
10.00
NBR
WPS-6491
W300456608
45.00
58.00
5.00/8.00
FKM
WPS-1713
W300451005
45.00
58.00
7
NBR
WPS-1092
W300456601
45.00
58.00
7
FKM
WPS-2713
W300451006
45.00
58.00
7.30/9.50
NBR
WPS-584
W300456703
45.00
58.00
7.50
FKM
WPS-2116
W300501103
50.00
64.00
7.5
NBR
WPS-2583
W300506710
50.00
64.00
7.5
FKM
WPS-3234
W300506711
50.00
64.00
8.00
FKM
WPS-1718
W300501115
50.00
65.00
7.10
NBR
WPS-6741
W300506706
50.00
65.00
7.50
FKM
WPS-4751
W300506709
50.00
65.00
7.90
FKM
WPS-7411
W300501106
50.80
63.50
7.14
NBR
WPS-3784
W300506708
50.80
63.50
7/10
FKM
WPS-5640
W300551103
55.00
69.00
7.50
NBR
WPS-7486
W300551104
55.00
69.00
8.00
NBR
WPS-3279
W300551102
55.00
70.00
7.5
NBR
WPS-3013
W300556704
55.00
70.00
7.50
FKM
WPS-5187
W300561005
56.00
69.00
7.90
NBR
WPS-8006
W300566702
56.00
70.00
7.0
FKM
WPS-7058
W300561105
56.00
70.00
7.5
NBR
WPS-1253
W300601103
60.00
70.00
7
NBR
WPS-3039
W300606704
60.00
74.00
7.50/8.00
FKM
WPS-7035
W300601102
60.00
74.00
8
NBR
WPS-2581
W300606702
60.00
74.00
8
FKM
WPS-5911
W300606705
60.00
75.00
7.50
FKM
WPS-6589
W300606706
60.32
79.24
12.70
FKM
WPS-7834
W300631103
63.00
76.00
7
NBR
WPS-2674
W300631101
63.00
77.00
7.5
NBR
WPS-1727
W300636401
63.00
77.00
7.5
FKM
WPS-2914
W300631007
63.50
76.20
7.14
NBR
WPS-2839
W300636702
63.50
82.55
10.90
FKM
WPS-475
W300651103
65.00
79.00
7.50
NBR
WPS-7487
W300656702
65.00
80.00
8
FKM
WPS-5385
W300691003
69.85
82.70
7.14
NBR
WPS-1384
W300696601
69.85
82.70
7.14
FKM
WPS-834
W300701109
70.00
80.00
7.00
NBR
WPS-723
W300701105
70.00
82.55
7.14
NBR
WPS-4036
W300706601
70.00
84.00
7.5
FKM
WPS-1229
W300706401
70.00
84.00
7.5
FKM
WPS-2916
W300701110
70.00
84.00
8.00
NBR
WPS-7942
W300751103
75.00
89.00
8.00
NBR
WPS-7730
W300801104
80.00
95.00
8.33
NBR
WPS-3123
W300806601
80.00
96.00
8
FKM
WPS-2756
W300801102
80.00
96.00
8
NBR
WPS-3045
W300850801
85.00
101.00
8.00/8.50
NBR
WPS-8005
W300856701
85.00
101.00
8/8.50
FKM
WPS-5819
W30886701
88.90
101.60
7/10
FKM
WPS-5636
W30088E303
88.90
104.77
8.33
NBR
WPS-7993
W30090E304
90.00
100.00
7
NT40(CNT)
WPS-5561
W300901106
90.00
100.00
8.50
NBR
WPS-7280
W300901104
90.00
100.00
9
NBR
WPS-4143
W300900801
90.00
106.00
8
NBR
WPS-1278
W300901101
90.00
106.00
8
NBR
WPS-3484
W300901102
90.00
110.00
8.33
NBR
WPS-2679
W300951102
95.25
111.15
8.33
NBR
WPS-7644
W301001105
100.00
115.00
10
NBR
WPS-4957
W301001104
100.00
120.00
8.5
NBR
WPS-1682
W301006702
100.00
120.00
8.50
FKM
WPS-1751
W301036701
103.00
123.00
12.00
FKM
WPS-6279
W301100801
110.00
130.00
8.5
NBR
WPS-1180
W301201103
120.00
140.00
7
NBR
WPS-4821
W301201101
120.00
140.00
8.5
NBR
WPS-3113
W301251105
125.00
140.00
9.00
NBR
WPS-7294
W301251103
125.00
142.00
10
NBR
WPS-4958
W301301102
130.00
150.00
8.5
NBR
WPS-2787
W301306701
130.00
150.00
9
FKM
WPS-2149
W301301104
130.00
150.00
9.00
NBR
WPS-6901
W301401102
140.00
160.00
8.5
NBR
WPS-2567
W301406702
140.00
160.00
8.5
FKM
WPS-2915
W301506601
150.00
165.00
8.5
FKM
WPS-1980
W301501103
150.00
170.00
9.00
NBR
WPS-2229
W301521101
152.40
172.40
9
NBR
WPS-5166
W301551101
155.00
175.00
9.00
NBR
WPS-3667
W301601101A
160.00
180.00
8.5
NBR
WPS-3021
W301776701
177.80
196.85
9.52
FKM
WPS-3787
W301781101
178.60
193.50
8
NBR/FABRIC
WPS-1433
W301801101
180.00
200.00
10
NBR
WPS-3629
W301806402
180.00
200.00
10
FKM
WPS-5323
W301806702
180.00
200.00
8.00/8.50
FKM
WPS-442
W302001104
200.00
220.00
12.00
NBR
WPS-7477
W302006601
200.00
230.00
10
FKM
WPS-4087
W302151101
215.90
241.30
12.7
NBR
WPS-2041
W302206704
220.00
249.00
15.00
NBR
WPS-167
W302206702
220.00
250.00
10
FKM
WPS-3792
W302306702
230.00
260.00
10
FKM
WPS-5669
W30245E301
245.40
265.35
14.00
NBR
WPS-6546
W302501102
250.00
280.00
10.00
NBR
WPS-3775
W302506601
250.00
285.00
10
FKM
WPS-1647
W302606702
260.00
300.00
12.00
FKM
WPS-3284
W302701101
270.00
300.00
10.00
NBR
WPS-2168
W302706701
270.00
300.00
12.00
FKM
WPS-7882
W302801102
280.00
310.00
10.00/12.00
NBR
WPS-1307
W303206702
320.00
350.00
10.00
FKM
WPS-5668
W304106701
410.00
440.00
10
FKM
WPS-5667
W304301102
430.00
470.00
15.00/17.00
NBR
WPS-2301
W304301101
430.00
470.00
15.00/17.00
NBR
WPS-730
W304406701
440.00
490.00
15
FKM
WPS-6418
