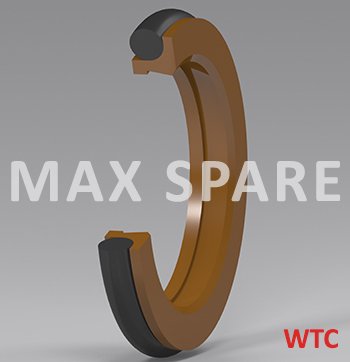

Max Spare : W38
Profile : Wiper Seals
Details :

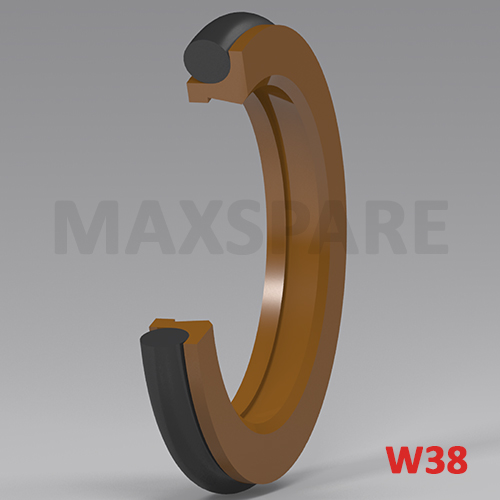

W38 is a double acting wiper seal with two geometrically different wiping lips suitable for medium to heavy duty hydraulic cylinders with small groove dimensions. It comprises of combination of O-ring energiser and outer seal ring made of PTFE added with a filler to increase the resistance of seal ring to wear & tear. The o-ring energizer provides the force necessary to maintain the pressure of the wiping lips against the sliding surface and allow the wiper to adjust for deflection. Generally, Bronze is used as filler. But, Glass/Graphite filled PTFE can also be made. The Bronze filled PTFE Iiner seal ring when in contact with the piston rod ensures a stick slip free movement & reduces friction to a
MATERIAL
Sealing Ring
:
Bronze filled PTFE
O Ring
:
Nitrile Rubber 70/75 Shore A
: FKM 70/75 on request.
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
: (upto 220 C on request)
Speed
:
10.0 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids.
APPLICATION
Medium duty, can also be used with heavy duty cycle applications.
Indoor type machines.
Mobile hydraulic, injection machines, industrial equipments.
FEATURES
Self-lubricating seal ring.
Very good scraping effect.
High surface speed.
Friction at minimum.
Compact gland.
High resistance to media.
Any size upto 1200 mm available on request.
Long service life.
Manufactured by:
Max Spare Limited
Product ID:
31i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
W380036403
3.00
9.00
3.20
FKM
WTC-116
W380150803
10.00
14.80
3.70
NBR/BFT
WTC-317
W380140801
14.00
20.80
5
HDPE
CS-3167
W380150802
15.00
19.50
3.20
NBR/BFT
WTC-300
W380166401
16.00
22.80
5
FKM/BFT
WTC-327
W380180804
18.00
24.60
3.40
NBR/BFT
WTC-246
W380180803
18.00
24.80
5
NBR
WTC-107
W380186401
18.00
24.80
5
FKM/BFT
WTC-305
W380180701
18.70
24.60
5.10
BFT
WTC-342
W380206403
20.00
26.50
4.50
CAT
WTC-112
W380206406
20.00
26.80
4.50
FKM/BFT
WTC-329
W380200804
20.00
26.80
5
NBR/BFT
WTC-197
W380206404
20.00
26.80
5
FKM/BFT
WTC-250
W380206405
20.00
27.00
4.60
CAT
WTC-239
W380200801
20.00
27.60
4.20
NBR/BFT
WTC-319
W380200803
20.00
29.60
4.20
NBR/BFT
WTC-139
W380220805
22.00
28.00
3.40
NBR/BFT
WTC-243
W380226403
22.00
28.80
5
FKM/BFT
WTC-164
W380226402
22.00
28.80
5.10
FKM/BFT
WTC-142
W380220801
22.00
28.80
5.30
NBR/BFT
WTC-158
W380226401
22.00
29.00
5.60
CAT
WTC-200
W380226404
22.00
29.60
4.20
FKM/BFT
WTC-312
W380220807
22.00
30.00
4.50
NBR/BFT
WTC-242
W380220808
22.00
30.60
5
NBR/BFT
WTC-244
W38022K203
22.50
29.30
3.80
FKM+NY
WTC-145
W380246401
24.00
30.00
4.20
FKM/BFT
WTC-281
W380240801
24.00
30.80
5
NBR/BFT
WTC-341
W380256401
25.00
31.80
4.50
FKM/BFT
WTC-195
W380257001 (Stock Item)
25.00
31.80
5
NBR/BFT
WTC-147
W380253201
25.00
31.80
5
BFT
WTC-277
W380250802
25.40
30.22
3.70
NBR/BFT
WTC-252
W380250801
25.50
31.50
3.30
NBR/BFT
WTC-225
W380280804
28.00
34.00
6.50
NBR/PTFE
WTC-162
W380286401
28.00
34.80
5
FKM/BFT
WTC-144
W380280801
28.00
34.80
5
NBR/BFT
WTC-238
W380286402
28.00
35.30
3.20
FKM/BFT
WTC-141
W380280805
28.00
35.60
4.20
NBR/BFT
WTC-194
W380287301
28.00
36.80
6.60
CAT
WTC-204
W380280806
28.60
34.80
3.60
NBR/BFT
WTC-231
W380307001
30.00
36.20
4.50
NBR/BFT
WTC-217
W380300803
30.00
36.80
5
PU
WPH-1458
W380300802
30.00
36.80
5
NBR/BFT
WTC-218
W380300804
30.00
37.00
6.20
PTFE
WTC-106
W380300801
30.00
37.60
4.20
NBR/BFT
WTC-118
W380316901
31.70
37.87
5.96
PTFE
WTC-336
W380320805
32.00
38.80
5
NBR/BFT
WTC-126
W380320802
32.00
39.60
4.20
NBR/BFT
WTC-114
W380350802
35.00
41.80
5
NBR/BFT
WTC-201
W380356402
35.00
42.00
5
FKM/BFT
WTC-223
W380356401
35.00
43.00
4.70
PTFE
WTC-299
W380350804
35.00
43.00
4.70
NBR/BFT
WTC-330
W380366401
36.00
42.80
5
FKM/BFT
WTC-113
W380360801 (Stock Item)
36.00
42.80
5
NBR/BFT
WTC-137
W380360805
36.00
43.00
4.50
NBR/BFT
WTC-186
W380366404
36.00
43.00
5
FKM/BFT
WTC-173
W380360803
36.00
43.20
4.50
NBR/BFT
WTC-102
W380367001
36.00
43.30
3.20
FKM/BFT
WTC-208
W380360802 (Stock Item)
36.00
43.60
4.20
NBR/BFT
WTC-189
W380366403
36.00
43.60
4.20
FKM/BFT
WTC-282
W380360806
36.00
44.00
4.40
NBR/BFT
WTC-245
W380367006
36.00
44.80
6
NBR/BFT
WTC-276
W380400801 (Stock Item)
40.00
46.80
5
NBR/BFT
WTC-267
W380400807
40.00
46.80
5.50
NBR/BFT
WTC-120
W380400805
40.00
47.00
4.60
NBR/BFT
WTC-283
W380407002
40.00
47.00
4.70
NBR/BFT
WTC-191
W380406403
40.00
47.50
4.50
FKM/BFT
WTC-254
W380400806
40.00
48.00
5
NBR/BFT
WTC-212
W380400808
40.00
48.30
4.50
CAT
WTC-168
W380406402
40.00
48.60
6.20
FKM/BFT
WTC-159
W380400802 (Stock Item)
40.00
48.80
6.30
NBR/BFT
WTC-181
W380407001
40.00
48.80
6.30
FKM/BFT
WTC-230
W380407003
40.00
48.80
6.30
BFT
WTC-314
W380407004
40.00
48.80
6.30
FKM/BFT
WTC-321
W380420801
42.00
50.80
6.30
NBR/BFT
WTC-111
W380457002
45.00
51.80
4.70
NBR/BFT
WTC-286
W380450808 (Stock Item)
45.00
51.80
5
NBR/BFT
WTC-138
W380450810
45.00
53.00
6
NBR/BFT
WTC-233
W380450809
45.00
53.80
6
GLT
WTB-108
W380456402
45.00
53.80
6
FKM/BFT
WTC-101
W380450804 (Stock Item)
45.00
53.80
6
NBR/BFT
WTC-115
W380456601
45.00
53.80
6
CAT
WTC-188
W380456401
45.00
53.80
6.30
FKM/BFT
WTC-313
W380450803
45.00
53.80
6.30
NBR/BFT
WTC-320
W380450807
45.00
54.50
6
NBR/BFT
WTC-253
W380450812
45.00
55.00
6.50
NBR/BFT
WTC-335
W380470801
47.40
53.80
6
NBR
WTC-279
W380506401
50.00
56.50
6
FKM/BFT
WTC-169
W380506404
50.00
56.80
5
FKM/BFT
WTC-133
W380507004
50.00
57.65
5.80
FKM/BFT
WTC-174
W380500803
50.00
58.80
6.30
NBR/BFT
WTC-103
W380506405
50.00
58.80
6.30
FKM/BFT
WTC-175
W380507005
50.80
57.60
5
FKM/BFT
WTC-205
W380507006
50.80
58.72
6.30
FKM/BFT
WTC-303
W380520802
52.00
60.80
6.30
NBR/BFT
WTC-318
W380540801
54.80
66.00
3.90
NBR/BFT
WTC-315
W380550801
55.00
61.80
5
NBR/BFT
WTC-109
W380550804
55.00
62.00
5
NBR/BFT
WTC-306
W380556401
55.00
63.00
4.50
FKM/BFT
WTC-255
W380557001
55.00
63.00
4.50
NBR/BFT
WTC-323
W380550805
55.00
63.80
6
NBR/BFT
WTC-334
W380550803
55.00
66.00
3.90
NBR/BFT
WTC-274
W380566401
56.00
62.80
5
FKM/BFT
WTC-155
W380560801
56.00
62.80
5
NBR/BFT
WTC-236
W380567004
56.00
62.80
5
FKM/BFT
WTC-278
W380560805
56.00
63.00
4.50
NBR/BFT
WTC-264
W380567003
56.00
63.00
6.30
NBR/BFT
WTC-260
W380566405
56.00
64.80
6
GLT
WTC-117
W380566402
56.00
64.80
6
FKM/BFT
WTC-152
W380560802 (Stock Item)
56.00
64.80
6.30
NBR/BFT
WTC-124
W380560803
56.00
64.80
6.30
GLT
WTC-128
W380567005
56.00
64.80
6.30
FKM/BFT
WTC-311
W380560804
56.00
66.00
6.30
NBR/BFT
WTC-248
W380576401
57.00
63.80
5
FKM/BFT
WTC-210
W380570801
57.15
63.49
4.77
NBR/BFT
WTC-151
W380607002
60.00
66.80
5
NBR/BFT
WTC-289
W380600802
60.00
66.80
6
NBR/BFT
WTC-157
W380606401
60.00
68.80
6
FKM/BFT
WTC-240
W380608801
60.00
68.80
6.30
PU
WPH-522
W380607001
60.00
68.80
6.30
NBR/BFT
WTC-146
W380606403
60.00
68.80
6.30
FKM/BFT
WTC-294
W380630801 (Stock Item)
63.00
69.80
5
NBR/BFT
WTC-202
W380636403
63.00
69.80
5
FKM/BFT
WTC-234
W380636402
63.00
71.80
6.30
FKM/BFT
WTC-132
W380650801 (Stock Item)
65.00
73.80
6.30
NBR/BFT
WTC-110
W380650802
65.00
74.00
5.70
NBR/BFT
WTC-247
W380706406
70.00
77.00
4.20
CAT
WTC-192
W380700806
70.00
77.00
4.50
NBR/BFT
WTC-199
W380700803 (Stock Item)
70.00
78.80
6
NBR/BFT
WTC-121
W380706402
70.00
78.80
6
FKM/BFT
WTC-178
W380700809
70.00
79.00
5.50
NBR/BFT
WTC-185
W380706404
70.00
80.00
6
FKM/BFT
WTC-256
W380700812
70.00
80.00
6
NBR/BFT
WTC-309
W380700810
70.00
82.20
8.10
NBR
WTC-127
W380707001
70.00
82.20
8.10
FKM/BFT
WTC-148
W380700802 (Stock Item)
70.00
82.20
8.10
NBR/BFT
WTC-160
W380700811
70.00
83.00
6
NBR/BFT
WTC-265
W380717002
71.00
79.80
6
NBR/BFT
WTC-322
W380757002
75.00
83.80
6
NBR/BFT
WTC-229
W380750806
75.00
87.00
9.50
NBR/BFT
WTC-206
W380757003
75.00
87.20
8.10
NBR/BFT
WTC-119
W380750809
75.64
83.23
5
HYT
WPH-355
W380806401
80.00
88.80
6
FKM/BFT
WTC-136
W380800801 (Stock Item)
80.00
88.80
6
NBR/BFT
WTC-156
W380800807
80.00
88.80
7.50
NBR/BFT
WTC-310
W380800806
80.00
89.00
5.70
NBR/BFT
WTC-198
W380800803
80.00
92.20
8.10
NBR/BFT
WTC-304
W380856402
85.00
97.20
8.10
FKM/BFT
WTC-122
W380850801
85.00
97.20
8.10
NBR/BFT
WTC-263
W380870801
87.60
95.00
5.50
NBR/BFT
WTC-249
W380880801
88.00
96.80
6
NBR/BFT
WTC-182
W380887002
88.00
97.10
6
FKM/BFT
WTC-270
W380887001
88.00
97.10
6.30
FKM/BFT
WTC-227
W380907001
90.00
98.80
6
NBR/BFT
WTC-161
W380906401
90.00
98.80
6
FKM/BFT
WTC-232
W380900801 (Stock Item)
90.00
98.80
6
NBR/BFT
WTC-268
W380906404
90.00
99.00
5.70
FKM/BFT
WTC-271
W380900806
90.00
100.00
6
NBR/BFT
WTC-105
W380900807
90.00
102.00
8.30
NBR/BFT
WTC-104
W380900811
90.00
102.00
9.50
NBR/BFT
WTC-207
W380900802
90.00
102.20
8.10
NBR/BFT
WTC-213
W380906402
90.00
102.20
8.10
FKM/BFT
WTC-266
W380957001
95.00
103.80
6
NBR/BFT
WTC-285
W380957006
95.00
106.70
7.60
NBR/BFT
WTC-338
W380957003 (Stock Item)
95.00
107.20
8.10
NBR/BFT
WTC-226
W380986401
98.00
106.80
6
FKM/BFT
WTC-125
W380986901
98.00
107.00
5.80
PTFE
WTC-288
W381007004
100.00
108.00
6
NBR/BFT
WTC-216
W381006403
100.00
108.00
6
FKM/BFT
WTC-272
W381000801 (Stock Item)
100.00
108.80
6
NBR/BFT
WTC-130
W381006401
100.00
108.80
6
FKM/BFT
WTC-179
W381000805
100.00
112.00
8.50
NBR/PTFE
WTC-172
W381008701
100.00
112.20
8.10
PU
WPH-1030
W381006402
100.00
112.20
8.10
FKM/BFT
WTC-131
W381000802 (Stock Item)
100.00
112.20
8.10
NBR/BFT
WTC-326
W381000806
100.00
112.20
8.50
NBR/BFT
WTC-222
W381007003
100.00
112.50
8.10
NBR/BFT
WTC-176
W381016401
101.60
111.12
6.80
FKM/BFT
WTC-296
W381050801
105.00
117.20
8.10
NBR/BFT
WTC-333
W381106401
110.00
118.80
6
FKM/BFT
WTC-153
W381100801 (Stock Item)
110.00
118.80
6
NBR/BFT
WTC-235
W381106402
110.00
122.20
8.10
FKM/BFT
WTC-241
W381100802
110.00
122.20
8.10
NBR/BFT
WTC-298
W381120801
112.00
120.80
6
NBR/BFT
WTC-129
W381120802
112.00
124.00
8.50
NBR/PTFE
WTC-171
W381130803
113.00
121.80
6
NBR/BFT
WTC-316
W381130801
113.00
123.00
8.50
NBR/PTFE
WTC-163
W381130804
113.00
123.00
8.50
NBR/BFT
WTC-331
W381150801
115.00
123.80
6
NBR/BFT
WTC-187
W381150803
115.00
127.20
8.10
NBR/BFT
WTC-284
W381160801
116.00
124.00
6
NBR/BFT
WTC-190
W381200802
120.00
128.80
6
NBR/BFT
WTC-180
W381207001
120.00
136.80
9.70
NBR/BFT
WTC-339
W381250801
125.00
133.80
6
NBR/BFT
WTC-143
W381306401
130.00
138.00
6
FKM/BFT
WTC-292
W381300802
130.00
142.20
8.10
NBR/BFT
WTC-295
W381330801
133.00
145.20
8.10
NBR/BFT
WTC-332
W381330803
133.00
145.20
8.40
NYLON
WPH-126
W381356401
135.00
143.80
6
FKM/BFT
WTC-301
W381360801
136.00
150.00
6
NBR/BFT
WTC-209
W381377002
137.00
150.00
12
NBR/BFT
WTC-251
W381400801
140.00
148.80
6
NBR/BFT
WTC-149
W381406401
140.00
148.80
6
FKM/BFT
WTC-193
W381400802
140.00
156.00
9.50
NBR/BFT
WTC-184
W381507001
150.00
158.80
6
NBR/BFT
WTC-123
W381500801 (Stock Item)
150.00
158.80
6
NBR/BFT
WTC-269
W381506401
150.00
158.80
6
FKM/BFT
WTC-297
W381520802
152.00
161.00
5.55
CAT+NBR
WTC-140
W381530802
153.00
165.20
8.40
NBR
WPH-188
W381600805
160.00
168.80
6
NBR/BFT
WTC-220
W381600806
160.00
170.00
5
NBR/BFT
WTC-328
W381607001
160.00
176.00
9.50
NBR/BFT
WTC-211
W381800802 (Stock Item)
180.00
188.80
6
NBR/BFT
WTC-237
W381807005
180.00
192.20
8.10
NBR/BFT
WTC-170
W381807007
180.00
196.00
9.50
FKM/BFT
WTC-261
W382006401
200.00
208.80
6
FKM/BFT
WTC-108
W382000802
200.00
208.80
6
NBR/BFT
WTC-196
W382000805
200.00
209.20
6.20
NBR/BFT
WTC-273
W382000804
200.00
216.00
9
NBR/PTFE
WTC-177
W382000803
200.00
229.00
20.60/26.80
CAT
WTC-259
W382100801
210.00
218.80
6
NBR/BFT
WTC-287
W382207001
220.00
228.80
6
NBR/BFT
WTC-150
W382200801
220.00
250.00
20.50/29.10
CAT
WTC-280
W382287001
228.60
241.30
5.70
FKM/BFT
WTC-302
W382307001
230.00
246.00
9.50
FKM/BFT
WTC-262
W382307002
230.00
246.00
9.50
NBR/BFT
WTC-337
W382307003
230.00
247.80
6.70
FKM/BFT
WTC-340
W382400801
240.00
250.00
6
NBR/BFT
WTC-135
W38240L501
240.28
257.81
9.39
PU
WPH-1641
W382420801
242.00
250.80
6
NBR/BFT
WTC-154
W382500801
250.00
266.00
9.50
NBR/BFT
WTC-290
W382606401
260.00
272.20
8.40
FKM/BFT
WTC-324
W382700801
270.00
285.00
13
NBR/BFT
WTC-183
W382707001
270.00
286.00
9.50
FKM/BFT
WTC-214
W382800801
280.00
292.20
8.40
NBR/BFT
WTC-134
W382800802
280.00
296.00
9.50
NBR/BFT
WTC-258
W382850801
285.00
301.00
9.50
NBR/BFT
WTC-257
W382907001
290.00
304.00
8.10
NBR/BFT
WTC-293
W383050802
305.00
320.00
8.10
NBR/BFT
WTC-167
W383108801
310.00
334.00
12.00
PU
WPH-770
W383200802
320.00
332.20
8.40
NBR/BFT
WTC-307
W383200801
320.00
336.00
10.50
NBR/BFT
WTC-219
W383347001
334.50
354.00
9
NBR/BFT
WTC-275
W383400803
340.00
356.00
9.50
NBR/BFT
WTC-221
W383500802
350.00
362.20
8.40
NBR/BFT
WTC-291
W383800801
380.00
392.20
8.40
NBR/BFT
WTC-325
W384000802
400.00
424.00
14
NBR/BFT
WTC-165
W384000801
400.00
427.30
15
NBR/BFT
WTC-203
W384407001
440.00
464.00
14
FKM/BFT
WTC-215
W384700801
470.00
494.00
12
NBR/BFT
WTC-228
W384800801
480.00
496.00
11
NBR/BFT
WTC-308
W385601101
560.00
585.00
15
NBR/BFT
WTC-166
W386000801
600.00
616.00
10.50
NBR/BFT
WTC-224
For customised items please
Click here
Login
