Max Spare : W39
Profile : Wiper Seals
Details :

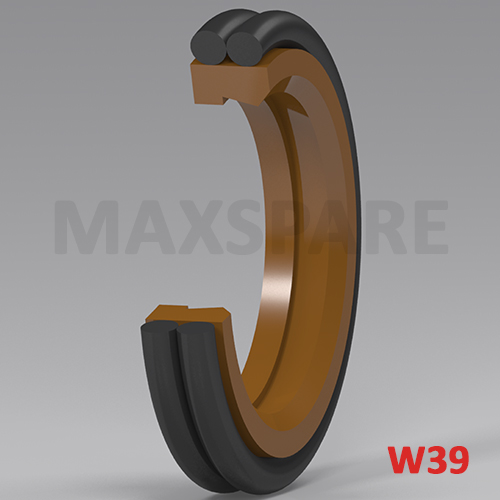

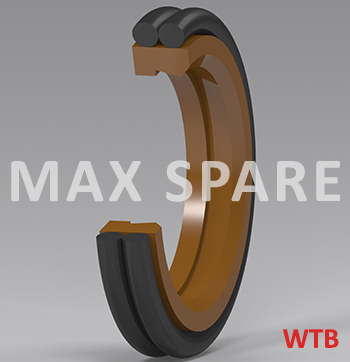

W39 is a double-acting, twin o-ring energized, rod wiper seal designed to include two different unique wiping geometries. The two lips combine to scrape debris from the rod and contain residual oil on rod extension, as well as allowing oil to pump back into the cylinder. The o-ring energizers provide the force necessary to maintain the engagement of the wiping lips against the sliding surface and allow the wiper to adjust for deflection. Generally, Bronze is used as filler. But, Glass/Graphite filled PTFE can also be made. The Bronze filled PTFE Iiner seal ring when in contact with the piston rod ensures a stick slip free movement & reduces friction to a minimum.
MATERIAL
Sealing Ring
:
Bronze filled PTFE
O Ring
:
Nitrile Rubber 70/75 Shore A
: FKM 70/75 on request.
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
: (upto 220 C on request)
Speed
:
15.0 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Mineral oils, bio oils, water soluble & water glycol fluids.
APPLICATION
Medium duty, can also be used with heavy duty cycle applications.
Indoor type machines.
Mobile hydraulic, injection machines, industrial equipments.
FEATURES
Self-lubricating seal ring.
Very good scraping effect.
High surface speed.
Friction at minimum.
Compact gland.
High resistance to media.
Any size upto 1200 mm available on request.
Long service life.
Manufactured by:
Max Spare Limited
Product ID:
407i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
W390206401
20.00
27.00
4.20
FKM/BFT
WTB-133
W390230801
23.60
29.94
4.60
GRT
WTB-123
W390250801
25.00
32.60
4.20
NBR/BFT
WTB-112
W390287001
28.00
35.60
4.20
NBR/BFT
WTB-130
W390286401
28.00
35.60
5
FKM/BFT
WTB-122
W390300801
30.00
37.60
4.20
NBR/BFT
WTB-110
W390300802
30.00
38.00
4.20
NBR/BFT
WTB-135
W390320801
32.00
39.60
4.20
NBR/BFT
WTB-116
W390360802
36.00
43.60
4.20
NBR/BFT
WTB-115
W390407001
40.00
48.80
6.30
NBR/BFT
WTB-152
W390457001
45.00
53.80
6.30
NBR/BFT
WTB-118
W390456401
45.00
53.80
6.30
FKM/BFT
WTB-124
W390450801
45.00
55.00
6
NBR/BFT
WTB-132
W390500801
50.00
58.80
6.30
NBR/BFT
WTB-103
W390547001
54.50
63.80
6.30
NBR/BFT
WTB-140
W390557001
55.00
63.80
6.30
NBR/BFT
WTB-106
W390560801
56.00
64.80
6.30
NBR/BFT
WTB-111
W390567001
56.00
64.80
6.30
FKM/BFT
WTB-119
W390567003
56.00
65.50
6.30
NBR/BFT
WTB-136
W390597001
59.50
68.80
6.30
NBR/BFT
WTB-141
W390607001
60.00
68.80
6.30
NBR/BFT
WTB-127
W390630802
63.00
71.80
6.30
NBR/BFT
WTB-153
W390630801
63.00
78.10
6.30
NBR/BFT
WTB-149
W390650802
65.00
73.80
6.30
NBR/BFT
WTB-158
W390707002
70.00
75.50
3.60
NBR/BFT
WTB-150
W390700801
70.00
82.20
8.10
NBR/BFT
WTB-128
W390747001
74.50
87.20
8.10
NBR/BFT
WTB-142
W390750801
75.00
87.20
8.10
NBR/BFT
WTB-107
W390750803
75.00
87.20
8.10
NBR/BFT
WTB-109
W390800801
80.00
92.20
8.10
NBR/BFT
WTB-102
W390800802
80.00
92.50
8.10
NBR/BFT
WTB-137
W390847001
84.50
97.20
8.10
NBR/BFT
WTB-143
W390857001
85.00
97.20
8.10
BFT
WTB-154
W390887002
88.00
97.10
6
FKM/BFT
WTB-145
W390907001
90.00
102.10
8
FKM/BFT
WTB-139
W391000801
100.00
112.20
8.10
NBR/BFT
WTB-117
W391050801
105.00
117.20
8.10
NBR/BFT
WTB-121
W391107003
110.00
122.20
8.10
FKM/BFT
WTB-104
W391207001
120.00
132.20
8.10
NBR/BFT
WTB-125
W391250801
125.00
137.20
8.10
NBR/BFT
WTB-157
W391407001
140.00
156.00
11.50
FKM/BFT
WTB-147
W391506401
150.00
172.20
6.30/13.50
FKM/BFT
WTB-129
W391807002
180.00
192.20
12
NBR/BFT
WTB-126
W391900801
190.00
206.00
11.50
NBR/BFT
WTB-113
W392100801
210.00
226.00
11.50
CAT
WTB-156
W392307001
230.00
246.00
11.50
FKM/BFT
WTB-160
W392707001
270.00
287.50
12
NBR/BFT
WTB-148
W393100801
310.00
326.00
11.50
NBR/BFT
WTB-114
W393407001
340.00
356.00
11.50
NBR/BFT
WTB-146
W393600802
360.00
376.00
11.50
NBR/BFT
WTB-134
W394207001
420.00
436.00
11.50
FKM/BFT
WTB-155
W396500801
650.00
677.30
16
GLT
WTB-144
W396906401
690.00
717.30
18
FKM/BFT
WTB-131
W397000803
700.00
727.30
16
NBR
WTB-105
W397000802
700.00
727.30
16
NBR/BFT
WTB-120
W397700803
770.00
797.30
16
NBR/BFT
WTB-101
W397700801
770.00
797.30
16
GLT
WTB-138
W399000802
900.00
927.30
16
NBR/BFT
WTB-151
