S09 | Pneumatic Cushion Seal | Product Details | Spareage Seals Ltd (Max Spare)

Max Spare : S09

Profile : Cushion Seals

Details :

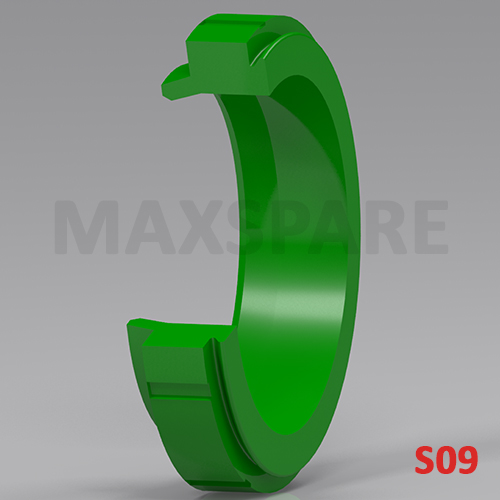

S09 is a cushion seal specially designed to protect damping of piston head on gland surface where high pressure peaks occur. It is also called damping seal in pneumatic application. This profile also allows pressure to pass back into the system preventing a pressure trap between the rod seal and the buffer seal. It is an excellent pressure buffer option in heavy-duty applications and offers extended sealing system life and performance.

MATERIAL

Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C (NBR)
	:	-40° C to + 220° C (FKM)
Pressure	:	16 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Dry and oil-free air.

APPLICATION

Polyurethane 92 Shore A.FKM Rubber 80/85 Shore A.Nitrile Rubber 80/85 Shore A.

FEATURES

Optimum use of design related cushion.
High cushioning consistency due to automatic centering, even in the case of misalignment of the cushioning spear to the cylinder head.
Increased reliability due to two independent sealing (flexible sealing lips and axial sealing areas).
Suitable for use in lubricated as well as dry and oil-free air. (after initial lubricat

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
S09010CF01	10.00	18.00	6.20/7.80	PU	PUA-871
S09012L402	12.00	18.00	4.10/5	PU	PUA-658
S090121001	12.00	18.00	4.20/5.20	NBR	SUA-2833
S09012L403	12.00	20.00	6.20/7.80	PU	PUA-659
S090121102	12.00	20.00	6.30/7.80	NBR	SUA-1762
S09014CF01	14.00	22.00	6.20/7.80	PU	PUA-888
S090141101	14.00	22.00	6.20/7.80	NBR	SUA-2023
S090151101	15.00	21.00	5.70	NBR	SUA-2053
S090165901	16.00	22.00	4.50/6	PU	PUA-794
S0901610001	16.00	22.00	4.50/6	NBR	SUA-1715
S09016L502	16.00	22.00	4.70/5.50	PU	PUA-271
S09016L402	16.00	22.00	4.70/5.50	PU	PUA-661
S090166601	16.00	23.00	3.00/4.50	FKM	SUA-187
S090161101	16.00	23.00	5/8	NBR	SUA-1867
S09016CF01	16.00	23.00	6.30/8	PU	PUA-895
S09016L401	16.00	24.00	6.20/7.80	PU	PUA-660
S090166602	16.00	24.00	6.30/7.80	FKM	SUA-2873
S090160902	16.00	24.00	6.40/8	NBR	SUA-2510
S09016L501 (Stock Item)	16.00	24.00	7.80	PU	PUA-896
S09018CF01	18.00	26.00	6.20/7.80	PU	PUB-1812
S09018L501 (Stock Item)	18.00	26.00	7.80	PU	PUB-1589
S090191001	19.40	36.00	3.30/6	NBR	SPA-1669
S090206701	20.00	27.00	6.20/7.80	FKM	SUB-2970
S09020CF01	20.00	27.00	6.30/8	PU	PUB-1875
S090201103	20.00	28.00	4.30	NBR	SUB-3843
S090208901	20.00	28.00	6.20/7.80	PU	PUB-202
S09020CF02	20.00	28.00	6.20/7.80	PU	PUB-336
S09020L401	20.00	28.00	6.5/8	PU	PUB-1422
S090201102	20.00	28.00	6/7	NBR	SUB-3325
S09020L501 (Stock Item)	20.00	28.00	7.80	PU	PUB-1302
S09020L402	20.00	32.00	6.5/8	PU	PUB-1421
S090201002	20.00	38.00	4.00/6.50	NBR	SUB-4906
S09022CF01	22.00	30.00	6.20/7.80	PU	PUB-331
S09022L501 (Stock Item)	22.00	30.00	7.8	PU	PUB-1587
S090256601	25.00	32.00	3.30/4.80	FKM	SUB-3355
S090255904	25.00	32.00	4.00/5.00	PU	PUB-804
S090252101	25.00	32.00	4.5/6	NEOPRENE	SUB-3688
S09025L503	25.00	32.00	5.50/7.50	PU	PUB-1600
S090251101	25.00	32.00	6.2/8	NBR	SUB-2918
S09025L501	25.00	32.00	6.20/7.80	PU	PUB-1425
S090256701	25.00	32.00	6.20/7.80	FKM	SUB-2971
S09025L406	25.00	33.00	5.5/7	PU	PUB-1423
S090251002	25.00	33.00	5.90/7	NBR	SUB-3324
S09025CF01	25.00	33.00	6.2/7.80	PU	PUB-1811
S09025L404	25.00	33.00	6.20/7.80	PU	PUB-1406
S090258901	25.00	33.00	6.20/7.80	PU	PUB-197
S09025L402	25.00	33.00	6.20/8	PU	PUB-1310
S090256602	25.00	33.00	6.40/7.00	FKM	SUB-4810
S09025L401	25.00	33.00	6.80/8	PU	PUB-1293
S09025L502 (Stock Item)	25.00	33.00	7.80	PU	PUB-1604
S090251001	25.00	33.00	7/8	NBR	SUB-2800
S09025L405	25.00	35.00	6.20/7.80	PU	PUB-1407
S090258902	25.00	35.00	6.20/7.80	PU	PUB-199
S09025L505	25.00	36.00	4.50/5.50	PU	PUB-1861
S090256702	25.00	41.00	4.50/6.50	FKM	SUB-2979
S090251103	25.00	41.00	4.50/6.50	NBR	SUB-4214
S090286601	28.00	36.00	5.50/7.80	FKM	SUB-3391
S09028L401	28.00	36.00	6.20/7.80	PU	PUB-1408
S090288701	28.00	36.00	6.30/7.80	PU	PUB-900
S09028L501 (Stock Item)	28.00	36.00	7.80	PU	PUB-1876
S090281102	28.00	37.00	6.20/7.50	NBR	SUB-4493
S090281101	28.00	37.00	7.00/8.50	NBR	SUB-3807
S09030CF01	30.00	37.00	6.2/7.50	PU	PUB-1868
S090301001	30.00	37.00	6.2/7.50	NBR	SUB-3277
S090306602	30.00	38.00	4.20/5.80	FKM	SUB-3354
S09030L403	30.00	38.00	6.2/7.80	PU	PUB-1813
S090301101	30.00	39.50	6.5/8	NBR	SUB-2342
S09030L401	30.00	40.00	6.20/7.80	PU	PUB-1409
S09030L502 (Stock Item)	30.00	40.00	7.80	PU	PUB-1877
S09030L501	30.00	41.40	6.2/8.5	PU	PPA-744
S090306601	30.00	41.40	6.3/8.50	FKM	SPA-2856
S09032CF01	32.00	40.00	6.2/7.80	PU	PUB-1814
S09032L501 (Stock Item)	32.00	42.00	7.80	PU	PUB-1588
S090326601	32.00	47.00	3.50/6.60	FKM	SUB-4816
S090321101	32.00	48.00	4.50/6.50	NBR	SUB-2234
S090356601	35.00	44.00	4.50/6.30	FKM	SUB-3353
S090351002	35.00	44.00	5.30/8	NBR	SUB-3207
S090351001	35.00	45.00	5.70/8.50	NBR	SUB-2876
S90351003	35.00	45.00	6.30/8	NBR	SUB-3666
S090366701	36.00	45.00	6/7.80	FKM	SUB-4660
S09036L401	36.00	46.00	6.20/7.80	PU	PUB-1410
S09036L501 (Stock Item)	36.00	46.00	7.80	PU	PUB-1878
S090366601	36.00	46.00	7.80	NBR	SUB-4410
S090406601	40.00	48.00	5.60/6.30	FKM	SUB-3101
S09040L401	40.00	50.00	6.20/7.80	PU	PUB-1411
S090409901	40.00	50.00	6.5/8	SBR	SUB-3531
S090406701	40.00	50.00	6.50/8	FKM	SUB-3269
S09040L402	40.00	50.00	6/7.80	PU	PUB-1577
S09040L501 (Stock Item)	40.00	50.00	7.80	PU	PUB-1879
S090405901	40.00	51.00	5/7.00	PU	PUC-298
S09420Q201	42.00	55.00	7/9.50	PU	PUC-1388
S090456701	45.00	55.00	6.20/7.80	FKM	SUC-2725
S09045L502 (Stock Item)	45.00	55.00	7.8	PU	PUC-1071
S090456603	45.00	55.00	8.00/10.00	FKM	SUC-3074
S09045L501	45.00	55.00	8/10	PU	PUC-863
S09045L503	45.00	60.00	5.50/7.50	PU	PUC-1089
S090456601	45.00	60.00	5.50/7.50	FKM	SUC-2412
S090486601	48.00	60.00	7.00/8.70	FKM	SUC-1229
S090481001	48.00	60.00	7.00/8.70	NBR	SUC-3198
S090504501	50.00	58.00	6.00/8.00	SILICON	SUC-757
S090506603	50.00	60.00	5.70/8	FKM	SUC-2033
S09050L402	50.00	60.00	6.20/7.80	PU	PUC-971
S090506604	50.00	60.00	6.50/8	FKM	SUC-2094
S090509901	50.00	60.00	6.50/8	SBR	SUC-2352
S09050L505	50.00	60.00	6.50/8.00	PU	PUC-230
S090501104	50.00	60.00	6.70/8.00	NBR	SUC-3120
S09050L502 (Stock Item)	50.00	60.00	7.80	PU	PUC-1327
S090506602	50.00	60.00	7.80	FKM	SUC-1899
S090501103	50.00	60.60	6.50/8.50	NBR	SUC-1794
S09050L501	50.00	66.00	10	PU	PPA-1242
S090506606	50.00	67.00	11.00	FKM	SUC-2586
S09050L401	50.00	67.00	11/11	PU	PUC-970
S090506601	50.00	67.00	5.30/6.70	FKM	SPA-805
S090501102	50.00	68.00	5/7	NBR	SUC-1539
S090506605	50.00	68.00	5/7	FKM	SUC-2306
S090501002	50.00	68.00	5/7.00	NBR	SUC-3261
S090556601	55.00	65.00	6.00/9.00	FKM	SUC-3169
S09055L501	55.00	68.00	4.50/5.50	PU	PUC-1319
S090571101	57.00	74.00	10.00	NBR	SUC-1771
S09057L401	57.00	74.00	10/11	PU	PUC-972
S090576601	57.00	74.00	11.00	FKM	SUC-2585
S09060X401	60.00	79.00	10.50	PU	PUD-423
S090706601	70.00	87.00	10	FKM	SPA-3148
S090716701	71.50	88.00	6.50/8	FKM	SUD-1579
S090851001	85.72	101.40	6.50/7.20	NBR	SUE-1448
S09095L501	95.00	110.00	10/12	PU	PUE-654

For customised items please Click here
