Max Spare : P11
Profile : Piston Seals
Details :

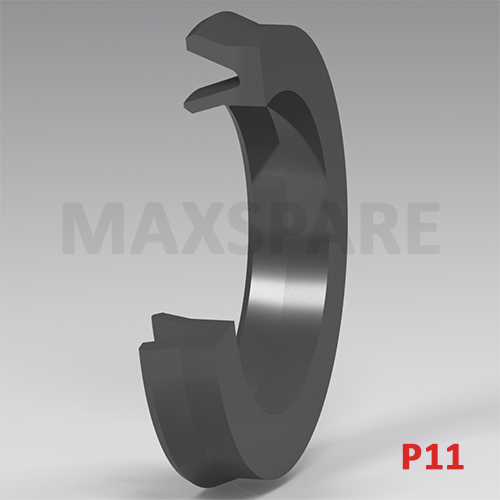

P11 is a single acting pneumatic piston seal with U-shaped cross-section. Its asymmetric profile with longer and thicker static sealing lip guarantees a secure seat in the grooves. The special lip design for pneumatic application to maintain lubricating film and minimize friction.
MATERIAL
Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C (NBR)
:
-40° C to + 220° C (FKM)
Pressure
:
12 Bar
Speed
:
1.0 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Dry and oil-free air.
APPLICATION
Nitrile Rubber 80/85 Shore A.
FKM Rubber 80/85 Shore A.
FEATURES
Compact design.
Long service life.
Easy installation.
Low friction.
Minimise friction.
Manufactured by:
Max Spare Limited
Product ID:
430i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
P110060901
6.50
12.00
2.60
NBR
SUA-1678
P11008CG01
8.00
14.00
5.50
PU
PUA-127
P11008CG02
8.00
16.00
5.50
PU
PUA-125
P110092901
9.00
36.00
8.00
EPDM
SUB-957
P110090601
9.52
19.05
5
NBR
SUA-1301
P11010CG01
10.00
18.00
7.00
PU
PUA-126
P110111001
11.00
16.00
3
NBR
SUA-2063
P110121001
12.00
20.00
4.50
NBR
SUA-1071
P110121002
12.00
25.00
5.00
NBR
SUA-2777
P110120801
12.70
19.05
5.80
NBR
SUA-1302
P110185901
18.00
24.00
2.60
PU
PUA-968
P110186701
18.50
25.00
3.50
FKM
SUA-2557
P110191001
19.00
25.00
3.3
NBR
SUA-1096
P11020L502
20.00
28.00
4
PU
PUB-2116
P110201001
20.00
28.00
5.00/7.00
NBR
SUB-412
P110240701
24.00
28.00
4
NBR
SUB-3327
P110240701
24.00
28.00
4.00
NBR
SUB-2403
P110241001
24.00
32.00
5.5
NBR
SUB-1787
P110291001
29.00
38.10
4.50
NBR
SUB-2940
P110291002
29.85
38.10
7.0
NBR
SUB-4019
P110300701
30.00
35.00
5
NBR
SUB-2404
P110300701
30.00
35.00
5
NBR
SUB-3328
P11030L401
30.00
40.00
7
PU
PUB-801
P110301001
30.00
40.00
7
NBR
SUB-3176
P110361002
36.00
45.00
4.5
NBR
SUB-2138
P11040L401
40.00
50.00
7
PU
PUB-802
P110401002
40.00
50.00
7
NBR
SUB-3177
P11052L401
52.00
63.00
7
PU
PUC-598
P110536701
53.00
63.00
7.00
FKM
SUC-2958
P110586101
58.00
70.00
9
FKM
SUC-1421
P110601001
60.00
76.50
8.25
NBR
SUD-1715
P110651101
65.00
80.00
6.00
NBR
SUD-2152
P110651001
65.00
80.00
8
NBR
SUD-1657
P110651002
65.00
80.00
9
NBR
SUD-1755
P110670901
67.50
8.50
NBR
SUD-1582
P11069B301
69.85
111.12
19.05
NBR/FABRIC
SUE-1509
P110706601
70.50
82.00
6.60
FKM
SUD-1470
P110736601
73.02
82.55
7.13
FKM
SUD-2004
P11088L401
88.00
100.00
8.50
PU
PUD-729
P110881001
88.00
100.00
8.50
NBR
SUD-1656
P110881002
88.50
101.60
8.00
NBR
SUE-1287
P111011001
101.60
127.00
16.00
NBR
SUF-633
P111101001
110.00
121.00
9.50
NBR
SUE-567
P11110L401
110.00
124.50
7
PU
PUE-354
P111101002
110.00
125.00
10
NBR
SUE-824
P110114-SUE-479
114.00
124.60
7
NBR
SUE-479
P111151001
115.57
127.00
8.00
NBR
SUF-912
P111306601
130.00
150.00
10
FKM
SUF-790
P111301101
130.00
150.00
9.20
NBR
SUF-681
P111381001
138.50
150.00
8.00
NBR
SUF-1030
P111401002
140.00
160.00
8
NBR
SUG-739
P111451002
145.00
160.00
10
NBR
SUG-718
P111486601
148.00
160.00
9
FKM
SUG-362
P111656601
165.00
180.00
18.00
FKM
SUH-259
P111830901
183.00
203.00
23
NBR
SUJ-313
P111861001
186.69
203.20
9.50
NBR
SUJ-409
P11304L501
304.80
355.60
19.05
PU
PUM-437
For customised items please
