MATERIALS
Polyurethane with 90° Shore A hardness.
NBR with Hardness of 75° / 80° shore.
FPM material also supply on request.
MAX OPERATING CONDITION
Temp. Range: -30° C to +100° C
(upto +200° C on request)
Speed: = 1.0 m/s
Pressure: = 16 Bar

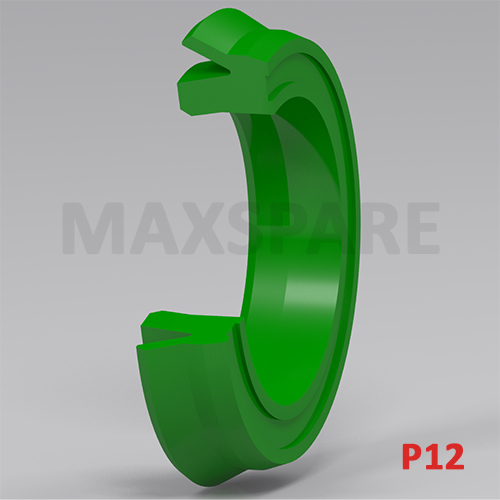

The PUE is a single acting piston seal use in pneumatic cylinders & valves.
- Good sealing performance in a smallest installation grooves.Â
- Low static & dynamic fricti on due to smallest possible sections.Â
- Foruse in dry and oil-free air.Â
- Suitable for plastic pistons due to special design of the static sealing area.Â
- High functional reliability due to lip seal design.Â
- Easy assembly in the seal grooves.Â
- Also suitable for cylinder swith cushioning.
Manufactured by: Spareage Seals Limited
Product ID: 42i
