Max Spare : P14
Profile : Piston Seals
Details :

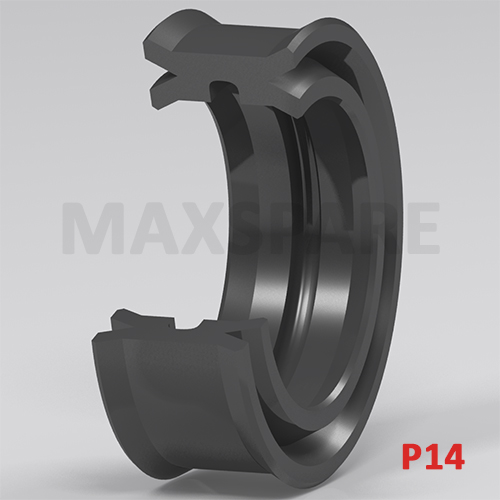

P14 is a double U-ring with an integral guiding surface for double-acting pneumatic equipments. Smooth running in Piston due to sealing lip geometry in retaining the lubrication film and high temperature resistance in case of proper choice of elastomer compound. This profile is also available for single acting pistons (refer P16) with identical housings.
MATERIAL
Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
Pressure
:
16 Bar
Speed
:
1.0 m/s
SURFACE ROUGHNESS
Static
:
1.6 µmRa
Dynamic
:
0.4 µmRa
COMPATIBILITY
Dry and oil-free air.
APPLICATION
Nitrile Rubber 80/85 Shore A.
FEATURES
No metallic contact between Piston & Cylinder.
Long service life.
For use in dry and oil-free air.
Easily mounted by pulling them over the one-piece piston.
Ideal seal for plastic / light metal cylinders.
Multifunctional sealing element.
Smooth running due to sealing sealing lip geometry.
Manufactured by:
Max Spare Limited
Product ID:
44i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
P140930801
0.00
11.50
NBR
SUD-797
P140101101
10.00
16.00
10.2
NBR
SUA-1089
P140100901
10.00
16.00
10.5
NBR
SUA-1183
P140120902
12.00
18.00
10.50
NBR
SUA-2368
P140120801
12.00
20.00
5.50
NBR
SUA-1681
P14014-SUA-524
14.00
20.00
10.5
NBR
SUA-524
P140180902
18.00
25.00
12
NBR
SUA-1946
P140186501
18.00
25.00
12.00
FKM
SUA-1154
P140221001
22.00
28.00
10.50
NBR
SUB-1453
P140250802
25.00
32.00
12
NBR
SUB-1745
P140250903
25.00
32.00
12.00
NBR
SUB-4427
P140280901
28.00
35.00
12
NBR
SUB-1918
P14028M101
28.00
35.00
12
HNBR
SUB-3345
P14030S401
30.10
36.50
9.00
HNBR
SUB-3964
P140316501
31.00
38.00
12.00
FKM
SUB-4063
P140310901
31.00
38.00
12.00
NBR
SUB-4626
P140330901
33.00
40.00
12
NBR
SUB-1401
P140330902
33.00
40.00
12.00
NBR
SUB-4426
P140380904
38.00
45.00
11.95
NBR
SUB-4360
P140380801
38.00
45.00
12
NBR
SUB-1746
P140380905
38.00
45.00
12.00
NBR
SUB-4425
P140410901
41.00
48.00
11.80
NBR
SUB-2697
P140435901
43.00
50.00
11.70
PU
PUB-1952
P140436501
43.00
50.00
11.70
FKM
SUB-2253
P140430801
43.00
50.00
12
NBR
SUB-2635
P140436502
43.00
50.00
12.00
FKM
SUB-1448
P140430904
43.00
50.00
12.00
NBR
SUB-4424
P140446501
44.00
52.00
13.00
FKM
SUC-3022
P140460902
46.00
54.00
12.00
NBR
SUC-2967
P140460901
46.00
54.00
13
NBR
SUC-1500
P140506401
50.00
60.00
10.00
FKM
SUC-3250
P140500902
50.00
60.00
17
NBR
SUC-2448
P140560901
56.00
63.00
12
NBR
SUC-1002
P140560902
56.00
63.00
12.00
NBR
SUC-1249
P140560904
56.00
63.00
12.00
NBR
SUC-2966
P140560903
56.20
63.00
12
NBR
SUC-2505
P140701001
70.00
80.00
18
NBR
SUD-652
P140706501
70.00
80.00
18
FKM
SUD-967
P140700901
70.00
80.00
18.00
NBR
SUD-1224
P140700902
70.00
80.00
18.00
NBR
SUD-2263
P140706601
70.00
80.00
18.00
FKM
SUD-2371
P140720901
72.00
80.00
13
NBR
SUD-811
P140731002
73.00
83.00
17
NBR
SUD-1206
P140780901
78.00
90.00
20
NBR
SUD-1892
P140800902
80.00
90.00
17.00
NBR
SUD-1415
P140800903
80.00
90.00
17.00
NBR
SUD-2262
P140806503
80.00
90.00
17.00
FKM
SUD-712
P140886501
88.00
100.00
21
FKM
SUD-1037
P140880902
88.00
100.00
21
NBR
SUD-821
P140880902
88.00
100.00
21
NBR
SUD-875
P140880903
88.00
100.00
21.00
NBR
SUD-2265
P140886502
88.00
100.00
21.00
FKM
SUD-2456
P140900901
90.00
100.00
16
NBR
SUD-746
P140900902
90.00
100.00
16.00
NBR
SUD-2264
P140981002-2
98.00
110.00
19.5
NBR
SUE-846
P140980901
98.00
110.00
20.20
NBR
SUE-1255
P141080901
108.00
120.00
20
NBR
SUE-1275
P1401130902
113.00
125.00
21
NBR
SUE-289
P141130803
113.00
125.00
22.5
NBR
SUE-652
P141230901
123.00
133.00
17
NBR
SUF-894
P141286601
128.00
140.00
20
FKM
SUF-359
P141280901
128.00
140.00
21
NBR
SUF-549
P14128E301
128.00
140.00
21
NBR
SUF-654
P141400902
140.00
150.00
17.00
NBR
SUF-1047
P141451001
145.00
160.00
26
NBR
SUG-564
P141650901
165.00
180.00
25
NBR
SUH-479
P141856501
185.00
200.00
26
FKM
SUH-333
P141850902
185.00
200.00
26
NBR
SUH-478
P142356601
235.00
250.00
26
FKM
SUK-197
P142350901
235.00
250.00
26
NBR
SUK-291
