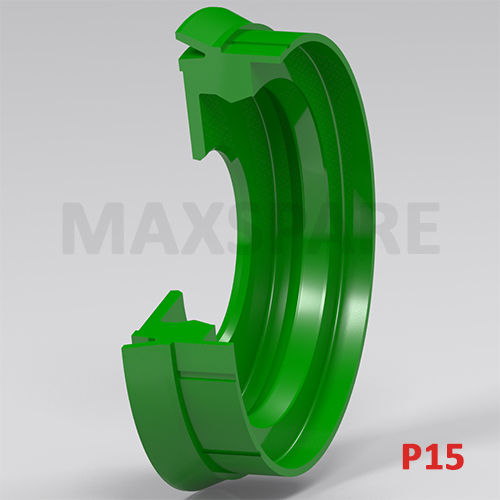

Max Spare : P15
Profile : Piston Seals
Details :

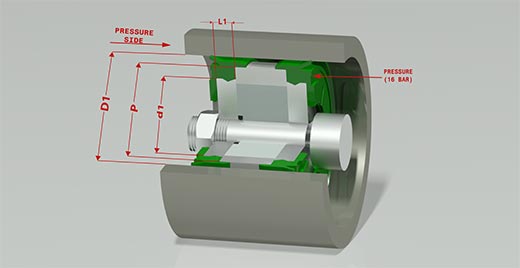

P15 is a single acting piston seal with integrated guiding element and buffer for mechanical cushioning. This seal is particularly suitable for short stoke cylinders and magnetic pistons. For double pistons back to back seal will be used. We will supply the seal guide element without magnetic ring.
MATERIAL
Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.
OPERATING CONDITIONS
Temperature Range
:
-30° C to + 100° C
Pressure
:
12 Bar
Speed
:
1.0 m/s
SURFACE ROUGHNESS
Static
:
0.8 µmRa
Dynamic
:
0.25 µmRa
COMPATIBILITY
Dry and oil-free air.
APPLICATION
Polyurethane 92 Shore A.
FEATURES
Prevent metallic contact between the cylinder and piston.
Ideal for light plastic / light metal cylinders.
Muti-functional sealing element – Sealing, guiding and cushioning element.
Long service life.
Easy Installation.
Assemble on one-part piston.
Low compression set.
Manufactured by:
Max Spare Limited
Product ID:
431i
Part No. :
ID :
-
OD :
-
Thk :
Mould No. :
Stock Items Only
Part No.
ID
OD
THK
Material
Qty
Actions
Mould No.
P15006L401
6.00
12.00
5.90
PU
PUA-736
P150066601
6.00
12.00
6
FKM
SUA-2334
P15008L401
8.00
16.00
5.80
PU
PUA-537
P150085901
8.00
16.00
6
PU
PUA-815
P15010L402
10.00
20.00
5.60
PU
PUA-576
P15010L401
10.00
25.00
6
PU
PUA-577
P15010L403
10.00
50.00
7.40
PU
PUB-225
P15011X401
11.10
40.00
21.00
PU
PUB-168
P150110601
11.10
40.00
21.00
NBR
SUB-4513
P15022L401
22.00
32.00
3.20
PU
PUB-1300
P150228901
22.00
32.00
7
PU
PUB-1358
P15023L401
23.00
32.00
4.30
PU
PUB-1325
P150250901
25.00
32.00
7
NBR
SUB-2384
P150266601
26.00
32.00
7
FKM
SUB-3892
P15026L401
26.00
40.00
7.5
PU
PUB-946
P15026CF01
26.00
40.00
7.50
PU
PUB-1961
P15031Q201
31.00
40.00
4.00
PU
PUB-118
P15032L401
32.10
38.10
7.15
PU
PPA-503
P15032L402
32.50
50.00
7.50
PU
PUB-1170
P15032L403
32.60
50.00
7.5
PU
PUB-790
P150321001
32.60
50.00
7.50
NBR
SUB-3404
P15033L401
33.00
40.00
8
PU
PUB-1247
P15034X401
34.00
40.00
7.25
PU
PUB-2164
P150348901
34.00
40.00
7.50
PU
PUB-1041
P150341002
34.00
40.00
7.50
NBR
SUB-3405
P15036X403
36.00
50.00
4.80
PU
PUB-1919
P15037L401
37.00
63.00
5.60
PU
PUC-912
P15042L401
42.90
63.90
5.30
PU
PUC-742
P15043L402
43.00
50.00
7.25
PU
PUB-1330
P150436602
43.00
50.00
7.50
FKM
SUB-2950
P15043CF02
43.00
65.00
5.30
PU
PUC-157
P15047L401
47.00
80.00
5
PU
PUD-755
P15049CF01
49.80
100.00
7.80
PU
PUD-782
P15053L401
53.00
63.00
10
PU
PUC-593
P150531001
53.00
63.00
10
NBR
SUC-2279
P15053L402
53.00
63.00
9.80
PU
PUC-1076
P15053Q201
53.00
63.00
9.80
PU
PUC-945
P15054L401
54.00
80.00
10.5
PU
PUD-610
P15055L402
55.00
63.00
10
PU
PUC-1088
P150721001
72.00
80.00
11
NBR
SUD-1776
P15090L402
90.00
100.00
13.15
PU
PUD-762
