P16 | Pneumatic Piston Seals | Product Details | Spareage Seals Ltd (Max Spare)

Max Spare : P16

Profile : Piston Seals

Details :

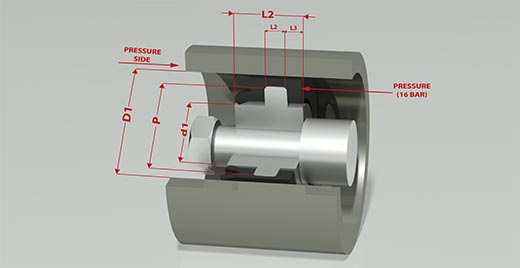

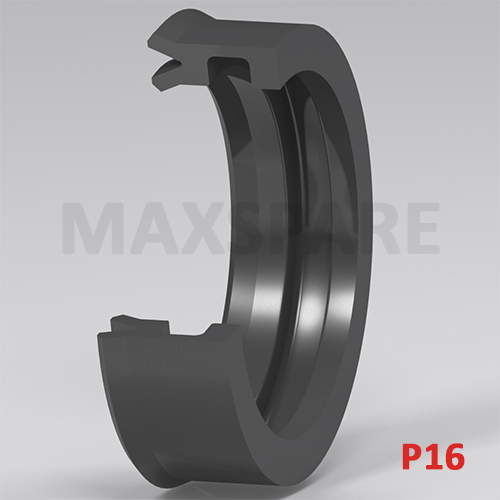

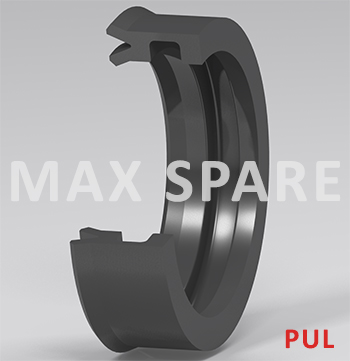

P16 is a piston U-ring with an integral guiding surface for single-acting pneumatic equipments. Smooth running in piston due to optimized sealing lip geometry retaining the lubrication film and high temperature resistance in case of proper choice of elastomer compound. This profile is also available for double acting pistons (refer P14) with identical housing.

MATERIAL

Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C (NBR)
	:	-40° C to + 220° C (FKM)
Pressure	:	16 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Dry and oil-free air.

APPLICATION

Nitrile Rubber 80/85 Shore A.FKM Rubber 80/85 Shore A.

FEATURES

No metallic contact between Piston & Cylinder.
Multifunctional sealing element.
Long service life.
For use in dry and oil-free air.
Easily mounted by pulling them over the one-piece piston.
Ideal seal for plastic / light metal cylinders.
Smooth running due to sealing lip geometry.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
P160120902	12.00	18.00	8	NBR	SUA-2162
P160120601	12.00	20.00	8.30	NBR	SUA-2526
P160140902	14.00	20.00	8.00	NBR	SUA-2397
P160160901	16.00	26.00	7.40	NBR	SUB-4332
P160170601	17.00	25.00	8.50	NBR	SUA-1489
P160180902	18.00	25.00	9.00	NBR	SUA-2485
P160180903	18.00	25.00	9.00	NBR	SUA-2788
P160220904	22.00	32.00	9.90	NBR	SUB-4874
P160231001	23.00	30.00	9	NBR	SUB-3020
P160330901	33.00	40.00	9	NBR	SUB-2302
P160330902	33.00	40.00	9.00	NBR	SUB-4191
P160430801	43.00	50.00	9.00	NBR	SUB-933
P160430802	43.00	50.00	9.20	NBR	SUB-1530
P160506501	50.00	58.00	9.00	FKM	SUC-3024
P160556501	55.00	63.00	9.00	FKM	SUC-3023
P160560901	56.00	63.00	9	NBR	SUC-1650
P160720903	72.00	80.00	10.00	NBR	SUD-2514
P16090Q201	90.00	100.00	11.50	PU	PUD-882
P161171001	117.00	130.00	19.00	NBR	SUF-1056
P161356601	135.00	150.00	21.00	FKM	SUF-192
P161521001	152.40	165.10	19.5	NBR	SUG-511
P16152A601	152.40	165.10	19.50	NBR/FABRIC	SUG-846
P161571001	157.00	170.00	19.00	NBR	SUG-356
P16157A601	157.70	168.50	19.50	NBR/FABRIC	SUG-860
P161701001	170.00	184.00	19	NBR	SUH-462

For customised items please Click here
