Max Spare : P18

Profile : Piston Seals

Details :

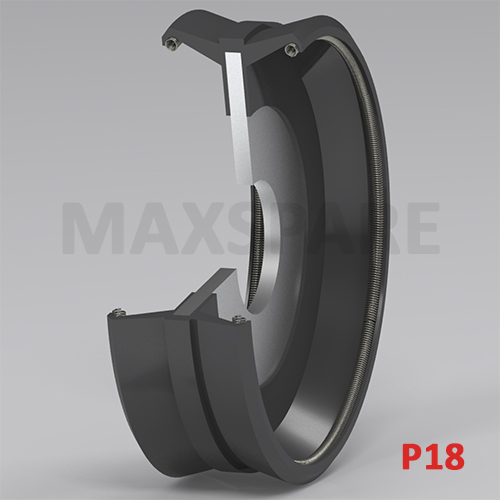

P18 is a complete double acting pneumatic piston seal with a double cup seal with spring and a vulcanized metal disc support. (Without spring P20) It performs both sealing and guiding functions. It is easily fastened to the piston without additional sealing element. This profile also available for single acting pistons (refer profile Maxspare P19) with identical housing. Standard elastomer is Nitrile rubber 80 Shore A and vulcanized to a metal disc. FKM is recommended for high temperature application.

MATERIAL

Pneumatic Cylinders.
Pneumatic Valves.
Short-stroke cylinders.

OPERATING CONDITIONS

Temperature Range	:	-30° C to + 100° C (NBR)
	:	-40° C to + 220° C (FKM)
Pressure	:	12 Bar
Speed	:	1.0 m/s

SURFACE ROUGHNESS

Static	:	1.6 µmRa
Dynamic	:	0.4 µmRa

COMPATIBILITY

Dry and oil-free air.

APPLICATION

Nitrile Rubber 80/85 Shore A.FKM Rubber 80/85 Shore A.

FEATURES

Prevent metallic contact between the cylinder and piston.
Muti-functional sealing element – Sealing, guiding and cushioning element.
Long service life.
Easy Installation.
Low friction and smooth running due to sealing geometry retaining the lubricating film.

Part No. :

ID : -

OD : -

Thk :

Mould No. :

Stock Items Only

Part No.	ID	OD	THK	Material	Mould No.
P180071001	7.00	32.00	2.50/25	NBR	DUP-386
P180081007	8.00	25.00	3.00/11.50	NBR	DUP-130
P180081006	8.00	35.00	25	NBR	DUP-165
P180101002	10.00	40.00	25	NBR	DUP-135
P180100801	10.00	45.00	5/25.00	NBR	DUP-419
P180106602	10.00	50.00	4.00/25.00	FKM	DUP-110
P180101009	10.00	50.00	4/25.50	NBR	DUP-393
P180101008	10.00	50.80	6.6/25	NBR	DUP-365
P180100802	10.00	55.00	5/25.00	NBR	DUP-418
P180106601	10.00	90.00	6.00/35.00	FKM	DUP-113
P180101001	10.50	50.00	26	NBR	DUP-129
P180121009	12.00	60.00	5/25	NBR	DUP-230
P180121016	12.00	70.00	5/22	NBR	DUP-360
P18012V201	12.00	70.00	5/30	NBR	DUP-387
P180121015	12.00	75.00	10/32	NBR	DUP-357
P180121020	12.00	75.00	5.50/29.50	NBR	DUP-175
P180121017	12.00	80.00	5/25	NBR	DUP-366
P180120809	12.00	80.00	5/30	NBR	DUP-201
P180126701	12.00	90.00	11.1/35.00	FKM	DUP-465
P180121019	12.00	100.00	10.00/35.00	NBR	DUP-166
P180123501	12.00	100.00	7.1/35	EPDM	DUP-411
P18012V202	12.00	110.00	7/40	NBR	DUP-422
P210160804	16.00	80.00	5.50/16	NBR	DUP-433
P180160901	16.00	80.00	6/25	NBR	DUP-424
P180161003	16.00	100.00	25	NBR	DUP-267
P180161005	16.50	60.00	5/26	NBR	DUP-356
P180186601	18.00	63.00	32	FKM	DUP-260
P180201001	20.00	50.00	5/26	NBR	DUP-237
P180201007	20.00	70.00	5/30	NBR	DUP-392
P180200901	20.00	70.00	6.00/30.00	NBR	DUP-127
P180200803	20.00	80.00	6/31	NBR	DUP-373
P180200802	20.00	81.00	31	NBR	DUP-185
P180201003	20.00	100.00	10/35.00	NBR	DUP-253
P18020S801	20.00	120.00	40	NBR	DUP-383
P180206603	20.00	130.00	10.00/40.00	FKM	DUP-122
P180206601	20.00	130.00	8/13/40.00	FKM	DUP-321
P180201002	20.00	140.00	40	NBR	DUP-176
P180201008	20.00	145.00	11.00/45.00	NBR	DUP-120
P180201103	20.00	150.00	11/40	NBR	DUP-412
P180206604	20.00	180.00	10.00/40.00	FKM	DUP-121
P180206602	20.00	180.00	10.00/40.00	FKM	DUP-265
P180201006	20.00	200.00	11.30/40	NBR	DUP-372
P180206402	20.20	100.00	7.00/33.00	FKM	DUP-157
P180236601	23.00	150.00	40.00	FKM	DUP-136
P180251001	25.00	120.00	9/39	NBR	DUP-364
P180300801	30.00	125.00	50	NBR	DUP-116
P180301004	30.00	130.00	10/40	NBR	DUP-459
P180301005	30.00	160.00	11/40.00	NBR	DUP-482
P180301001	30.00	160.00	6/20	NBR	DUP-199
P180301002	30.00	200.00	10/40	NBR	DUP-257
P180301101	30.00	250.00	13/40	NBR	DUP-379
P180340801	34.50	150.00	40	NBR	DUP-396
P180350801	35.00	150.00	9.50/43.00	NBR	DUP-170
P180601002	60.00	300.00	12/40	NBR	DUP-258
P180650901	65.00	135.00	8/42.00	NBR	DUP-475
P180756701	75.00	125.00	9/40	FKM	DUP-444
P180926601	92.00	125.00	11/40	FKM	DUP-398
P181051001	105.00	300.00	12/40	NBR	DUP-339
